ChemTron APM/LCP/Helda Rotational Viscometer Accessories
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model Series | APM / LCP / Heldal |
| Pricing | Upon Request |
Overview
ChemTron APM, LCP, and Heldal accessories are precision-engineered rotational viscometer adapters designed to extend the measurement capability of ChemTron viscometers (ALPHA/SMART and PREMIUM series) across extreme viscosity ranges and constrained sample volumes. These accessories operate on the principle of controlled shear rate application via coaxial cylinder geometry—where torque generated by a rotating spindle immersed in the sample is measured under defined angular velocity and temperature conditions. Each adapter type addresses a distinct rheological challenge: the APM series targets high-precision measurement of small-volume, medium-to-high viscosity samples; the LCP series enables accurate low-viscosity characterization with minimal sample consumption; and the Heldal system implements vertical oscillatory motion combined with T-shaped spindles to quantify yield stress and apparent viscosity of non-flowing, highly structured materials such as creams, pastes, and gels. All units comply with ISO 2555 and ASTM D2196 standards for rotational viscosity testing and are engineered for seamless mechanical and electronic integration with ChemTron’s modular viscometer platforms.
Key Features

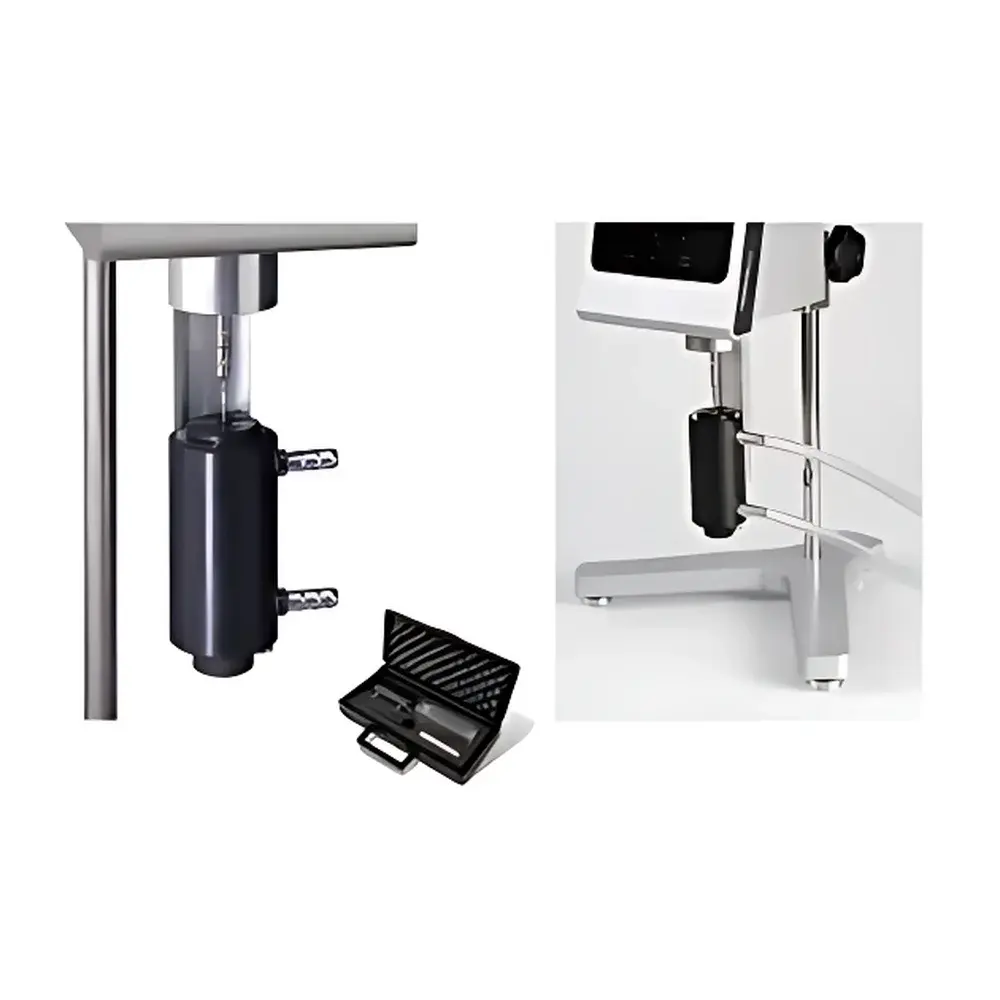

- APM Small-Sample Adapter: Cylindrical stainless steel (AISI 316) sample chamber with coaxial spindle; jacketed or immersion-type temperature control; sample volume range 6.7–13 mL; operating temperature range −10 °C to +100 °C (up to +200 °C with optional jacket configuration); compatible with TL (for L-series) or TR (for R-series) spindles.

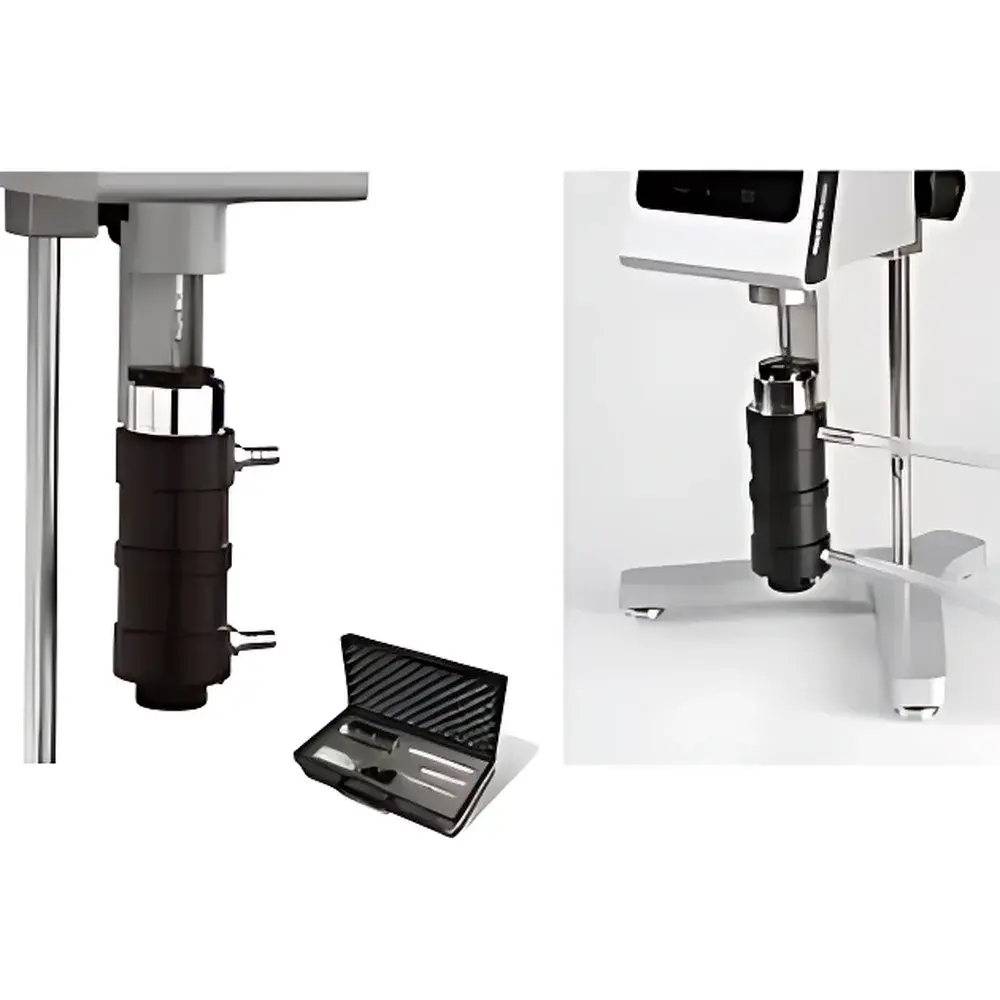

- LCP Low-Viscosity Adapter: Optimized geometry for Newtonian and near-Newtonian fluids; fixed 16 mL sample volume; jacketed or immersion cooling/heating; integrated PT100 sensor option for direct sample temperature monitoring; enhanced sensitivity for sub-10 cP measurements.
- Heldal High-Viscosity Adapter: Motor-driven vertical displacement mechanism enabling helical trajectory measurement; includes six T-shaped spindles and rigid polymer transport case; eliminates wall-slip artifacts common in conventional cup-and-bob systems when testing yield-stress materials.
- All adapters feature tool-free disassembly, autoclavable components, and corrosion-resistant wetted surfaces conforming to FDA-compliant material specifications.
Sample Compatibility & Compliance
The APM, LCP, and Heldal adapters support diverse sample matrices including pharmaceutical suspensions, cosmetic emulsions, food pastes, polymer melts, and industrial coatings. Their stainless steel construction ensures chemical compatibility with aqueous, organic, and mildly acidic/basic formulations. Temperature control fidelity meets ISO 17025 calibration traceability requirements when paired with certified thermostatic baths. The adapters are validated for use in GLP-regulated environments and support audit-ready data generation per FDA 21 CFR Part 11 when operated with ChemTron’s compliant software suite. Compliance documentation—including material certificates, dimensional verification reports, and thermal stability test records—is available upon request for quality assurance departments.
Software & Data Management
Full bidirectional communication is maintained between each adapter and ChemTron’s proprietary ViscoSoft™ software (v5.2+), enabling real-time parameter synchronization, automatic range selection based on spindle geometry and instrument model, and dynamic temperature compensation algorithms. Software modules support multi-point shear rate sweeps, thixotropy analysis (hysteresis loop quantification), and time-dependent viscosity profiling. Raw torque and angular velocity data are logged at ≥100 Hz sampling rate with embedded timestamping and user-defined metadata tagging. Export formats include CSV, Excel (.xlsx), and PDF reports compliant with internal SOPs and external regulatory submissions (e.g., USP , EP 2.2.27).
Applications
- APM: Quality control of vaccine adjuvants, silicone oils, and battery electrolytes where sample scarcity and thermal sensitivity demand precise small-volume rheology.
- LCP: Characterization of solvents, thin coatings, inkjet inks, and low-viscosity resins requiring resolution below 5 cP without dilution artifacts.
- Heldal: Formulation development of topical dermatological products, edible spreads, and sealants where yield point, structural recovery, and creep compliance must be quantified under realistic processing shear histories.
FAQ
Which viscometer models are compatible with the APM/LCP/Helda adapters?
All adapters are mechanically and electronically certified for use with ChemTron ALPHA, SMART, and PREMIUM series viscometers (L-, R-, and H-model configurations). Firmware version 4.8 or higher is required for full functionality.
Can I use standard spindles with these adapters?
No. Each adapter requires dedicated spindles: TL/TR for APM, pre-calibrated LCP spindles, and T-series spindles for Heldal. Cross-use invalidates calibration and violates ISO 2555 compliance.
Is temperature calibration traceable to national standards?
Yes. Optional PT100 sensors are NIST-traceable and supplied with individual calibration certificates (ISO/IEC 17025 accredited lab). Jacketed systems maintain ±0.1 °C stability over 30-minute dwell periods.
Do these accessories support automated GMP batch record generation?
When used with ViscoSoft™ GxP Edition and connected to a validated networked environment, all adapters support electronic signatures, change-controlled method templates, and immutable audit trails meeting Annex 11 and ALCOA+ principles.
