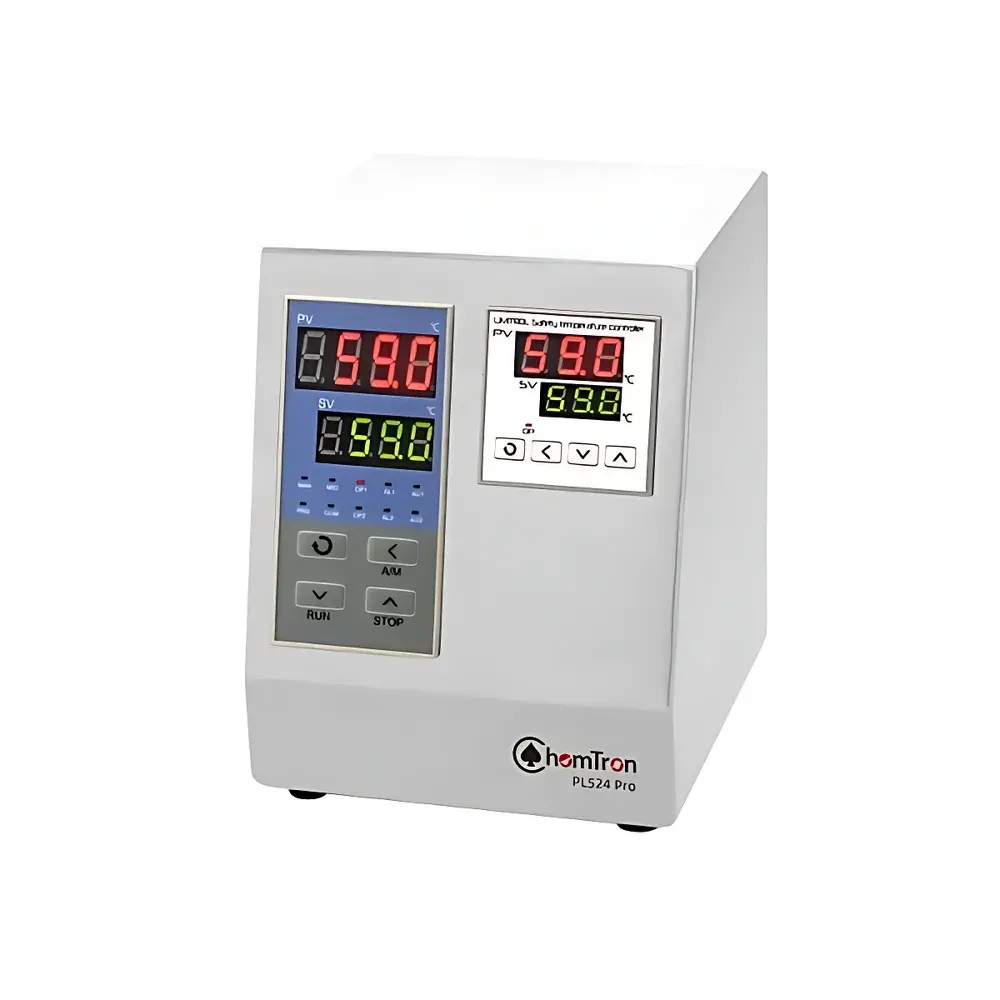

ChemTron PL524 Pre Programmable Precision Temperature Controller

Overview

The ChemTron PL524 Pre is a high-precision, programmable temperature controller engineered for demanding laboratory and pilot-scale thermal process control. Based on dual-CPU architecture—featuring a dedicated real-time microcontroller for closed-loop control and sampling, and an ARM-based processor for HMI rendering and data logging—the PL524 Pre delivers deterministic response times and robust immunity to electromagnetic interference (4 kV EFT tested per IEC 61000-4-4). Its core function is precise, stable thermal regulation of electric heating mantles, oil baths, metal blocks, and jacketed reactors via analog output (typically 4–20 mA or 0–10 V) to external solid-state relays or SCR power controllers. The device implements an adaptive AI-enhanced PID algorithm, specifically optimized for systems with long thermal time constants and significant transport lags—such as glassware-heating assemblies or viscous media baths—enabling overshoot-free ramping and minimal steady-state deviation (< ±0.03 °C). Designed in Germany and built to industrial-grade reliability standards, it serves as a critical component in GLP-compliant thermal validation workflows, reaction calorimetry support, and material aging studies.

Key Features

• Dual-sensor input capability: Simultaneous connection and independent monitoring of two Pt100 RTDs or two Type K thermocouples—enabling redundant sensing or differential temperature measurement.
• 30-segment programmable ramp-soak profiles: Fully customizable temperature trajectories with independent rate limits, dwell times, and endpoint actions (e.g., hold, shutdown, alarm trigger).
• 0.01 °C display resolution and 0.1-class accuracy traceable to national metrological standards, supporting ISO/IEC 17025-compliant calibration documentation.
• TFT graphical touchscreen interface (PL524 Pre variant): Intuitive, smartphone-style navigation with multi-language support, real-time trend plotting, and on-device event log storage (≥10,000 entries).
• Real-time data export via RS485 Modbus RTU protocol: Enables integration into SCADA systems, LIMS, or custom Python/Node-RED automation frameworks without proprietary drivers.
• Hardware-level safety interlocks: Independent overtemperature cutoff circuitry, sensor break detection, and configurable alarm thresholds with relay dry-contact outputs for external shutdown cascades.

Sample Compatibility & Compliance

The PL524 Pre is compatible with standard laboratory heating devices including electric heating mantles (e.g., 50–5000 mL capacity), circulating water/oil baths, aluminum heating blocks, and Peltier-cooled stages when paired with appropriate power interfaces. It supports direct connection to ChemTron-compatible heating systems and third-party mantle controllers meeting 4–20 mA setpoint input specifications. From a regulatory standpoint, the unit conforms to CE marking requirements under the EU Electromagnetic Compatibility Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Its deterministic control loop behavior, audit-trail-capable event logging, and non-volatile parameter storage align with FDA 21 CFR Part 11 principles for electronic records in regulated environments—particularly when deployed in conjunction with validated software platforms for thermal process qualification (e.g., ASTM E2893, USP , ISO 17025 Clause 7.8.2).

Software & Data Management

While the PL524 Pre operates autonomously without PC dependency, its embedded RS485 interface enables bidirectional communication with host systems using open Modbus RTU registers. Users may configure, monitor, and archive temperature profiles via third-party SCADA tools (e.g., Ignition, WinCC OA) or lightweight Python scripts leveraging pymodbus. On-device data includes timestamped setpoint/actual temperature pairs, alarm events, and CPU status flags—retained across power cycles in flash memory. Firmware updates are performed via USB-C port using signed binary files, ensuring integrity verification prior to installation. No cloud connectivity or vendor-hosted services are included; all data remains under full user control—consistent with institutional IT security policies governing laboratory instrumentation.

Applications

• Control of exothermic/endothermic reaction kinetics studies in jacketed glass reactors, where precise thermal ramping and stability directly impact Arrhenius parameter derivation.
• Calibration and verification of reference thermometers and thermocouple wire in metrology labs, per ISO/IEC 17025 clause 6.5.2.
• Accelerated aging tests for polymers, adhesives, and pharmaceutical excipients per ASTM D3045 or ICH Q1A(R2) guidelines.
• Temperature profiling during solvent distillation, rotary evaporation, and Soxhlet extraction to optimize yield and prevent thermal degradation.
• Integration into automated synthesis platforms requiring synchronized thermal and stirring control via PLC-linked analog I/O.

FAQ

What sensor types does the PL524 Pre support?
It accepts two independent Pt100 RTD inputs (2-wire, 3-wire, or 4-wire configurations) or two Type K thermocouples. Auto-sensing and cold-junction compensation are implemented in hardware.
Can the PL524 Pre be used with cooling devices such as Peltier elements or recirculating chillers?
Yes—when configured in bipolar output mode (with compatible external power modules), it supports both heating and cooling actuation for applications requiring sub-ambient control down to –100 °C.
Is the 30-segment program stored permanently after power loss?
Yes. All program parameters, setpoints, and system configuration settings are retained in non-volatile EEPROM with >1 million write cycles endurance.
Does the unit provide NIST-traceable calibration certificates?
ChemTron offers optional factory calibration with ISO/IEC 17025-accredited certificates, including uncertainty budgets at three points across the operating range.
How is firmware updated, and is version rollback supported?
Firmware is updated via USB-C using signed binaries; the bootloader preserves one prior version for safe rollback if validation fails.
