Corning 410-Vis Hyperspectral Imaging System

Overview

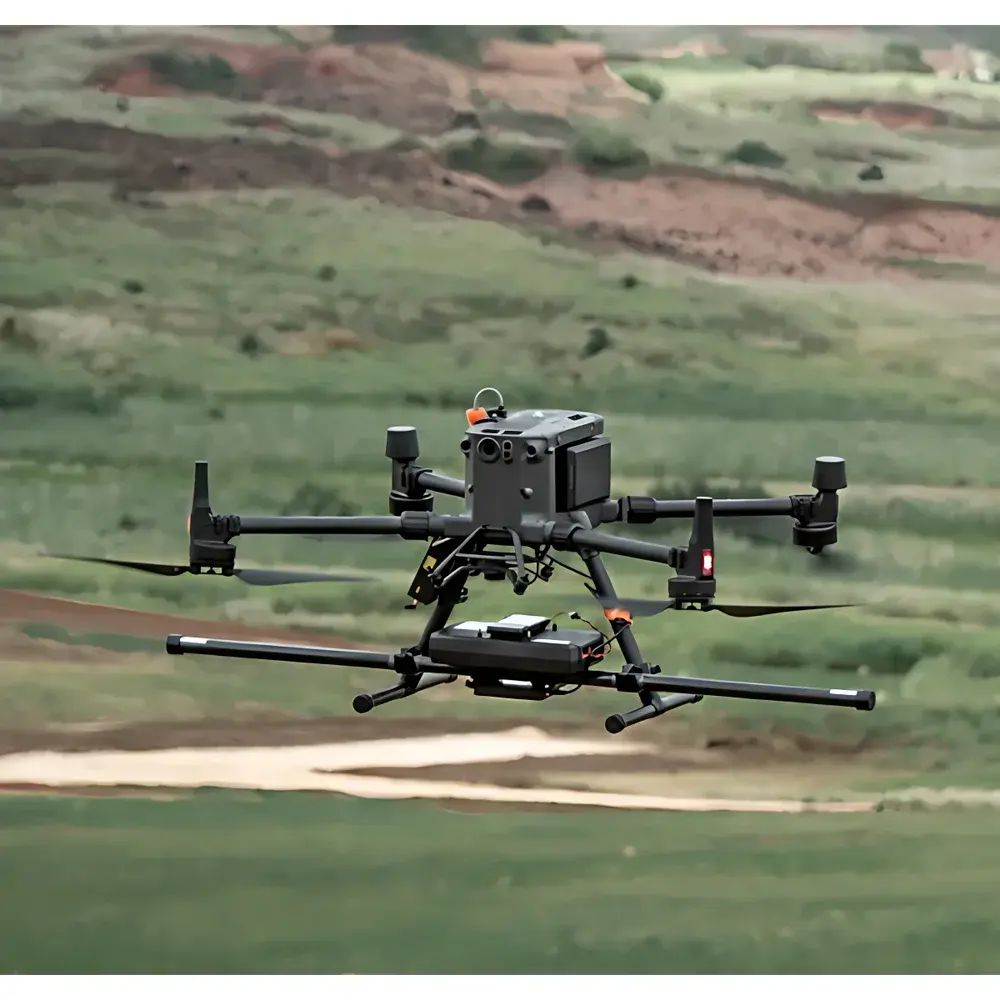

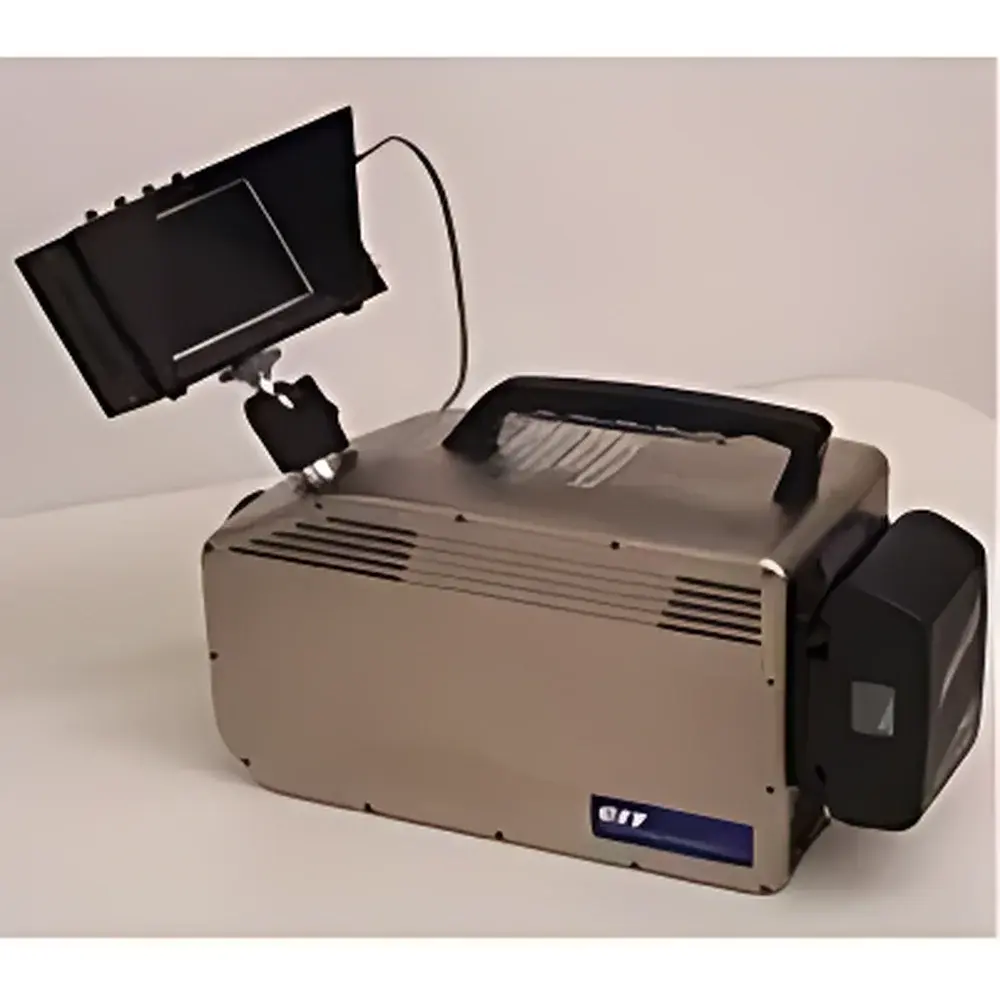

The Corning 410-Vis Hyperspectral Imaging System is a field-deployable, dual-mode (airborne and terrestrial) hyperspectral sensor engineered for scientific-grade spectral data acquisition across the visible to near-infrared (VNIR) spectrum (400–1000 nm). It employs a dispersive push-broom imaging architecture centered on a patented Offner spectrometer design—featuring a diamond-turned, high-efficiency reflective diffraction grating and a custom high-quantum-efficiency CMOS focal plane array (FPA). This optical configuration ensures minimal stray light, high spectral fidelity, and exceptional signal-to-noise ratio (SNR) under variable illumination conditions. The system integrates a synchronized dual-camera subsystem: one dedicated to high-resolution panchromatic imaging (12 MP, global shutter, AI-assisted motion compensation via MEMS gyroscope), and the other to hyperspectral cube generation. Its compact, ruggedized mechanical housing and low-power embedded control architecture make it suitable for integration onto fixed-wing UAVs, rotary-wing platforms, ground-based gimbals, or tripod-mounted survey rigs.

Key Features

• Patented Offner imaging spectrometer with diamond-machined reflective grating for superior optical throughput and spectral linearity
• Hybrid 4000 × 3000 spatial resolution detector array coupled with 1408 spectral channels (full cube: 682 × 80,000 × 1408)
• Configurable frame rates (100–300 Hz in 7 discrete steps), automatically matched to platform speed and ground sampling distance (GSD)
• Tightly coupled MEMS-based inertial navigation system (INS) co-registered with GPS, enabling real-time georeferencing at <10 cm horizontal and <5 cm vertical accuracy (RTK-enabled)
• Onboard radiometric calibration engine supporting dark current subtraction, flat-field correction, and optional solar irradiance normalization
• Embedded microcontroller running deterministic real-time OS; supports trigger synchronization with external sensors (LiDAR, thermal cameras, GNSS receivers)
• Export-ready data formats including raw DN, radiometrically corrected L1B cubes, and georeferenced L2A reflectance products compliant with NASA’s CEOS conventions

Sample Compatibility & Compliance

The 410-Vis is designed for non-contact, passive remote sensing of natural and anthropogenic surfaces. It does not require sample preparation and is compatible with heterogeneous, dynamic scenes—including vegetated canopies, mineral outcrops, soil profiles, water bodies, and urban infrastructure. Its VNIR spectral response enables robust detection of diagnostic absorption features associated with chlorophyll-a/b, carotenoids, cellulose, lignin, iron oxides, clay minerals, and carbonate species. The system conforms to ISO 17025-accredited calibration traceability protocols for radiometric and geometric performance validation. Data acquisition workflows support GLP-compliant metadata logging (including UTC timestamps, INS quaternions, temperature-stabilized detector bias states), and optional audit trails align with FDA 21 CFR Part 11 requirements when deployed in regulated environmental monitoring programs.

Software & Data Management

Corning provides the proprietary Hyperscan Studio suite—a cross-platform (Windows/Linux) application for real-time preview, onboard quality assurance (QA), and post-processing. Core modules include spectral unmixing (using constrained least-squares and vertex component analysis), endmember extraction (N-FINDR, VCA), vegetation index mapping (NDVI, PRI, MCARI), and mineral identification via spectral angle mapper (SAM) against USGS and JPL spectral libraries. All processing preserves full bit-depth fidelity (16-bit DN → 32-bit float reflectance). Export options include ENVI-compatible .hdr/.dat, GeoTIFF with embedded GDAL georeferencing, and netCDF-4 containers with CF-1.7 metadata conventions. API access (Python/C++) enables integration into automated pipelines compliant with OGC SensorThings API and ISA-95 manufacturing execution systems.

Applications

• Precision Agriculture: Early stress detection (water deficit, nitrogen deficiency, pathogen infestation) via time-series spectral trajectory analysis
• Environmental Monitoring: Wetland delineation, invasive species mapping, post-fire regeneration assessment, and coastal eutrophication tracking
• Geological Survey: Lithological discrimination, alteration zone identification, and exploration targeting using continuum-removed absorption feature depth analysis
• Forestry Management: Species classification, canopy health quantification (via photochemical reflectance index), and biomass estimation
• Urban Remote Sensing: Material classification (roof types, pavement aging), heat island effect modeling, and impervious surface mapping

FAQ

Is the 410-Vis compatible with third-party UAV platforms?
Yes—it supports standard MAVLink v2.0 and STANAG 4586 interfaces, with documented pinouts for Pixhawk, Auterion, and DJI SkyPort integrations.

What calibration standards are included with delivery?
Each unit ships with NIST-traceable reflectance panels (2%, 50%, 99% Lambertian), a portable integrating sphere for dark current characterization, and factory-generated spectral response function (SRF) files.

Can the system operate without real-time GNSS/INS input?
Yes—data can be acquired in “free-run” mode with post-mission kinematic PPP/RTK processing using RINEX logs and IMU telemetry.

Does the software support batch processing of large hyperspectral datasets?
Yes—Hyperscan Studio includes a headless CLI mode and job queue manager optimized for HPC clusters and cloud-based S3 object storage ingestion.

What is the mean time between failures (MTBF) under continuous airborne operation?
Rated at ≥5,000 hours (per MIL-HDBK-217F predictions), validated through accelerated life testing at 55°C ambient and 8 G vibration profiles.
