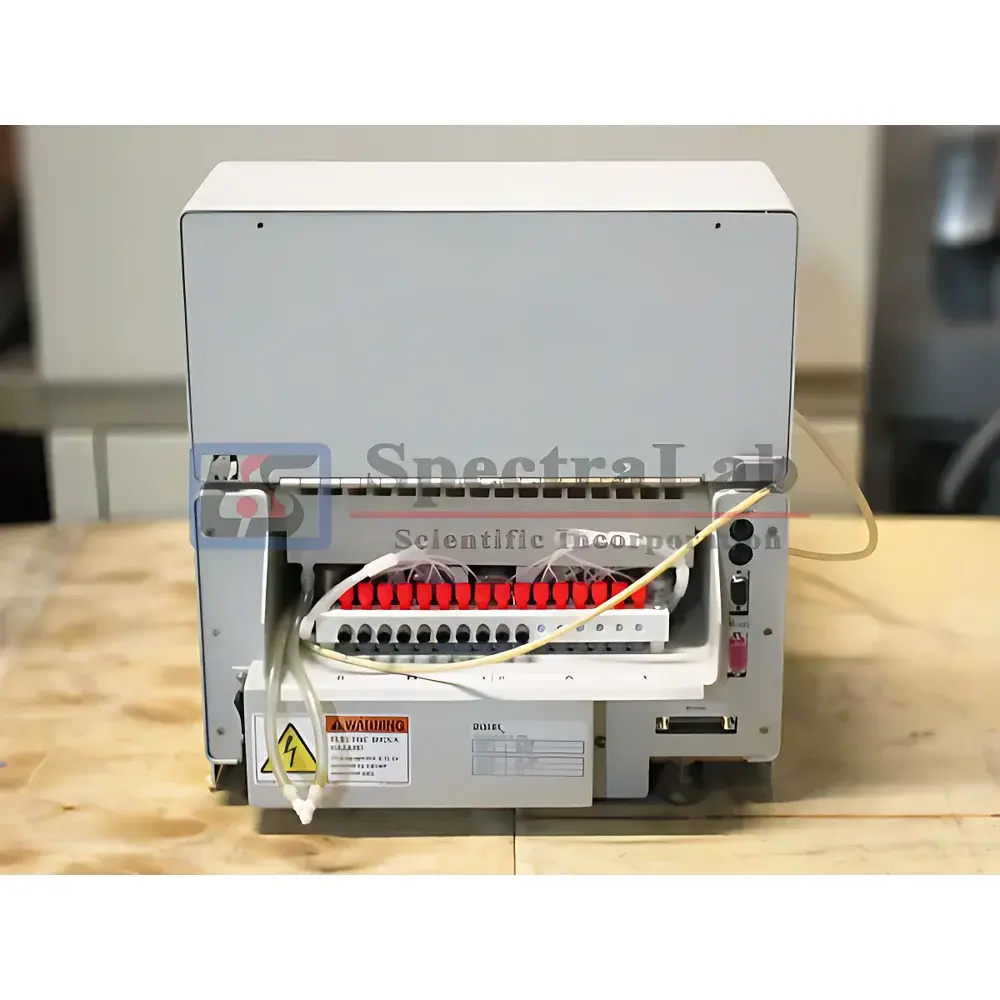

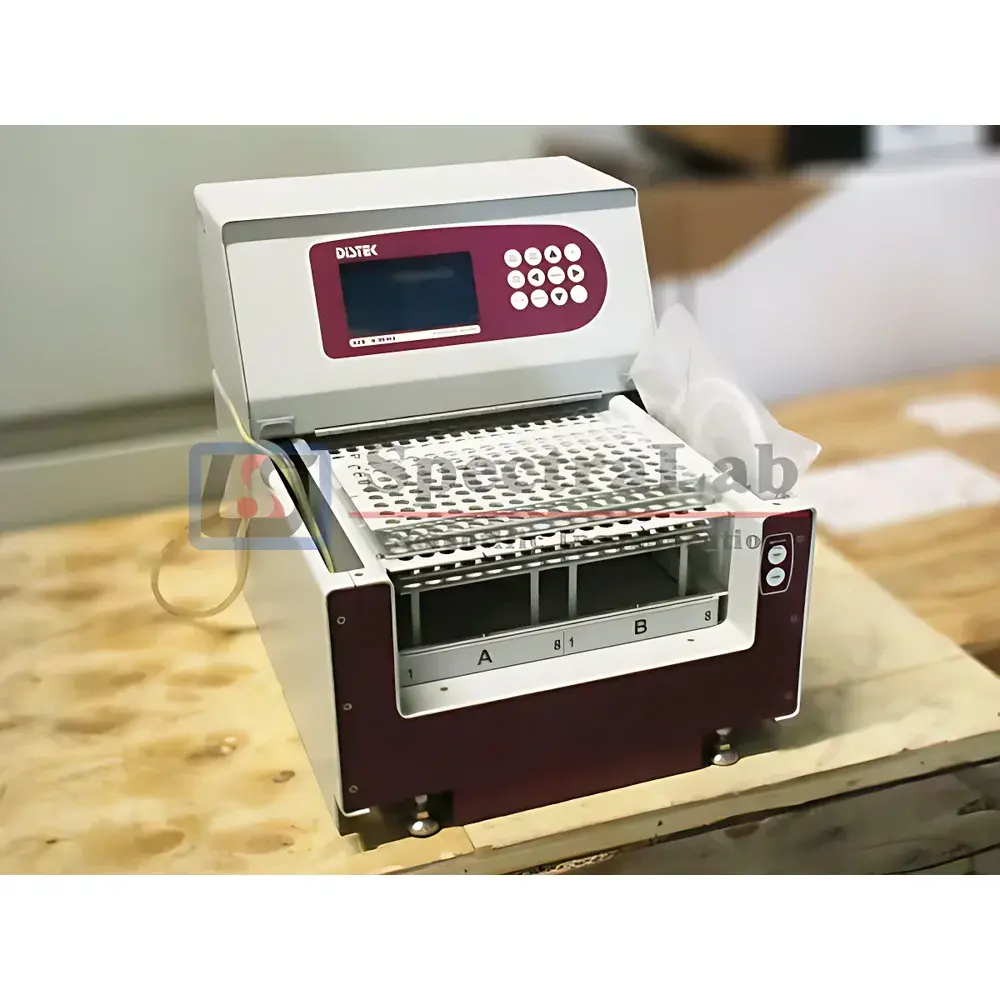

Distek Evolution 4300 Automated Sampling System for Dissolution Testing

Overview

The Distek Evolution 4300 is a fully automated, programmable dissolution sampling system engineered for precision, reproducibility, and regulatory compliance in pharmaceutical quality control and formulation development laboratories. Built upon a robust dual-syringe-pump architecture, it implements positive-displacement fluid handling to ensure volumetric accuracy across extended unattended operation—critical for USP Apparatus I (basket) and II (paddle) dissolution testing protocols. Unlike gravity-fed or peristaltic alternatives, the Evolution 4300 eliminates flow variability caused by viscosity changes, head pressure fluctuations, or tubing fatigue. Its core function is to execute timed, sequential withdrawals from up to 12 dissolution vessels immersed in a temperature-controlled water bath—without manual intervention—while simultaneously managing media recirculation, replenishment, and optional on-board dilution. The system operates independently of HPLC or UV-Vis instrumentation but interfaces seamlessly with them via standardized sample tube formats (e.g., 8-mL vials and HPLC-compatible autosampler vials), enabling direct downstream analysis.

Key Features

• Dual independent high-precision syringe pumps: Each pump supports programmable aspiration and dispense cycles, enabling concurrent execution of two distinct sampling protocols (e.g., different intervals, volumes, or vessel subsets).
• True bidirectional sampling: Capable of both withdrawal from dissolution vessels and return of unused medium to maintain hydrodynamic consistency—minimizing volume drift and preserving sink conditions.
• Media management suite: Integrated recirculation loop reduces solvent consumption; automatic replenishment compensates for cumulative volume loss due to sampling—essential for maintaining pharmacopeial compliance over multi-hour runs.
• Configurable sample collection: Supports volumes from 0.1 mL to 20.0 mL per withdrawal; accommodates 6- or 12-vessel configurations with flexible tube rack layouts (including 8-mL tubes and 2-mL HPLC vials via included adapters).
• On-board dilution module: Programmable post-sampling dilution with user-defined factors per sample or globally applied—reducing manual handling and cross-contamination risk during high-concentration assays.
• Intuitive touchscreen interface with role-based access control: Supports multiple user logins with configurable permissions; all method parameters, run logs, and system events are timestamped and stored locally with export capability (CSV/USB).

Sample Compatibility & Compliance

The Evolution 4300 is validated for use with standard USP dissolution apparatuses and compatible with common dissolution media (e.g., aqueous buffers, surfactant solutions, organic-aqueous mixtures). Its stainless-steel wetted path components and chemically resistant tubing (e.g., PTFE, fused silica capillaries) ensure compatibility with aggressive solvents used in extended-release or poorly soluble drug testing. From a regulatory standpoint, the system supports GLP and GMP environments through electronic audit trail generation, operator authentication, and immutable run records—aligning with FDA 21 CFR Part 11 requirements when deployed with validated software configuration and appropriate procedural controls. It meets ASTM E2503 and USP mechanical calibration guidelines for sampling accuracy and timing fidelity.

Software & Data Management

The embedded controller firmware stores up to seven complete sampling protocols, each supporting up to 99 hours of scheduled activity with intervals as short as 5 minutes (subject to pump speed and media viscosity constraints). All method parameters—including vessel mapping, withdrawal volume, delay times, rinse cycles, and dilution ratios—are editable directly on-device or via optional PC-based configuration tools. Raw event logs capture every actuator command, sensor reading, and error state with millisecond-level timestamps. Data export is supported via USB mass storage; no proprietary drivers or cloud dependencies are required. For laboratories operating under full computerized system validation (CSV), the platform permits integration into broader LIMS or ELN ecosystems via ASCII-based serial or Ethernet communication protocols.

Applications

• Pharmaceutical QC labs performing routine dissolution release testing per USP, EP, or JP monographs.
• Formulation R&D teams evaluating IVIVC correlations using dense time-point sampling profiles.
• Stability-indicating method development where automated, low-volume sampling minimizes disturbance to dissolution kinetics.
• Biopharmaceutics classification system (BCS) studies requiring precise volume recovery and minimal carryover between sequential time points.
• Contract testing organizations (CTOs) managing parallel dissolution campaigns across multiple products with traceable, auditable workflows.

FAQ

Is the Evolution 4300 compatible with third-party dissolution baths?
Yes—the system communicates via standard analog/digital I/O signals and does not require proprietary bath integration; it has been verified with leading vendors including Hanson, Agilent, and Sotax.
Can sampling intervals be adjusted dynamically during a run?
No—intervals are fixed at protocol initiation to ensure timing reproducibility; however, multiple protocols may be queued for sequential execution.
What maintenance is required for the syringe pumps?
Routine inspection of syringe seals and tubing wear is recommended every 500 hours of operation; calibration verification should be performed before critical batches per internal SOPs.
Does the system support remote monitoring or networked control?
Basic Ethernet connectivity enables file transfer and status polling; full remote operation requires local IT infrastructure alignment and firewall configuration per site security policy.
Is this unit suitable for sterile or low-bioburden environments?
The hardware is not designed for ISO Class 5 cleanroom use; however, its sealed pump modules and disposable fluid paths permit installation in controlled laboratory environments with appropriate environmental monitoring.
