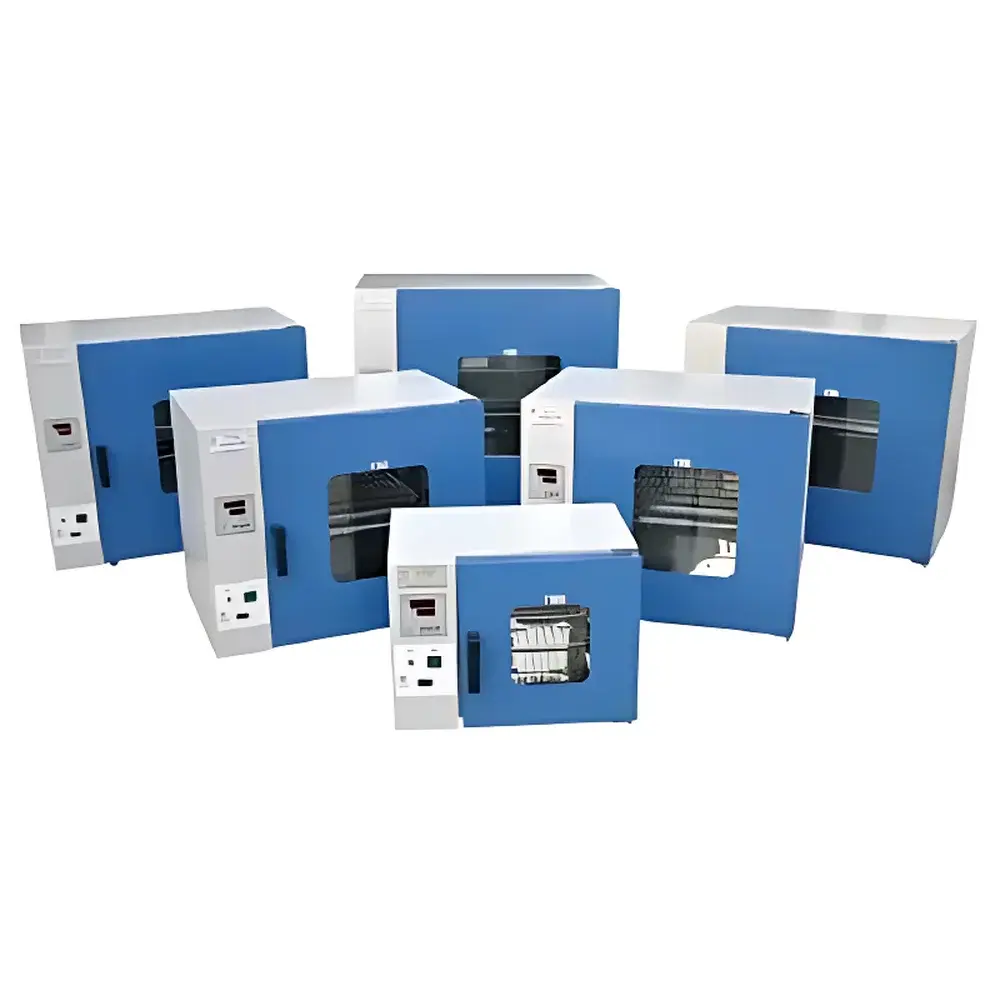

Donghua DHG-9140A Forced-Air Laboratory Drying Oven with Digital LCD Display and Mirror-Finish Stainless Steel Chamber

Overview

The Donghua DHG-9140A is a precision-engineered forced-air laboratory drying oven designed for consistent thermal processing in research, quality control, and production environments. Utilizing convection-based heat transfer via an internal axial fan and optimized airflow ducting, the unit maintains uniform temperature distribution across its 136-liter mirror-finish stainless steel chamber—critical for applications requiring reproducible drying, baking, sterilization, or moisture removal. The microprocessor-controlled PID temperature system operates within a range of ambient +10°C to 250°C, with resolution to 0.1°C and stability maintained at ±1°C under standardized no-load test conditions (20°C ambient, 50% RH, vibration-free environment). Its robust construction—featuring welded carbon steel outer casing and seamless, corrosion-resistant 304 stainless steel interior with rounded corners—ensures long-term durability, ease of decontamination, and compliance with routine cleaning validation protocols in GLP and GMP-aligned laboratories.

Key Features

• Mirror-finish 304 stainless steel inner chamber with radius-rounded corners for simplified cleaning and reduced particulate retention.
• Digital LCD interface with intuitive menu navigation, real-time temperature readout, and programmable timer (1–9999 minutes).
• Microcomputer PID temperature controller with auto-tuning capability, offering improved setpoint accuracy and reduced overshoot during thermal ramping.
• Independent over-temperature safety cutoff circuit: automatically disables heating elements if chamber temperature exceeds user-defined limit—meeting IEC 61000-4-2 ESD immunity and EN 60519-2 electrical safety requirements for laboratory equipment.
• Low-noise, high-temperature-rated centrifugal blower integrated into a symmetrical air recirculation path—validated to achieve ≤±1.5°C spatial uniformity across all shelf positions at 100°C (per GB/T 5170.2-2017).
• Two adjustable, load-rated stainless steel shelves included as standard; additional trays available upon request for multi-layer sample processing.

Sample Compatibility & Compliance

The DHG-9140A accommodates a broad spectrum of non-volatile, thermally stable samples—including glassware, metal parts, polymer substrates, pharmaceutical excipients, soil specimens, and biological assay plates—provided they remain inert below 250°C. Its chamber geometry supports standard ISO 8573-1 Class 4 compressed air-dried components and ASTM D2240-compliant elastomer conditioning protocols. While not certified for Class II biological containment or explosive atmospheres, the oven conforms to general-purpose laboratory safety standards including GB 4793.1 (equivalent to IEC 61010-1) for electrical safety and GB/T 2423.2 (IEC 60068-2-2) for dry heat testing applications. Documentation packages support audit readiness for ISO/IEC 17025 accreditation, including factory calibration certificates traceable to NIM (National Institute of Metrology, China).

Software & Data Management

The DHG-9140A operates as a standalone instrument without proprietary software dependency. All operational parameters—including setpoint, actual temperature, elapsed time, and remaining timer duration—are displayed in real time on the front-panel LCD. For laboratories requiring electronic recordkeeping, optional RS-485 serial output (Modbus RTU protocol) enables integration with SCADA systems or LIMS platforms for automated data logging. When connected to compliant data acquisition hardware, the unit supports 21 CFR Part 11–aligned audit trails when paired with validated third-party software—enabling timestamped event logging (e.g., door opening, temperature deviation alerts, power interruption recovery) required under FDA-regulated quality systems.

Applications

• Moisture content determination per AOAC 950.46 and USP <731> Loss on Drying (LOD) procedures.
• Pre- and post-weighing desiccation of filter papers, crucibles, and gravimetric standards in environmental and chemical analysis labs.
• Baking of printed circuit board (PCB) substrates and curing of epoxy-coated components in electronics manufacturing QA.
• Sterilization of non-critical lab tools (e.g., spatulas, forceps) where steam autoclaving is unsuitable.
• Accelerated aging studies of packaging materials under controlled thermal stress (ISO 11607-1 Annex C).
• Conditioning of hygroscopic reference standards prior to titration or chromatographic analysis.

FAQ

What is the maximum operating temperature of the DHG-9140A?

The unit is rated for continuous operation up to 250°C. Extended use above 220°C may reduce heater element service life and requires verification of sample thermal stability.

Does the oven include calibration documentation?

Each unit ships with a factory-issued temperature calibration report (at 100°C and 200°C), traceable to national metrological standards via NIM-certified reference probes.

Can the DHG-9140A be used for sterilization of medical devices?

It meets dry-heat sterilization parameters (160°C for 120 min or 170°C for 60 min) per ISO 15883-5, but validation must be performed in situ using biological indicators and thermocouple mapping per ISO 11140-5.

Is the stainless steel chamber electropolished?

No—the interior features a mechanically polished #4 finish (Ra ≤ 0.8 µm), sufficient for routine cleaning and residue removal; electropolishing is available as a custom option.

What maintenance intervals are recommended?

Inspect air intake filters quarterly; verify door gasket integrity biannually; recalibrate temperature sensors annually or after any physical impact or extended high-temperature cycling.
