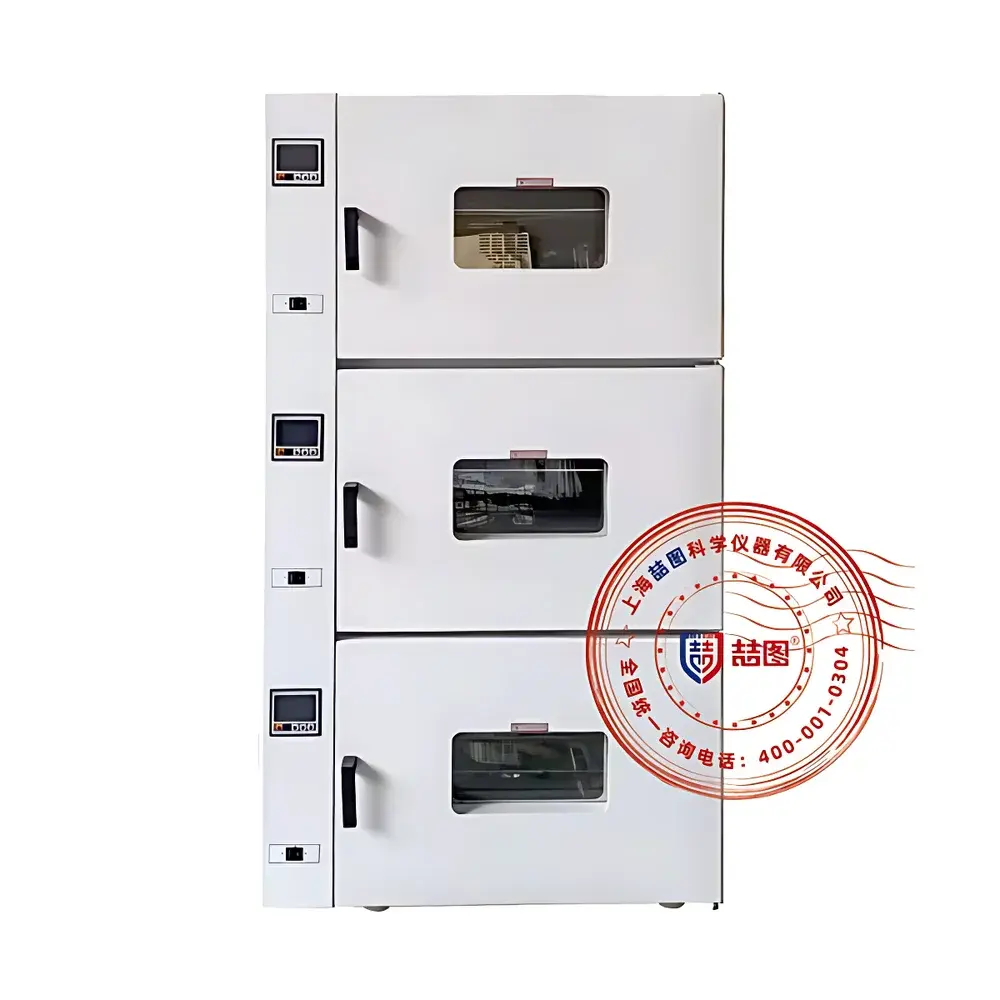

DRETOP XZ-151-III Multi-Chamber Integrated Vacuum Drying Oven

Overview

The DRETOP XZ-151-III Multi-Chamber Integrated Vacuum Drying Oven is an engineered solution for high-throughput, thermally sensitive drying under controlled low-pressure environments. Unlike conventional convection ovens, this system operates by evacuating ambient air via integrated vacuum pumping—reducing partial pressure to suppress boiling points and inhibit oxidative degradation. Its triple-chamber architecture enables parallel processing of heterogeneous samples while maintaining independent thermal zoning and vacuum integrity per chamber. Designed for applications demanding strict thermal stability and inert atmosphere control, the XZ-151-III employs external heating elements mounted on double-walled stainless steel chambers, eliminating internal radiant sources that could disturb powder morphology or induce cross-contamination. This configuration ensures uniform heat transfer through conduction across chamber walls—ideal for drying nanomaterials, pharmaceutical intermediates, battery electrode slurries, and biological specimens where airflow-induced particle dispersion must be avoided.

Key Features

• Triple independent stainless steel chambers (380 L total capacity; 750 × 530 × 380 mm per chamber), each sealed with dual-stage rotary latches and silicone gaskets rated for sustained operation at ≤133 Pa
• Microprocessor-based PID temperature controller with 0.1°C resolution, ±0.5°C stability across full range (RT+10 to 250°C), and programmable ramp/soak profiles
• External heating design minimizes internal turbulence—critical for powders, granules, thin-film coatings, and fragile crystalline structures
• Large-format LCD interface with tri-color status display (green/amber/red), real-time vacuum pressure readout, and self-diagnostic fault code reporting
• Comprehensive safety architecture: overtemperature cutoff, leakage current protection, thermal fuse redundancy, and non-volatile parameter memory with power-loss recovery
• High-efficiency fiberglass insulation between outer shell and inner chamber walls reduces standby energy consumption by >35% versus standard mineral wool systems
• Reinforced viewing window with dual-layer tempered glass and anti-fog coating permits continuous visual monitoring without vacuum break

Sample Compatibility & Compliance

The XZ-151-III accommodates diverse sample geometries—from microcentrifuge tubes and ceramic wafers to large-scale industrial molds—via adjustable 304 stainless steel trays with removable supports. Its external heating topology eliminates protruding resistive elements inside chambers, enabling unobstructed placement of irregularly shaped components (e.g., optical lens assemblies, fuel cell stacks, or MEMS substrates). For regulatory-driven workflows, the system supports GLP-compliant documentation when paired with optional RS485 interface and embedded printer modules. Vacuum performance meets ASTM E145-22 requirements for Class II vacuum ovens, and thermal uniformity complies with ISO 17025 calibration traceability protocols. Optional inert gas purging (N₂ or Ar) facilitates oxygen-sensitive processes aligned with USP packaging material stability testing guidelines.

Software & Data Management

While the base unit features a stand-alone microcontroller interface, optional connectivity packages enable integration into centralized laboratory informatics systems. The RS485 port supports Modbus RTU protocol for remote setpoint adjustment, real-time data logging (temperature, vacuum pressure, elapsed time), and alarm event transmission to SCADA platforms. When equipped with the DRETOP DataLink™ software suite (sold separately), users gain audit-trail functionality compliant with FDA 21 CFR Part 11—including electronic signatures, user access levels, and immutable record retention. All temperature and vacuum logs are timestamped and exportable in CSV format for statistical process control (SPC) analysis using JMP or Minitab.

Applications

• Electronics manufacturing: moisture removal from PCB laminates, die-attach curing, and solvent evaporation from photoresist-coated wafers
• Lithium-ion battery R&D: electrode drying under inert vacuum to prevent LiPF₆ decomposition and SEI layer disruption
• Pharmaceutical development: lyophilization pre-drying of monoclonal antibodies, excipient dehydration, and stability testing per ICH Q1A(R3)
• Materials science: thermal treatment of MOFs, graphene oxide dispersions, and metal-organic precursors without thermal runaway
• Environmental testing: soil/sediment moisture analysis per EPA Method 505, and pesticide residue stabilization prior to GC-MS quantification
• Academic research: controlled pyrolysis of biopolymers, catalyst activation under reducing atmospheres, and vacuum annealing of perovskite thin films

FAQ

What distinguishes external heating from internal heating in vacuum drying ovens?
External heating isolates resistive elements outside the vacuum chamber—eliminating convective currents and electrostatic discharge risks during high-vacuum operation. It also simplifies cleaning and improves long-term seal integrity.
Can the XZ-151-III accommodate custom vacuum pump configurations?
Yes—standard models accept optional two-stage rotary vane pumps (D8/D16/D24 series) or oil-free scroll pumps for cleanroom-compatible operation. Vacuum line interfaces conform to ISO-KF25 standards.
Is temperature uniformity validated per chamber or across the entire system?
Each chamber undergoes individual mapping per DIN EN 61000-4-30, with probe positions defined at geometric center and six cardinal points. Full-load uniformity remains within ±0.5°C at 120°C.
Does the system support inert gas backfilling for oxygen-sensitive processes?
Optional mass-flow-controlled inert gas inlet valves (N₂, Ar) are available with integrated pressure regulators and leak-tight quick-connect fittings.
How is data integrity ensured during extended unattended runs?
Non-volatile memory retains all active parameters and runtime logs for ≥72 hours after power loss. Optional battery-backed real-time clock maintains accurate timestamps across outages.
