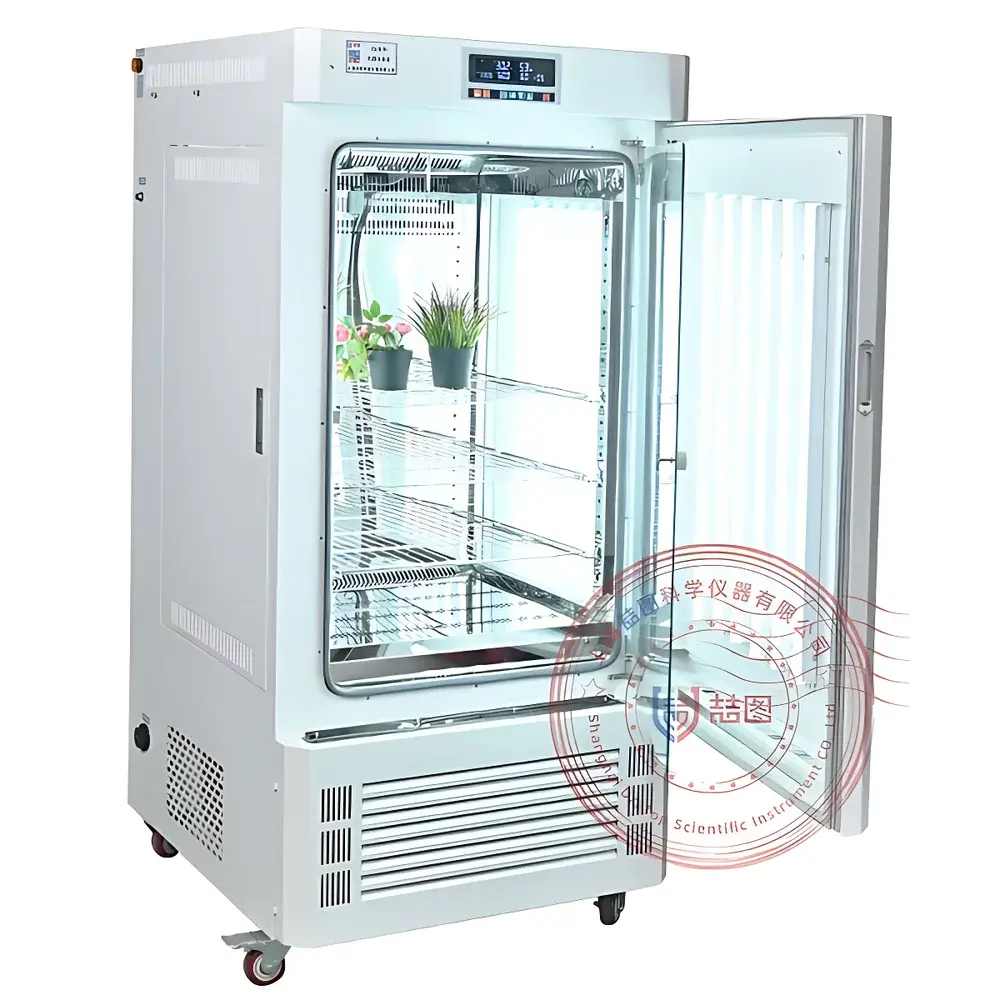

DRETOP ZGC Series Plant Growth Chamber

Overview

The DRETOP ZGC Series Plant Growth Chamber is a precision-engineered environmental control system designed for reproducible, long-term plant physiology studies, photobiological assays, and microbiological cultivation under tightly regulated thermal and photometric conditions. Built upon a dual-mode thermoregulatory architecture—capable of maintaining stable setpoints across both illuminated and dark phases—the chamber employs a combination of Peltier-assisted cooling, nickel-chromium resistive heating, and intelligent compressor cycling to achieve ±0.5°C temperature fluctuation and uniformity across the entire working volume. Its triple-sided LED illumination system delivers calibrated photosynthetically active radiation (PAR) within the visible spectrum (400–700 nm), enabling simulation of natural diurnal cycles and spectral tuning for species-specific developmental responses. Unlike generic incubators, the ZGC Series integrates photoperiod programming directly into its thermal control logic—allowing independent day/night temperature profiles synchronized with light-on/light-off transitions—making it suitable for controlled-environment phenotyping, seed germination kinetics, and abiotic stress modeling in academic, agricultural, and pharmaceutical research settings.

Key Features

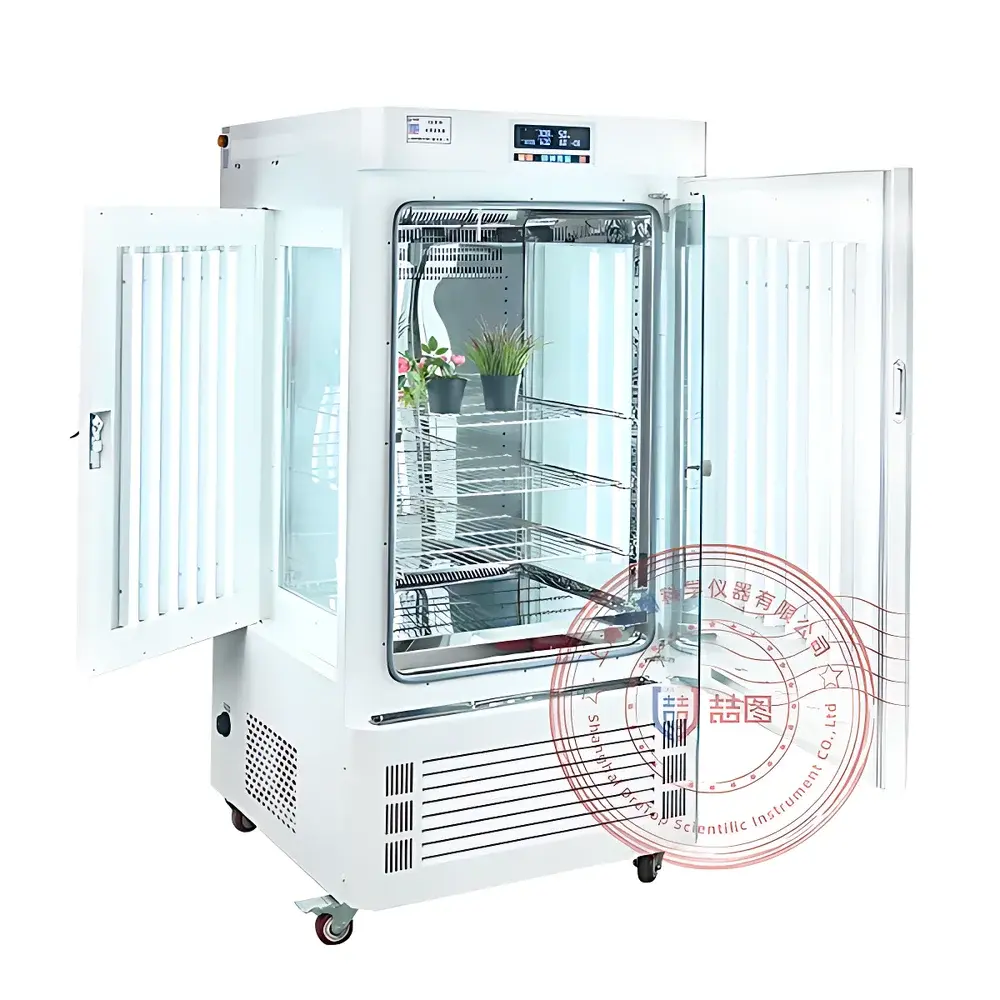

• Triple-sided high-output LED array with programmable intensity grading (up to 25,000 lx), supporting single-, dual-, or triple-face irradiation configurations; optional vertical irradiation modules available for canopy-level or root-zone targeting.
• 30-stage microprocessor-based controller with real-time display of temperature, illuminance, and operational status; supports fixed-setpoint, day/night cycle, and multi-step ramp-hold programs.
• Stainless steel interior (SUS304) with removable, height-adjustable shelves and seamless corner welds—designed for autoclave-compatible cleaning and ISO-compliant surface hygiene.
• Dual-door observation system: inner tempered glass door + outer magnetic-sealed insulated door—minimizing thermal leakage while maximizing optical clarity and operator safety.
• Modular refrigeration unit with compressor start-delay protection, inter-cycle cooldown intervals, and self-diagnostic fault logging—ensuring >20,000 hours of continuous operation reliability.
• Energy-efficient R134a refrigerant system compliant with Montreal Protocol phase-out requirements; dynamic power modulation reduces standby consumption by up to 38% versus conventional constant-load compressors.
• Configurable spectral output: standard white LEDs (5000K CCT) or user-selectable red (660 nm) / blue (450 nm) ratio modules—validated for photomorphogenic response studies in Arabidopsis, lettuce, tomato, and medicinal herbs including Dendrobium officinale.

Sample Compatibility & Compliance

The ZGC Series accommodates a wide range of biological specimens—from Petri dishes and Magenta boxes to multi-tier growth trays and hydroponic racks—within volumes spanning 150 L to 1000 L. Its dry-chamber design (0% RH baseline) eliminates condensation-related contamination risks during prolonged microbial culture or sterile plant tissue propagation. All internal surfaces meet ISO 14644-1 Class 8 particulate cleanliness standards when operated under laminar airflow supplementation. The system complies with electromagnetic compatibility requirements per IEC 61000-6-3 and undergoes thermal stability validation per GB/T 2423.2 (high-temperature operational testing). While not certified for GLP/GMP production environments, its data integrity features—including parameter memory retention, power-fail recovery, and configurable alarm thresholds—support audit-ready documentation in research-grade laboratories adhering to OECD Test Guidelines 208 (Terrestrial Plant Toxicity) and ASTM E2912 (Standard Practice for Controlled Environment Chambers).

Software & Data Management

Standard models feature an embedded 30-segment programmable controller with non-volatile EEPROM storage—retaining all user-defined protocols and runtime logs during mains interruption. T-Series variants integrate a 7-inch capacitive touchscreen interface supporting CSV export via USB port, real-time trend visualization (last 60 minutes of temperature/illuminance), and LED lifespan monitoring with predictive maintenance alerts. Optional RS485 Modbus RTU communication enables integration into LabVantage, Benchling, or custom SCADA systems for centralized environmental log aggregation. Password-protected multi-tier access (three distinct privilege levels) enforces procedural accountability; time-limited session locks prevent unauthorized configuration changes beyond defined experimental windows. All firmware updates are delivered via signed binary packages verified against SHA-256 checksums—ensuring traceability and cryptographic integrity per NIST SP 800-193 guidelines.

Applications

• Controlled-environment phenotyping of crop mutants under defined photoperiods and temperature gradients.
• Photomorphogenesis studies involving phytochrome and cryptochrome signaling pathways.
• BOD incubation for wastewater microbiology (per Standard Methods 5210B).
• In vitro propagation of orchids, ginseng, and other high-value medicinal plants requiring precise light quality control.
• Preclinical evaluation of light-dependent drug metabolism in fungal biotransformation systems.
• Calibration reference chambers for radiometric sensor validation in agricultural remote sensing labs.

FAQ

Does the ZGC Series support humidity control?
No—this is a dry-chamber configuration optimized for applications where moisture-induced condensation or mold growth must be avoided. For combined temp/humidity control, consider the DRETOP ZH Series Environmental Chambers.
Can I retrofit my existing ZGC unit with red/blue LED modules?
Yes—DRETOP offers field-upgrade kits compatible with all ZGC-II and ZGC-T models manufactured after Q3 2022. Retrofit requires firmware version ≥V2.4.1 and physical replacement of LED driver boards only.
Is the touchscreen interface validated for 21 CFR Part 11 compliance?
The T-Series touchscreen supports electronic signature capture and audit trail generation but requires site-specific validation per FDA guidance. DRETOP provides IQ/OQ documentation templates upon request.
What is the expected lifetime of the LED arrays under continuous operation?
Rated at 50,000 hours L70 (lumen maintenance to 70% initial output) at 25°C ambient, assuming nominal drive current and proper thermal management via the chamber’s integrated heat-sink ducting.
Are third-party calibration certificates available?
Yes—NIST-traceable temperature and illuminance calibration reports (per ISO/IEC 17025) can be ordered at time of purchase or scheduled annually through DRETOP’s certified service network in Germany, Singapore, and the USA.
