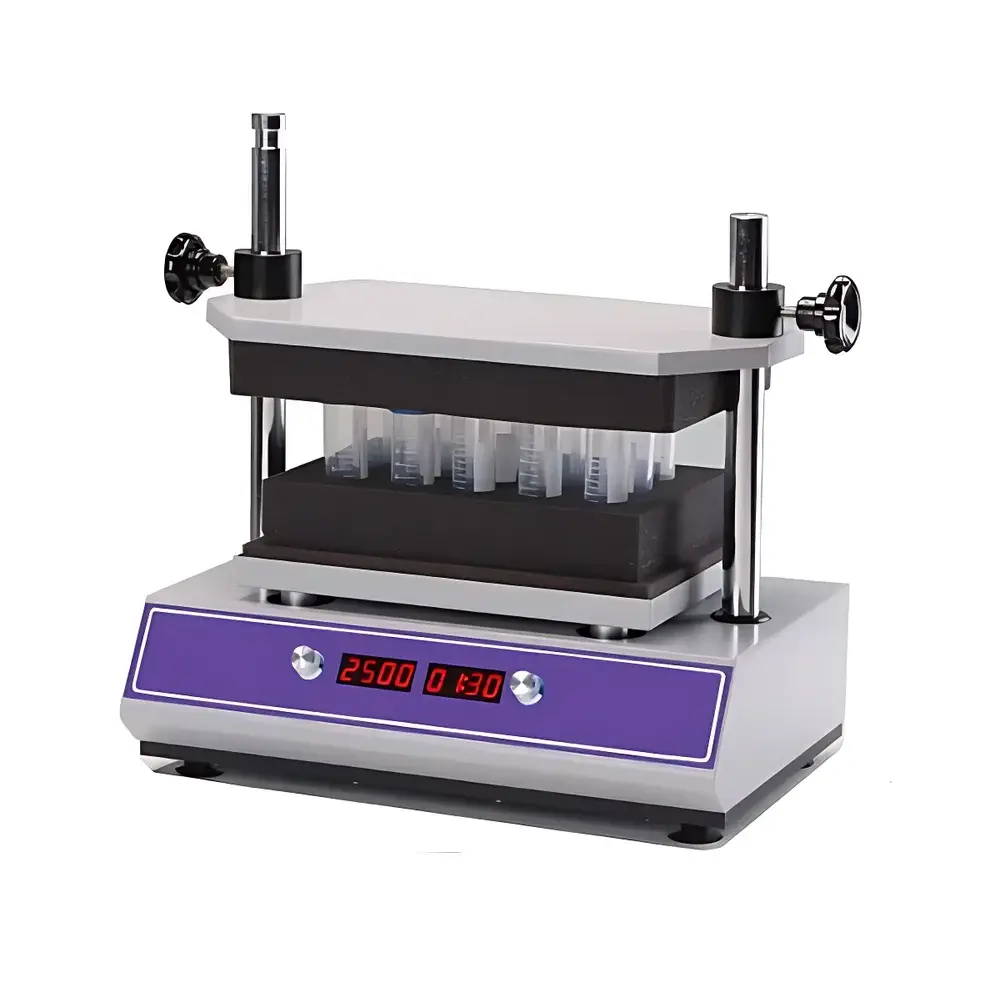

DS DMT-2500 Multi-Tube Vortex Mixer

Overview

The DS DMT-2500 Multi-Tube Vortex Mixer is an engineered solution for high-throughput sample homogenization in analytical, clinical, and research laboratories. Based on rotary orbital oscillation—where a motor-driven eccentric drive imparts controlled circular motion to the platform—the instrument generates consistent vortexing action across multiple tubes simultaneously. Unlike single-tube vortexers, the DMT-2500 accommodates up to 50 samples in parallel without cross-contamination risk or manual intervention, significantly reducing hands-on time per batch. Its robust ABS housing, low-noise brushless motor, and stable mechanical architecture ensure long-term reproducibility under routine QC/QA workflows. Designed for compliance-critical environments, the mixer operates within defined electrical safety standards (IEC 61010-1) and supports GLP-aligned documentation when integrated with laboratory information management systems (LIMS).

Key Features

• High-capacity platform supporting simultaneous vortexing of up to 50 tubes—optimized for standardized assay preparation, nucleic acid extraction, immunoassay plate pre-mixing, and reagent resuspension.
• Precise microprocessor-controlled speed regulation (500–2500 rpm) with ±50 rpm accuracy at maximum setting, enabling method transfer across instruments and labs.
• Dual operational modes: touch-activated pulse mode for rapid transient mixing and programmable timer mode (1 second to 9999 minutes) for unattended incubation-integrated protocols.
• LED digital display provides real-time feedback of set and actual speed, elapsed time, and remaining duration—critical for audit-ready process logging.
• Ergonomic top plate (311 × 184 mm) with removable, autoclavable foam racks; standardized footprint ensures compatibility with biosafety cabinets and cold-room installations.
• Low-power consumption (60 W) and wide-input voltage range (100–230 V, 50/60 Hz) support global deployment without external transformers or frequency converters.

Sample Compatibility & Compliance

The DMT-2500 accepts a full suite of interchangeable foam tube holders (DMT-A through DMT-F), accommodating common labware including 0.5 mL, 1.5 mL, and 2.0 mL microcentrifuge tubes (Ø10–13 mm), 15 mL conical tubes (Ø16 mm), and 50 mL centrifuge tubes (Ø25–29 mm). Each rack is dimensionally consistent (245 × 132 × 45 mm), ensuring uniform force distribution and minimizing tube tipping during high-speed operation. The 4 mm orbital amplitude delivers sufficient shear for viscous suspensions while preserving cellular integrity in delicate biological samples. All materials comply with RoHS Directive 2011/65/EU and are free from phthalates and halogenated flame retardants. While not certified for ISO 13485 or FDA 21 CFR Part 11 out-of-the-box, the device supports traceable operation when paired with external electronic logbooks meeting ALCOA+ principles.

Software & Data Management

The DMT-2500 operates as a standalone hardware platform with no embedded firmware update capability or network interface. However, its deterministic timing and repeatable speed control make it suitable for integration into validated workflows requiring documented parameter settings. Users may record operational parameters—including speed, duration, rack type, and sample count—in paper-based or LIMS-linked electronic batch records. For laboratories implementing 21 CFR Part 11-compliant systems, the mixer’s physical controls and LED display provide clear evidence of operator intent and execution, satisfying requirement §11.10(b) for audit trails when combined with procedural SOPs and signature logs.

Applications

• High-throughput sample preparation for ELISA, PCR, and Western blot workflows where uniform suspension of coated beads or antibody-conjugated particles is essential.
• Cell lysis buffer equilibration prior to centrifugation, ensuring consistent protein extraction yields across replicate samples.
• Homogenization of soil, sediment, or food matrices in environmental and agricultural testing labs compliant with ASTM D5116 and ISO 11464.
• Reconstitution of lyophilized standards and calibrators in clinical chemistry and reference material laboratories adhering to CLSI EP26-A guidelines.
• Pre-analytical mixing of whole blood, serum, or plasma specimens prior to automated analyzer loading—reducing pipetting variability and clot formation artifacts.

FAQ

What is the maximum number of tubes the DMT-2500 can process simultaneously?
Up to 50 tubes using standard 12 mm foam racks (DMT-B); capacity varies with rack selection (e.g., 15 tubes for Ø29 mm format).
Is the DMT-2500 suitable for use inside a refrigerated environment?
Yes—the unit operates reliably at ambient temperatures from 4 °C to 40 °C and maintains mechanical stability under condensation-prone conditions when placed on level, vibration-dampened surfaces.
Can the speed be calibrated or verified externally?
Speed verification is achievable using a non-contact optical tachometer; DS provides no built-in calibration port, but ±50 rpm tolerance at 2500 rpm meets ISO 8662-2 requirements for laboratory shakers.
Are replacement racks and tray pads available as consumables?
Yes—all DMT-series foam racks (A–F) and dual-layer tray pads (DMT-H) are stocked as field-replaceable parts with manufacturer-specified shelf life and lot traceability.
Does the DMT-2500 generate electromagnetic interference (EMI) that could affect nearby sensitive instrumentation?
EMI emissions conform to CISPR 11 Group 1, Class B limits; no shielding or isolation is required when installed ≥30 cm from mass spectrometers, NMR consoles, or electrophysiology rigs.
