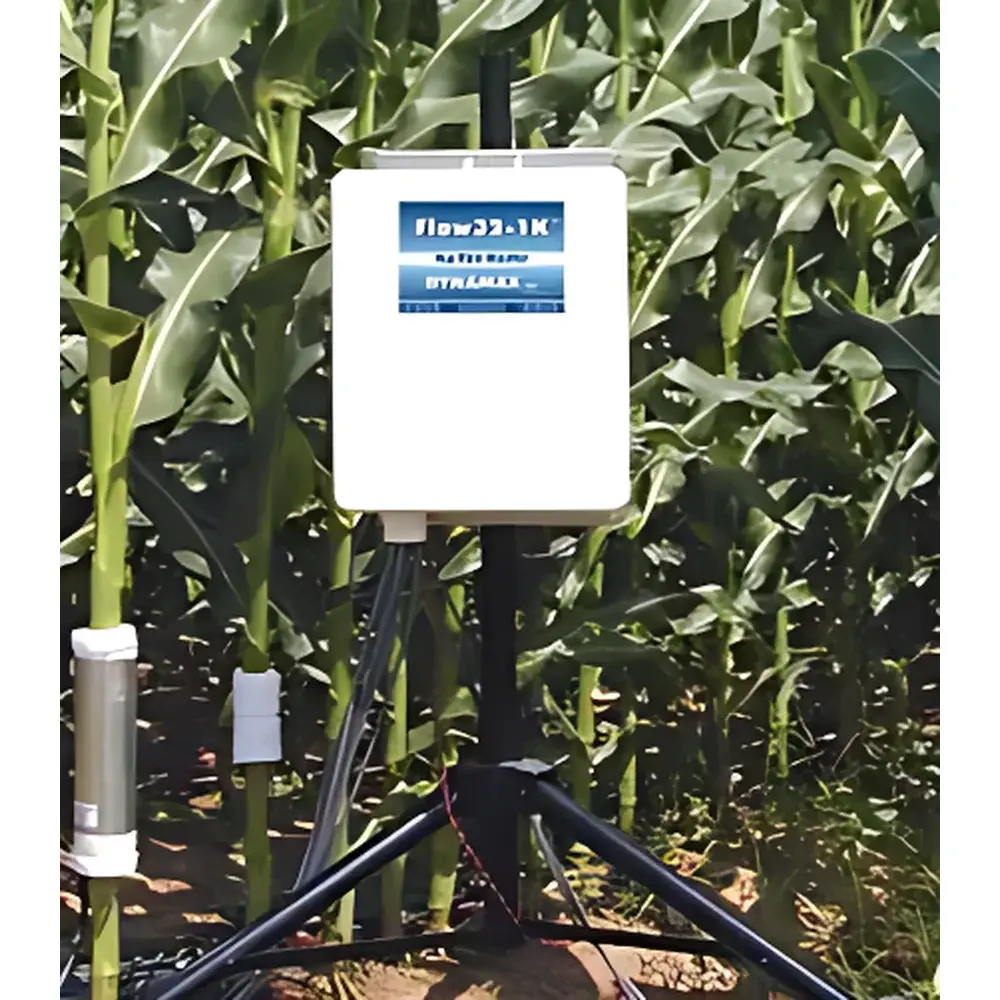

Dynamax Flow32-1K Wrap-Around Sap Flow Measurement System

Overview

The Dynamax Flow32-1K Wrap-Around Sap Flow Measurement System is a field-deployable, energy-balance-based instrumentation platform engineered for continuous, non-invasive quantification of sap flux density and whole-plant water use in woody species. It operates on the principle of heat balance thermodynamics: a constant low-power heating element embedded in the Dynagage sensor induces a controlled thermal gradient across the sapwood; concurrent measurement of upstream and downstream temperature differentials enables calculation of sap velocity via the heat pulse or energy balance method—depending on sensor configuration and deployment protocol. Unlike invasive methods such as thermal dissipation or heat ratio probes, the Flow32-1K’s wrap-around design eliminates stem wounding, minimizing physiological disturbance while maintaining high reproducibility across repeated measurements. The system is calibrated to output real-time sap flow rates in g/hr or kg/hr, directly traceable to physical heat transport equations without empirical calibration against transpiration benchmarks.

Key Features

• Modular architecture centered on the CR1000 datalogger with embedded sap flow computation routines compliant with ISO 10262:2021 (Plant physiology — Determination of sap flow rate)
• Support for up to 32 Dynagage sensors via AM16/32 relay multiplexer—enabling synchronized multi-tree or multi-crown monitoring within a single network
• Dual-voltage regulation (AVRDC) ensures stable 1.0–1.5 V DC supply to each sensor, critical for maintaining consistent heater power and thermal signal fidelity under variable solar loading and ambient temperature
• Robust NEMA 4X-rated fiberglass enclosure (43 × 35 × 16 cm), weatherproof, lockable, and pole-mount compatible for long-term unattended operation in tropical, temperate, and arid field environments
• Onboard 2 MB memory stores hourly raw thermocouple data for ≥1 year, daily aggregated metrics for ≥1 year, and processed sap flow time series for up to 8 sensors over 8 months
• Integrated 7 Ah/12 V sealed lead-acid battery with 220 V AC charger (4.5 A output), supporting >30 days autonomy under typical 15-min sampling intervals

Sample Compatibility & Compliance

The Flow32-1K is validated for use on broadleaf and coniferous species with stem diameters ranging from 5 cm to >80 cm. Its flexible, self-tensioning aluminum housing accommodates natural radial expansion and contraction without mechanical slippage or thermal decoupling. Sensor placement follows standardized protocols aligned with ASTM E2912-13 (Standard Guide for Installation of Sap Flow Sensors) and FAO Irrigation and Drainage Paper No. 56 guidelines for crop water use estimation. Data integrity meets GLP audit requirements: all raw voltage inputs (±2.5 mV range, resolution 0.33 µV), temperature differentials, and computed sap flux values are timestamped with millisecond precision and stored with immutable metadata (sensor ID, location, installation date, firmware version).

Software & Data Management

The Flow32-1K ships with proprietary PC-based software (Windows-compatible) that implements peer-reviewed algorithms for sap flux conversion—including corrections for wood thermal properties, xylem anatomy, and axial heat conduction bias. Raw .dat files are exportable in CSV and NetCDF formats for integration into R (sapfluxnetr), Python (xarray, pandas), or MATLAB workflows. The system supports optional cellular or LoRaWAN telemetry modules for remote data retrieval and threshold-based alerting (e.g., sustained zero-flow events indicating drought stress or embolism). All computational steps adhere to FDA 21 CFR Part 11 principles: electronic signatures, audit trails, and version-controlled algorithm libraries are available upon request for regulated environmental monitoring applications.

Applications

• Long-term ecohydrological studies assessing forest water use responses to climate variability and CO₂ enrichment
• Irrigation scheduling and deficit irrigation optimization in orchards and vineyards using real-time plant-based water status indicators
• Validation of land surface models (e.g., CLM, ORCHIDEE) and satellite-derived evapotranspiration products (MOD16, SSEBop)
• Physiological phenotyping of drought-tolerant genotypes in breeding programs under controlled and field conditions
• Urban forestry research quantifying transpiration cooling effects and stormwater interception by street trees

FAQ

How does the Flow32-1K differ from thermal dissipation probes?
It uses active heating and dual-point thermometry to solve the energy balance equation directly, eliminating reliance on empirical k-coefficients and reducing sensitivity to wood moisture content and probe insertion depth.
Can the system operate autonomously for over six months?
Yes—when paired with supplemental solar charging (optional 20 W panel), battery life extends beyond 180 days at 30-minute sampling intervals.
Is firmware update capability supported remotely?
Firmware updates require local USB connection to the CR1000; however, configuration changes and data retrieval can be performed via RS-232 or optional Ethernet module.
Does the system comply with USDA ARS or NSF-funded project instrumentation requirements?
Yes—the CR1000 datalogger carries UL 61010-1 certification, and the entire Flow32-1K platform conforms to NSF Standard 350 for environmental monitoring equipment used in federally funded ecological research.
What level of technical support is provided for data interpretation?
Dynamax provides application-specific guidance documents, peer-reviewed validation datasets, and access to certified training workshops on sap flow theory, sensor installation best practices, and uncertainty propagation analysis.
