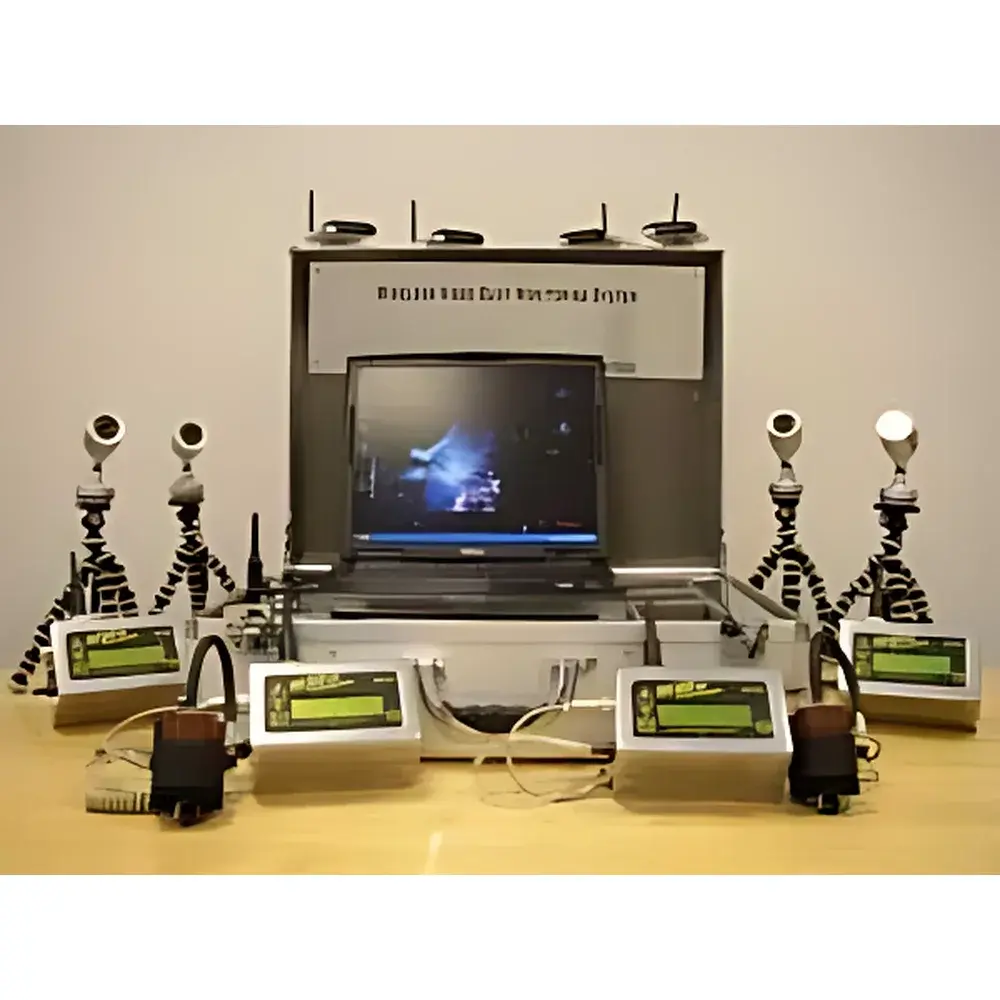

EDC VDM-7500 Video-Based Real-Time Dust & Particulate Monitoring System

Overview

The EDC VDM-7500 Video-Based Real-Time Dust & Particulate Monitoring System is an integrated environmental monitoring instrument engineered for occupational health and industrial hygiene applications. Unlike conventional pump-driven filter-based samplers—limited to time-weighted average (TWA) exposure assessment—the VDM-7500 employs synchronized video imaging and real-time particulate mass concentration estimation calibrated against NIOSH-recommended gravimetric reference methodology. Its core measurement architecture combines optical particle visualization with algorithmic size-classified mass concentration inference, enabling dynamic, spatially resolved exposure profiling within the worker’s breathing zone. The system does not rely on laser scattering or beta attenuation; instead, it correlates high-resolution NTSC video streams of airborne particles (captured at 30 fps) with concurrent gravimetric sampling data to generate traceable, time-stamped concentration values in mg/m³. This dual-modality approach satisfies the technical requirements for OSHA-compliant exposure documentation while supporting kinetic analysis of dust generation events—such as welding fume plumes, abrasive blasting, or material handling operations.

Key Features

• Real-time video imaging (color, 2.4 GHz wireless NTSC transmission) synchronized with particulate mass concentration output
• Breathing-zone sampling design with selectable inlet geometry optimized for inhalable fraction (PM₁₀₀) collection
• Integrated gravimetric module: 37 mm disposable membrane filter holder with post-sampling weight analysis capability
• Wireless bidirectional communication (up to 150 m line-of-sight) between monitor, camera, and host PC via RS-232 serial interface and 20 kbps RF link
• On-device LCD display (4-digit, 20-character) showing instantaneous concentration, TWA, STEL, min/max values, date/time, and alarm status
• Configurable sampling intervals (1 second to 10 minutes) and logging depth (21,500 data points, up to 21 weeks of continuous storage)
• Four-button intuitive interface with 4-digit security lock for configuration access control
• Embedded analog output (0–2 VDC) and audible alarm (90 dB @ 3 ft) for integration into facility-wide safety systems

Sample Compatibility & Compliance

The VDM-7500 is validated for quantitative monitoring of respirable and inhalable airborne particulates across a broad aerodynamic diameter range (0.1–100 µm), including metal fumes, silica dust, coal dust, wood flour, and pharmaceutical powders. Its gravimetric correlation protocol aligns with NIOSH Method 0600 and OSHA ID-125G for total dust assessment. While not certified for Class I/II hazardous locations, the unit meets general-purpose electrical safety standards per UL 61010-1 and operates reliably under ambient conditions (0–50 °C, ≤95% RH non-condensing). All stored data—including timestamped video frames, concentration logs, and metadata—support audit-ready documentation for GLP-aligned industrial hygiene programs. The system does not claim FDA 21 CFR Part 11 compliance out-of-the-box but supports manual export of raw CSV/ASCII files for external validation and archival in validated laboratory information management systems (LIMS).

Software & Data Management

The included DustComm software (Windows XP–10 compatible) provides full remote configuration, live dashboard visualization, and post-processing analytics. It displays concurrent video feeds (up to four channels), overlays concentration trends on timeline graphs, and exports time-synchronized datasets with ISO 8601-formatted timestamps. Each logged record contains: mg/m³ value, sampling interval flag, TWA/STEL flags, battery voltage, flow rate confirmation, and internal sensor diagnostics. Data files are saved in plain-text format without proprietary encryption, facilitating third-party statistical analysis (e.g., R, Python pandas, or Minitab). The software enables user-defined exposure limit alerts (e.g., OSHA PEL, ACGIH TLV®), automated report generation (PDF/Excel), and playback of archived video segments linked to specific concentration excursions—critical for root-cause investigation and regulatory response.

Applications

• Occupational exposure assessment during welding, grinding, sandblasting, and demolition activities
• Verification of local exhaust ventilation (LEV) effectiveness and engineering control performance
• Baseline air quality surveys and source identification in manufacturing, mining, and construction environments
• Respirator fit-testing support through real-time breathing-zone concentration mapping
• Regulatory compliance documentation for OSHA 1910.1000, MSHA 30 CFR Part 56/57, and EU Directive 2004/37/EC (CARC)
• Longitudinal exposure trend analysis across shifts, tasks, or process modifications
• Forensic reconstruction of dust release incidents using time-correlated video and concentration archives

FAQ

Does the VDM-7500 meet NIOSH or ISO calibration traceability requirements?
Yes—the system’s concentration output is calibrated against NIOSH-approved gravimetric filter sampling (Method 0600), and calibration certificates include uncertainty budgets referenced to NIST-traceable mass standards.
Can the video feed be recorded continuously for extended periods?
Video is streamed in real time and buffered locally on the host PC; continuous recording duration depends on available disk space (default configuration supports ≥72 hours of full-frame NTSC at 30 fps on the supplied 80 GB HDD).
Is the device suitable for outdoor or high-humidity environments?
It is rated for indoor and sheltered outdoor use only; operation above 95% RH or below 0 °C is not recommended due to condensation risk and battery performance limitations.
How is measurement accuracy verified during field use?
Users may perform periodic co-located gravimetric sampling using identical inlet geometry and compare results against VDM-7500 outputs; deviation beyond ±10% triggers recalibration per the operator manual.
Does the system support multi-user access or role-based permissions?
No—the DustComm software operates in single-user mode with no built-in authentication hierarchy; data integrity relies on local file permissions and physical device security (4-digit lock code).
