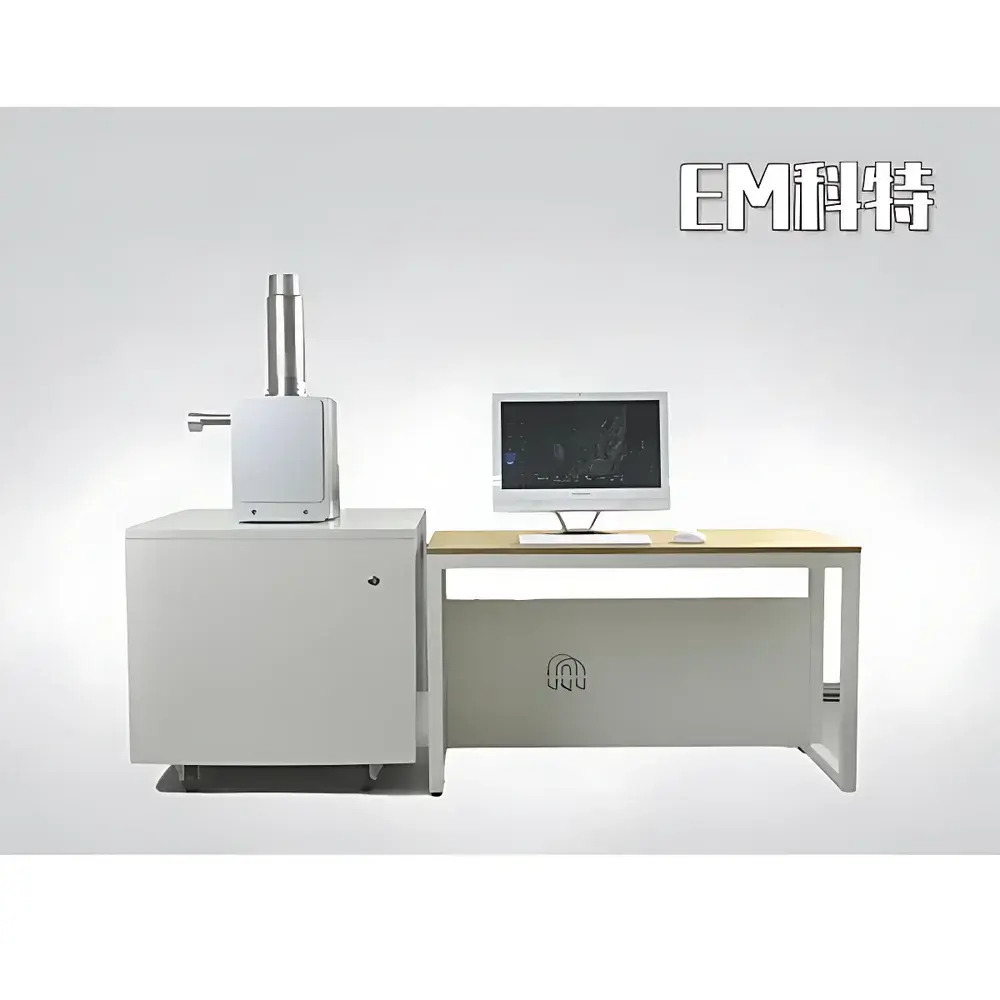

EMCrafts Veritas Series Tungsten-Filament Desktop Scanning Electron Microscope

Overview

The EMCrafts Veritas Series is a high-performance desktop scanning electron microscope (SEM) engineered for laboratories requiring robust, repeatable nanoscale imaging without the operational complexity or infrastructure demands of floor-standing systems. Built around a thermionically emitting tungsten-filament electron source, the Veritas delivers stable beam current and consistent signal-to-noise performance across its full accelerating voltage range (0.5–30 kV). Its compact design integrates a large-volume sample chamber (Ø200 mm × H180 mm), enabling direct observation of oversized specimens—including full 8-inch wafers, PCB assemblies, geological core sections, and metallurgical cross-sections—without sectioning or mounting adaptation. The system employs conventional SEM detection principles: secondary electrons (SE) for topographic contrast with 1.0 nm resolution at 30 kV, and backscattered electrons (BSE) for atomic-number-dependent compositional mapping at 4.0 nm resolution. All vacuum operations are fully automated via a dual-stage pumping architecture (rotary vane + turbo molecular pump), achieving operational pressure (<1×10⁻³ Pa) in under 90 seconds.

Key Features

• Large-capacity sample chamber accommodating specimens up to Ø200 mm and 100 mm height—eliminating the need for sample sectioning in semiconductor, geoscience, and failure analysis workflows.
• 5-axis motorized precision stage (X/Y/Z/tilt/rotation) with sub-micron repeatability, enabling multi-angle imaging, tilt-series acquisition, and precise region-of-interest navigation.
• Integrated CCD-based optical navigation camera co-registered with the electron beam path—allowing rapid macro-to-micro transition and accurate positional referencing prior to SEM imaging.
• Automated beam alignment, aperture centering, brightness/contrast optimization, and focus routines—reducing operator dependency and ensuring measurement reproducibility across users and shifts.
• Modular detector architecture supporting simultaneous SE and BSE signal acquisition; compatible with optional energy-dispersive X-ray spectroscopy (EDS) integration for elemental microanalysis.
• Intuitive touchscreen interface with preconfigured application templates (e.g., wafer inspection, particle sizing, fracture analysis) and customizable workflow scripting.

Sample Compatibility & Compliance

The Veritas platform supports both conductive and non-conductive samples in high-vacuum mode. For insulating materials (e.g., ceramics, polymers, biological tissues), low-vacuum operation (optional upgrade) mitigates charging artifacts without requiring metal coating. Its mechanical stability and vibration-damped base ensure reliable imaging of heavy specimens—up to 5 kg—such as rock slabs, cast alloys, or industrial components. The system complies with IEC 61000-6-3 (EMC emission standards) and IEC 61010-1 (safety requirements for laboratory equipment). Data integrity protocols align with GLP/GMP documentation expectations, including timestamped image metadata, audit-trail-enabled parameter logging, and user-access-controlled configuration files.

Software & Data Management

Veritas Control Suite is a Windows-based acquisition and analysis platform featuring real-time image stitching, particle analysis (ISO 13322-2 compliant), line-profile extraction, and EDS spectral overlay (when equipped). All images embed EXIF-style metadata: accelerating voltage, working distance, dwell time, detector gain, stage coordinates, and calibration timestamps. Raw data is stored in open TIFF format with embedded scale bars and measurement units. The software supports 21 CFR Part 11-compliant electronic signatures and role-based user permissions (administrator, technician, viewer), enabling traceable operation in regulated environments such as QC labs serving ISO 9001 or IATF 16949-certified manufacturing facilities.

Applications

• Semiconductor & Electronics: Wafer-level defect localization, solder joint integrity assessment, PCB trace width/spacing verification, and package delamination analysis—without destructive cross-sectioning.
• Materials Science: Grain boundary characterization in metals/alloys, phase distribution in composites, porosity quantification in additively manufactured parts per ASTM E2857.
• Geosciences & Mining: Mineralogical identification via BSE contrast, pore-network morphology in reservoir rocks, and ore texture analysis for beneficiation process optimization.
• Failure Analysis: Fractography of brittle/ductile failures, corrosion product layer thickness measurement, and inclusion mapping in steel forgings.
• Academic Research: Teaching SEM fundamentals, nanomaterial morphology screening, and correlative microscopy workflows (optical → SEM → EDS).

FAQ

What vacuum level does the Veritas achieve, and how is it maintained?
The system reaches a base pressure of ≤1×10⁻³ Pa using an automated dual-pump vacuum train (rotary vane + 200 L/s turbo molecular pump) with integrated pressure monitoring and valve sequencing.
Can the Veritas accommodate uncoated biological samples?
Yes—when configured with the optional low-vacuum mode (10–133 Pa), the Veritas enables charge-free imaging of hydrated or non-conductive biological specimens without sputter coating.
Is EDS integration supported natively?
The Veritas includes standardized EDS port geometry and digital trigger synchronization; third-party EDS detectors (e.g., Oxford Instruments, Bruker) can be installed with driver-level software integration.
How is stage positioning accuracy verified and calibrated?
The 5-axis stage undergoes factory calibration using laser interferometry; users may perform routine verification using NIST-traceable grid standards with built-in stage calibration utility.
Does the system support remote operation and data export for LIMS integration?
Yes—Veritas Control Suite provides RESTful API access for instrument control and image/data retrieval; TIFF exports include embedded XML metadata compatible with major LIMS platforms.
