Overview

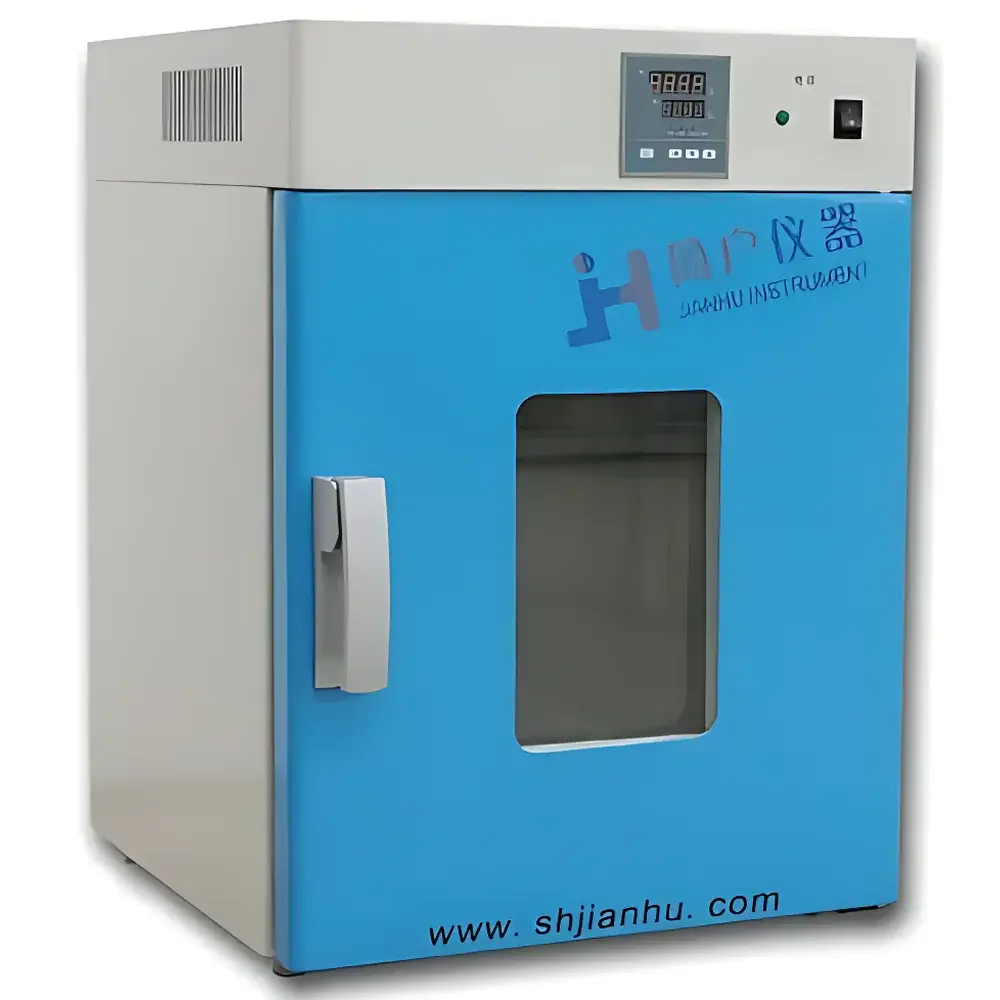

The Jianhu JH-500 High-Temperature Aging Test Chamber is an engineered environmental simulation system designed for accelerated thermal aging evaluation of polymeric materials, elastomers, adhesives, coatings, and electronic components under controlled elevated temperature conditions. It operates on the principle of forced convection heating with programmable air exchange, enabling standardized exposure to thermal stress in accordance with internationally recognized aging protocols. The chamber maintains stable, uniform thermal environments across its 0.504 m³ working volume—critical for reproducible degradation kinetics studies and long-term reliability assessment. Its structural integrity, thermal efficiency, and operational repeatability make it suitable for R&D laboratories, quality assurance departments, and third-party testing facilities requiring compliance-aligned thermal endurance validation.

Key Features

• Robust dual-layer construction: Interior chamber lined with electropolished SUS304 stainless steel (mirror finish), welded via TIG process for corrosion resistance and cleanability; exterior cabinet fabricated from A3 cold-rolled steel with durable epoxy-polyester powder coating.
• Precision temperature control system featuring imported LED-display PID + SSR microcomputer controller with 0.1 °C setpoint and readout resolution, ±0.5 °C stability, and ±2 °C uniformity across the workspace.
• Forced-air circulation architecture utilizing high-temperature-rated centrifugal blower and optimized duct geometry to ensure homogeneous thermal distribution without hot/cold spots.
• Integrated low-speed turntable (Ø500 mm) for uniform sample exposure during extended aging cycles—particularly beneficial for asymmetric or multi-surface specimens.
• Energy-efficient insulation using high-density ultra-fine glass fiber (≥100 mm thickness) minimizing thermal leakage and supporting stable operation at 300 °C.
• Dual-mode ventilation control: Programmable air exchange frequency (2–100 cycles/hour) and interval (1 min – 99 h), facilitating both static aging and dynamic airflow-dependent degradation modeling.
• Large observation window with tempered glass and integrated LED lighting enables real-time visual monitoring without thermal disturbance or safety compromise.
• Dedicated Ø50 mm test port on left sidewall allows seamless integration of external power, thermocouple leads, or data acquisition systems under sealed operating conditions.

Sample Compatibility & Compliance

The JH-500 accommodates a broad range of solid-state samples—including molded rubber compounds, cable insulation, automotive gaskets, PCB laminates, and packaging films—without size or weight restrictions beyond its internal volume limits. Its design adheres to key national standards for thermal aging testing: JB/T 7444–1994 (Technical Requirements for Aging Test Chambers) and GB/T 3512–2001 (Rubber—Thermal Oxidative Aging Test). While not inherently certified to ISO 188 or ASTM D572, the chamber’s performance envelope and controllability enable users to implement those methods with documented validation. Optional upgrades include GLP-compliant audit trails and 21 CFR Part 11–ready software modules for regulated industries.

Software & Data Management

The standard controller supports manual and time-based temperature profiling, with optional intelligent programmable temperature controllers available for multi-segment ramp-hold cycles. All models record real-time temperature logs internally (non-volatile memory) and support USB data export for post-test analysis. When equipped with the advanced software package, users gain access to remote monitoring, automated report generation (PDF/CSV), alarm history with timestamps, and electronic signature functionality aligned with GMP/GLP documentation requirements. Data integrity safeguards include password-protected parameter modification, event-driven logging, and tamper-evident file encryption.

Applications

• Accelerated oxidation resistance evaluation of natural/synthetic rubbers per GB/T 3512.
• Thermal endurance qualification of wire & cable insulation materials under IEC 60811–2–1.
• Long-term stability assessment of encapsulants, conformal coatings, and potting compounds in electronics manufacturing.
• Material shelf-life prediction through Arrhenius-based aging kinetics modeling.
• Pre-screening of formulation changes prior to full-scale production release.
• Supporting failure analysis workflows by correlating surface cracking, discoloration, or tensile loss with cumulative thermal dose.

FAQ

What is the maximum sustained operating temperature of the JH-500?

The standard configuration supports continuous operation up to 200 °C; a high-temperature variant (optional) extends this to 300 °C with upgraded heating elements and insulation.
Can the air exchange rate be synchronized with temperature ramps?

Yes—when paired with the programmable controller option, airflow parameters can be linked to specific temperature segments within a multi-step profile.
Is the turntable speed adjustable?

The turntable operates at fixed low RPM (≤6 rpm) to ensure mechanical stability and minimize vibration-induced measurement artifacts during aging.
Does the chamber support external data logging via RS485 or Ethernet?

Standard models include RS485 Modbus RTU interface; Ethernet connectivity and OPC UA integration are available as factory-installed options.
How is calibration traceability maintained?

Each unit ships with a factory calibration certificate referencing NIST-traceable standards; users may perform periodic verification using Class A PT100 probes and accredited secondary standards.
