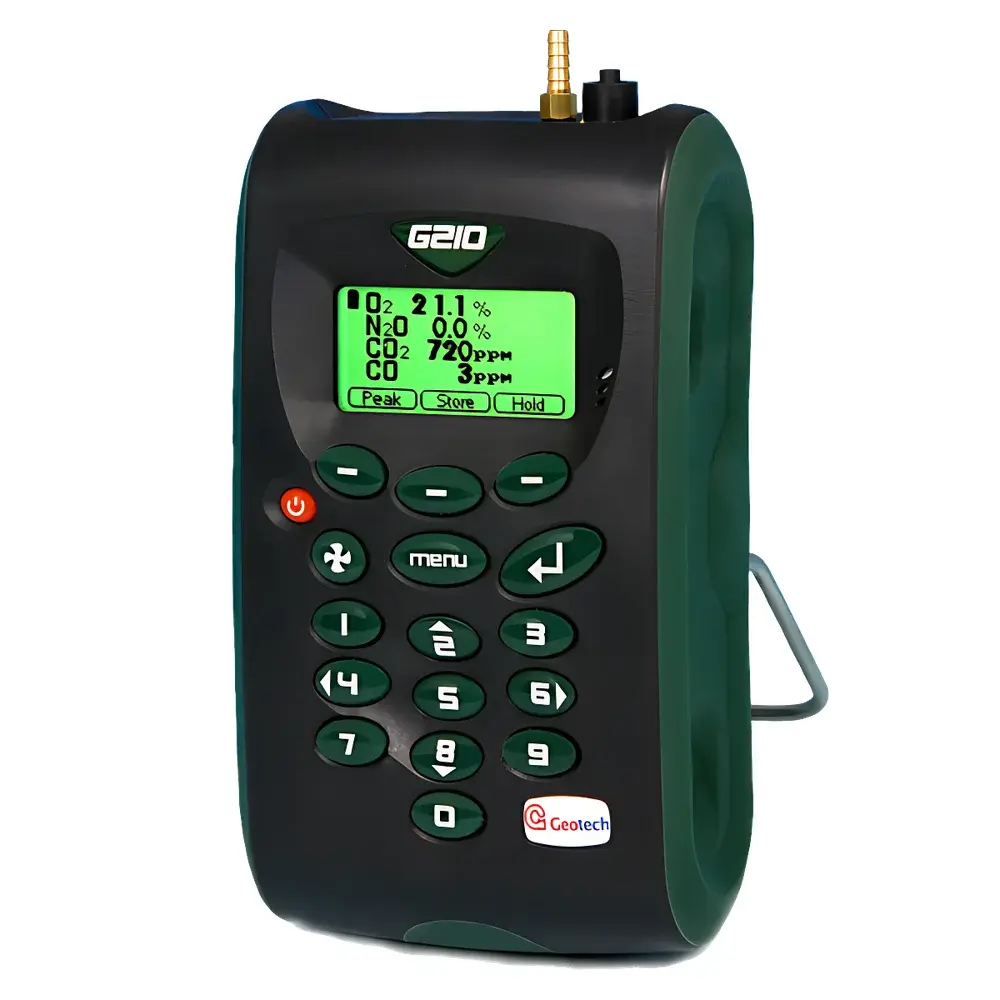

Geotech G210 Handheld Medical Gas Analyzer
| Brand | Geotech (UK) |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |
| Model | G210 |
| Pricing | Upon Request |
Overview
The Geotech G210 Handheld Medical Gas Analyzer is an engineered precision instrument designed for real-time, on-site verification of medical gas quality in healthcare infrastructure. It operates on dual-wavelength non-dispersive infrared (NDIR) spectroscopy for quantitative measurement of nitrous oxide (N₂O) and carbon dioxide (CO₂), complemented by electrochemical sensing for oxygen (O₂) and optional carbon monoxide (CO). This hybrid sensor architecture ensures high selectivity, minimal cross-sensitivity, and stable performance across variable environmental conditions—critical for compliance with ISO 8573-1 (compressed air purity), ISO 7396-1 (medical gas pipeline systems), and HTM 02-01 (UK NHS standards). The G210 is deployed at point-of-use locations—including anesthesia workstations, wall outlets, manifold rooms, and central supply lines—to verify gas composition prior to clinical administration and detect trace contaminants that may compromise patient safety or equipment integrity.
Key Features
- Simultaneous four-gas analysis: N₂O (0–100%), O₂ (0–100%), CO₂ (0–2000 ppm), and optionally CO (0–500 ppm)
- Integrated sample conditioning: Built-in PTFE needle filter and replaceable desiccant drying tube for moisture removal from humid sample streams
- User-configurable audible and visual alarms for each measured gas, programmable via on-device interface
- Rechargeable lithium-ion battery supporting up to 12 hours of operation (8 hours with internal sampling pump active)
- Rugged ABS housing rated IP40 for protection against dust ingress and incidental splashes
- Onboard data logging: 1000 measurement records + 270 event logs (e.g., alarm triggers, calibration events, power cycles)
- USB Type-B interface compliant with HID device class—enables plug-and-play connectivity without driver installation
Sample Compatibility & Compliance
The G210 is validated for use with medical-grade gases delivered through copper or stainless-steel piping networks operating within 500–1500 mbar absolute pressure and 5–95% RH (non-condensing). Its NDIR cells are factory-calibrated using traceable NIST-certified reference gases at 20 °C and 1000 mbar; field recalibration requires certified span gases per ISO 17025-accredited procedures. The analyzer meets essential requirements of IEC 61010-1 (safety of electrical equipment) and IEC 61326-1 (EMC for laboratory instruments). While not FDA-cleared as a diagnostic device, it supports quality assurance workflows aligned with ISO 13485, FDA 21 CFR Part 820, and EU MDR Annex II documentation requirements for medical gas system validation.
Software & Data Management
Data retrieval and reporting are supported via optional Geotech Data Management Software (v3.2+), compatible with Windows 10/11. The software enables export of time-stamped CSV files, generation of audit-ready PDF reports with embedded calibration history, and batch assignment of site-specific identifiers (up to 500 Field IDs and 300 Sampling Point IDs). All stored readings include metadata: ambient temperature, barometric pressure, relative humidity, and user-defined annotation fields. The firmware implements secure timestamping and immutable event logging—supporting GLP/GMP traceability where electronic records must comply with 21 CFR Part 11 principles (electronic signatures, audit trails, and data integrity controls).
Applications
- Verification of pipeline gas composition at hospital wall outlets, anesthesia machines, and ventilator inlets
- Routine leak detection and source identification in centralized medical gas distribution systems
- Commissioning and periodic revalidation of new or retrofitted gas supply infrastructure
- Root cause analysis during adverse events involving suspected gas contamination or delivery failure
- Environmental monitoring in hyperbaric chambers and respiratory therapy labs
- Supporting Joint Commission EC.02.05.01 and CMS Condition of Participation §482.41(c)(2) requirements for medical gas system testing
FAQ
What gases does the G210 measure as standard, and which require optional configuration?
The base G210 measures N₂O, O₂, and CO₂. CO detection is enabled only with the G210-11 variant and requires installation of the electrochemical CO sensor module.
Can the G210 be used for continuous unattended monitoring?
No—it is designed for spot-checking and portable verification. It lacks relay outputs, 4–20 mA interfaces, or network connectivity required for permanent installation.
How often does the O₂ sensor require replacement?
The electrochemical O₂ cell has a typical service life of ≥3 years when operated continuously in ambient air; exposure to high-concentration N₂O or reducing atmospheres may reduce longevity.
Is external power required for full functionality?
No—the internal battery supports all operational modes. However, USB or DC input (5 V) is required for simultaneous charging and data transfer.
Does the G210 meet ISO 8573-1 Class 1 requirements for oil and particle content?
The G210 does not measure oil aerosols or particulates. It assesses only gaseous composition; particulate/oil verification requires complementary instrumentation per ISO 8573-2 and -5.
