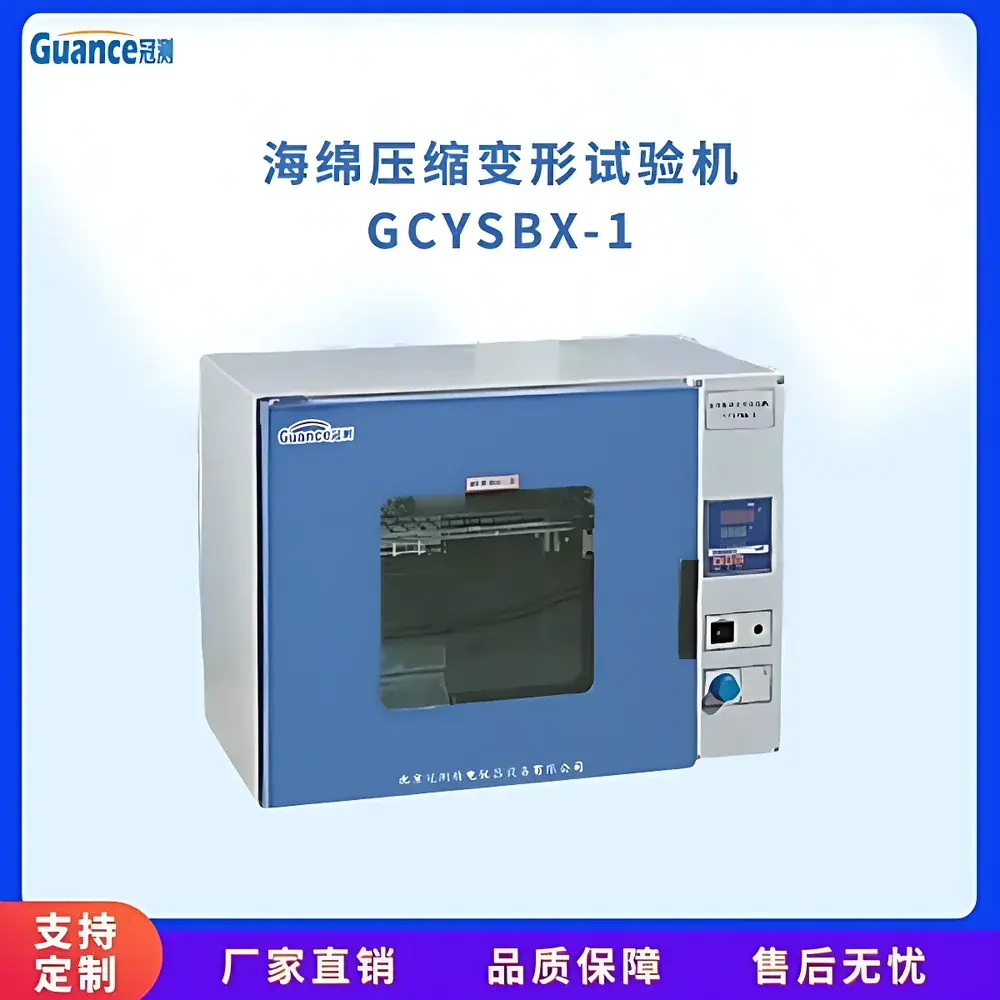

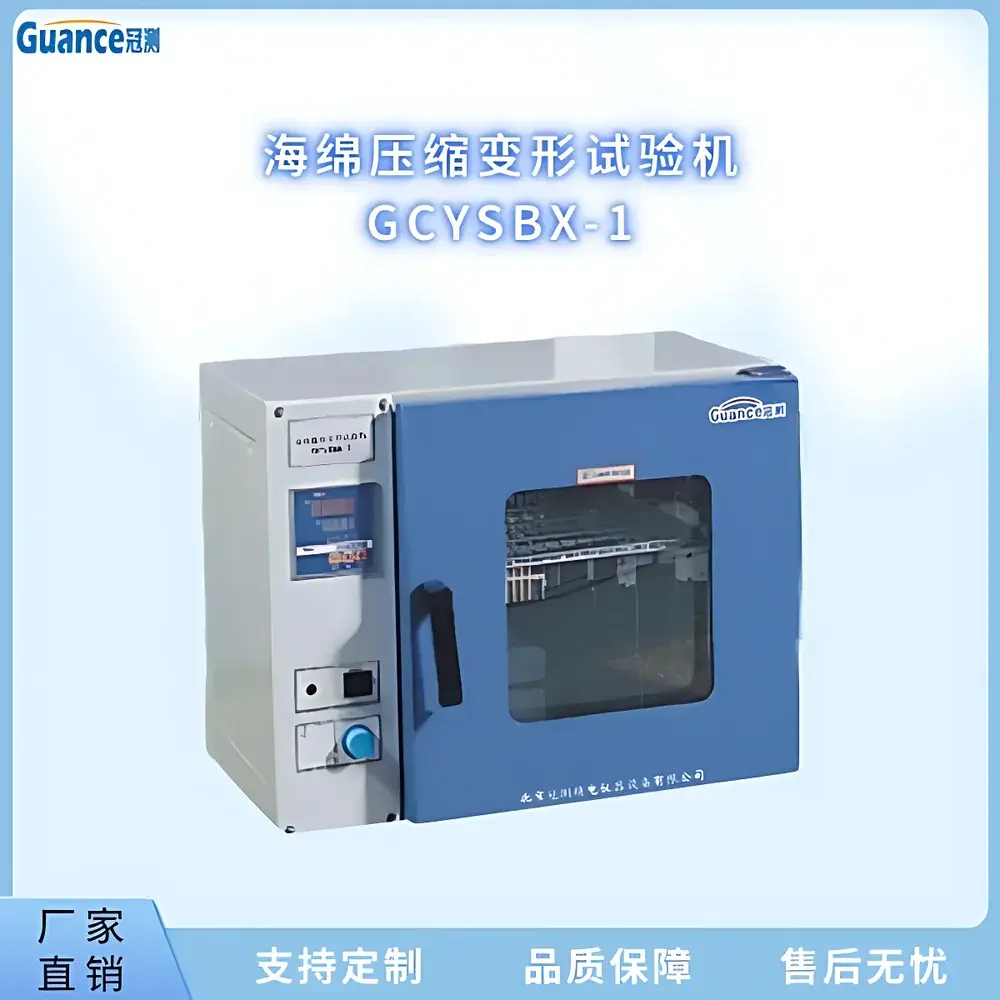

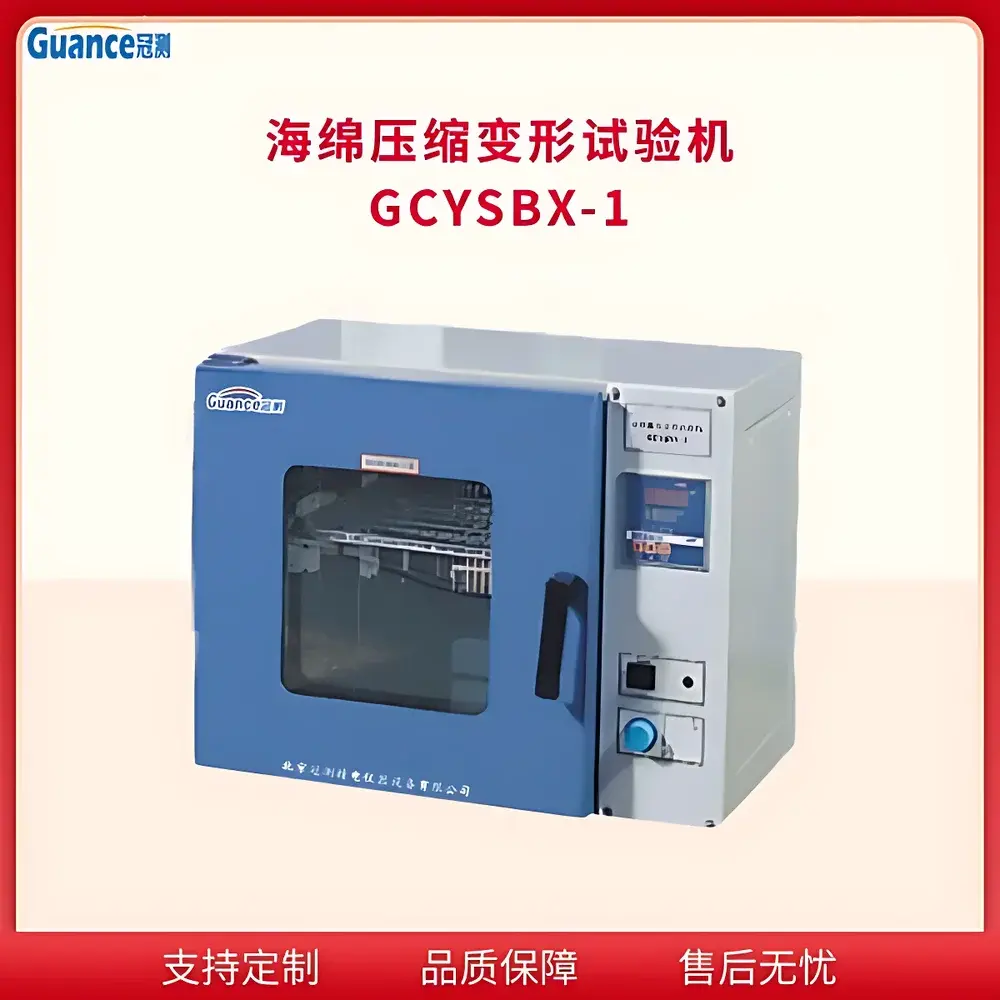

GuanCe Instruments GCYSBX-1 Sponge Compression Set Tester
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | GCYSBX-1 |
| Price | USD 3,500 (FOB Beijing) |
| Standard Compliance | GB/T 6669–2008 / ISO 1856:2000 |
| Specimen Dimensions | 50 mm × 50 mm × 25 mm |
| Capacity | 20 specimens per test cycle |
| Compression Plates | Parallel stainless-steel plates with adjustable spacing and clamping mechanism |
| Calibration Spacers | 12.5 mm (50% compression), 6.25 mm (75%), and 2.5 mm (90%) — 4 pieces each |
| Glass Cover Slides | 55 mm × 55 mm × 1.5 mm |
| Temperature-Controlled Oven Range | 0–300 °C |
| Oven Temperature Accuracy | ±1 °C |
| Oven Power Supply | 220 V AC, 50 Hz |
Overview
The GuanCe Instruments GCYSBX-1 Sponge Compression Set Tester is a dedicated mechanical testing system engineered for the precise evaluation of permanent deformation in flexible polymeric foams—primarily polyurethane (PU), latex, and ethylene-propylene-diene monomer (EPDM) sponges—under controlled thermal and compressive stress conditions. It operates in strict accordance with the internationally harmonized test methodology defined in ISO 1856:2000 and its Chinese national equivalent, GB/T 6669–2008. The instrument quantifies compression set—the irreversible thickness loss sustained after subjecting a specimen to a defined compressive strain (50%, 75%, or 90% of original thickness) for a specified duration (typically 22 h or 72 h) at elevated temperature—followed by standardized recovery (30 min at ambient conditions). This parameter is critical for predicting long-term performance in applications such as automotive seating, mattress cores, gasketing, packaging cushioning, and medical device padding where dimensional stability under load and thermal exposure directly correlates with functional service life.
Key Features
- Modular compression fixture assembly comprising two parallel, precision-ground stainless-steel plates with micrometer-adjustable spacing and integrated clamping hardware—ensuring uniform axial load distribution across all specimens.
- Dedicated calibration spacers manufactured to nominal thicknesses of 12.5 mm (for 50% compression), 6.25 mm (75%), and 2.5 mm (90%), each provided in quadruplicate to support simultaneous multi-condition testing.
- Integrated high-stability glass cover slides (55 mm × 55 mm × 1.5 mm) that minimize edge buckling and maintain planar confinement during thermal cycling.
- Temperature-controlled oven with PID-regulated heating, uniform airflow design, and ±1 °C accuracy across the full 0–300 °C operating range—validated per IEC 60068-3-5 for thermal chamber performance.
- Batch-capable configuration supporting up to 20 standardized specimens (50 mm × 50 mm × 25 mm) per test run, enabling statistically robust data generation without manual repositioning.
- Structural frame constructed from corrosion-resistant anodized aluminum and powder-coated steel, optimized for laboratory durability and minimal thermal drift during extended dwell periods.
Sample Compatibility & Compliance
The GCYSBX-1 is validated for use with open-cell and closed-cell flexible foam materials meeting ASTM D3574 and ISO 1856 specimen geometry requirements. Its mechanical and thermal specifications align with quality assurance protocols mandated under ISO 9001:2015 and IATF 16949 for Tier-1 automotive suppliers. Test reports generated using this system satisfy documentation traceability requirements for internal QC audits and third-party certification bodies. While the system itself does not embed electronic data logging, its operational sequence—including oven dwell time, compression ratio, and recovery interval—is fully configurable to meet GLP-aligned procedural documentation standards when paired with external calibrated calipers (e.g., Mitutoyo 500-196-30) and time-stamped environmental logs.
Software & Data Management
The GCYSBX-1 is a manually operated, hardware-only platform with no embedded microprocessor or digital interface. All test parameters—including compression ratio selection, oven setpoint, dwell duration, and post-recovery measurement timing—are established via physical controls and documented externally. Users are expected to record raw thickness measurements pre-compression, post-recovery, and calculate compression set (%) using the standard formula: [(t₀ − t₁) / t₀] × 100, where t₀ = initial thickness and t₁ = recovered thickness. For laboratories requiring electronic audit trails, integration with LIMS or ELN platforms is achieved through standardized SOP documentation and manual entry of results into validated spreadsheets compliant with FDA 21 CFR Part 11 when accompanied by electronic signatures and change-control logs.
Applications
- Quality control of sponge raw materials supplied to furniture and bedding manufacturers, verifying conformance to specification limits for long-term resilience.
- Comparative aging studies evaluating formulation changes (e.g., catalyst type, filler loading, crosslink density) on thermal-mechanical degradation behavior.
- Supplier qualification testing per OEM technical specifications—for example, Ford WSS-M99P1111-A2 or General Motors GMW15634—which reference compression set as a pass/fail criterion.
- R&D validation of flame-retardant treated foams, where additive migration or volatilization may accelerate permanent set under thermal stress.
- Regulatory submission support for medical cushioning devices classified under ISO 10993-10, where mechanical integrity after sterilization-cycle simulation is assessed via compression set protocols.
FAQ
Does the GCYSBX-1 include built-in data acquisition or digital reporting capabilities?
No. It is a benchtop mechanical test rig designed for manual operation and external measurement recording. Digital integration requires user-defined SOPs and third-party metrology tools.
Can the oven accommodate non-standard specimen geometries?
The oven chamber volume supports custom fixtures, but compliance with ISO 1856:2000 requires adherence to the 50 mm × 50 mm × 25 mm nominal specimen size for comparative validity.
What calibration certificates are provided with the system?
A factory-issued dimensional verification report for compression spacers and glass slides is included; oven temperature uniformity validation must be performed on-site per ISO/IEC 17025-accredited procedures.
Is the GCYSBX-1 suitable for testing viscoelastic memory foams?
Yes—provided the material exhibits stable recovery within the 30-minute ambient recovery window defined in GB/T 6669–2008; slower-recovering formulations may require protocol adaptation and justification in test reports.
How is operator safety ensured during high-temperature operation?
The oven features dual-layer insulated walls, automatic over-temperature cutoff (320 °C), and surface temperature limiter (<60 °C at 25 mm distance), conforming to EN 61000-6-4 electromagnetic compatibility and EN 61000-6-2 immunity standards.
