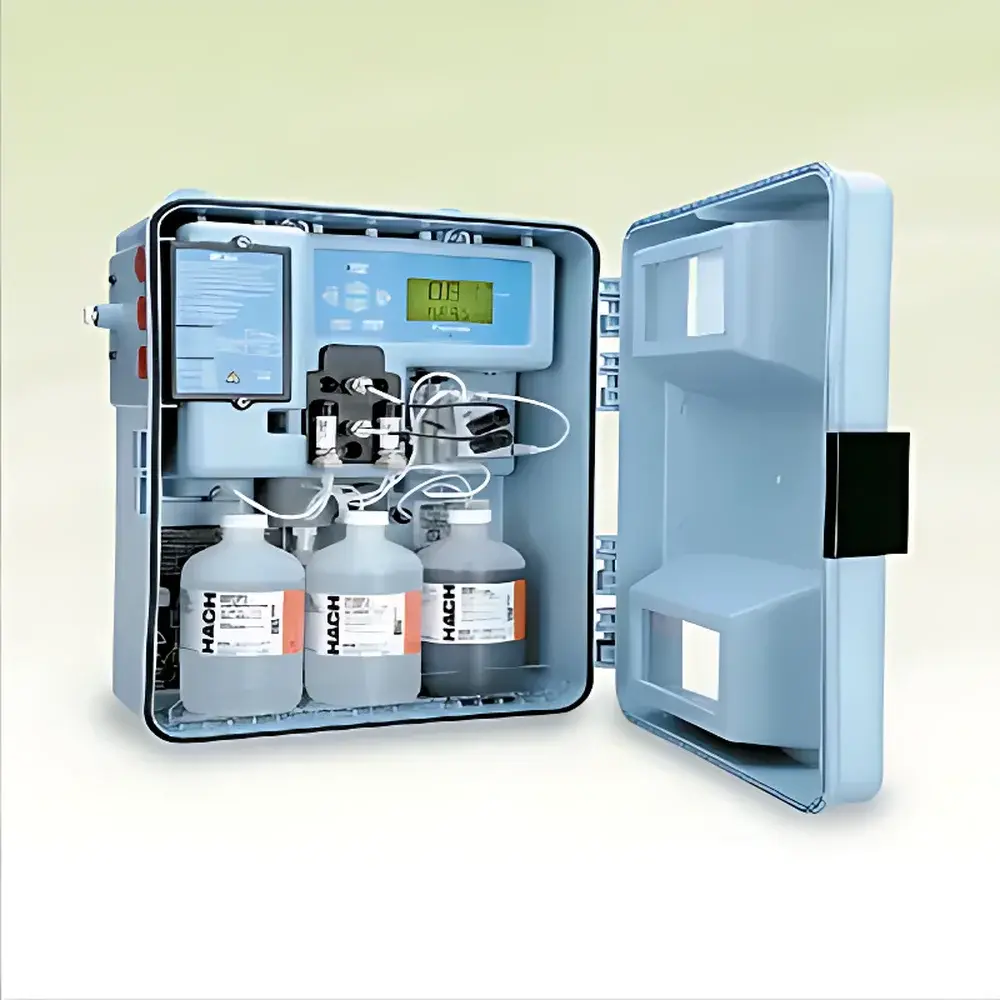

HACH CA610 Online Fluoride Analyzer
| Brand | HACH |
|---|---|
| Origin | Imported |
| Manufacturer Type | Manufacturer |
| Model | CA610 |
| Price | Upon Request |
| Measurement Range | 0.1–10 mg/L F⁻ |
| Accuracy | ±10% or ±0.10 mg/L (whichever is greater) |
| Detection Limit | 0.01 ppm |
| Cycle Time | 4.2 minutes |
| Analog Output | 1 × 4–20 mA (configurable within 0.1–10 mg/L range) |
| Alarm Outputs | 2 SPDT relays (5 A, 230 VAC), configurable for concentration alarm, system warning, or system shutdown |
Overview
The HACH CA610 Online Fluoride Analyzer is a dedicated, continuous-monitoring instrument engineered for reliable, long-term quantification of fluoride ion (F⁻) concentration in potable water and surface water applications. It operates on the principle of potentiometric measurement using a solid-state, crystalline ion-selective electrode (ISE), specifically optimized for fluoride detection in aqueous matrices. Unlike colorimetric or spectrophotometric methods, the CA610 employs a thermodynamically grounded electrochemical response governed by the Nernst equation—ensuring inherent selectivity, minimal drift, and immunity to common interferences such as chloride, sulfate, nitrate, and most metal cations. Its integrated temperature-compensated flow cell maintains stable thermal conditions during measurement, mitigating the influence of ambient fluctuations on electrode potential. Designed for unattended operation in municipal water treatment plants, reservoir monitoring stations, and regulatory compliance laboratories, the CA610 delivers trace-level accuracy with robust repeatability under variable pH (5.0–8.5) and ionic strength conditions—without requiring sample acidification or complex pretreatment.
Key Features
- Patented replaceable fluoride-selective crystal electrode tip—eliminates full electrode replacement; only the sensing element is serviced, reducing consumable cost and downtime.
- Automated calibration sequence with dual-point standard verification (e.g., 0.5 mg/L and 5.0 mg/L NaF solutions), programmable at user-defined intervals (e.g., every 6–24 hours).
- Thermostatically controlled flow-through cell (±0.2 °C stability) ensures consistent electrode response across seasonal ambient variations.
- Low reagent demand: no chemical reagents required for primary measurement; only standard calibration solutions consumed—typically <10 mL per week under daily two-point calibration.
- Compact, IP65-rated enclosure suitable for indoor cabinet mounting or outdoor NEMA 4X-rated enclosures; modular design supports integration into SCADA or DCS platforms via analog output.
- Self-diagnostic routines monitor electrode slope, offset, response time, and reference junction integrity—triggering maintenance alerts prior to performance degradation.
Sample Compatibility & Compliance
The CA610 is validated for use with raw and treated drinking water, groundwater, and low-turbidity surface water (≤5 NTU). It meets operational requirements outlined in EPA Method 300.0 (Ion Chromatography) and ASTM D7282-19 (Standard Test Method for Fluoride Ion in Water by Ion-Selective Electrode), serving as a field-deployable alternative where continuous data resolution is prioritized over laboratory-grade precision. While not a certified reference method per ISO/IEC 17025, its documented accuracy and repeatability support compliance with WHO Guideline Values (1.5 mg/L) and U.S. EPA Maximum Contaminant Level (MCL: 4.0 mg/L), particularly in real-time early-warning systems. The analyzer’s firmware architecture supports audit-trail logging per GLP principles, with timestamped calibration records, alarm events, and sensor diagnostics stored internally for ≥90 days.
Software & Data Management
The CA610 operates autonomously without external PC dependency. All configuration—including measurement range scaling, alarm thresholds, calibration schedules, and relay logic—is performed via front-panel membrane keypad and LCD interface. Analog output (4–20 mA) is linearly mapped to the configured F⁻ range and isolated for noise immunity. Optional HACH DataStream™ gateway enables Modbus RTU or TCP/IP communication for remote configuration, historical trend export (CSV), and alarm forwarding via email/SNMP traps. Data integrity is preserved through non-volatile memory backup; power-loss recovery resumes measurement within <30 seconds without recalibration. Firmware updates are performed via USB flash drive, with version rollback capability and SHA-256 signature verification.
Applications
- Real-time monitoring of fluoride dosing efficiency at municipal water fluoridation facilities.
- Early detection of fluoride leaching from industrial discharge points near sensitive watersheds.
- Compliance verification at point-of-entry (POE) and point-of-use (POU) locations in distributed water networks.
- Long-term trend analysis for epidemiological studies linking fluoride exposure to dental health outcomes.
- Integration into multi-parameter water quality kiosks (e.g., alongside pH, conductivity, turbidity, and chlorine sensors).
FAQ
Does the CA610 require daily maintenance?
No—routine maintenance is limited to monthly electrode tip replacement and quarterly calibration verification; automated diagnostics reduce unscheduled interventions.
Can it operate in high-hardness water?
Yes—the crystalline LaF₃-based electrode exhibits negligible sensitivity to Ca²⁺, Mg²⁺, and Fe³⁺ up to 500 mg/L as CaCO₃.
Is temperature compensation automatic?
Yes—integrated Pt1000 sensor in the flow cell provides real-time thermal correction of electrode potential per the Nernst equation.
What is the minimum sample flow rate required?
150–300 mL/min; lower flow rates may extend cycle time but do not compromise accuracy due to static measurement mode between cycles.
How is interference from aluminum or iron addressed?
Al³⁺ and Fe³⁺ can form soluble complexes with fluoride below pH 5.0; the CA610’s optimal operating pH range (5.0–8.5) inherently suppresses this effect—no masking agents required.
