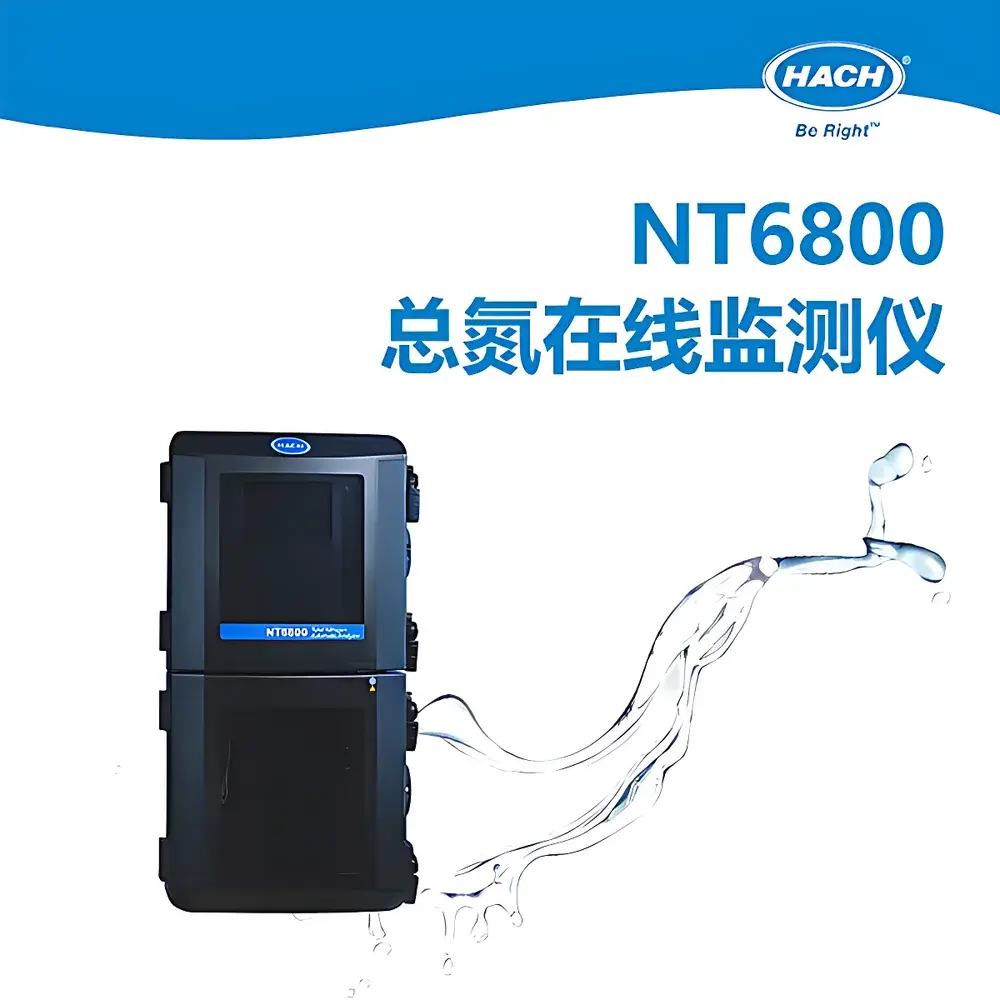

HACH NT6800 Total Nitrogen Online Analyzer

Overview

The HACH NT6800 Total Nitrogen Online Analyzer is an industrial-grade, fully automated monitoring system engineered for continuous, regulatory-compliant measurement of total nitrogen (TN) in wastewater, influent/effluent streams, and surface water. It implements the standardized alkaline potassium persulfate digestion method followed by ultraviolet–visible (UV-Vis) spectrophotometric detection at 220 nm and 275 nm—fully aligned with China’s national standard HJ 636–2012 and method validation requirements specified in HJ/T 102–2003 and HJ 35X–2019 series. The analyzer integrates a robust, temperature-controlled digestion module and dual-wavelength optical path design to correct for nitrate interference and turbidity-induced absorbance artifacts, ensuring high specificity and metrological traceability under variable matrix conditions.

Key Features

• Patented high-efficiency digestion assembly (ZL 202123039489.8 & ZL 202123039494.9): precision-engineered quartz digestion tubes with optimized thermal profiles, enabling complete oxidation of organic and inorganic nitrogen species within ≤25 minutes while minimizing reagent consumption and maintenance frequency.
• Multi-channel solenoid valve manifold (ZL 202122638366.X): ensures repeatable fluidic sequencing, reduces carryover risk, and supports sub-30-minute cycle time—including sample aspiration, reagent dosing, digestion, cooling, photometric reading, and waste discharge.
• HACH proprietary reagents with published formulation: eliminates proprietary black-box chemistry; enables full transparency, third-party verification, and cost-effective local procurement without compromising accuracy or lot-to-lot consistency.
• Adaptive turbidity compensation: supports user-defined correction coefficients and multi-point turbidity calibration using built-in reference standards, critical for high-solids effluents from tanneries, food processing, and chemical manufacturing.
• Configurable cleaning protocols: includes standard rinse, extended flush, and deep-cleaning modes with programmable frequency and duration—optimized for high-fouling environments such as municipal influent or pulp & paper mill discharges.
• Prognosys predictive diagnostics and Diagnosis self-check architecture: continuously monitors critical subsystems (pump performance, digestion temperature stability, optical path integrity, reagent level, and valve actuation timing), delivers real-time health indicators via on-screen progress bars, and exports diagnostic status codes via Modbus TCP or 4–20 mA for integration into SCADA or CMMS platforms.

Sample Compatibility & Compliance

The NT6800 accepts raw, unfiltered liquid samples with suspended solids ≤100 mg/L and chloride concentrations <2,000 mg/L. It complies with data quality objectives outlined in HJ 355–2019 for automatic wastewater monitoring systems, including requirements for zero/span verification frequency, calibration drift tolerance (±5% of range), and data validity flagging. Its measurement uncertainty meets ISO 5667-3:2018 sampling representativeness criteria when deployed with certified autosamplers. The system architecture supports audit-ready electronic records compliant with GLP principles and facilitates alignment with future FDA 21 CFR Part 11 readiness through optional secure user authentication and electronic signature modules.

Software & Data Management

The embedded firmware provides intuitive touchscreen navigation with multilingual UI (English, Chinese, Spanish). All measurement data—including raw absorbance values, digestion temperature logs, valve cycle timestamps, and diagnostic event history—are timestamped and stored locally for ≥90 days. Data export is supported via USB, RS-485 (Modbus RTU), Ethernet (Modbus TCP), and optional 4–20 mA analog output. HACH DataSuite™ software (v3.2+) enables remote configuration, trend visualization, alarm threshold management, and automated report generation aligned with provincial environmental monitoring center templates. Audit trails include operator ID, parameter changes, calibration events, and firmware updates—all retaining immutable timestamps.

Applications

• Municipal wastewater treatment plants: continuous monitoring of TN at influent, secondary effluent, and final discharge points per regulatory reporting obligations.
• Industrial point-source compliance: real-time TN tracking for tanneries (GB 30486–2013), citric acid producers (HJ 442–2008), and textile dyeing facilities subject to GB 4287–2012 limits.
• Surface water quality networks: long-term TN trend analysis in rivers, lakes, and reservoirs where eutrophication risk assessment is required.
• Process water monitoring in semiconductor fabs and pharmaceutical manufacturing: verification of nitrogen removal efficiency prior to reuse or discharge.
• Research & education laboratories: method validation studies comparing online vs. lab-based HJ 636–2012 results across diverse wastewater matrices.

FAQ

What regulatory standards does the NT6800 meet for online TN monitoring?
It satisfies HJ 355–2019 technical specifications for automatic wastewater monitoring systems, including measurement range flexibility, detection limit (<0.05 mg/L), and data validity rules. Its methodology is validated against HJ 636–2012 and referenced in HJ/T 102–2003.
Can the NT6800 operate without HACH-branded reagents?
Yes—the open reagent formulation allows qualified third-party or in-house preparation, provided raw materials meet purity specifications (e.g., ACS-grade K₂S₂O₈, NaOH, and HCl) and preparation follows documented SOPs.
How does the system handle high-turbidity samples?
It applies dual-wavelength absorbance correction (220 nm/275 nm) plus optional user-defined turbidity compensation coefficients derived from parallel turbidimeter readings or empirical calibration.
Is remote firmware update supported?
Yes—via secure HTTPS upload through the web interface or HACH DataSuite™; all updates include SHA-256 checksum verification and rollback capability.
What maintenance intervals are recommended under typical municipal effluent conditions?
Daily: visual inspection of tubing and waste container. Weekly: optical window wipe and reagent level check. Quarterly: digestion tube replacement and pump tubing inspection. Annual: full calibration verification and sensor recalibration per HJ 355–2019 Annex D.
