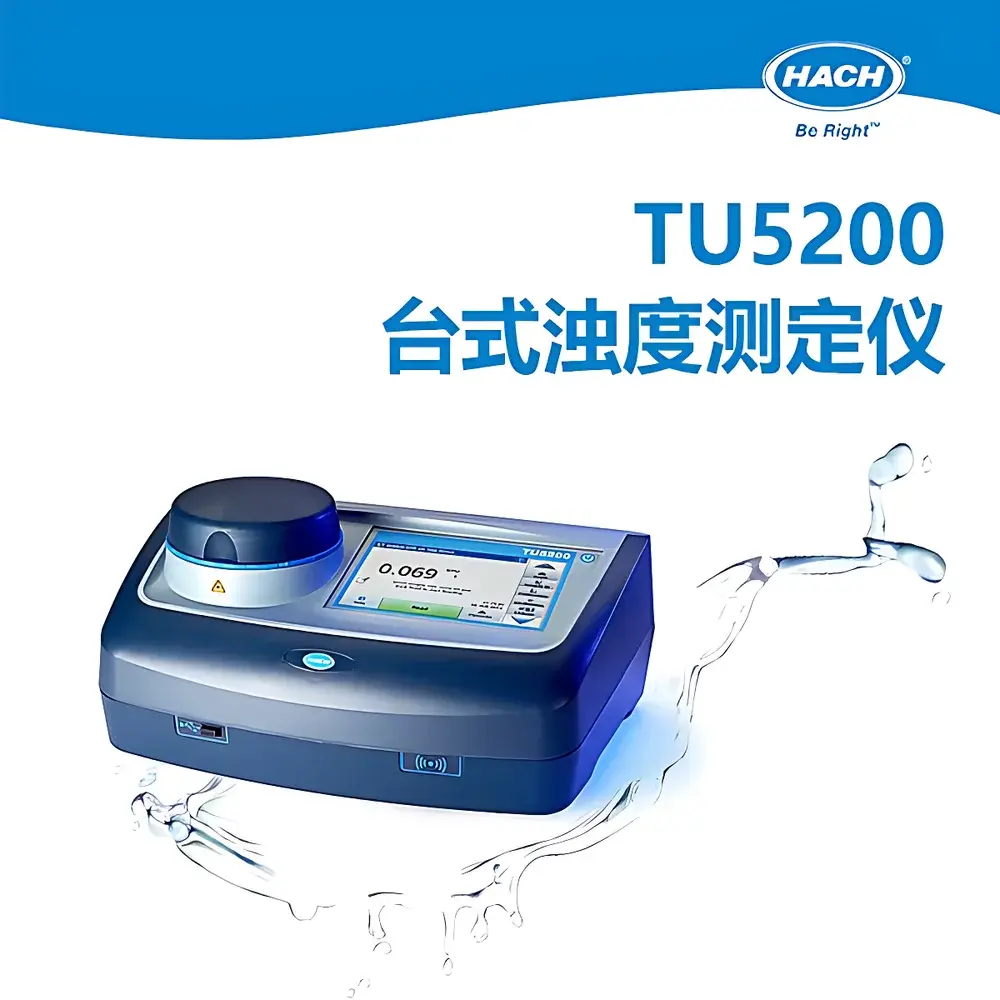

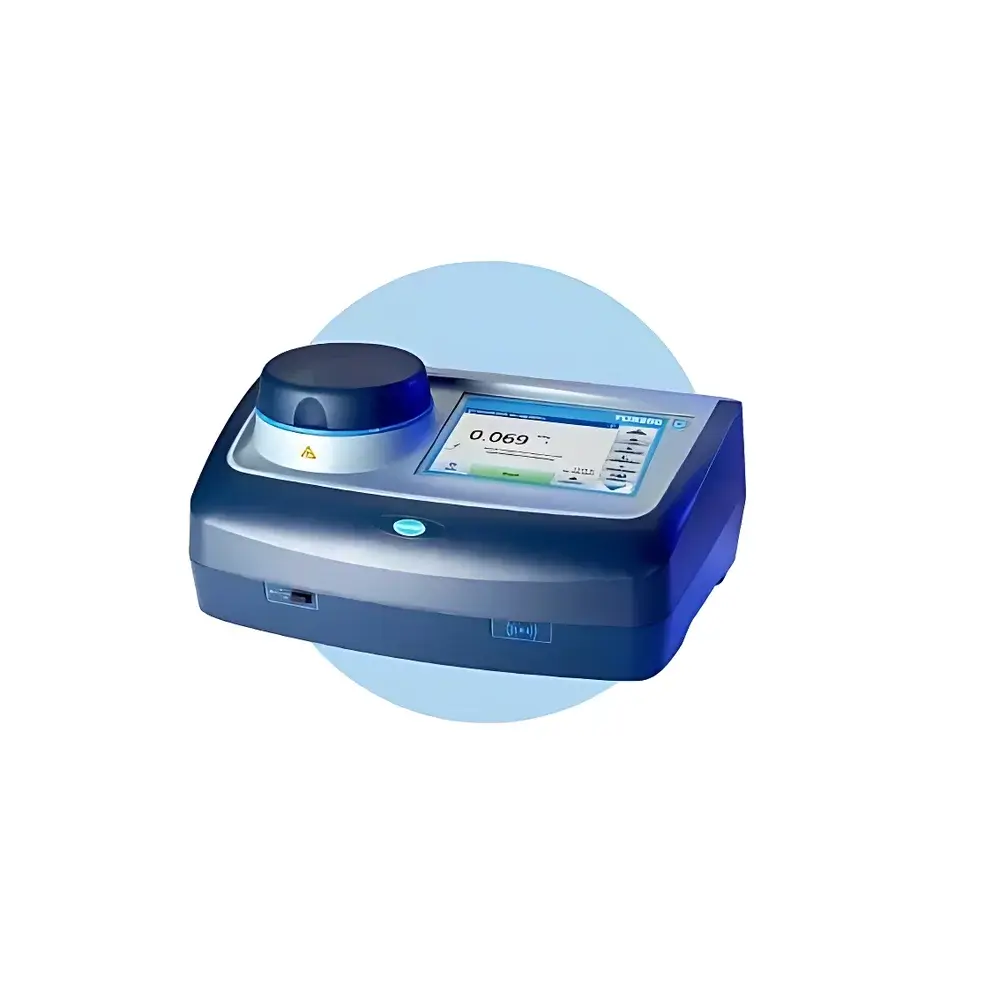

Hach TU5 Series Turbidimeter

Overview

The Hach TU5 Series Turbidimeter is an advanced optical instrumentation platform engineered for high-precision turbidity measurement in clean-water applications across municipal drinking water, power generation, beverage production, and pharmaceutical manufacturing. It operates on the principle of 90° nephelometric detection—per ASTM D6508, ISO 7027, and USP —enhanced by a proprietary 360° × 90° multi-angle detection architecture. Unlike conventional single-point 90° detectors, the TU5 series employs a ring-shaped photodetector array encircling the sample cell at the standard scattering angle (90° ± 2.5°), enabling simultaneous acquisition of scattered light intensity from all azimuthal directions. This design mitigates angular dependency introduced by particle morphology, orientation, and Brownian motion—key sources of measurement variability in low-turbidity (<1 NTU) samples. Coupled with a stabilized 860 nm infrared laser source, the system achieves superior signal-to-noise ratio (SNR), extended lower detection limit (~0.001 NTU), and exceptional repeatability (RSD < 0.5% at 0.1 NTU).

Key Features

• 360° × 90° multi-azimuth nephelometric detection for minimized angular bias and enhanced robustness against particle shape effects
• Stable 860 nm laser light source with automatic intensity compensation to maintain consistent incident energy and suppress stray-light drift
• Unified optical path architecture across laboratory (TU5200) and online (TU5300, TU5400) models—ensuring method-equivalent data traceability between benchtop QA/QC and continuous process monitoring
• Integrated self-cleaning mechanism (patented wiper and purge cycle) for reduced maintenance intervals and long-term calibration stability in unattended operation
• Adaptive calibration protocol supporting multi-point verification (0.02–1000 NTU) with NIST-traceable formazin or AMCO-AE standards, including automated slope/offset validation
• Response time ≤ 3 seconds to 95% of final value (T95) under dynamic flow conditions—optimized for rapid process transients and alarm-triggered sampling

Sample Compatibility & Compliance

The TU5 Series is validated for use with low-conductivity, low-color, low-absorbance aqueous matrices typical of filtered potable water, boiler feedwater, purified water (PW), and water-for-injection (WFI). It complies with regulatory and industry standards including EPA Method 180.1, ASTM D6508 (Standard Test Method for Turbidity Measurement Using a Nephelometer), ISO 7027-1:2016 (Water quality — Determination of turbidity — Part 1: Quantitative methods), and USP Turbidity. For GMP environments, the TU5300/TU5400 online variants support 21 CFR Part 11-compliant audit trails, electronic signatures, and role-based access control when integrated with Hach’s SCADA-ready software suite. All models meet IEC 61326-1 (EMC) and IEC 61010-1 (safety) requirements for laboratory and industrial deployment.

Software & Data Management

Hach’s TU5 Series integrates seamlessly with the unified Hach Insight™ software platform—a secure, browser-based application supporting instrument configuration, real-time data visualization, historical trend analysis, and automated report generation (PDF/CSV). The software enforces ALCOA+ data integrity principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available. Audit trails record all user actions—including calibration events, method changes, and data exports—with immutable timestamps and operator IDs. Optional cloud synchronization enables remote diagnostics, predictive maintenance alerts, and centralized fleet management across multi-site operations. Data export supports LIMS integration via OPC UA and Modbus TCP protocols, facilitating compliance with GLP and GMP documentation workflows.

Applications

• Municipal drinking water treatment: Final effluent monitoring, filter performance evaluation, and early leak detection in distribution networks
• Power plant chemistry control: Monitoring condensate polishers, demineralizer effluent, and steam-cycle purity assurance per EPRI guidelines
• Pharmaceutical water systems: Routine PW/WFI verification per USP and Annex 1 requirements for sterile manufacturing
• Beverage industry: Post-carbonation clarity checks, final rinse water validation, and CIP return stream monitoring
• Research laboratories: Kinetic studies of coagulation/flocculation, nanoparticle dispersion stability, and membrane fouling onset detection

FAQ

What distinguishes 360° × 90° detection from conventional 90° nephelometry?

It eliminates directional sensitivity by capturing scattered photons uniformly across all horizontal angles at the nominal 90° scattering plane—reducing variance caused by asymmetric particles and thermal motion.
Can the TU5200 laboratory turbidimeter be used for calibration verification of online TU5300 units?

Yes—identical optical geometry, detector response curves, and firmware algorithms ensure metrological equivalence; cross-validation is recommended quarterly per ISO/IEC 17025.
Does the TU5 Series support automatic temperature compensation?

Yes—integrated Pt1000 RTD provides real-time compensation per ISO 7027-1 Annex B, correcting for refractive index shifts between 5–40 °C.
Is method-specific validation documentation available for regulated industries?

Hach provides IQ/OQ protocols, 21 CFR Part 11 readiness assessments, and USP conformance reports upon request—supporting FDA, EMA, and PMDA audit preparedness.
