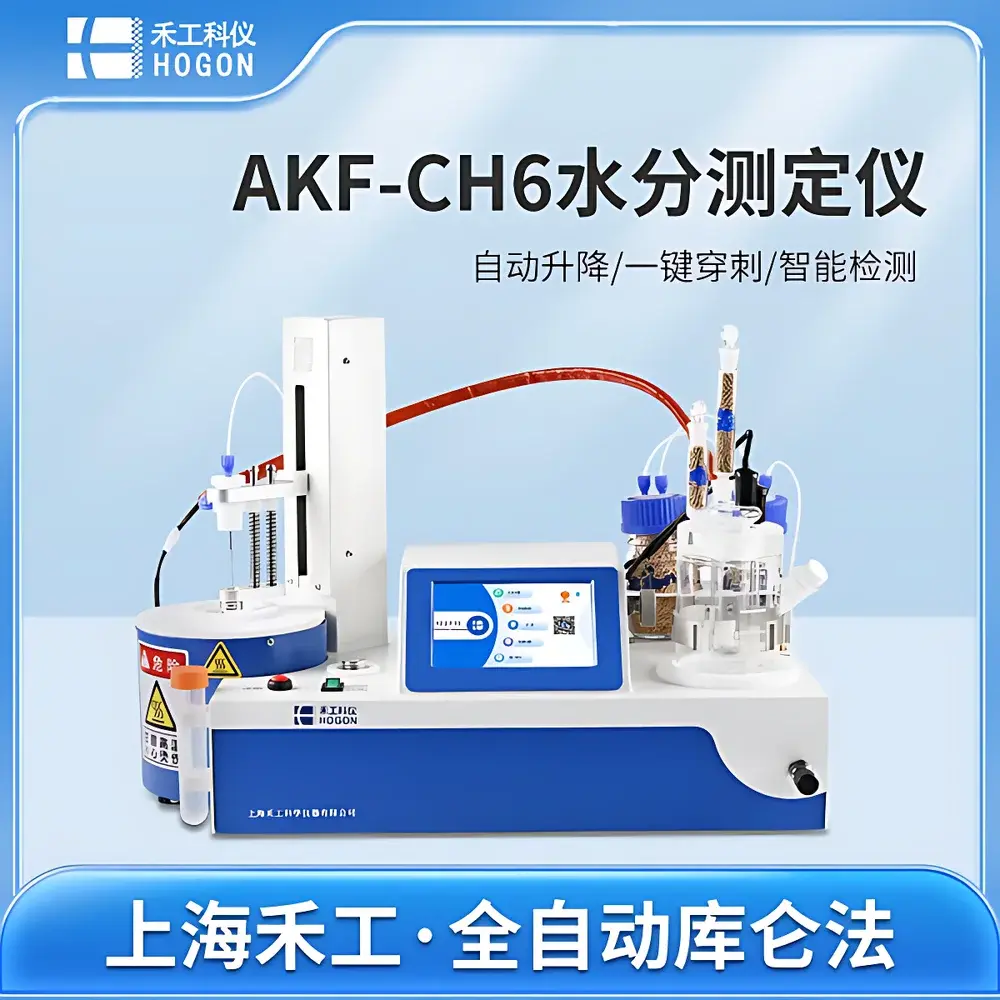

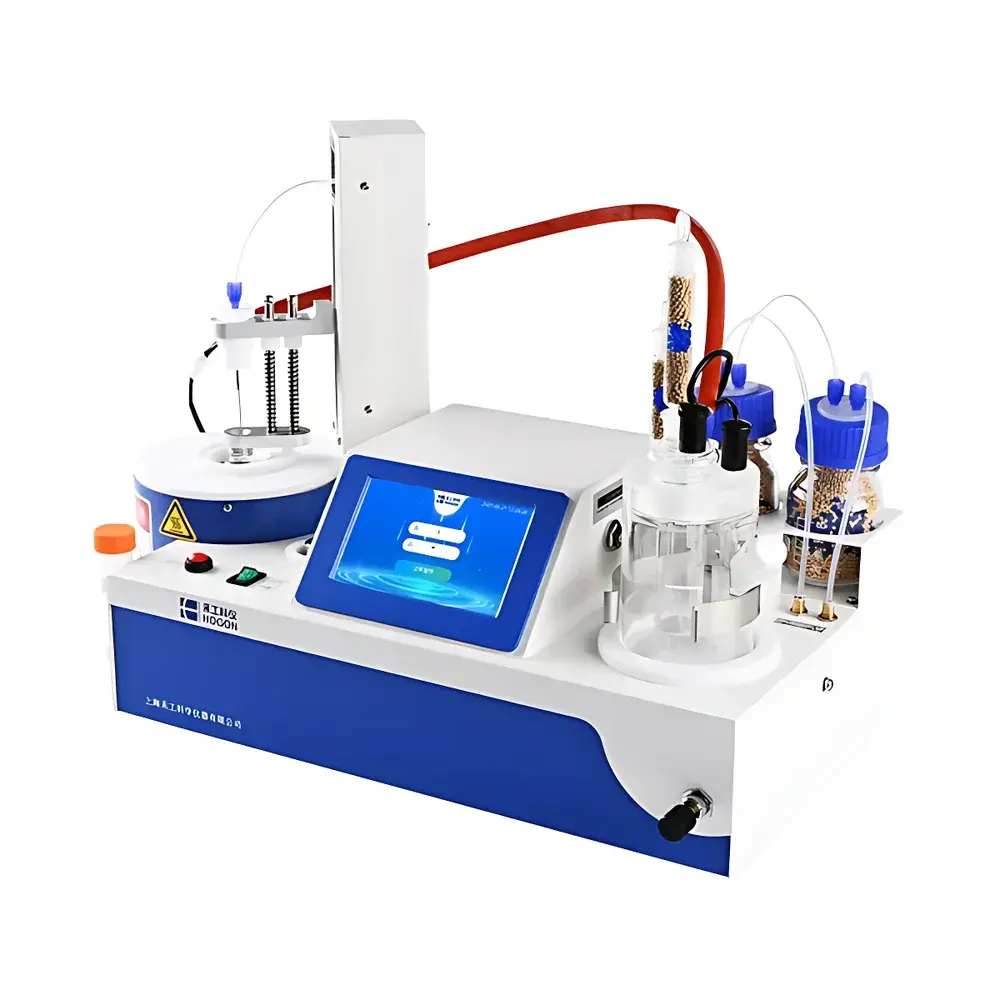

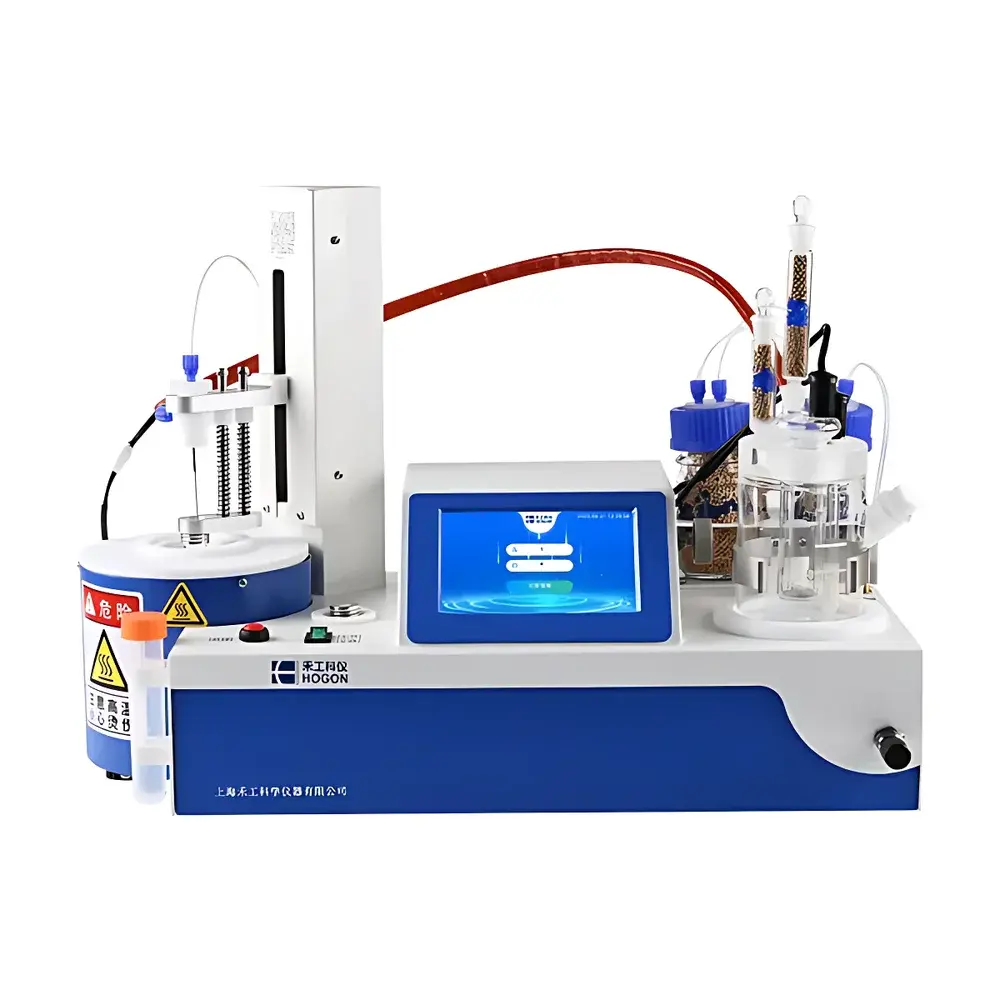

HOGON AKF-CH6 Integrated Karl Fischer Moisture Analyzer for Lyophilized Powder Injections
| Brand | HOGON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Coulometric Karl Fischer Moisture Analyzer with Integrated Sample Evaporator |
| Measurement Resolution | 0.01 µg H₂O |
| Water Content Range | 3 µg – 199 mg H₂O |
| Accuracy | ≥99.7% (at 1000 µg H₂O) |
| Minimum Sample Injection | 3 µg H₂O |
| Repeatability | ≤0.3% RSD |
| Linearity (r²) | ≥0.998 |
| Polarization Voltage Adjustment Range | ±10% |
| Titration Electrode | Dual-platinum electrolysis electrode |
| Titration Current Control Precision | 0.1 mA |
| Power Supply | 300 W, 220 V / 50 Hz |
| Data Storage | Internal non-volatile memory with timestamped method and result logging |
Overview
The HOGON AKF-CH6 is an integrated coulometric Karl Fischer moisture analyzer engineered specifically for pharmaceutical lyophilized powder injections (lyo-powders), biologics, and high-value protein-based therapeutics. Unlike conventional benchtop KF systems requiring external heating ovens or standalone coulometric titrators, the AKF-CH6 embeds a precision-controlled sample evaporator directly into the instrument architecture—enabling fully automated, sealed-headspace water extraction and quantitative electrochemical detection in a single compact unit. Its operation is grounded in the stoichiometric Coulometric Karl Fischer reaction: I₂ + SO₂ + 2H₂O → 2HI + H₂SO₄, where iodine is generated *in situ* via controlled electrolysis of KF reagent, and water content is determined by Faraday’s law (1 mole electrons ≡ 1/2 mole I₂ ≡ 1 mole H₂O). This principle ensures trace-level quantification down to 0.01 µg absolute water mass, with linear response across six orders of magnitude (3 µg–199 mg), making it suitable for both ultra-dry excipients (<10 ppm) and hygroscopic formulations approaching 100% w/w water.
Key Features
- Integrated headspace evaporation module with programmable temperature ramping (ambient to 150 °C), dual-mode恒温/programmed heating, and intelligent over-temperature protection.
- Dual-mode sample introduction: automated needle-puncture sealing for vials + rotary cap piercing for septum-sealed containers—ensuring compatibility with GMP-compliant primary packaging formats.
- Heated carrier gas line (adjustable insulation up to 120 °C) prevents condensation loss during vapor transfer from evaporator to titration cell.
- Real-time digital display of carrier gas flow rate (0–100 mL/min), dynamic moisture evolution curve, and electrolysis current profile.
- 7-inch capacitive color touchscreen with full numeric keypad, one-touch method launch, and context-sensitive soft keys—designed for glovebox-integrated operation and cleanroom environments.
- HOGON Smart Detection Technology: real-time drift compensation, adaptive endpoint recognition, and automatic baseline stabilization under ambient humidity fluctuations.
- Electrolytic control firmware supporting multiple KF reagent chemistries (methanol-based, chloroform-free, low-toxicity alternatives) without hardware modification.
- Comprehensive hardware self-diagnosis: electrode impedance monitoring, cell contamination alert, reagent exhaustion prediction, and scheduled maintenance reminders.
Sample Compatibility & Compliance
The AKF-CH6 accommodates solid, semi-solid, and viscous biological matrices—including lyophilized human serum, retinol-binding protein, silk fibroin, bone morphogenetic proteins, and cephalosporin-acid RC derivatives—without derivatization or solvent dissolution. Its sealed headspace design eliminates direct exposure of sensitive biomolecules to aggressive KF reagents, preserving structural integrity during analysis. The system meets critical regulatory expectations for pharmaceutical QC laboratories: data integrity conforms to ALCOA+ principles; audit trails record all method edits, user logins, and result modifications; electronic signatures support 21 CFR Part 11 compliance when deployed with validated networked software (e.g., HOGON LabLink Suite). Method validation documentation aligns with USP , EP 2.5.12, and ISO 8533, and routine performance verification follows ASTM E203 guidelines for coulometric KF systems.
Software & Data Management
Pre-installed firmware includes multi-user role management (administrator, analyst, reviewer) with password-protected access levels and customizable permission sets for method editing, calibration, and report generation. All measurements are stored with embedded metadata: sample ID, operator name, date/time stamp, method version, raw current-time integral, endpoint confirmation flag, and environmental conditions (ambient T/RH logged via optional sensor module). Export options include CSV (for LIMS integration), PDF analytical reports with digital signature fields, and encrypted SQLite database backups. Remote diagnostics and firmware updates are supported via Ethernet or USB, with change control logs retained for internal audit readiness.
Applications
- Residual moisture quantification in lyophilized drug products per ICH Q5C and FDA guidance on stability testing.
- Batch release testing of sterile powders for injection (SPFI), including monoclonal antibody formulations and vaccine adjuvants.
- Stability-indicating assay development for accelerated and real-time degradation studies.
- Excipient qualification (e.g., mannitol, glycine, trehalose) where water activity correlates with physical stability.
- Process validation support for freeze-drying cycle optimization (primary drying endpoint confirmation).
- Comparative moisture profiling across formulation variants during pre-formulation screening.
FAQ
What sample formats are compatible with the AKF-CH6?
Vial-based lyophilized products (10–30 mL glass vials with rubber stoppers), crimp-capped ampoules, and septum-sealed tubes—up to 50 mm diameter and 120 mm height.
Can the AKF-CH6 measure samples with very low moisture content (e.g., <10 ppm)?
Yes—the coulometric detection limit of 0.01 µg H₂O enables reliable quantification at sub-ppm levels when combined with optimized heating parameters and inert carrier gas purity (≥99.999% N₂).
Is method validation support available?
HOGON provides IQ/OQ documentation templates, system suitability test protocols, and application notes aligned with USP, EP, and ICH requirements.
How does the instrument handle moisture loss during transfer?
The heated carrier gas line (up to 120 °C) and thermally insulated transfer path minimize condensation; vapor residence time is kept below 2 seconds to prevent adsorption losses.
Does the AKF-CH6 comply with 21 CFR Part 11?
Yes—when operated with HOGON LabLink Suite (v3.2+) under configured electronic signature and audit trail settings, it satisfies predicate rule requirements for electronic records and signatures in regulated environments.
