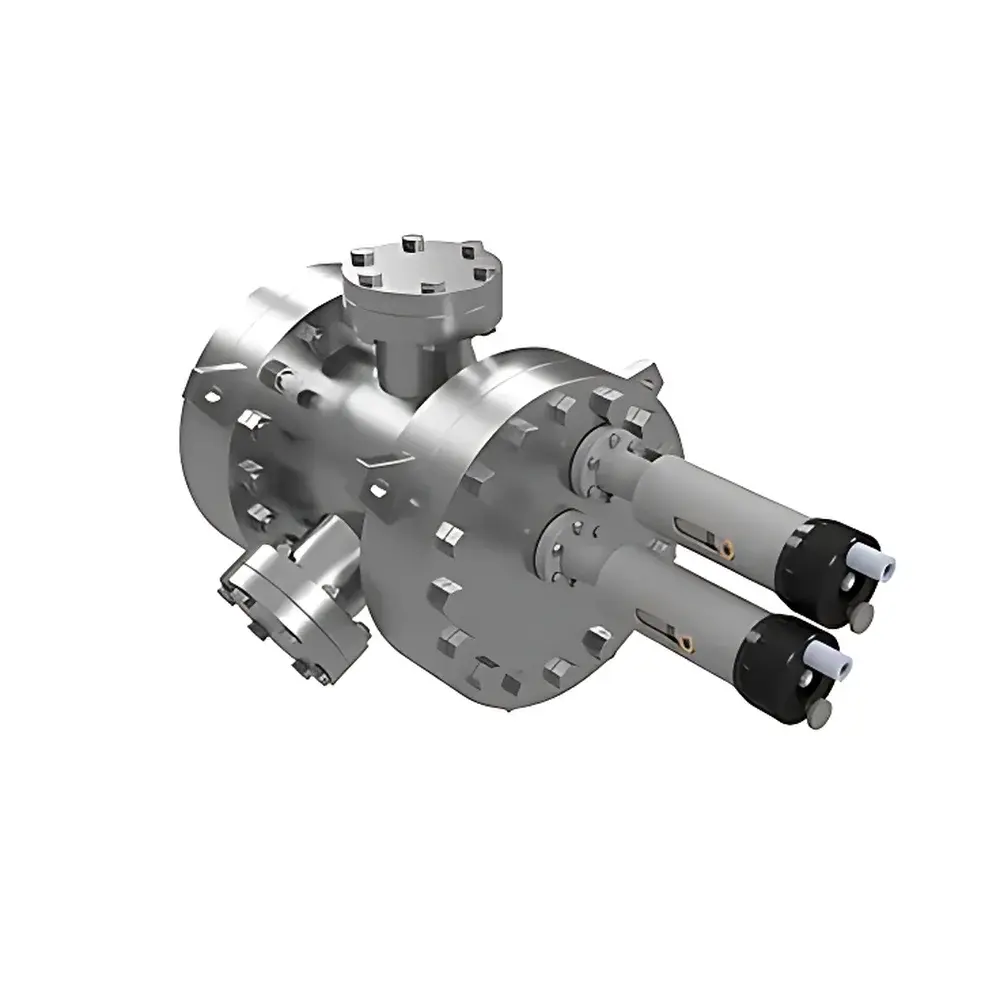

HP Spectroscopy monoLIGHT Toroidal Grating Monochromator
| Brand | HP Spectroscopy |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | monoLIGHT |
| Application System | Vacuum Ultraviolet (VUV) Emission Spectroscopy |
| Grating Line Density | 1200 lines/mm (He II optimized) |
| First-Order He I Efficiency | 10% |
| First-Order He II Efficiency | 20% |
| Second-Order He II Efficiency | <0.5% |
| Spectral Resolution | ≤1 meV (at He I α/β separation) |
| Optical Configuration | Off-axis toroidal grating, in-situ beam characterization capable |
Overview
The HP Spectroscopy monoLIGHT Toroidal Grating Monochromator is a high-performance, vacuum ultraviolet (VUV)-optimized optical instrument engineered for precise spectral isolation and high-throughput emission analysis in demanding laboratory environments. Unlike conventional flat-field or spherical-grating monochromators, the monoLIGHT employs a mechanically ruled toroidal diffraction grating — a geometry that simultaneously corrects for astigmatism and focuses light without requiring additional mirrors or refocusing optics. This design enables true off-axis operation with inherent beam pointing stability, making it uniquely suited for integration with pulsed or continuous VUV sources such as synchrotron beamlines, laser-produced plasmas, discharge lamps (e.g., He I at 58.4 nm, He II at 30.4 nm), and hollow-cathode sources. The instrument operates under ultra-high vacuum (UHV) conditions (≤1×10⁻⁸ mbar), ensuring minimal absorption and scattering losses across the 10–200 nm spectral range. Its core function is wavelength selection via first-order diffraction, with standard calibration and alignment optimized for resolving the He I α (58.433 nm) and He I β (53.723 nm) emission lines — a critical requirement for high-resolution photoelectron spectroscopy and plasma diagnostics.
Key Features
- Toroidal grating geometry enabling intrinsic focusing and astigmatism correction without auxiliary optics
- Off-axis optical layout supporting in-situ beam characterization and minimizing thermal drift-induced pointing errors
- Modular arm-length configuration: adjustable incident and exit arms to accommodate diverse source geometries and experimental constraints (e.g., ARPES endstations, UPS chambers)
- Standard 1200 lines/mm grating optimized for He II (30.4 nm) with 20% first-order efficiency; optional gratings available for extended VUV coverage (e.g., 600–2400 lines/mm)
- Sub-1 meV instrumental bandwidth at He I wavelengths, verified by spectral deconvolution of closely spaced resonance lines
- UHV-compatible construction using oxygen-free high-conductivity (OFHC) copper mounts and all-metal seals; bakeable to 150°C
- Motorized grating rotation with absolute encoder feedback (0.001° resolution) and reproducible wavelength positioning (±0.005 nm)
Sample Compatibility & Compliance
The monoLIGHT is compatible with a broad class of VUV emitters, including but not limited to helium resonance lamps (He I/He II), deuterium lamps, synchrotron bending magnet or insertion device ports, and laser-driven plasma sources. It interfaces directly with standard UHV flanges (CF-63, CF-100) and supports differential pumping for hybrid gas-phase/surface science setups. All optical coatings (e.g., SiC, Pt, MgF₂ overcoated Al) conform to ISO 9022-3 (optical component environmental testing) and ASTM E2008 (VUV reflectance measurement standards). Mechanical and electrical integration complies with CE directives (2014/30/EU EMC, 2014/35/EU LVD) and supports GLP-compliant operation when paired with traceable wavelength calibration sources (e.g., Ne I, Ar I reference lines).
Software & Data Management
Control is executed via HP Spectroscopy’s MonoControl Suite — a cross-platform application (Windows/Linux) supporting TCP/IP and RS-232 communication protocols. The software provides real-time wavelength scanning, automated slit width adjustment, multi-point intensity normalization, and spectral stitching across grating orders. All motor positions, detector signals, and environmental sensor readings (vacuum pressure, stage temperature) are timestamped and stored in HDF5 format, enabling full audit trails per FDA 21 CFR Part 11 requirements when used in regulated analytical workflows. Optional Python and MATLAB APIs allow integration into custom data acquisition pipelines for time-resolved VUV emission studies or closed-loop feedback experiments.
Applications
- Vacuum ultraviolet emission spectroscopy (VUV-EES) of plasmas, combustion intermediates, and excited-state atomic/molecular species
- Ultraviolet photoelectron spectroscopy (UPS) for valence band mapping of 2D materials and topological insulators
- Angle-resolved photoemission spectroscopy (ARPES) with sub-meV energy resolution at 30–100 nm excitation
- Calibration and line-profile characterization of VUV light sources in metrology laboratories
- In situ monitoring of VUV-driven surface reactions (e.g., photo-catalysis, atomic layer etching)
- Development of next-generation EUV lithography source diagnostics (extending to 13.5 nm with grating substitution)
FAQ
Is the monoLIGHT compatible with synchrotron beamlines?
Yes — it has been successfully deployed at BESSY II, SOLEIL, and MAX IV facilities with standard UHV interlocks and photon flux handling up to 1×10¹² photons/s in the He II line.
Can I upgrade the grating for different spectral ranges?
Absolutely — HP Spectroscopy offers certified replacement gratings from 400 to 3600 lines/mm, each supplied with individual efficiency curves and groove error maps traceable to PTB (Physikalisch-Technische Bundesanstalt).
Does the system support automated wavelength calibration?
Yes — optional integrated hollow-cathode lamp modules (Ne, Ar, Kr) provide on-the-fly calibration with ±0.002 nm uncertainty referenced to NIST SRD-108.
What vacuum specifications are required for optimal performance?
Base pressure ≤5×10⁻⁹ mbar is recommended for operation below 50 nm; residual gas analyzers (RGAs) are supported via optional flange ports for contamination monitoring.
