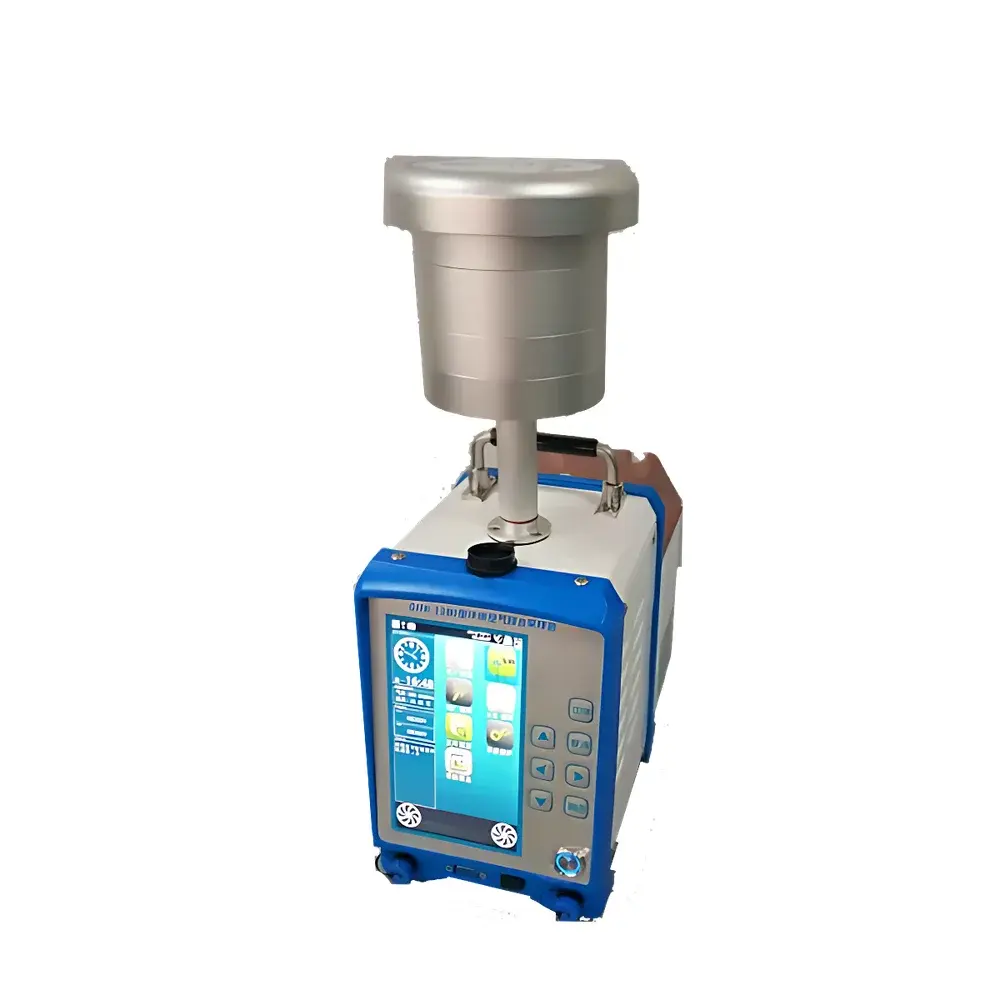

HUANKONG GHK-1200 High-Negative-Pressure High-Flow Ambient Air Sampler

Overview

The HUANKONG GHK-1200 High-Negative-Pressure High-Flow Ambient Air Sampler is an engineered solution for standardized, field-deployable collection of gaseous and particulate pollutants from ambient and indoor air environments. Designed in strict accordance with U.S. EPA reference method principles and harmonized with major Chinese environmental monitoring standards—including HJ 93-2013, HJ 618-2011, and HJ 656-2013—the instrument supports both solution absorption sampling (e.g., for SO₂, NOₓ, NH₃, fluorides) and gravimetric filter-based collection of total suspended particulates (TSP), PM₁₀, PM₂.₅, heavy metals, semi-volatile organic compounds (SVOCs), and airborne fluorides. Its dual-channel architecture enables simultaneous or independent operation of two sampling trains, accommodating co-located parallel measurements or multi-analyte workflows under identical meteorological conditions. The system operates on the principle of controlled volumetric aspiration through calibrated orifice or critical orifice flow control, with real-time compensation for ambient temperature and pressure to compute standard-cubic-meter (std m³) volumes per ISO 12103-1 and EPA Method IO-3.1 conventions.

Key Features

• High-negative-pressure capability: Sustains stable flow up to 100 L/min against backpressures exceeding 20 kPa—critical for high-resistance filter media (e.g., quartz fiber, Teflon-membrane) and impinger-based absorption systems.
• Dual independent sampling channels: Each channel features fully programmable flow setpoints (10–130 L/min), isolated flow control, and autonomous timer/start-stop logic.
• Integrated environmental sensing: Onboard precision thermistor and piezoresistive pressure transducer automatically measure and compensate for inlet temperature and pressure—enabling real-time calculation of normalized volume at 25 °C and 101.325 kPa.
• Robust human-machine interface: 7-inch wide-temperature TFT-LCD touchscreen with dual-mode input (capacitive touch + physical membrane keys) ensures operability across field conditions (-20 °C to 50 °C).
• Extended data integrity: Stores >100,000 measurement records locally, including timestamped flow rate, accumulated volume, temperature, pressure, battery status, and error flags.
• Power resilience: Built-in non-volatile memory preserves all active sampling parameters and accumulated volume during unexpected power loss; resumes operation automatically upon power restoration.
• Electromagnetic compatibility: Meets IEC 61326-1:2021 Class B requirements for industrial environments, ensuring stable performance near radio transmitters, variable-frequency drives, and other EMI sources.
• Environmental ruggedization: IP54-rated enclosure with aluminum alloy sampling heads featuring anti-static surface treatment—validated for continuous outdoor deployment in rain, snow, and high-humidity conditions.

Sample Compatibility & Compliance

The GHK-1200 is validated for use with standard 47-mm and 90-mm diameter filters (glass fiber, quartz, PTFE, PVC), impingers (e.g., midget impingers for formaldehyde), sorbent tubes (e.g., XAD-2, Carbopack™), and diffusion denuders. It complies with the mechanical and metrological requirements of JJG 956-2013 (Atmospheric Sampler Verification Regulation) and JJG 943-2011 (TSP Sampler Verification Regulation). Its flow accuracy (±2% of full scale) and stability (<±1% over 24 h) satisfy QA/QC criteria outlined in ISO/IEC 17025:2017 for accredited environmental laboratories. For regulatory reporting, data output conforms to ASTM D1357-22 (Standard Practice for Planning Sampling and Measurement Programs for Ambient Air) and supports traceability under GLP and GMP-aligned audit trails when paired with validated data management software.

Software & Data Management

Data export is supported via dual-path architecture: Bluetooth 5.0 wireless connection enables direct printing to certified thermal label printers (e.g., Zebra ZQ520), while USB 2.0 host port permits bulk transfer of CSV-formatted datasets to external storage. All stored records include UTC timestamps, instrument serial number, operator ID (configurable), and calibration certificate metadata. Optional PC-based desktop software (HUANKONG AirData Manager v3.x) provides automated report generation compliant with HJ 630-2011 (Environmental Monitoring Data Format Specification), including QC summary tables, flow deviation charts, and standard-volume reconciliation logs. Audit trail functionality meets FDA 21 CFR Part 11 requirements for electronic records when deployed with user authentication and digital signature modules.

Applications

• Ambient air quality monitoring networks (national, provincial, urban)
• Indoor air quality assessments per GB/T 18883-2022 and ASHRAE Standard 62.1
• Source emission characterization studies requiring high-flow particulate capture (e.g., construction sites, industrial perimeters)
• Method validation and interlaboratory comparison exercises for PM₂.₅ and PM₁₀ gravimetric analysis
• Fluoride monitoring campaigns using fluoride-coated filters per HJ 955-2018
• SVOC and PAH sampling for GC-MS analysis following HJ 646-2013 protocols
• Mobile monitoring platforms where compact footprint (<420 × 320 × 280 mm) and weight (<8.5 kg) are operationally decisive

FAQ

What flow accuracy is guaranteed across the full 10–130 L/min range?
Flow accuracy is ±2% of reading (not full scale) at 20–130 L/min, and ±3% at 10–19.9 L/min, verified per JJG 956-2013 procedures using primary-standard dry calibrators.
Can the GHK-1200 be used for PM₂.₅ sampling in compliance with ISO 10473:2001?
Yes—when configured with a WINS impactor or equivalent size-selective inlet meeting ISO 10473 cut-point specifications and operated at 16.7 L/min (1 m³/h), it satisfies the volumetric and temporal requirements for reference-grade PM₂.₅ monitoring.
Is firmware upgrade supported in the field?
Yes—firmware updates are delivered via encrypted USB stick and applied through the device’s maintenance menu; version history and checksum verification are logged in the internal audit trail.
Does the instrument support remote monitoring or telemetry integration?
Not natively—but RS-232 and optional 4–20 mA analog outputs enable integration with SCADA systems or third-party telemetry gateways for supervisory control and alarm notification.
What calibration intervals are recommended for routine regulatory use?
Initial calibration before first use, followed by quarterly verification using a NIST-traceable primary flow standard; annual full metrological verification per JJG 956-2013 is required for ISO/IEC 17025-accredited operations.
