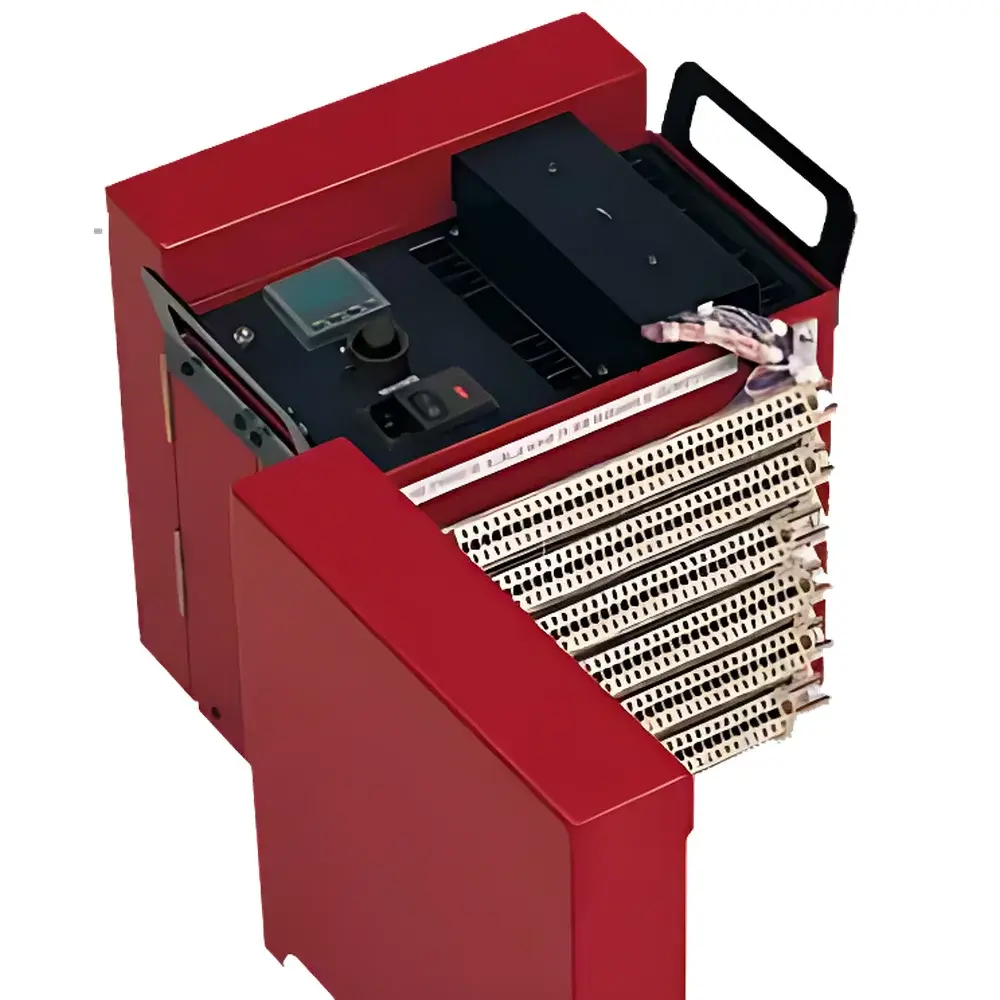

ISOTECH TRU937 Thermocouple Reference Junction Block

Overview

The ISOTECH TRU937 Thermocouple Reference Junction Block is an engineered precision reference source for cold-junction compensation (CJC) in thermocouple-based temperature measurement systems. Unlike passive ice-bath references or ambient-sensor-based CJC modules, the TRU937 actively maintains a highly stable, traceable reference temperature—either at a metrologically defined 0 °C (equivalent to triple-point-of-water calibration conditions) or within a configurable 45–70 °C range—using solid-state Peltier thermoelectric elements. This active stabilization eliminates drift associated with ambient fluctuations and ensures consistent cold-junction potential across all connected thermocouple channels. The device operates on the principle of closed-loop temperature control with high-resolution platinum resistance (Pt1000) sensing and proportional-integral-derivative (PID) regulation, delivering long-term thermal stability of ±0.02 °C over 24 hours under steady-state conditions. It is designed for integration into laboratory-grade data acquisition systems, industrial SCADA architectures, and accredited calibration laboratories where traceability to national standards (e.g., NPL, NIST) is required.

Key Features

• Active dual-mode reference: selectable 0 °C ice-point emulation or programmable 45–70 °C reference temperature
• Scalable architecture supporting up to 100 thermocouple input channels via modular terminal blocks
• Compact DIN-rail mountable housing (22.5 mm width per 10-channel module) with IP20-rated enclosure
• Peltier-based solid-state cooling/heating with no refrigerants, moving parts, or maintenance intervals
• Integrated fault-detection circuitry monitoring open-circuit, short-circuit, and thermal runaway conditions
• Real-time temperature alarm outputs (dry contact and TTL-compatible) configurable per channel group
• Low thermal mass design enabling <60-second stabilization time after ambient step changes ≤10 °C

Sample Compatibility & Compliance

The TRU937 is compatible with all standard thermocouple types (J, K, T, E, R, S, B, N, C) and accepts both bare-wire and insulated-compensated cable terminations. Its screw-clamp terminal blocks accommodate conductor cross-sections from 0.14 to 2.5 mm². The unit conforms to electromagnetic compatibility (EMC) requirements per EN 61326-1:2013 and safety standards IEC 61010-1:2010 (Measurement Category II, Pollution Degree 2). Thermal reference accuracy is validated per ISO/IEC 17025:2017 procedures and supports audit readiness for GLP, GMP, and FDA 21 CFR Part 11 environments when paired with compliant DAQ software. Traceability documentation—including factory calibration certificate with uncertainty budget (k=2) referenced to UKAS-accredited standards—is supplied with each unit.

Software & Data Management

The TRU937 communicates via isolated RS-485 Modbus RTU protocol (addressable up to 247 nodes), enabling centralized configuration and monitoring through industry-standard SCADA platforms (e.g., Ignition, Siemens Desigo, LabVIEW). Optional USB-to-RS485 adapter enables direct PC connection for firmware updates and diagnostic logging. Configuration parameters—including setpoint temperature, alarm thresholds, channel enable/disable states, and PID tuning constants—are stored in non-volatile memory with write-protection. Audit trail functionality logs all configuration changes with timestamp, user ID (if integrated with LDAP/RADIUS), and pre-/post-change values—supporting compliance with 21 CFR Part 11 electronic record requirements when deployed with validated software environments.

Applications

• Primary cold-junction reference in accredited temperature calibration laboratories performing thermocouple verification per ISO/IEC 17025
• Critical process monitoring in pharmaceutical manufacturing (e.g., sterilization tunnels, lyophilizers) requiring continuous CJC integrity verification
• Multi-zone furnace profiling where spatial thermal gradients demand independent, localized reference points
• Aerospace component testing rigs operating under elevated ambient temperatures (>60 °C), where conventional CJC modules fail
• Research applications involving thermocouple arrays in combustion studies, material thermal conductivity mapping, or geothermal simulation

FAQ

What reference temperature options does the TRU937 support?
It provides two operational modes: a metrologically traceable 0 °C reference (ice-point equivalent) or a user-defined temperature between 45 °C and 70 °C.
Can the TRU937 be used in environments above 50 °C ambient temperature?
Yes—the unit is rated for continuous operation in ambient temperatures up to 70 °C, enabled by its forced-convection heat-sink design and adaptive Peltier power management.
Is channel-level temperature alarm configuration possible?
Alarms are configured per channel group (default: 10-channel segments); individual channel alarms require optional firmware upgrade and Modbus register mapping.
Does the TRU937 require periodic recalibration?
Annual verification against a certified reference thermometer is recommended; full recalibration is required every two years or after any physical impact or thermal shock event.
How is traceability documented for quality audits?
Each unit ships with a UKAS-traceable calibration certificate listing measurement uncertainty (±0.015 °C at 0 °C, k=2), environmental test conditions, and technician accreditation details.
