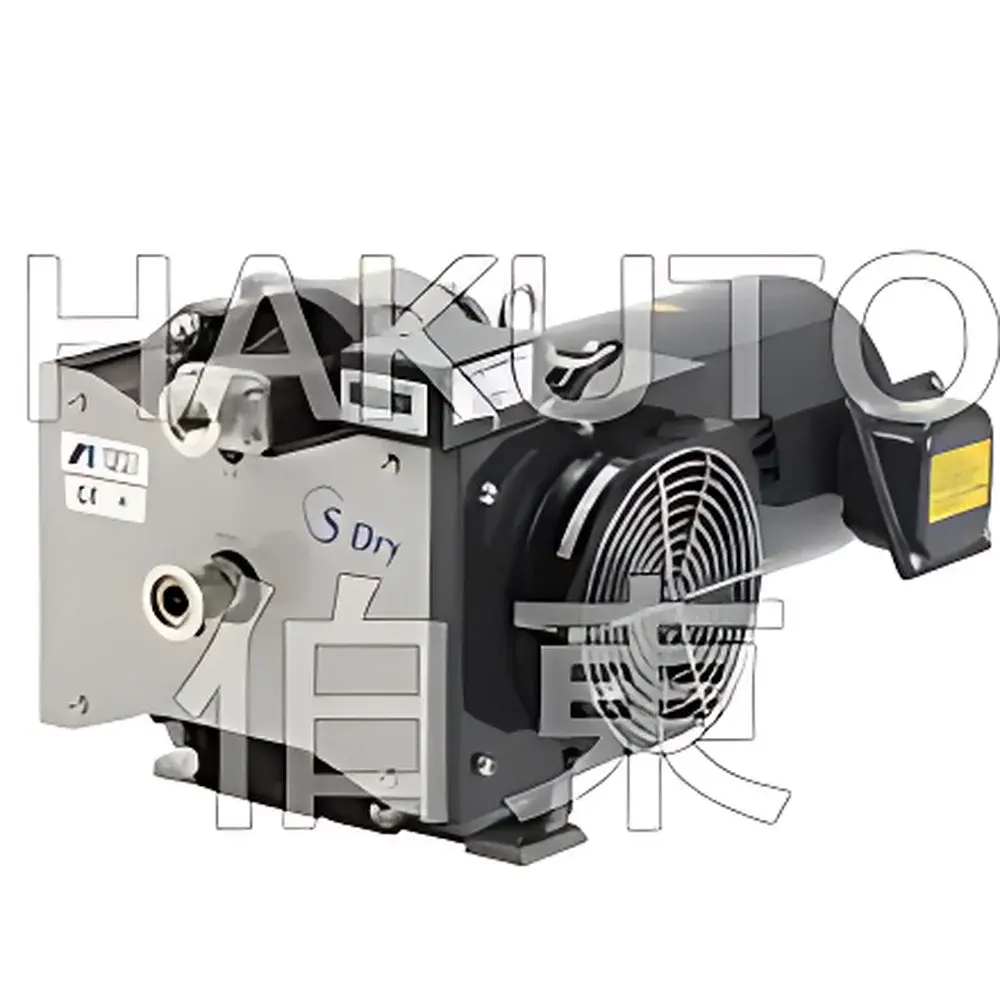

IWATA DVSL-100C Oil-Free Scroll Vacuum Pump

Overview

The IWATA DVSL-100C is a high-reliability, oil-free scroll vacuum pump engineered for continuous-duty laboratory and light industrial applications requiring clean, hydrocarbon-free vacuum generation. Based on proven scroll compression technology, the DVSL-100C achieves vacuum through the orbital motion of two intermeshing spiral scrolls—one fixed, one orbiting—creating progressively smaller crescent-shaped chambers that compress inlet gas toward the center exhaust port. This hermetically sealed, lubricant-free architecture eliminates oil contamination risks, making it ideal for processes sensitive to hydrocarbon residue, particulate generation, or chemical reactivity. Unlike rotary vane or diaphragm pumps, the DVSL-100C delivers stable pumping performance across wide pressure ranges (atmospheric to 50 Pa), with inherent tolerance to intermittent water vapor loads—enabling robust operation in vacuum drying, degassing, leak testing, and vacuum flushing where condensable vapors are present.

Key Features

• True dry operation: No lubricating oil, sealing water, or internal bearings in the gas path—ensuring zero hydrocarbon emission and ultra-clean exhaust.
• High vapor tolerance: Designed for sustained operation near atmospheric pressure with repeated cycling between ambient and vacuum states; handles up to 100 g/day of water vapor (250 g/day when gas ballast valve is engaged).
• Compact and lightweight: Weighing only 15 kg with integrated air-cooling, the DVSL-100C requires no external cooling infrastructure and fits seamlessly into benchtop or integrated system configurations.
• Low noise and vibration: Optimized scroll geometry and balanced rotor dynamics yield stable operation at ≤62 dBA—suitable for shared lab environments and noise-sensitive facilities.
• Robust mechanical design: Precision-machined aluminum alloy housing, ceramic-coated scrolls, and IP54-rated motor provide long-term reliability under routine laboratory duty cycles.
• Standard NW25 (Rc1) inlet port: Compatible with common vacuum flanges and tubing systems; optional adapters available for ISO-KF or CF interfaces.

Sample Compatibility & Compliance

The DVSL-100C is compatible with non-corrosive, non-explosive gases and vapors commonly encountered in analytical, materials science, and pharmaceutical laboratories—including air, nitrogen, argon, and water vapor. It is not suitable for halogenated solvents, strong oxidizers (e.g., O₃, Cl₂), or acidic/corrosive process streams without prior condensation or scrubbing. The pump meets CE marking requirements per EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. Its oil-free architecture supports compliance with ISO 8573-1 Class 0 (contamination-free air/vacuum) and aligns with GMP/GLP principles where hydrocarbon-free vacuum is mandated—for example, in lyophilizer roughing stages or residual solvent removal prior to HPLC sample preparation.

Software & Data Management

The DVSL-100C operates as a standalone analog device with manual on/off control and integrated thermal overload protection. While it does not feature digital communication protocols (e.g., RS-485, Modbus, or Ethernet), its predictable performance envelope and stable power draw (0.3 kW, single-phase 220 V AC) enable seamless integration into automated vacuum systems via external PLCs or vacuum controllers. For audit-trail requirements under FDA 21 CFR Part 11 or EU Annex 11, users may pair the pump with validated vacuum monitoring modules (e.g., capacitance manometers with data logging) to record pressure profiles, runtime, and fault events—supporting traceability in regulated QC/QA workflows.

Applications

• Primary roughing for cryopumps and turbomolecular pumps in UHV pre-vacuum stages.
• Vacuum drying and solvent removal from heat-sensitive samples (e.g., polymers, APIs, biological matrices) where oil backstreaming must be avoided.
• Deaeration and degassing of resins, adhesives, and composites prior to casting or molding.
• Leak detection using pressure-rise or helium mass spectrometry methods—leveraging rapid atmospheric recovery and low base pressure.
• Vacuum-assisted liquid handling, including filtration, aspiration, and solvent transfer in analytical sample prep.
• Gas purging and atmosphere replacement in gloveboxes, inert storage chambers, and reaction vessels.

FAQ

Is the DVSL-100C suitable for continuous operation in high-humidity environments?
Yes—the pump is rated for continuous duty at ambient temperatures of 5–40 °C and can manage up to 100 g/day of water vapor without degradation. Use of the gas ballast valve increases tolerance to 250 g/day but slightly elevates ultimate pressure.
Does this pump require periodic oil changes or filter replacements?
No—being fully oil-free and bearing-free in the gas path, it has no scheduled consumables. Routine maintenance is limited to external cleaning and inspection of inlet filters (if installed externally).
Can the DVSL-100C be mounted vertically or in confined spaces?
It is designed for horizontal benchtop or cabinet mounting only. Sufficient clearance (≥10 cm) around the air-cooled motor and exhaust vent is required for thermal management.
What vacuum gauges are recommended for accurate pressure monitoring with this pump?
For pressures down to 50 Pa, a calibrated Pirani gauge is appropriate. For sub-10 Pa validation or process-critical measurements, a cold cathode or capacitance manometer is advised.
Is the DVSL-100C compliant with ISO 22853 for vacuum pump safety?
While not certified to ISO 22853 (which applies primarily to large industrial vacuum systems), the DVSL-100C incorporates built-in thermal cut-off, short-circuit protection, and CE-compliant insulation—meeting essential safety requirements for Class I laboratory equipment per IEC 61010-1.
