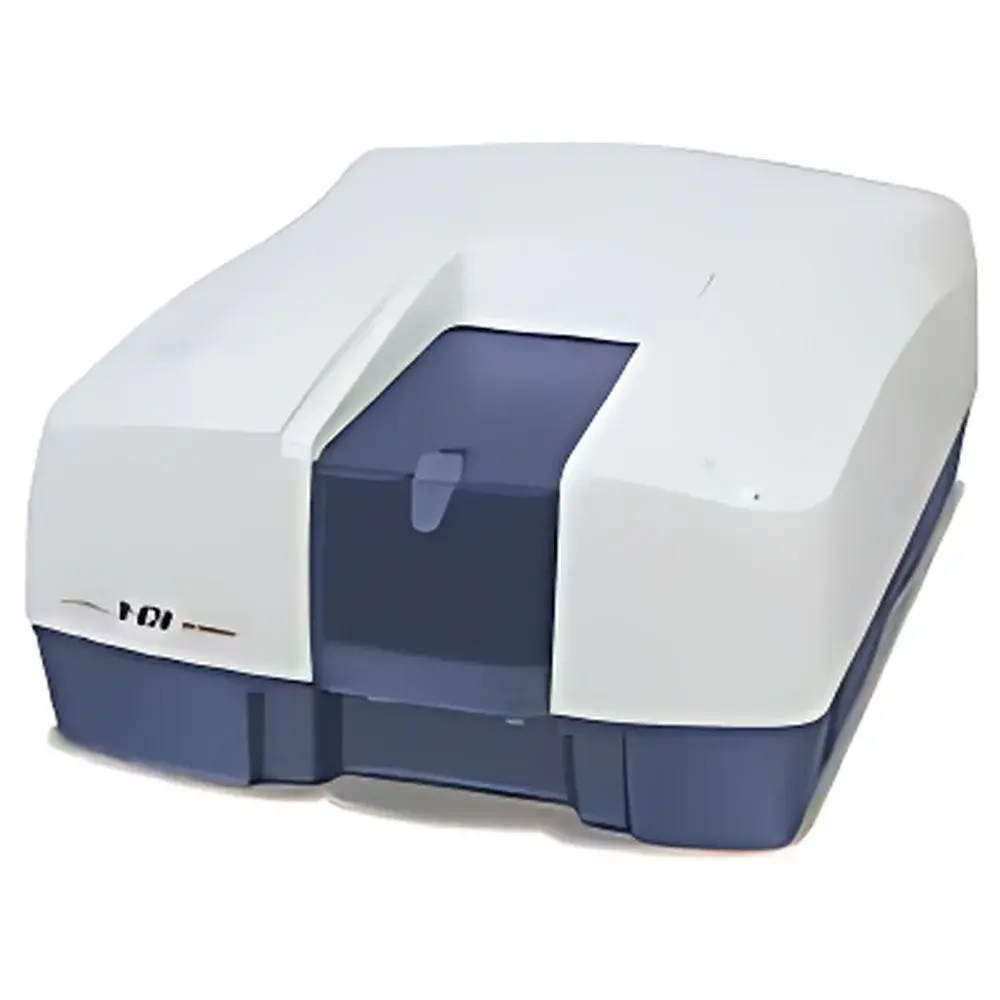

JASCO V-670 UV-Vis-NIR Spectrophotometer

Overview

The JASCO V-670 UV-Vis-NIR Spectrophotometer is a high-performance, single-beam optical instrument engineered for precise quantitative and qualitative analysis across an exceptionally broad spectral range—from deep ultraviolet (190 nm) through visible light to near-infrared (2700 nm, extendable to 3200 nm). Its dual-detector architecture integrates a high-sensitivity photomultiplier tube (PMT) for the UV-Vis region and a thermoelectrically cooled PbS detector for stable, low-noise NIR measurements. This configuration ensures consistent photometric accuracy, high signal-to-noise ratio, and long-term baseline stability—critical for demanding applications in materials characterization, thin-film metrology, and optical coating development. The V-670 operates on fundamental principles of Beer-Lambert law-based absorbance measurement and reflectance/ transmittance ratio quantification, supporting both routine QC verification and advanced research-grade spectroscopic investigations under controlled environmental conditions.

Key Features

• Extended spectral coverage (190–2700 nm), with optional hardware upgrade to 3200 nm for enhanced NIR capability
• Seven selectable spectral bandwidths (0.1–10 nm) enabling optimization of resolution vs. throughput for diverse sample types
• Motorized, fully automated wavelength drive with real-time slit width adjustment and internal calibration reference
• High-precision optical alignment system with quartz-halogen and deuterium light sources, ensuring stable intensity output over extended acquisition periods
• Integrated temperature-controlled sample compartment accommodating auxiliary thermal stages and cryogenic accessories
• Modular optical path design supporting rapid reconfiguration for transmission, reflectance, diffuse reflectance, and absolute reflectance modes

Sample Compatibility & Compliance

The V-670 accommodates a comprehensive suite of sample formats—including liquid cells (micro, standard, and flow-through), solid holders (film, powder, pellet, and bulk), fiber-optic probes, and cryostat-integrated stages—enabling analysis of heterogeneous, temperature-sensitive, or optically scattering materials. Its optical geometry supports ASTM E275-compliant absorbance validation, ISO 6247-compliant colorimetric reporting, and USP requirements for pharmaceutical excipient qualification. When equipped with the Absolute Reflectance Measurement accessory and calibrated standards, the system meets ISO 13468 and ASTM E903 specifications for solar absorptance and reflectance. All firmware and data acquisition modules comply with GLP/GMP documentation standards, including audit-trail-enabled operation logs and electronic signature support per FDA 21 CFR Part 11 when used with JASCO’s Spectra Manager II software suite.

Software & Data Management

Controlled via JASCO’s Spectra Manager II platform, the V-670 supports full instrument automation, multi-step method sequencing, and real-time spectral processing. Application-specific modules include: (1) Color Analysis Software compliant with CIE 1931 and CIEDE2000 color space standards; (2) Thin-Film Thickness Measurement Software utilizing interference fringe analysis for transparent and semi-transparent layers; (3) Energy Domain Analysis Toolkit for bandgap estimation and Tauc plot derivation; and (4) Solar Spectral Performance Module aligned with ISO 9050 and ASTM G173-03 reference spectra for daylight-weighted transmittance/reflectance evaluation. All raw and processed data are stored in vendor-neutral ASCII and JCAMP-DX formats, ensuring interoperability with third-party chemometric tools (e.g., MATLAB, Python SciPy, Unscrambler) and LIMS integration via OPC UA or CSV export protocols.

Applications

The V-670 serves as a core analytical tool in multiple industrial and academic domains. In materials science, it enables optical constant determination (n, k) of dielectrics and semiconductors, degradation monitoring of UV-stabilized polymers, and compositional analysis of multilayer thin films. In photovoltaics R&D, it characterizes anti-reflective coatings, transparent conductive oxides (TCOs), and perovskite film quality via absorption edge analysis. In petrochemical QA, it verifies hydrocarbon saturation levels and additive concentrations using ASTM D2709 and D5598 methodologies. In life sciences, it supports nucleic acid quantification, enzyme kinetics (with optional stopped-flow module), and protein secondary structure assessment via second-derivative UV analysis. Its compatibility with in-situ fiber-optic probes further extends utility to real-time reaction monitoring and process analytical technology (PAT) implementations.

FAQ

What is the maximum achievable resolution in the UV-Vis region?

The V-670 achieves a nominal optical resolution of 0.1 nm in the UV-Vis range when configured with the narrowest spectral bandwidth setting and optimized slit geometry.
Can the instrument be validated for regulated pharmaceutical use?

Yes—when operated with Spectra Manager II and configured with IQ/OQ documentation packages, the V-670 supports 21 CFR Part 11 compliance, including user access control, electronic signatures, and full audit trail generation.
Is the NIR detector cooled during operation?

Yes—the PbS detector is actively cooled via a Peltier thermoelectric module to maintain thermal stability and minimize dark current drift during extended NIR scans.
How does the system handle highly scattering samples such as powders or opaque films?

By coupling with the integrated 60 mm diameter integrating sphere accessory (model ISN-723), the V-670 performs quantitative diffuse reflectance measurements in accordance with ASTM E1331 and ISO 13468-1.
Are firmware updates and technical support available internationally?

JASCO provides global firmware release cycles, remote diagnostic support, and certified service engineers across North America, EMEA, and APAC regions—ensuring continuity of operation and regulatory readiness.
