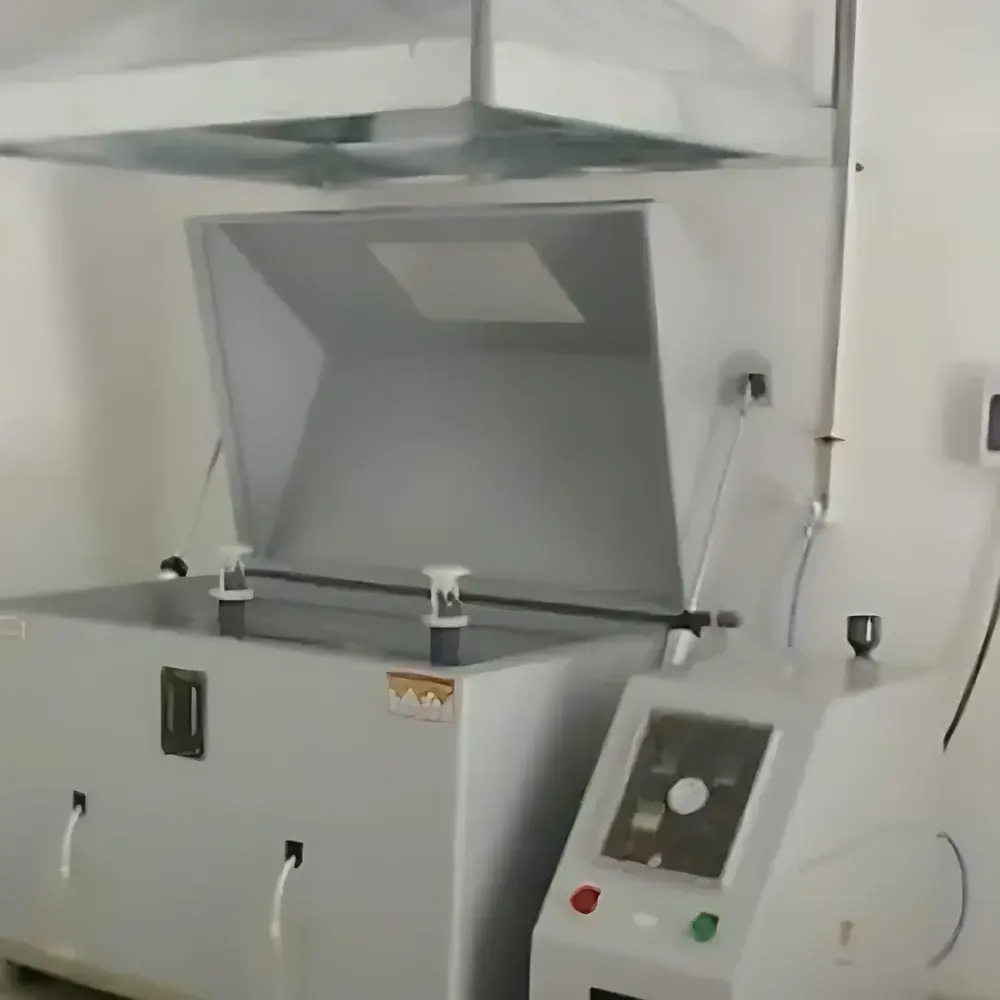

Jianhu JH-2026 Advanced Salt Spray Test Chamber (ASTM B117 / ISO 9227 Compliant)

Overview

The Jianhu JH-2026 Advanced Salt Spray Test Chamber is an engineered environmental test system designed to perform accelerated corrosion testing in strict accordance with internationally recognized standards—including ASTM B117 (Standard Practice for Operating Salt Spray (Fog) Apparatus), ISO 9227 (Corrosion tests in artificial atmospheres — Salt spray tests), and China’s GB/T 2423.17 and GB/T 10587. It employs a precision-controlled continuous atomization method to generate stable, reproducible sodium chloride aerosol environments. The chamber utilizes a dual-stage saturation air preheating system and a closed-loop salt solution delivery circuit with real-time conductivity feedback, enabling accurate maintenance of 5.0% ±0.1% NaCl concentration under steady-state conditions. Temperature is regulated via PID-controlled heating elements integrated into the chamber jacket and saturated air chamber, ensuring thermal stability within ±0.5°C at the standard 35°C NSS test point. Its monolithic 316L stainless steel construction eliminates weld seam corrosion pathways—critical for long-term integrity during multi-day or multi-week exposure cycles.

Key Features

• Monolithic 316L stainless steel chamber body with electropolished interior surface—resistant to chloride-induced pitting and crevice corrosion over extended operational life.
• Intelligent salt concentration compensation algorithm dynamically adjusts solution flow rate and saturation air temperature to maintain ±0.1% NaCl tolerance across varying ambient humidity and load conditions.
• Low-energy constant-temperature control architecture featuring insulated double-wall construction and adaptive PID tuning—reducing thermal drift and power consumption by up to 22% versus conventional designs.
• Pneumatic de-fogging system utilizing compressed air displacement to evacuate residual mist without mechanical fans or condensate pumps—eliminating corrosion-prone moving parts and reducing maintenance intervals.
• Integrated waste liquid recovery module compliant with China’s GB 16297-1996 (Comprehensive Emission Standard for Air Pollutants) and GB 8978-1996 (Integrated Wastewater Discharge Standard).
• Full-cycle operational validation: Each unit undergoes 72-hour salt fog stability testing, -20°C to +60°C thermal cycling verification, and leak integrity assessment prior to shipment—yielding a factory pass rate of 99.6%.

Sample Compatibility & Compliance

The JH-2026 accommodates test specimens up to 600 mm × 900 mm × 500 mm (W×D×H) and supports standardized test configurations per ASTM B117 Annex A1 (rack orientation), ISO 9227 Clause 6.2 (specimen placement), and GB/T 2423.17 Section 5.3. It is validated for Neutral Salt Spray (NSS), Acetic Acid Salt Spray (AASS), and Copper-Accelerated Acetic Acid Salt Spray (CASS) testing modes. All electrical components meet IP54 ingress protection rating; internal wiring conforms to IEC 60529 and UL 508A. The system complies with GLP-relevant documentation requirements—including audit-ready calibration logs, sensor traceability (NIST-traceable Pt100 RTDs), and electronic signature-capable operation records when paired with optional software modules.

Software & Data Management

Equipped with a 10.1-inch capacitive touchscreen HMI running embedded Linux OS, the JH-2026 provides intuitive test setup, real-time parameter visualization (fog density, chamber temp, saturation air temp, pressure), and event-triggered alarm logging. Optional Jianhu TestSuite™ software enables PC-based remote monitoring, automated report generation (PDF/CSV), and 21 CFR Part 11-compliant user access control, electronic signatures, and audit trail functionality. Data export supports direct integration with laboratory information management systems (LIMS) and MES platforms via Modbus TCP and OPC UA protocols. Firmware updates are delivered via secure HTTPS endpoint with SHA-256 signature verification.

Applications

This chamber is routinely deployed in quality assurance and R&D laboratories across automotive (e.g., chassis components, fasteners, electroplated trim), electronics (PCB finishes, solder joints, connector housings), medical devices (surgical instruments, implant coatings), aerospace (fastener alloys, composite surface treatments), and renewable energy sectors (photovoltaic frame anodizing, battery enclosure seals). Its extended 1000-hour uninterrupted operation capability makes it suitable for long-duration qualification testing required by IATF 16949, ISO 13485, and AS9100-certified organizations. Validation reports from end-users—including BYD Automotive, Huawei Device Lab, Mindray Medical Testing Center, and AVIC Research Institutes—confirm repeatability coefficients of variation (CV) <2.3% across inter-laboratory NSS trials.

FAQ

What standards does the JH-2026 comply with?
It meets ASTM B117, ISO 9227, GB/T 2423.17, and GB/T 10587 for neutral, acetic acid, and copper-accelerated salt spray testing.
Can it support CASS testing?
Yes—the system includes dual chemical reservoirs, programmable pH control (2.0–3.2 range), and copper chloride dosing capability per ISO 9227 Annex B.
Is third-party calibration available?
Jianhu provides UKAS-accredited calibration certificates (traceable to NIM, China) upon request, including temperature uniformity mapping and fog deposition rate verification.
What is the warranty coverage?
Standard 36-month comprehensive warranty covers chamber structure, spray system, temperature/humidity control subsystems, and embedded controller hardware.
How is salt solution concentration monitored and maintained?
Conductivity sensors in the recirculating brine loop feed real-time data to the proprietary compensation algorithm, which modulates pump speed and saturation chamber temperature to sustain ±0.1% w/w accuracy.
