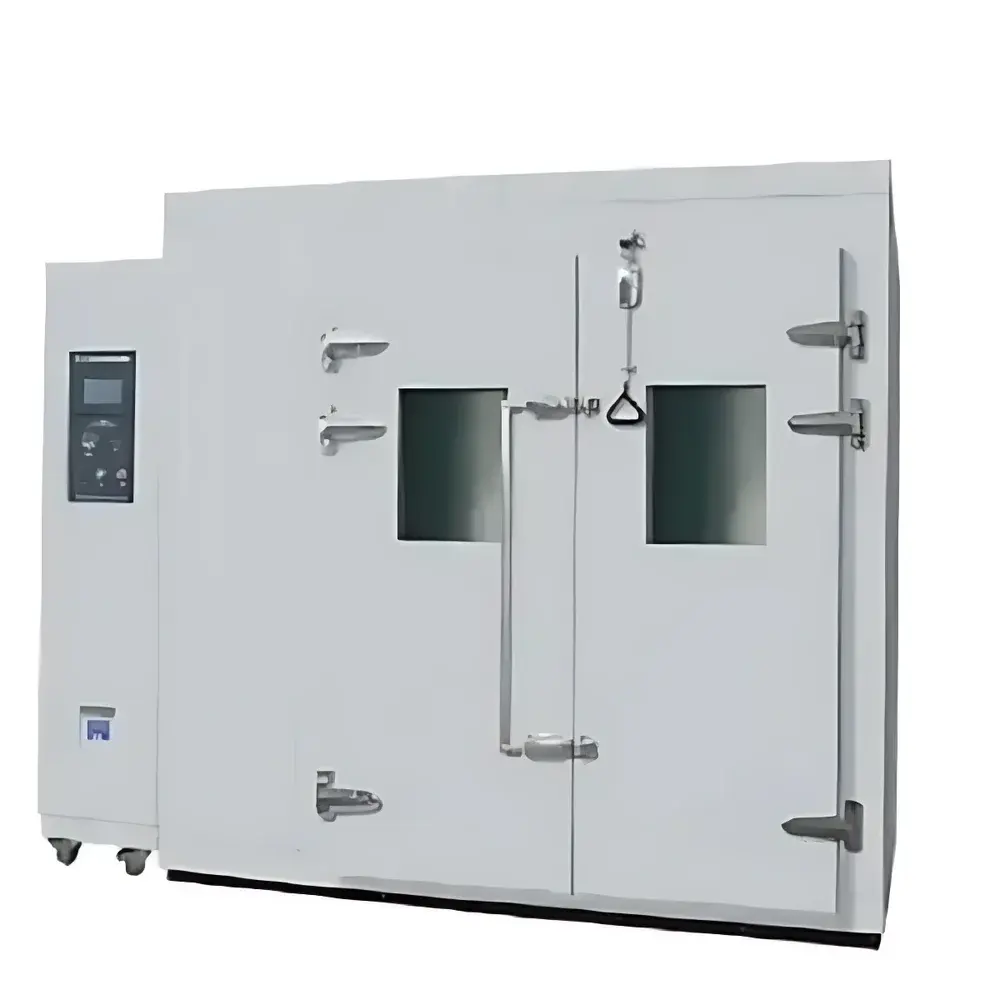

Jianhu JH-Series High-Low Temperature Environmental Test Chamber for Server Motherboard Reliability Testing

Overview

The Jianhu JH-Series High-Low Temperature Environmental Test Chamber is an engineered solution specifically designed for accelerated thermal stress validation of server motherboards and high-density computing hardware. It operates on the principle of controlled convective thermal cycling—utilizing a dual-stage compressor refrigeration system coupled with high-efficiency resistive heating elements and a precision-balanced air circulation architecture. This enables repeatable, traceable, and ISO/IEC 17025-aligned thermal profiles across extreme operational envelopes (−70 °C to +150 °C), supporting JEDEC JESD22-A104 (Temperature Cycling), JESD22-A106 (Highly Accelerated Temperature and Humidity Stress Test), and IEC 60068-2-14 (Change of Temperature) test standards. Its purpose-built chamber geometry, laminar airflow optimization, and minimized thermal inertia allow for rapid transition between setpoints—critical when validating solder joint integrity, capacitor derating, or thermal expansion mismatch in multi-layer PCB assemblies under real-world data center and edge-computing environmental conditions.

Key Features

• Explosion-proof certified enclosure (ATEX/IECEx-compliant design option available), suitable for testing components with volatile cooling media or high-power transient loads.
• Advanced PID + fuzzy logic temperature control algorithm with auto-tuning capability, delivering stable operation at ±0.5 °C fluctuation and ≤±2.0 °C spatial uniformity across full working volume.
• Dual independent refrigeration circuits (cascade low-temp stage + high-capacity medium-temp stage) enabling reliable sub-zero operation down to −70 °C without liquid nitrogen dependency.
• Modular chamber construction with stainless-steel interior, electrostatically shielded insulation, and non-outgassing gasket materials—ensuring long-term stability and compatibility with cleanroom-integrated validation workflows.
• Real-time monitoring of chamber thermocouple arrays (up to 9-point mapping), power supply status, compressor discharge temperature, and fan RPM—all logged with time-stamped metadata.
• Front-access service panel with quick-release fasteners, facilitating routine calibration verification and preventive maintenance per ASTM E2582 guidelines.

Sample Compatibility & Compliance

The JH-Series accommodates standard 19-inch rack-mount server motherboard trays (E-ATX, SSI-EEB, CEB form factors), as well as custom fixtures for bare-die thermal interface material (TIM) evaluation or chip-level burn-in. Chamber interior dimensions are fully configurable—from compact 300 × 300 × 300 mm³ benchtop units to walk-in configurations supporting full-rack thermal profiling. All models comply with GB/T 10589–2008 (Chinese national standard for low-temperature test chambers), ISO 16750-4 (Road vehicles – Environmental conditions and testing for electrical and electronic equipment), and support GLP/GMP audit readiness through optional 21 CFR Part 11–compliant software packages. Traceable NIST-traceable calibration certificates are provided with each shipment, and chamber qualification (IQ/OQ/PQ) documentation templates conform to Annex 15 of the EU GMP Guide.

Software & Data Management

Equipped with Jianhu’s proprietary TestMaster™ v4.2 control platform, the system supports programmable multi-step thermal profiles (up to 99 segments), real-time deviation alarms, and automated report generation in PDF/XLSX formats compliant with ISO/IEC 17025 clause 7.8. Data logging resolution is 0.1 °C at 1 Hz sampling, with onboard storage for ≥30 days of continuous operation. Optional Ethernet/IP and Modbus TCP interfaces enable integration into centralized MES or LabVantage environments. Audit trail functionality records all parameter changes, user logins, and calibration events with immutable timestamps—fully satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures. Remote access via TLS 1.2–secured web interface allows off-site monitoring without compromising network security policies.

Applications

• Thermal cycling validation of BGA solder joints on x86/ARM-based server motherboards per IPC-9701A.
• High-temperature soak testing of VRM (Voltage Regulator Module) components under load conditions up to 150 °C.
• Low-temperature functional verification of PCIe Gen5 signal integrity and DDR5 memory controller timing margins.
• Accelerated life testing of thermal interface materials (TIMs) used in direct-die cooling solutions.
• Environmental stress screening (ESS) of AI accelerator cards and FPGA-based compute modules prior to burn-in.
• Qualification of conformal coatings and underfill adhesives for aerospace-grade server deployments.

FAQ

What temperature ramp rates are achievable across the full range?
Standard configuration achieves 5–10 °C/min heating and 3–5 °C/min cooling between −40 °C and +85 °C; performance varies slightly at extremes (e.g., −70 °C startup may require extended stabilization).
Is remote calibration and validation support available?
Yes—Jianhu provides annual on-site IQ/OQ services by CNAS-accredited engineers, including chamber mapping, sensor recalibration, and uncertainty budget analysis per ISO/IEC 17025.
Can the chamber be integrated into an existing HALT/HASS test system?
Absolutely—the JH-Series offers analog/digital I/O ports and SCPI command set compatibility for seamless synchronization with vibration shakers, power analyzers, and boundary-scan test systems.
Does the explosion-proof version meet international hazardous area classifications?
The Ex d IIB T4 Gb-rated variant complies with IEC 60079-1 and ATEX 2014/34/EU directives for Zone 1 gas environments; certification documentation is supplied with delivery.
What is the warranty coverage and service response time?
Standard 24-month parts-and-labor warranty; priority technical support response within 4 business hours, with on-site engineer dispatch available globally under extended service contracts.
