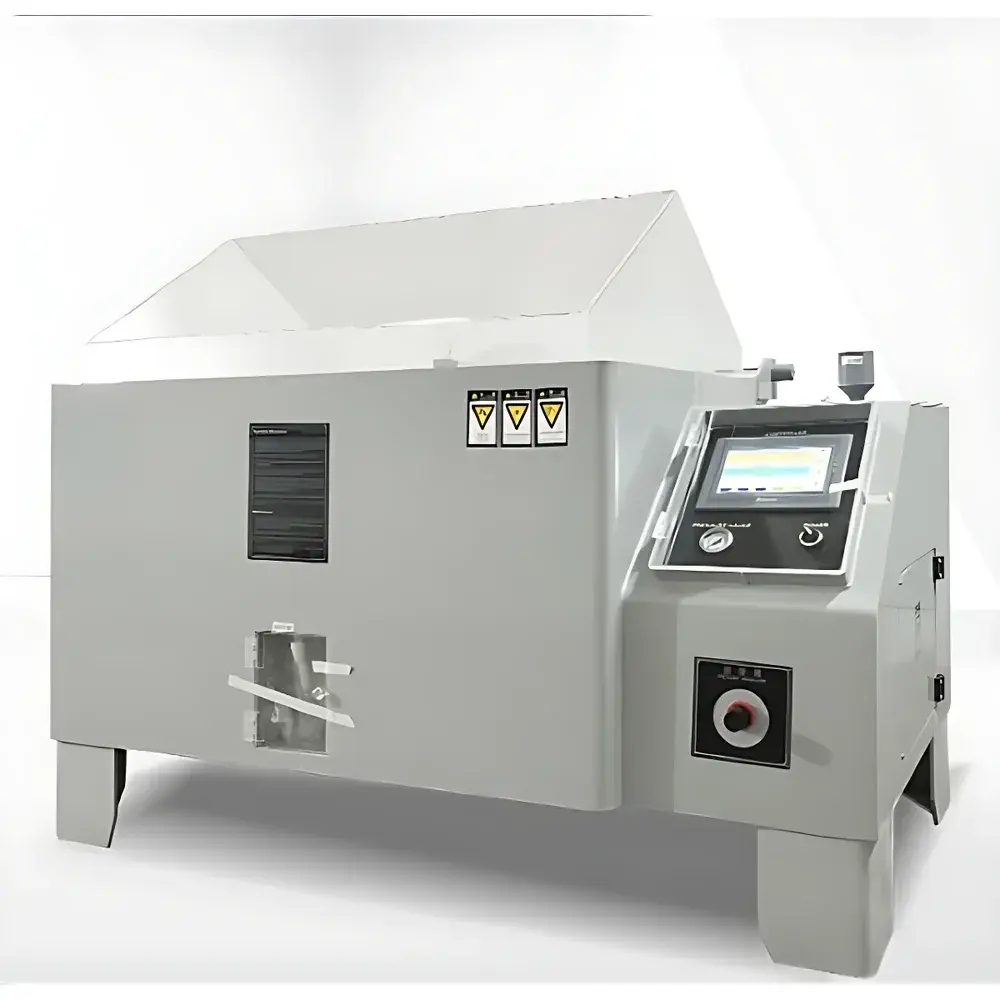

JianHu JH-Series Multi-Function Environmental Test Chamber with Salt Spray, UV, and Sand/Dust Simulation
| Brand | JianHu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-Series |
| Spray Method | Continuous Atomization |
| Spray Rate | 1–2 mL per 80 cm² per hour |
| Nozzle Pressure | 0.7–1.0 kg/cm² |
| Fog Removal | Pneumatic Air-Compression Exhaust |
Overview
The JianHu JH-Series Multi-Function Environmental Test Chamber is an engineered platform for accelerated corrosion and multi-stress environmental simulation, integrating salt spray, ultraviolet (UV) irradiation, and sand/dust exposure within a single, reconfigurable chamber architecture. It operates on the principle of controlled electrochemical corrosion acceleration—primarily through neutral (NSS), acetic acid (AASS), or copper-accelerated (CASS) salt fog generation—combined with synchronized UV-A/UV-B photodegradation and particulate abrasion cycles. Designed for laboratory-scale validation of material durability, coating integrity, and surface passivation performance, the system enables standardized testing per ASTM B117, ISO 9227, IEC 60068-2-11, and GB/T 2423.17. Its modular internal configuration supports rapid physical reconfiguration between test modes without hardware replacement, reducing cross-contamination risk and enabling sequential or concurrent multi-stress exposure protocols.
Key Features
- Triple-mode environmental simulation: switchable between salt spray (NSS/AASS/CASS), UV exposure (UVA-340 or UVB-313 lamp arrays), and dry/wet sand-dust circulation—all programmable via unified control logic.
- High-fidelity salt fog generation: precision-machined quartz nozzles operating at 0.7–1.0 kg/cm² pressure deliver uniform 1–2 mL/80 cm²/h deposition rates, traceable to NIST-traceable volumetric calibration standards.
- Corrosion-resistant chamber construction: interior lined with electropolished AISI 316L stainless steel; double-silicone gasketed door seal ensures ≤0.5% fog leakage under dynamic pressure differential (per ISO 9227 Annex C).
- Intelligent climate management: PID-controlled temperature range of +10°C to +55°C (±0.5°C stability); humidity control from 30% to 98% RH (±2% RH accuracy) during non-spray phases.
- Human-centric HMI: 10.1-inch capacitive touch interface with multilingual OS (English, German, Japanese, Chinese), preloaded with ASTM/ISO/GB test templates, and configurable user-defined profiles with password-protected parameter locking.
- Real-time sensor network: embedded Pt100 temperature sensors, capacitive RH probes, and optical fog density monitors feed data to a deterministic control loop with automatic drift compensation and alarm-triggered event logging.
Sample Compatibility & Compliance
The JH-Series accommodates specimens up to 600 mm × 600 mm × 500 mm (W×D×H), including metallic substrates, polymer composites, painted panels, printed circuit boards, and coated fasteners. Fixture compatibility includes ASTM D610-compliant sample racks, ISO 12944-6 compliant test coupons, and custom jigs for automotive trim or aerospace hardware. All operational firmware and data handling comply with GLP and GMP documentation requirements—including full 21 CFR Part 11 audit trail capability (user action timestamping, electronic signature support, immutable log archiving). Calibration certificates are issued per ISO/IEC 17025 by accredited third-party labs upon installation and annually thereafter.
Software & Data Management
JianHu’s proprietary TestMaster™ v4.2 software provides local and remote monitoring via Ethernet/Wi-Fi, supporting real-time graphing of temperature, humidity, fog density, and UV irradiance (W/m²). Data export conforms to ASTM E2917-compliant CSV and XML formats, with optional integration into LIMS platforms via OPC UA or RESTful API. All test sequences generate tamper-evident PDF reports containing operator ID, calibration status, environmental deviation flags, and pass/fail determinations against selected standards. Firmware updates are digitally signed and verified prior to installation to ensure integrity and regulatory continuity.
Applications
- Automotive OEMs validating corrosion resistance of chassis components, brake calipers, and battery enclosures under combined salt + UV aging per SAE J2334.
- Electronics manufacturers assessing conformal coating failure mechanisms on PCBAs exposed to coastal + solar loading conditions (IEC 60068-2-60).
- Aerospace suppliers qualifying thermal barrier coatings on turbine blades using cyclic salt + sand abrasion per AMS 2700.
- Academic research groups studying synergistic degradation kinetics in Mg-alloys or Zn-Ni plating systems under multi-stress regimes.
- Third-party certification labs performing ISO 12944 Category C5-I and C5-M coating performance verification for offshore infrastructure projects.
FAQ
What salt spray standards does the JH-Series support?
ASTM B117, ISO 9227 (NSS, AASS, CASS), JIS Z2371, GB/T 2423.17, and MIL-STD-810G Method 509.2.
Can UV and salt spray operate simultaneously?
No—UV lamps are automatically de-energized during active salt fog generation to prevent premature lamp degradation and ensure compliance with IEC 60068-2-52 safety requirements.
Is the chamber suitable for testing lithium-ion battery modules?
Yes, when configured with optional inert gas purge (N₂) and explosion-proof ventilation ducting—certified to UL 62368-1 and UN 38.3 thermal abuse protocol alignment.
How is fog collection calibrated?
Using ASTM B117-recommended 80 cm² funnels with volumetric measurement at 16-hour intervals; calibration certificate includes uncertainty budget per ISO/IEC 17025.
Does the system support remote diagnostics and preventive maintenance alerts?
Yes—integrated predictive analytics monitor nozzle wear, compressor duty cycle, and UV lamp spectral decay, triggering service notifications with root-cause diagnostics and spare part recommendations.
