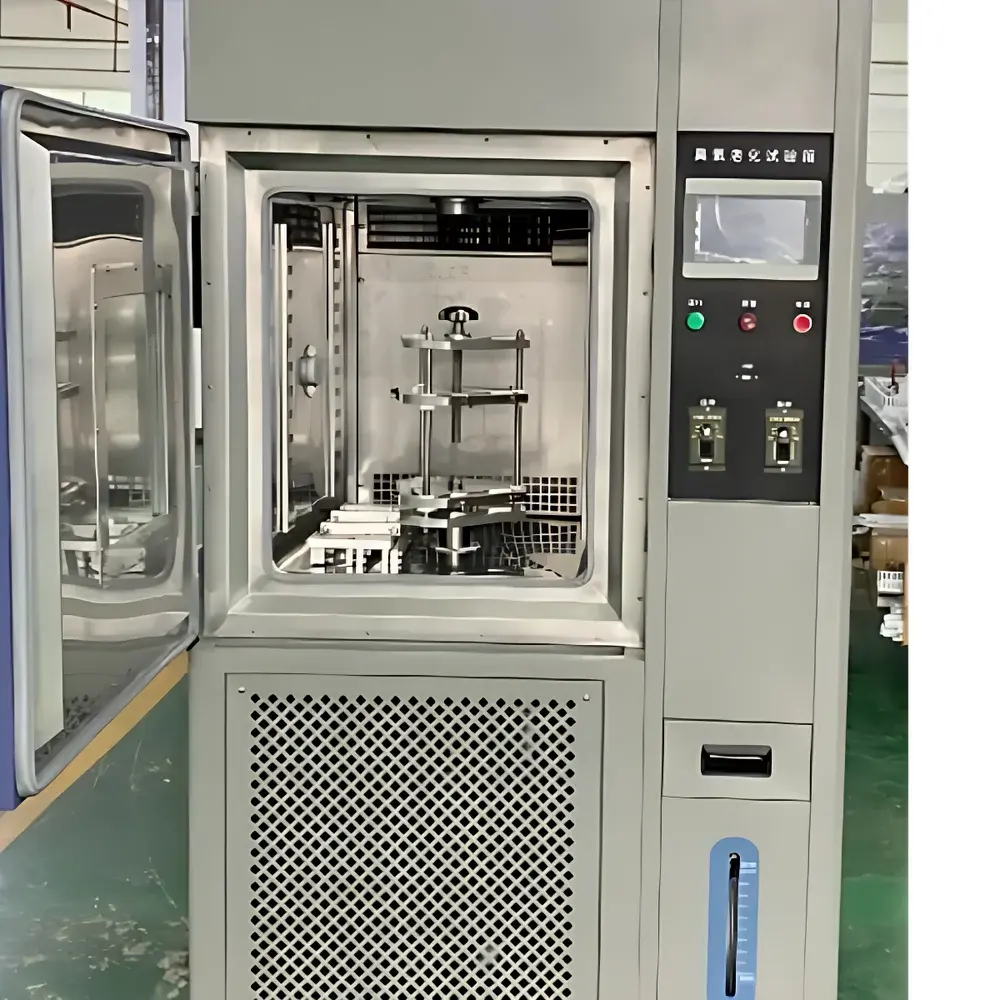

JianHu JH-Series Ozone Aging Test Chamber

Overview

The JianHu JH-Series Ozone Aging Test Chamber is an industrial-grade environmental test system engineered for accelerated evaluation of ozone-induced degradation in polymeric and organic materials. It operates on the principle of controlled atmospheric exposure—generating and maintaining precise ozone concentrations (typically 25–1000 ppm) within a thermally regulated, sealed chamber while enabling real-time observation of surface cracking, embrittlement, discoloration, and tensile property loss. This methodology aligns with internationally recognized accelerated aging protocols used to predict long-term service behavior under ambient or elevated ozone conditions—particularly relevant in tropospheric environments where ground-level ozone concentrations exceed 50 ppb. The chamber integrates ozone generation via silent corona discharge, closed-loop UV absorption monitoring, and dual-stage catalytic decomposition exhaust treatment to ensure operator safety and regulatory compliance during extended test cycles.

Key Features

• Stable ozone concentration control: ±10% accuracy across 25–1000 ppm range, verified by built-in UV photometric sensor with NIST-traceable calibration support
• Temperature regulation: Adjustable range from ambient +10°C to +70°C, with ±0.5°C uniformity over working volume
• Humidity control (optional): Integrated steam humidification system supporting 30–85% RH at 40°C, compliant with ISO 1431-1 Annex A requirements
• Observation window: Tempered quartz glass viewport (≥100 mm diameter) with anti-ozone coating and integrated LED illumination for non-intrusive visual assessment
• Safety architecture: Dual-redundant ozone destruction unit (catalytic + thermal), automatic chamber purge sequence post-test, and interlocked door switch with ozone lockout
• Industrial-grade construction: 304 stainless steel inner chamber, epoxy-coated outer casing, and IP54-rated electrical enclosure for laboratory and production floor deployment

Sample Compatibility & Compliance

The JH-Series accommodates flat specimens (up to 300 × 300 mm), molded elastomer parts, extruded profiles, and coated substrates mounted on adjustable sample racks. It supports standardized test geometries per ASTM D1149, ISO 1431-1, GB/T 7762, and JIS K 6259. All ozone exposure protocols are fully compatible with Good Laboratory Practice (GLP) documentation workflows. The system’s ozone generation and monitoring subsystems meet IEC 61000-4-3 immunity standards and are designed to facilitate audit-ready validation packages—including IQ/OQ documentation templates aligned with FDA 21 CFR Part 11 data integrity expectations for regulated industries.

Software & Data Management

Equipped with JianHu’s proprietary TestMaster™ control software (Windows-based, USB/RS485 interface), the chamber enables programmable multi-step test profiles—including ramp-hold sequences for temperature/ozone/humidity, real-time graphing of ozone concentration drift, and automated event logging with timestamped parameter snapshots. Data export is supported in CSV and XML formats for integration into LIMS or statistical analysis platforms such as JMP or Minitab. Audit trails record all user actions—including parameter changes, start/stop commands, and calibration events—with immutable timestamps and operator ID tagging. Optional Ethernet connectivity enables remote monitoring and centralized fleet management across multi-chamber laboratories.

Applications

This test chamber serves critical quality assurance and R&D functions across sectors where ozone resistance directly impacts product reliability: automotive (tire sidewalls, EPDM seals, HVAC hoses), aerospace (silicone gaskets, cable insulation), construction (roofing membranes, silicone sealants), medical devices (latex tubing, PVC IV sets), and consumer electronics (elastomeric enclosures, conformal coatings). In academic and third-party testing labs—including those accredited to ISO/IEC 17025—the JH-Series supports method development for novel polymer formulations, additive screening (e.g., antiozonants), and comparative benchmarking against legacy material grades. Its modular design allows integration into larger environmental stress screening suites alongside salt spray, UV weathering, and thermal cycling systems.

FAQ

What ozone concentration ranges does the JH-Series support?
The standard configuration delivers 25–500 ppm; high-concentration models extend to 1000 ppm with optional ozone generator upgrade.
Is humidity control included as standard equipment?
No—humidity capability is available as a factory-installed option, requiring separate steam generator and RH sensor calibration.
Can the chamber be validated for ISO 17025-compliant testing?
Yes—JianHu provides IQ/OQ documentation packages, traceable calibration certificates, and uncertainty budgets upon request.
How is ozone safely removed after test completion?
A two-stage exhaust system first passes chamber air through heated catalytic converters (≥300°C), then through activated carbon filtration before venting externally via dedicated ductwork.
Does the system support unattended operation for extended cycles?
Yes—fully autonomous 720-hour continuous operation is certified, with battery-backed real-time clock and power-fail recovery logic.
