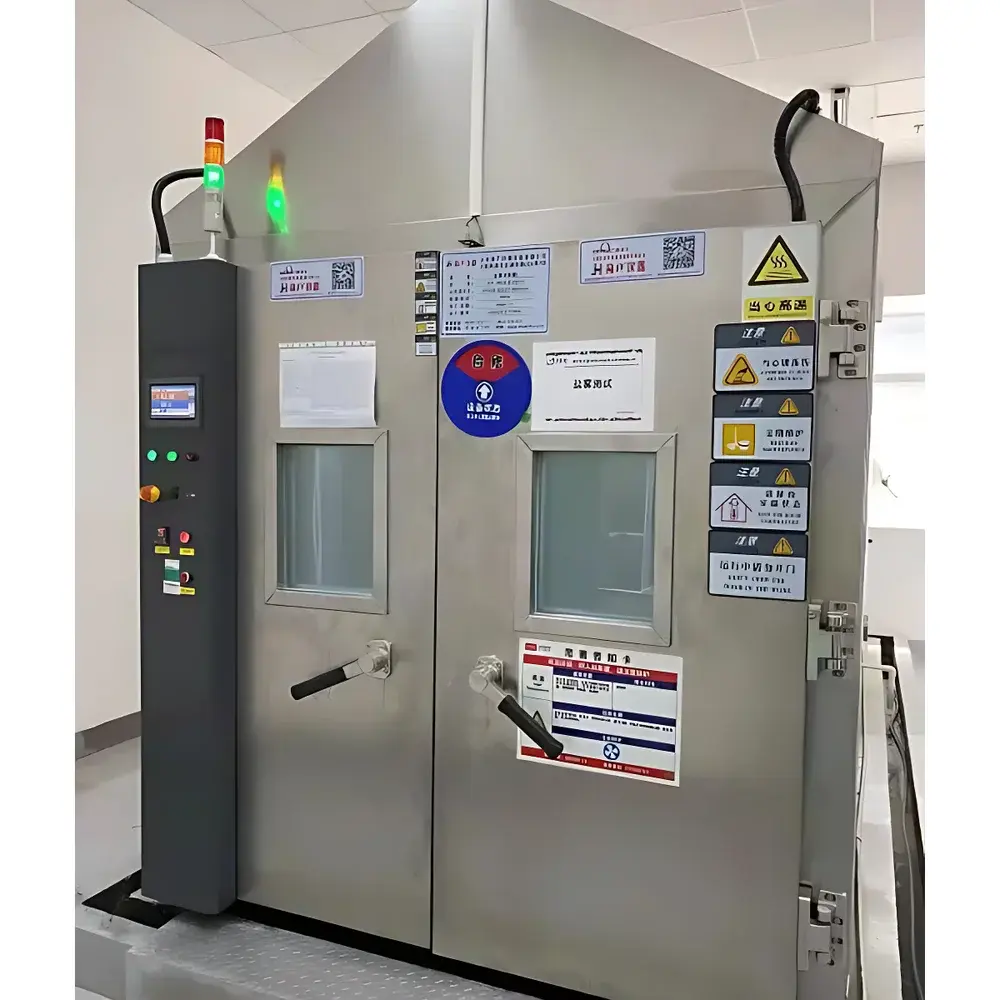

JianHu JH-Series Salt Spray Corrosion & Aging Test Chamber

Overview

The JianHu JH-Series Salt Spray Corrosion & Aging Test Chamber is an engineered environmental simulation system designed to accelerate corrosion testing of metallic materials, coated surfaces, and electroplated components under controlled saline atmospheric conditions. Based on the fundamental principles of electrochemical corrosion in chloride-rich environments, the chamber replicates the aggressive degradation mechanisms observed in coastal, marine, and de-icing salt-exposed service conditions. It operates in strict accordance with internationally recognized test standards—including ASTM B117 (Standard Practice for Operating Salt Spray (Fog) Apparatus), ISO 9227 (Corrosion tests in artificial atmospheres — Salt spray tests), and JIS Z 2371—ensuring reproducible, auditable, and metrologically traceable test outcomes. The chamber’s thermally insulated double-wall construction, precision PID temperature regulation, and gravity-fed saturated air saturation tower collectively ensure stable fog generation and uniform chamber environment distribution—critical for GLP-compliant laboratory validation and GMP-aligned quality assurance workflows.

Key Features

• Continuous atomization spray system with corrosion-resistant glass nozzles and adjustable nozzle pressure (0.7–1.0 kgf/cm²) for consistent fog density control
• Calibrated fog deposition rate (1–2 mL/80 cm²·hr) verified using standardized collection funnels per ASTM B117 Annex A1
• Dual-zone temperature control: 35°C ± 2°C for Neutral Salt Spray (NSS), 50°C ± 2°C for Copper-Accelerated Acetic Acid Salt Spray (CASS), with real-time digital monitoring and alarm logging
• Pneumatically actuated de-misting exhaust system minimizing post-test condensation and enabling rapid chamber recovery between test cycles
• Stainless steel 316L inner chamber and PVC-coated structural frame ensuring long-term resistance to chloride-induced stress corrosion cracking
• Integrated safety interlocks including low-water level cutoff, over-temperature protection, and chamber door open detection
• Compliance-ready design supporting 21 CFR Part 11 audit trail requirements when paired with optional data acquisition software

Sample Compatibility & Compliance

The JH-Series accommodates a broad range of test specimens—including ferrous and non-ferrous metals, conversion-coated aluminum, zinc-plated fasteners, painted automotive body panels, printed circuit board assemblies (PCBAs), and stainless steel surgical instruments. Specimen racks are configurable to maintain standard 20°–30° angular orientation per ISO 9227. All operational parameters—including chamber temperature, spray duration, solution pH (6.5–7.2 for NSS; 3.1–3.3 for CASS), and NaCl concentration (5.0 ± 0.1% w/w)—are continuously monitored and recorded to meet ISO/IEC 17025 accreditation requirements for testing laboratories. The system supports multi-standard execution: NSS (ASTM B117), AASS (ISO 9227), and CASS (ASTM G85 Annex A5), with full documentation traceability for regulatory submissions to FDA, EU Notified Bodies, or IECQ-certified supply chains.

Software & Data Management

Optional JianHu LabLink™ software provides real-time parameter visualization, automated report generation (PDF/CSV), and secure user role management (admin/operator/auditor). Data logs include timestamped temperature profiles, spray cycle activation history, and manual intervention records—structured to satisfy FDA 21 CFR Part 11 electronic record and signature requirements. Audit trails are immutable and exportable for internal QA review or external certification audits. Integration with LIMS platforms is supported via OPC UA and Modbus TCP protocols, enabling seamless alignment with enterprise-wide quality management systems (QMS) such as MasterControl or Veeva Vault QMS.

Applications

• Automotive: Validation of brake calipers, wheel hubs, exhaust components, and ECU enclosures per SAE J2334 and VW PV1210
• Electronics: Corrosion screening of solder joints, conformal coatings, and connector housings per IPC-J-STD-002 and IEC 60068-2-11
• Aerospace: Qualification of titanium alloys, cadmium-plated landing gear parts, and composite fastener systems per AMS 2700 and Boeing D6-17487
• Medical Devices: Biocompatibility support testing for stainless steel implants and electropolished surgical tools per ISO 10993-15
• Construction & Hardware: Durability assessment of architectural aluminum extrusions, galvanized steel cladding, and marine-grade fasteners per EN 1670 and ASTM B633

FAQ

What standards does the JH-Series chamber comply with?
It meets the core requirements of ASTM B117, ISO 9227, JIS Z 2371, and GB/T 2423.17—fully validated through third-party calibration certificates traceable to NIM (National Institute of Metrology, China).

Can the chamber perform cyclic corrosion testing (CCT)?
The base JH-Series supports static salt spray modes; optional CCT modules (e.g., JH-CCT Pro) add humidity, drying, and wetting phases per ISO 14993 and SAE J2527.

Is remote monitoring supported?
Yes—via Ethernet-connected LabLink™ software with TLS 1.2 encryption, enabling secure off-site supervision and alarm notifications via SMTP/SNMP.

What maintenance intervals are recommended?
Daily: Solution tank inspection and nozzle cleaning; Quarterly: Saturation tower descaling and pressure regulator calibration; Annually: Full thermal sensor verification and chamber integrity leak test.

Does JianHu provide installation and IQ/OQ/PQ documentation?
Yes—factory-trained engineers conduct on-site commissioning, and comprehensive qualification packages (including protocol templates, executed reports, and raw data archives) are supplied per client-specified GxP or ISO 13485 requirements.
