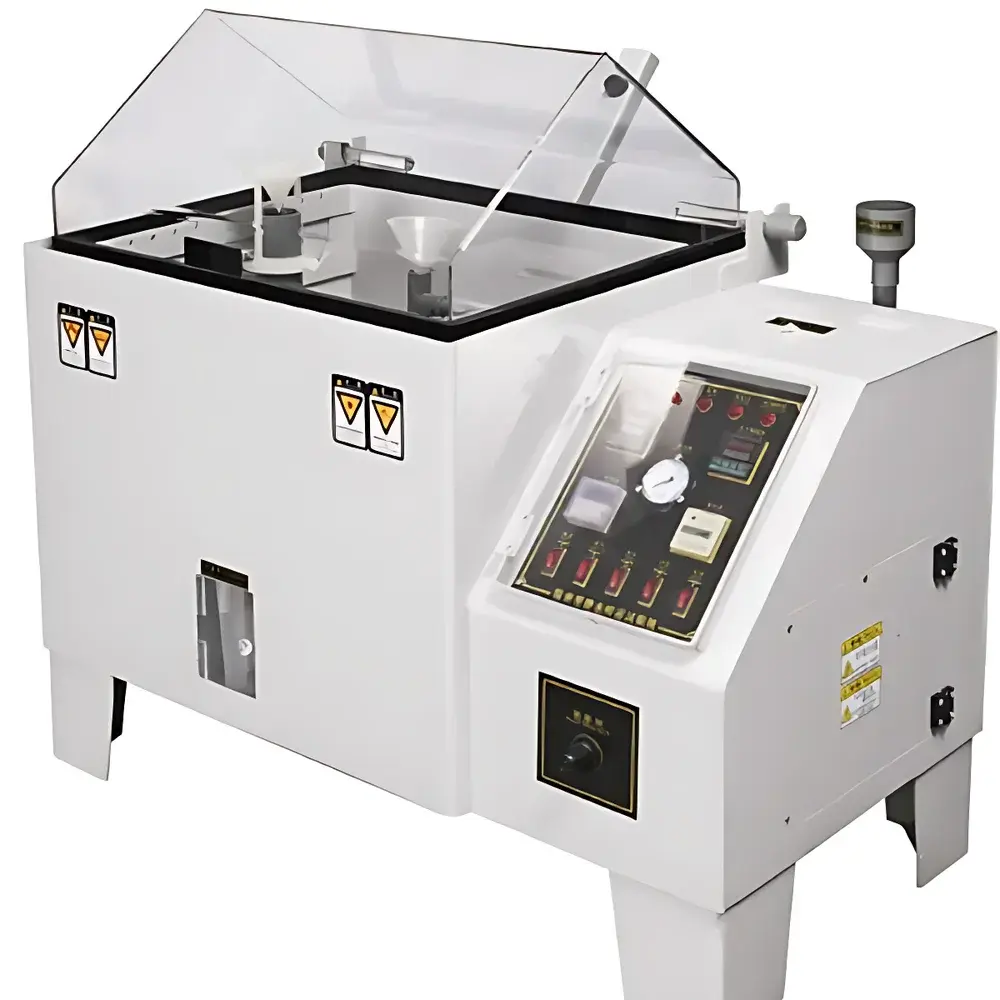

Jianhu JH-Series Salt Spray Test Chamber
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Model | JH-Series Salt Spray Test Chamber |
| Spray Rate | 1–2 mL/80 cm²·hr |
| Nozzle Pressure | 0.7–1 kg/cm² |
| Fog Removal Method | Air-pressurized exhaust |
| Saturated Air Chamber Temperature | 47 ± 1 °C |
| Compliance | ASTM B117, ISO 9227, GB/T 2423.17 |
| Key Features | Corrosion-accelerated testing, stainless steel chamber construction, digital PID temperature & pressure control, integrated salt solution reservoir, corrosion-resistant internal components |
Overview
The Jianhu JH-Series Salt Spray Test Chamber is an engineered environmental test system designed to accelerate corrosion evaluation of metallic substrates, coated surfaces, electroplated finishes, polymers, and protective coatings under controlled saline atmospheric conditions. Based on the fundamental principle of continuous or cyclic salt fog exposure—where atomized sodium chloride (NaCl) solution is delivered at defined pressure and flow rates onto test specimens—the chamber replicates the aggressive electrochemical degradation mechanisms observed in coastal, marine, and industrial atmospheres. This standardized acceleration method enables laboratories and quality assurance departments to assess long-term corrosion resistance within days or weeks rather than years, supporting robust product qualification against internationally recognized durability benchmarks.
Key Features
- Stainless steel 316L inner chamber and saturated air chamber for superior resistance to chloride-induced pitting and stress corrosion cracking
- Digital PID-controlled heating system maintaining precise saturated air temperature at 47 ± 1 °C—critical for stable fog generation per ASTM B117 requirements
- Adjustable nozzle pressure regulation (0.7–1 kg/cm²) ensuring consistent droplet size distribution and uniform spray coverage across test specimens
- Calibrated spray rate of 1–2 mL per 80 cm² per hour, traceable to volumetric measurement standards and validated via collection funnel methodology
- Air-pressurized fog removal mechanism minimizing residual condensate accumulation and preventing secondary corrosion during non-spray intervals
- Integrated corrosion-resistant salt solution reservoir with level sensor and overflow protection
- Front-access viewing window with anti-fog coating and sealed gasketing to maintain chamber integrity during operation
Sample Compatibility & Compliance
The JH-Series accommodates flat, cylindrical, and irregularly shaped specimens up to standard rack dimensions (e.g., 600 × 450 × 400 mm internal volume variants). It supports testing of ferrous and non-ferrous metals, conversion-coated aluminum, zinc-plated fasteners, automotive trim, printed circuit board conformal coatings, and marine-grade composites. All operational parameters align with mandatory test conditions specified in ASTM B117 (Standard Practice for Operating Salt Spray (Fog) Apparatus), ISO 9227 (Corrosion tests in artificial atmospheres — Salt spray tests), and China’s GB/T 2423.17 (Environmental testing — Part 2: Tests — Test Ka: Salt mist). The chamber architecture facilitates full audit readiness for GLP-compliant laboratories and supports documentation traceability required under ISO/IEC 17025 accreditation.
Software & Data Management
While the base JH-Series operates via analog/digital panel controls, optional RS-485 or Ethernet interfaces enable integration with laboratory information management systems (LIMS) and centralized environmental monitoring platforms. Real-time logging of saturated chamber temperature, spray duration cycles, and cumulative test hours is supported through external data loggers compliant with FDA 21 CFR Part 11 requirements when paired with validated software. All calibration records—including nozzle pressure transducer verification and temperature sensor NIST-traceable certificates—are maintained per manufacturer-recommended intervals (minimum semi-annual) to ensure ongoing measurement reliability.
Applications
- Quality conformance testing of electroplated components (e.g., Cr/Ni/Cu multilayers on automotive chassis parts)
- Evaluation of primer/topcoat adhesion and blistering resistance on marine equipment housings
- Comparative assessment of organic coating formulations (epoxy, polyurethane, PVDF) under accelerated chloride ingress
- Validation of passivation efficacy on stainless steel surgical instruments per ASTM A967
- Supplier qualification audits requiring repeatable, inter-laboratory comparable corrosion metrics
- Supporting R&D efforts in developing corrosion-inhibiting additives for water-based industrial coatings
FAQ
What standards does the JH-Series chamber comply with?
ASTM B117, ISO 9227, and GB/T 2423.17 are fully supported through factory-set operating parameters and documented validation protocols.
Is the chamber suitable for cyclic corrosion testing (CCT)?
The base configuration supports continuous salt spray only; optional humidity and drying modules are available for extended CCT profiles (e.g., VDA 621-415, GMW 14872).
How often must the nozzle be cleaned or replaced?
Daily visual inspection and weekly ultrasonic cleaning with deionized water are recommended; nozzle replacement is advised every 6 months under typical usage (8 hrs/day, 5 days/week).
Can test solution concentration be adjusted beyond 5% NaCl?
Yes—custom configurations support pH-adjusted solutions (e.g., acetic acid-acidified salt spray per ISO 9227 AASS) and copper-accelerated variants (CASS) upon request.
Does the system include calibration documentation?
Each unit ships with a factory calibration certificate covering saturated chamber temperature and pressure transducers, with NIST-traceable references provided upon request.
