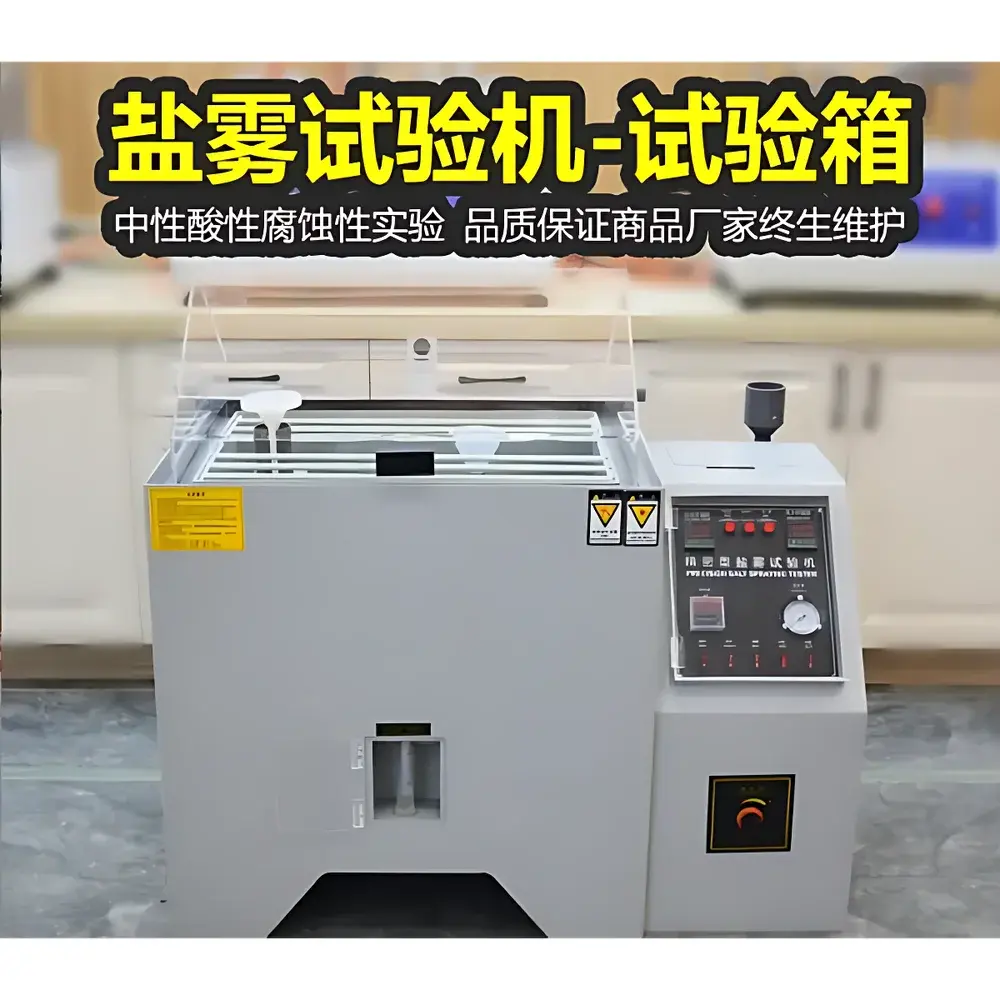

Jianhu JH-SSC Composite Salt Spray & Settling Test Chamber

Overview

The Jianhu JH-SSC Composite Salt Spray & Settling Test Chamber is an engineered environmental test system designed for accelerated corrosion evaluation under rigorously controlled conditions. Unlike conventional single-mode salt spray chambers, the JH-SSC integrates dual aerosol generation mechanisms—continuous pneumatic atomization and gravity-assisted salt solution settling—to replicate heterogeneous corrosive environments encountered in marine, industrial, and coastal urban settings. Its operational principle adheres to standardized electrochemical corrosion acceleration protocols, where chloride ion exposure initiates and propagates surface degradation on metallic substrates, coatings, and protective finishes. The chamber’s thermally stable stainless steel–free interior (constructed from corrosion-resistant polypropylene) ensures long-term integrity during prolonged exposure to acidic NaCl mist, while its sealed airflow architecture maintains uniform fog distribution per ISO 9227 Annex A requirements. Temperature regulation is achieved via a high-stability heating system with ±0.5°C uniformity across the working volume, enabling reproducible testing at elevated ambient conditions up to 50°C.

Key Features

• Composite corrosion simulation: Simultaneous or independent operation of continuous spray mode (for aggressive film formation) and passive settling mode (for low-velocity deposition mimicking atmospheric salt accumulation)
• Precision-engineered nozzle manifold: Adjustable pressure control (0.7–1.0 kg/cm²) ensures consistent droplet size distribution and minimizes clogging risk
• Integrated air-compression exhaust system: Removes residual fog without thermal disturbance or chamber depressurization, maintaining test continuity
• Intelligent PID touchscreen controller: Supports programmable multi-step profiles, real-time monitoring of chamber temperature, solution level, and compressor status
• Modular humidity extension capability: Optional RH module enables combined salt spray/humidity cycling per ISO 6270-2 and ASTM G85 Annex A5
• Full compliance with international corrosion test standards: Pre-configured test modes aligned with ISO 9227, ASTM B117, GB/T 2423.17, and IEC 60068-2-11
• Robust mechanical architecture: PP-lined interior, reinforced PVC-coated structural frame, and vibration-damped base for laboratory-grade stability

Sample Compatibility & Compliance

The JH-SSC accommodates test specimens up to 600 mm × 450 mm × 400 mm (W×D×H), supporting flat panels, fasteners, electronic enclosures, automotive components, and coated metal assemblies. Fixtures are non-metallic (PVC or PP) to prevent galvanic interference. All operational parameters—including fog deposition rate (1–2 mL/80 cm²·hr), pH (6.5–7.2), and temperature stability—are validated against ISO 9227 calibration procedures. The system meets GLP documentation requirements through built-in audit trail functionality (user login, parameter changes, start/stop timestamps), and optional 21 CFR Part 11-compliant software modules are available for regulated pharmaceutical and medical device validation. Third-party verification reports (e.g., SGS, TÜV) can be provided upon request.

Software & Data Management

The embedded controller logs temperature, spray duration, and system fault codes at 10-second intervals, exporting data in CSV format via USB or Ethernet. Optional PC-based software (Jianhu TestSuite v3.2) provides trend analysis, statistical process control (SPC) charts, automated report generation (PDF/Excel), and user-defined pass/fail criteria based on visual corrosion rating (ISO 10289) or electrochemical impedance spectroscopy (EIS) correlation templates. Data encryption, role-based access control, and electronic signature support align with FDA 21 CFR Part 11 and EU Annex 11 expectations for regulated environments.

Applications

• Automotive OEMs: Corrosion resistance validation of chassis components, brake calipers, and zinc-nickel plated fasteners
• Aerospace suppliers: Qualification of aluminum alloy cladding and chromate conversion coatings per AMS 2400
• Electronics manufacturers: Evaluation of conformal coating durability on PCBAs exposed to mixed-flowing gas (MFG) + salt environments
• Renewable energy: Testing of offshore wind turbine nacelle housings and photovoltaic mounting structures
• Academic research: Accelerated aging studies of novel anti-corrosion nanocoatings and self-healing polymer systems
• Quality assurance labs: Routine conformance testing for ISO/TS 16949 and AS9100-certified production lines

FAQ

What standards does the JH-SSC chamber comply with?
It fully supports ISO 9227, ASTM B117, GB/T 2423.17, IEC 60068-2-11, and JIS Z 2371. Custom test sequences can be configured for ASTM G85 Annexes A1–A5.
Can the chamber operate with humidity control enabled during salt spray cycles?
Yes—the optional integrated humidity module allows concurrent salt fog and controlled RH exposure, essential for cyclic corrosion testing (CCT) protocols.
Is third-party calibration and certification available?
Jianhu partners with accredited metrology laboratories (e.g., SGS, Bureau Veritas) to deliver NIST-traceable calibration certificates and ISO/IEC 17025-compliant performance verification reports.
What maintenance intervals are recommended?
Daily: Visual inspection of nozzles and solution reservoir; Weekly: Cleaning of PP interior surfaces and drain lines; Annually: Full system calibration and pressure regulator verification.
Does the system support remote monitoring and alarm notification?
Via optional Ethernet interface and Jianhu CloudLink gateway, users receive SMS/email alerts for temperature deviation, low solution level, or power interruption events.
