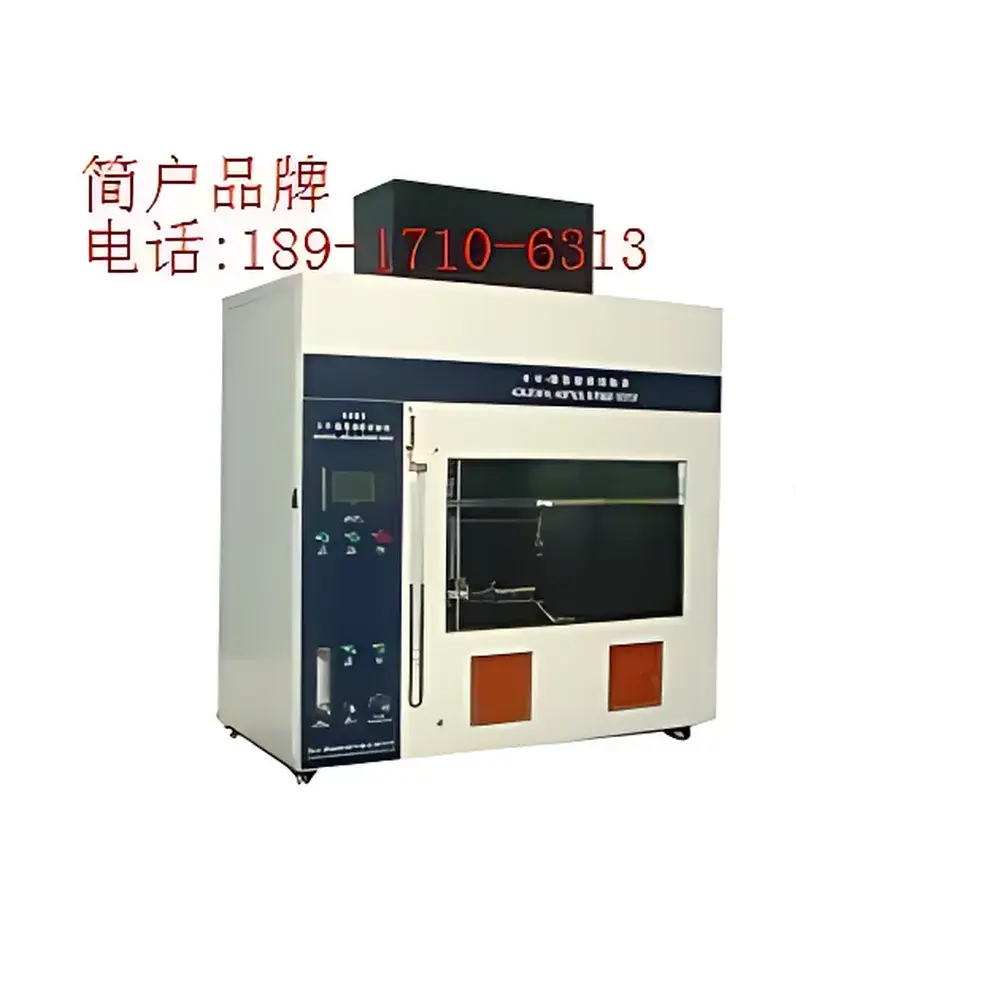

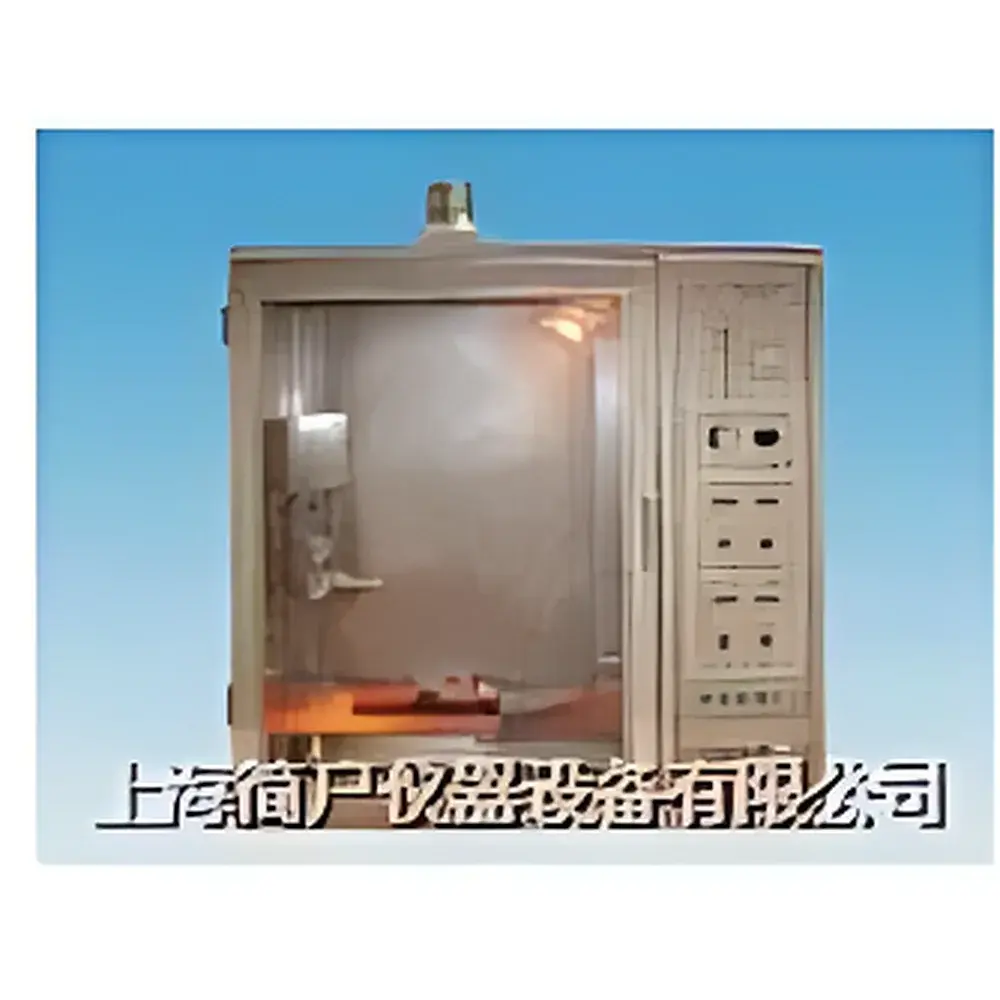

Jianhu JH8920 UL94 Horizontal & Vertical Combustion Test Chamber

Overview

The Jianhu JH8920 UL94 Horizontal & Vertical Combustion Test Chamber is a precision-engineered instrument designed to evaluate the flammability characteristics of polymeric materials under standardized ignition conditions. It operates on the principle of controlled flame exposure—applying a defined propane or LPG flame to specimen surfaces at specified angles and durations—followed by quantitative measurement of afterflame time, afterglow time, and extent of burning or dripping. The chamber conforms structurally and functionally to the core requirements of UL 94 (2023 edition), IEC 60695-11-10, and national standards GB/T 2408 (Horizontal Burning Test) and GB/T 5169.16 (Vertical Burning Test). Its 0.5 m³ internal volume meets the minimum enclosure size mandated for thermal stability and exhaust management during combustion events, ensuring consistent oxygen availability and minimizing draft interference—critical factors for test repeatability across laboratories.

Key Features

• Robust stainless-steel combustion chamber (800 × 580 × 1020 mm) with integrated observation window, ventilation ducts, and flame-retardant interior lining to withstand repeated thermal cycling and corrosive combustion byproducts.
• Dual-angle burner mounting system enabling rapid reconfiguration between horizontal (45°) and vertical (90°) test orientations without mechanical recalibration.
• Calibrated 9.5 mm inner-diameter brass burner tube (100 mm length), compliant with UL 94 Annex A specifications, delivering stable laminar flame geometry and reproducible heat flux profiles.
• Four independent digital timers with millisecond resolution: pre-ignition delay timer, afterflame duration timer, afterglow duration timer, and flame extinction confirmation timer—each programmable and logged with timestamped event markers.
• Integrated high-voltage piezoelectric igniter and solenoid-controlled gas valve assembly, ensuring reliable, spark-free ignition and precise fuel cutoff within <100 ms response time.
• Modular specimen holder assembly compatible with standard UL 94 test bars (125 mm × 13 mm × thickness 3–13 mm), featuring adjustable clamping force and thermal isolation mounts to prevent conductive heat transfer errors.

Sample Compatibility & Compliance

The JH8920 accommodates rigid and semi-rigid plastic specimens—including thermoplastics, thermosets, foams, and laminated composites—as long as dimensional tolerances align with UL 94 Clause 7.2 and IEC 60695-11-10 Section 6. Specimens must be conditioned per ISO 291 (23 ± 2 °C, 50 ± 5 % RH) prior to testing. The system supports both HB (horizontal burn) and V-class (V-0, V-1, V-2) rating determinations. All operational parameters—including flame height verification (20 ± 1 mm for vertical, 17 ± 1 mm for horizontal), gas flow rate calibration (105 ± 5 mL/min for LPG), and background ambient temperature monitoring—are traceable to NIST-traceable references. The test chamber design facilitates third-party audit readiness for ISO/IEC 17025-accredited laboratories and satisfies documentation requirements for GLP-compliant fire safety reporting.

Software & Data Management

While the JH8920 operates as a hardware-integrated manual test platform, it includes RS-232 and optional USB interfaces for external data logging. When paired with certified laboratory information management systems (LIMS) or custom Python-based acquisition scripts, timing events, gas pressure readings, and operator annotations can be exported in CSV or XML formats. Audit trails—including user ID, test date/time, specimen ID, pass/fail status per UL 94 Table 5.1, and raw timer logs—are retained locally on non-volatile memory. The control firmware complies with basic principles of FDA 21 CFR Part 11 for electronic records when used in regulated environments, supporting role-based access control and electronic signature capability via external authentication modules.

Applications

This combustion test chamber serves critical roles in quality assurance for electrical enclosures, automotive interior components, building insulation materials, and consumer electronics housings. It supports material qualification for UL recognition listings, CE marking under EN 60695-11-10, and RoHS-compliant flame retardancy validation. In R&D settings, it enables comparative screening of halogen-free flame retardants (e.g., aluminum trihydrate, melamine polyphosphate), intumescent additives, and nanocomposite formulations. Universities and certification bodies use the JH8920 for student training in fire science fundamentals and interlaboratory proficiency testing programs aligned with ILAC-P9 protocols.

FAQ

What flame gases are compatible with the JH8920?

The chamber is calibrated for use with high-purity liquefied petroleum gas (LPG) or town gas with a nominal calorific value of 37 MJ/m³. Propane is the preferred reference fuel per UL 94; methane may be used only if validated against propane performance per ASTM D5025.
Does the JH8920 support automated pass/fail classification?

No—it provides precise timing and flame control but requires manual interpretation of results per UL 94 Section 5 evaluation criteria. Classification (e.g., V-0 vs. V-1) depends on measured afterflame times, dripping behavior, and cotton indicator ignition—tasks performed by trained operators per ISO/IEC 17025 competency requirements.
Is calibration certification included with shipment?

A factory calibration report covering burner dimensions, timer accuracy (±0.1 s), and flame height verification is provided. Full metrological calibration to ISO/IEC 17025 must be performed annually by an accredited third-party provider using traceable standards.
Can the chamber be integrated into a fume hood exhaust system?

Yes—the rear-mounted 150 mm diameter exhaust port is designed for direct connection to laboratory ductwork operating at ≥0.5 m/s face velocity, complying with ANSI Z9.5 and local fire code requirements for hazardous gas handling.
