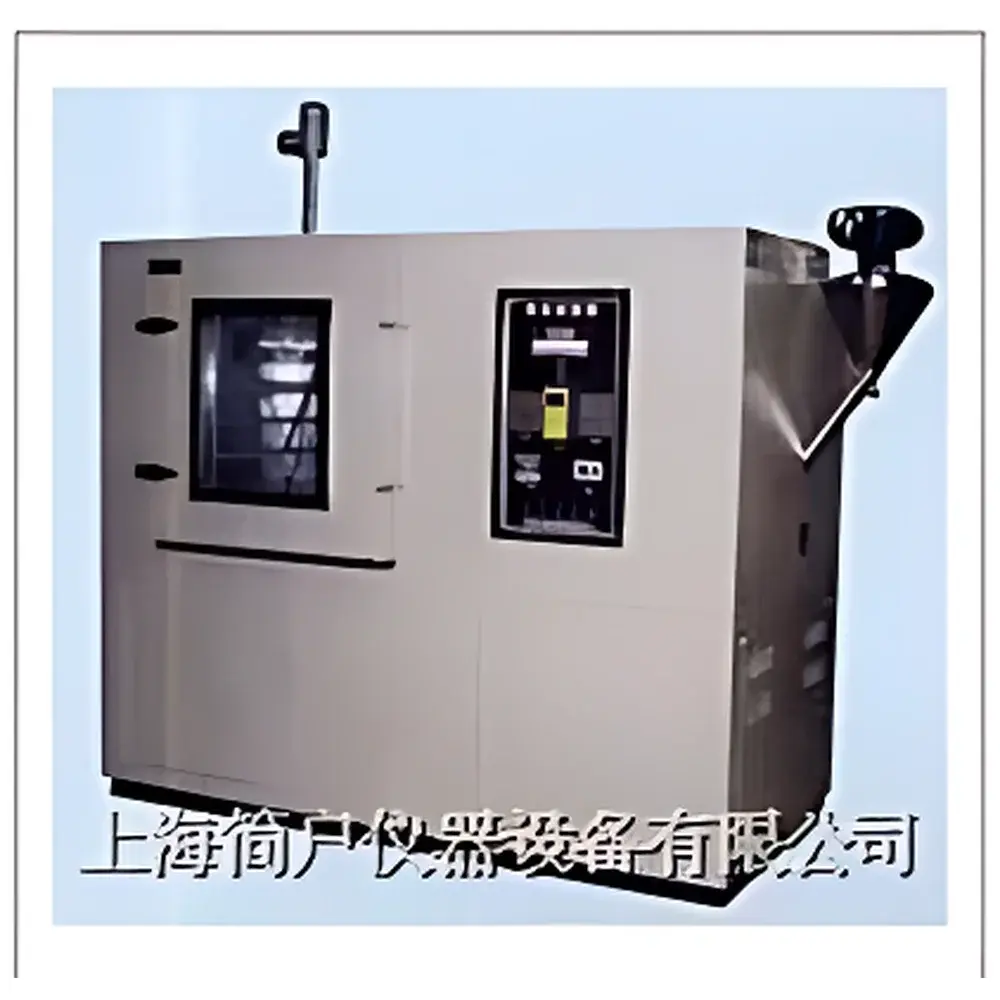

Jianhu JHF-1000 Ingress Protection (IP) Sand and Dust Test Chamber for IP5X/IP6X Compliance Testing
| Brand | Jianhu |
|---|---|
| Model | JHF-1000 |
| Internal Chamber Dimensions (W×D×H) | 1000×1000×1000 mm |
| Temperature Range | RT+10°C to 75°C (optional with heating) |
| Dust Type | Dry talcum powder |
| Sieve Specification | 75 µm square mesh, 50 µm wire diameter |
| Dust Concentration | 2–4 kg/m³ |
| Airflow Velocity | ≤2 m/s |
| Timer Range | 0–99 h 59 min |
| Timer Accuracy | ±1 min |
| Construction | Stainless steel inner chamber, electrostatically sprayed outer enclosure |
| Viewing Window | Triple-layer tempered safety glass |
| Power Supply | 380 V / 220 V ±10%, 50 Hz |
| Compliance | GB/T 4208–2017 (IEC 60529 equivalent), IP5X & IP6X testing modes |
Overview
The Jianhu JHF-1000 Ingress Protection (IP) Sand and Dust Test Chamber is an engineered environmental simulation system designed to evaluate the dust resistance performance of electrical enclosures, automotive components, lighting fixtures, low-voltage apparatus, and industrial instrumentation in accordance with internationally harmonized ingress protection standards. It operates on the principle of controlled airborne particulate suspension—using calibrated airflow dynamics and standardized talcum powder—to replicate real-world dust exposure conditions. The chamber supports both vertical upward and downward dust dispersion configurations, enabling flexible execution of IP5X (limited dust ingress protection) and IP6X (dust-tight) test protocols as defined in GB/T 4208–2017 (identical to IEC 60529). Its thermally stable optional heating function extends applicability to temperature-dependent dust adhesion and penetration assessments under non-ambient conditions.
Key Features
- Stainless steel interior chamber (1000 × 1000 × 1000 mm) ensures long-term corrosion resistance and ease of powder residue removal between test cycles.
- Dual-directional dust dispersion system—selectable upward or downward airflow—facilitates accurate simulation of gravitational settling and forced convection dust ingress scenarios.
- Precision-engineered air circulation path maintains uniform particle suspension at ≤2 m/s velocity, minimizing sedimentation bias while preserving laminar flow integrity across the test volume.
- Triple-layer tempered safety glass viewing window provides high optical clarity and thermal insulation, allowing continuous visual monitoring without compromising chamber integrity.
- Programmable timer with 0–99 h 59 min range and ±1 min accuracy enables repeatable, audit-ready test duration control—fully traceable for GLP-compliant validation records.
- Electrostatically coated carbon steel outer housing delivers mechanical robustness and electromagnetic compatibility in shared laboratory environments.
Sample Compatibility & Compliance
The JHF-1000 accommodates samples up to 800 × 800 × 800 mm in dimension, making it suitable for full-assembly evaluation of automotive ECUs, LED headlamps, junction boxes, and industrial control panels. All operational parameters—including dust concentration (2–4 kg/m³), particle size distribution (≤75 µm square mesh, 50 µm wire diameter), and airflow profile—are strictly aligned with the procedural requirements of GB/T 4208–2017 Clauses 13.4 and 13.5 (formerly GB 4208–93). The system is routinely deployed in third-party certification labs for pre-submission IP rating verification and fulfills prerequisite testing conditions referenced in ISO 20653 (road vehicles), SAE J575 (lighting), and UL 50E (electrical enclosures). No modifications to sample mounting fixtures or internal chamber geometry are required to meet standard test setup definitions.
Software & Data Management
While the base JHF-1000 operates via manual analog controls, optional digital interface modules support RS-485/Modbus RTU integration for centralized lab management systems. Time-stamped test logs—including start/stop timestamps, elapsed duration, and operator ID—can be exported in CSV format for inclusion in 21 CFR Part 11–compliant electronic records when paired with validated LIMS platforms. All parameter settings are mechanically locked post-calibration to prevent inadvertent deviation during qualification runs, supporting documented evidence generation for ISO/IEC 17025 accreditation audits.
Applications
This chamber serves critical roles in product development and quality assurance workflows across multiple sectors: validating dust sealing integrity of EV battery enclosures; verifying IP6X compliance for outdoor photovoltaic inverters; assessing long-term filter degradation in HVAC control units; and conducting comparative lifecycle dust ingress studies on polymer-based sensor housings. It is widely specified in OEM technical procurement documents for Tier 1 automotive suppliers and used by national metrology institutes for inter-laboratory proficiency testing under CNAS ILAC-MRA frameworks.
FAQ
Does the JHF-1000 comply with IEC 60529 directly?
Yes—the physical test conditions, powder specification, and procedural methodology fully satisfy IEC 60529 Annex B for IP5X and IP6X testing, as adopted verbatim in GB/T 4208–2017.
Can the chamber operate continuously for extended durations (e.g., >48 hours)?
The system supports uninterrupted operation within its rated power and thermal limits; however, periodic manual powder replenishment and chamber cleaning are recommended every 24 hours to maintain consistent aerosol density.
Is calibration documentation provided with delivery?
A factory calibration certificate covering timer accuracy, airflow velocity verification (via hot-wire anemometer traceable to NIM), and dimensional inspection is included with each unit.
What maintenance intervals are recommended?
Air filter replacement every 200 operational hours, stainless steel chamber passivation annually, and full pneumatic seal inspection per ISO 13374–2 predictive maintenance guidelines.
