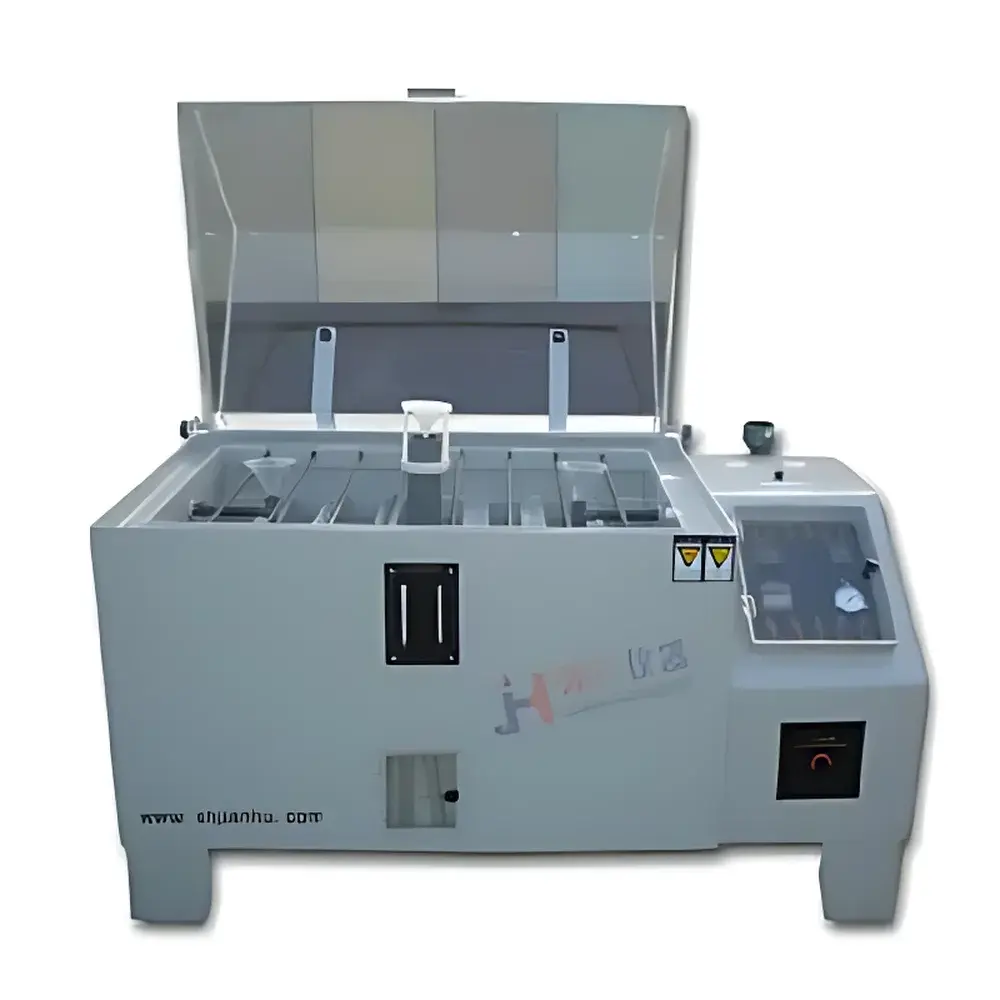

Jianhu JST Series Salt Spray Test Chamber

Overview

The Jianhu JST Series Salt Spray Test Chamber is an engineered environmental simulation system designed for standardized accelerated corrosion testing of coated, plated, and surface-treated materials. Based on the fundamental principle of controlled saline aerosol generation—where atomized sodium chloride solution is dispersed under regulated temperature, humidity, and pressure conditions—the chamber replicates aggressive marine or industrial atmospheric environments to evaluate material durability over time. It operates in strict accordance with internationally recognized test standards including ASTM B117 (Neutral Salt Spray), ISO 3768 (NSS), ISO 3770 (CASS), and JIS Z2371, enabling reproducible, traceable, and auditable corrosion performance assessment across R&D, quality assurance, and production validation workflows.

Key Features

• Robust chamber construction using imported high-purity PVC and polypropylene (PP)板材, providing exceptional resistance to acidic, alkaline, and elevated-temperature environments without deformation, aging, or chemical degradation.
• Integrated automatic and manual water replenishment system with real-time water level monitoring and visual/audible low-level alerts—ensuring uninterrupted test cycles and operational continuity.
• Precision borosilicate glass nozzle assembly with conical diffuser design ensures uniform fog distribution, natural sedimentation onto test specimens, and elimination of salt crystal clogging.
• Single-board centralized control interface featuring digital PID temperature regulation (±0.1°C accuracy), programmable timer (up to 999 hours), and dual-mode operation (manual/auto).
• Dual over-temperature protection circuits plus independent water-level safety interlocks, meeting IEC 61000-6-2 EMC and basic functional safety requirements for laboratory equipment.
• Steam-direct heating system in the test chamber enables rapid, homogeneous thermal stabilization—reducing standby time and improving test repeatability.
• Saturated air chamber utilizes Henry’s Law-based humidification, maintaining precise relative humidity and temperature coupling essential for CASS (Copper-Accelerated Acetic Acid Salt Spray) testing.
• Pneumatically actuated hinged lid on larger models (JST-160/JST-200) enhances ergonomics, operator safety, and long-term mechanical reliability.
• Post-test automated de-fogging function clears internal condensation, allowing unobstructed visual inspection of samples without opening the chamber.

Sample Compatibility & Compliance

The JST Series accommodates a broad range of specimen geometries and surface treatments—including electrogalvanized, chromated, phosphated, anodized aluminum, powder-coated steel, organic/inorganic conversion coatings, and rust-preventive oils. Its modular chamber dimensions (from 108 L to 1440 L) support both small-component qualification and large-assembly validation. All models are configured to meet mandatory regulatory and industry-standard test protocols: ASTM B117 (neutral salt spray), ASTM B268 (CASS), ISO 9227 (comprehensive salt spray suite), JIS H8610, CNS 7669, GB/T 2423.17, and GJB 150.11A. The system supports full documentation traceability required under GLP and GMP-aligned quality systems, including configurable audit trails for temperature, duration, and cycle status.

Software & Data Management

While the base JST model features a dedicated digital controller with local data logging (time-stamped temperature, runtime, alarm events), optional RS485/Modbus RTU or Ethernet interfaces enable integration into centralized laboratory information management systems (LIMS). Exportable CSV logs facilitate post-test analysis in Excel or statistical software. For regulated environments, optional firmware upgrades support 21 CFR Part 11-compliant electronic signatures, user access levels, and immutable event history—meeting FDA, ISO 17025, and CNAS accreditation prerequisites.

Applications

This chamber serves critical roles across automotive OEM supply chains (e.g., evaluating brake caliper coatings, fastener plating, and under-hood component finishes), electronics manufacturing (PCB conformal coating validation, connector corrosion resistance), aerospace subcontractors (fastener passivation verification per AMS 2700), and defense contractors performing MIL-STD-810H Section 509.1 compliance testing. It is also widely deployed in academic corrosion laboratories for fundamental research on inhibitor efficacy, galvanic couple behavior, and electrochemical degradation kinetics.

FAQ

What standards does the JST Series fully comply with?

ASTM B117, ISO 3768/3769/3770, JIS Z2371, GB/T 2423.17, CNS 3627/7669, and GJB 150.11A—all verified via third-party calibration reports.

Can the chamber perform cyclic salt spray testing (e.g., salt–dry–wet cycles)?

Yes—custom-engineered JST variants support salt-dry-wet composite testing per ISO 14993 and ASTM G85 Annex A5, with integrated humidity control and programmable stage sequencing.

Is remote monitoring or network connectivity available?

Standard models include analog/digital I/O; optional Ethernet or RS485 modules enable SCADA/LIMS integration and cloud-based monitoring via secure MQTT or OPC UA protocols.

What maintenance intervals are recommended for long-term reliability?

Monthly nozzle inspection and cleaning, quarterly saturated chamber descaling, annual calibration of temperature sensors and pressure regulators—documented in the included maintenance logbook.

Does the system include test report generation capability?

Basic models store runtime and temperature logs; optional software packages generate PDF/Excel reports compliant with ISO/IEC 17025 clause 7.8.2 for accredited test laboratories.
