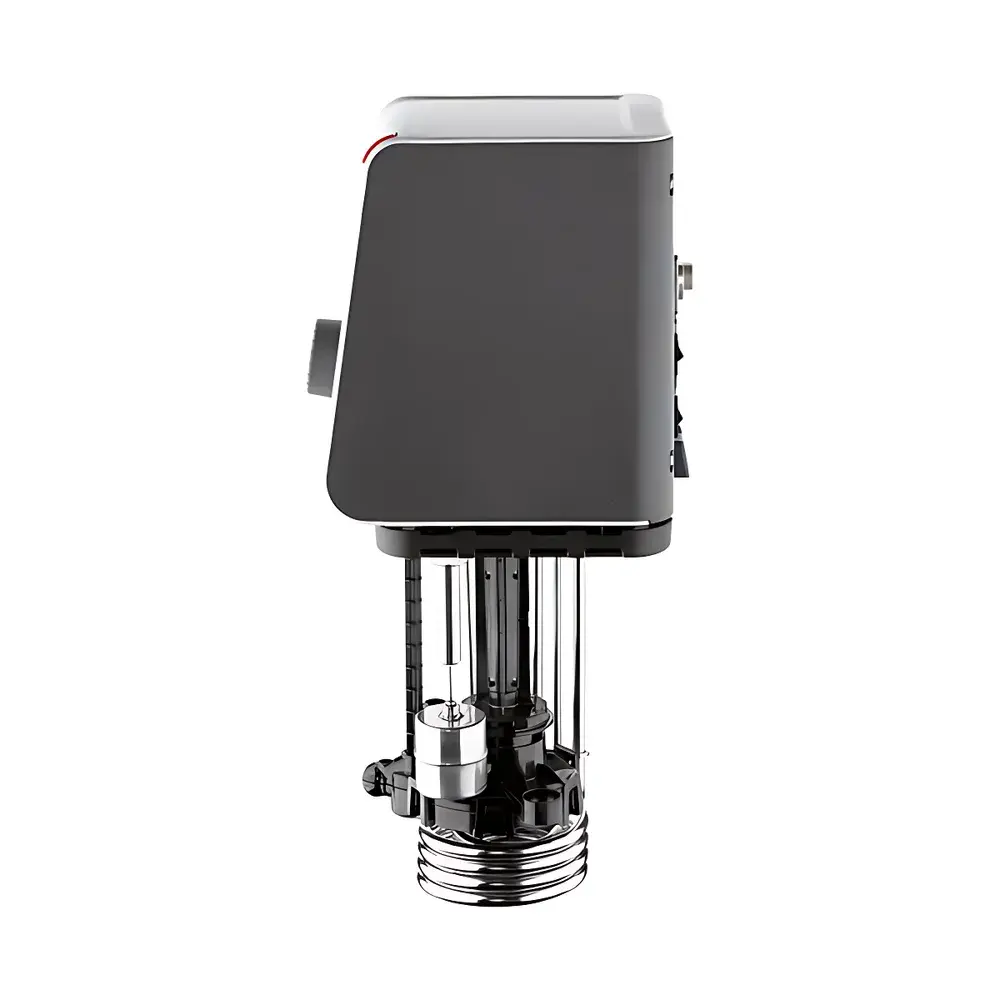

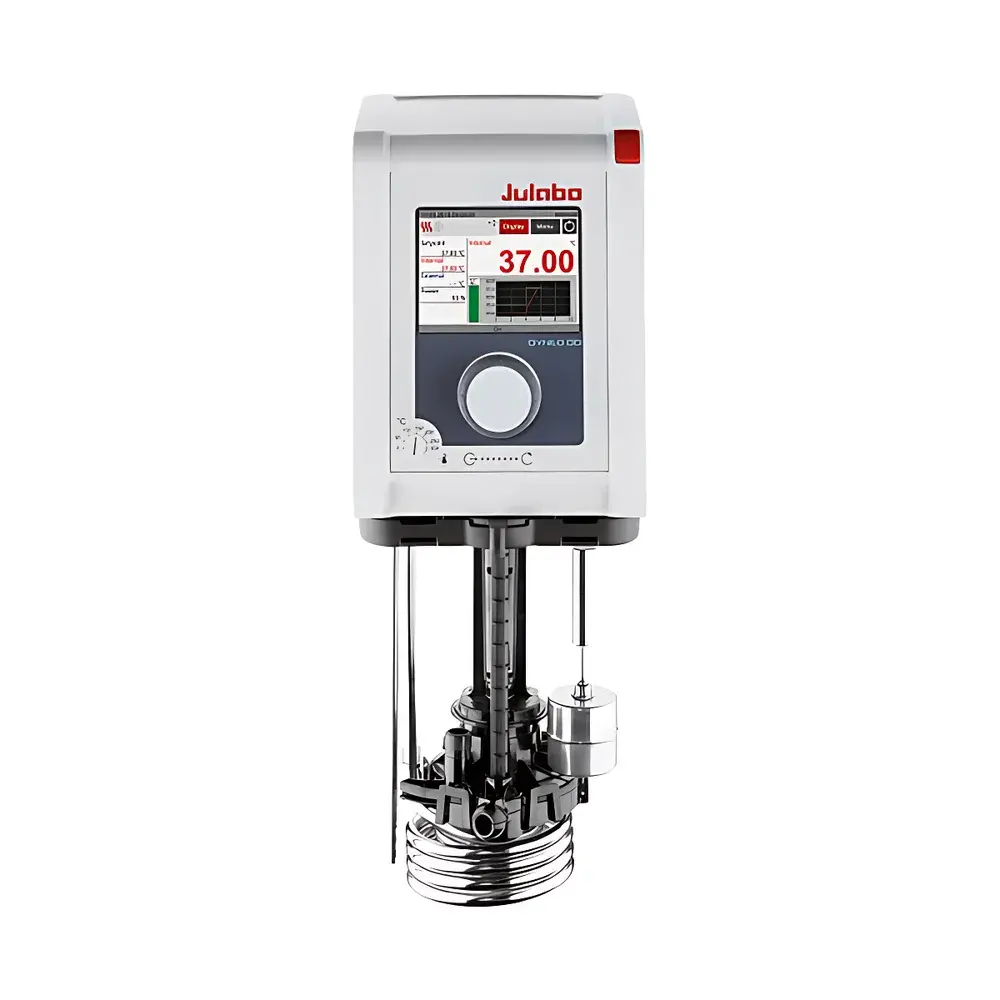

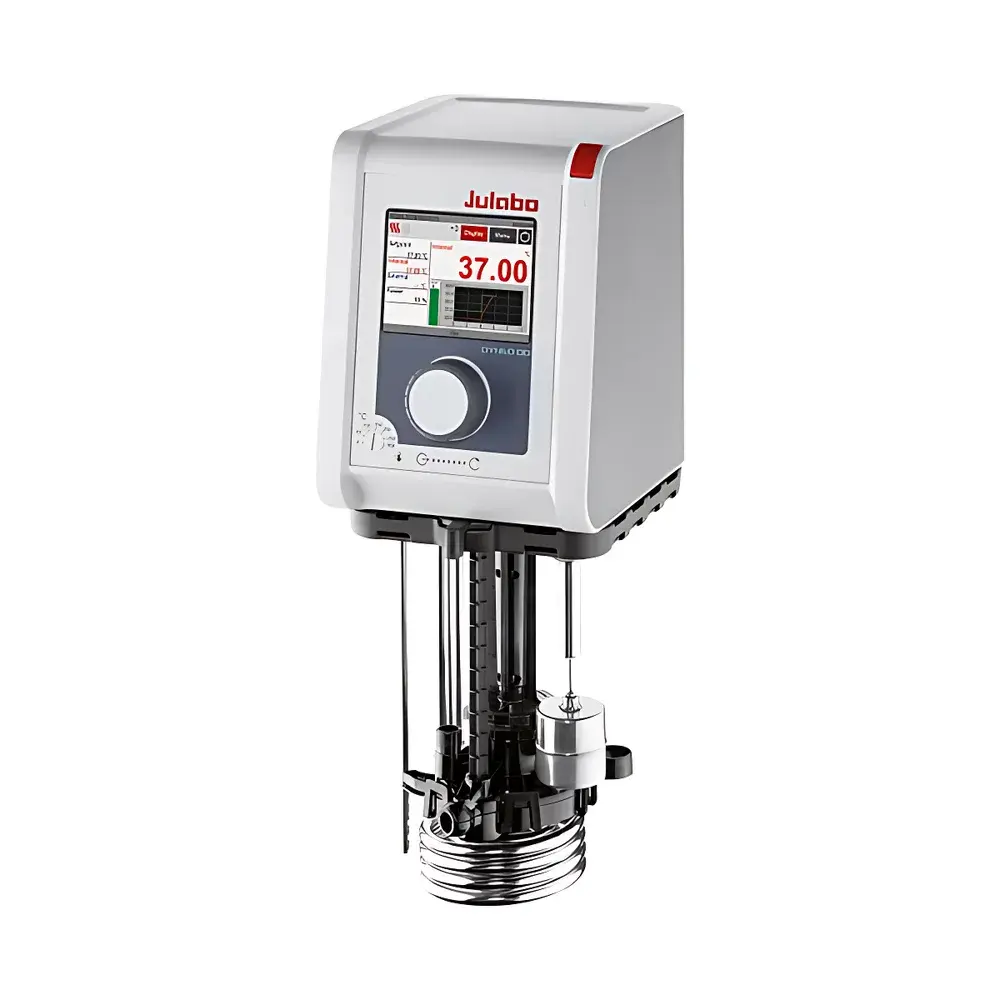

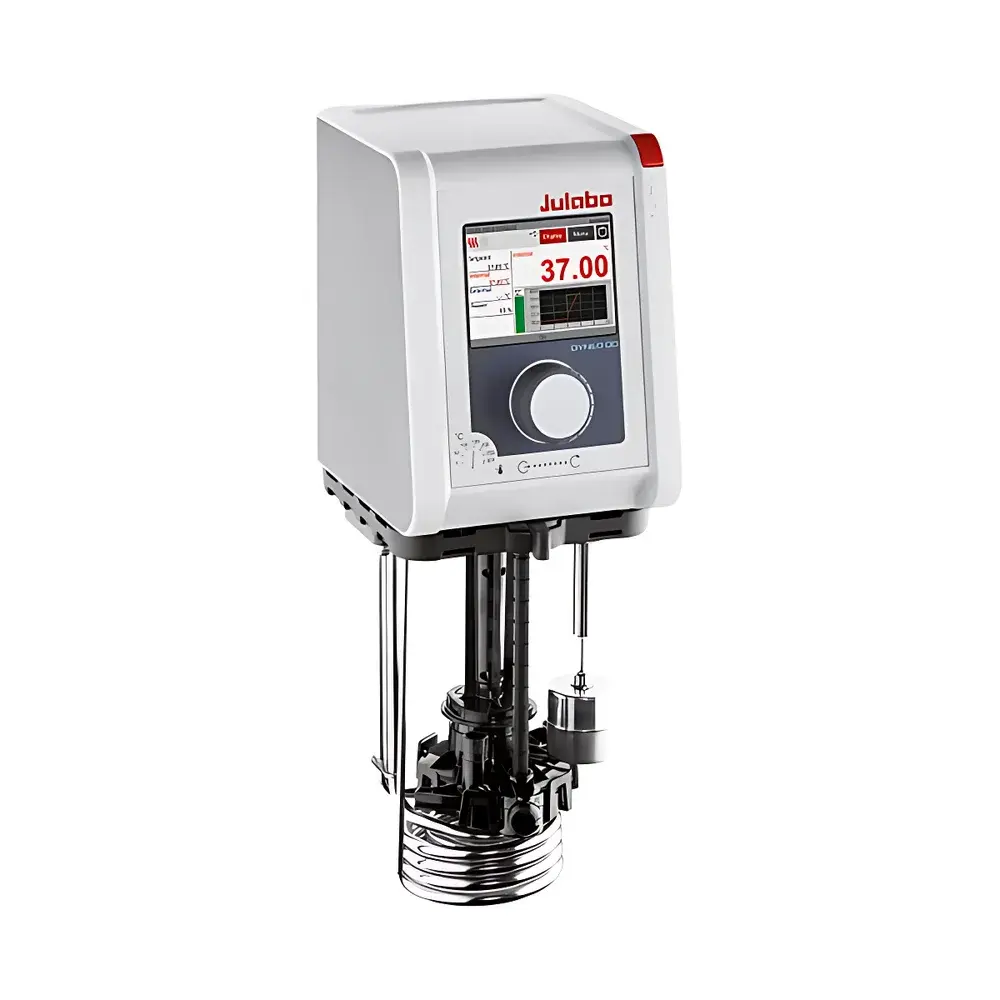

JULABO DD Immersion Heating Circulating Bath Controller

Overview

The JULABO DD Immersion Heating Circulating Bath Controller is a precision-engineered thermal management system designed for laboratory applications requiring stable, controllable heating of external processes via liquid circulation. Operating on the principle of forced convection heat transfer, the DD delivers highly reproducible temperature control across a wide operational range—from +5 °C up to +200 °C—using a high-efficiency immersion heater and a continuously adjustable, high-head centrifugal pump. Its architecture supports both internal bath temperature regulation and external process temperature control via optional PT100 sensor feedback, making it suitable for jacketed reactors, distillation setups, material testing fixtures, and other open or closed-loop thermal systems. Engineered in Germany and compliant with DIN 12876-1 Class III (FL), the DD is certified for safe operation with flammable heat transfer fluids—including silicone oils and glycols—ensuring adherence to stringent European laboratory safety standards.

Key Features

• PID2 advanced digital temperature control algorithm ensures rapid stabilization and minimal overshoot under dynamic load conditions.
• 3.5-inch full-color TFT display with multi-interface navigation: simultaneous visualization of setpoint/actual temperature, real-time trend curves, safety status, and system diagnostics.
• Intuitive rotary encoder (flywheel-style knob) enables tactile, menu-free parameter adjustment—even while wearing gloves.
• Multi-language support (English, Chinese, German, French, Spanish) configurable via on-screen settings.
• Programmable temperature profiles: user-defined time-temperature ramps, hold segments, and slope-controlled heating sequences with up to 10 program steps.
• ATC3 (Advanced Temperature Calibration) technology allows single-point or multi-point calibration against traceable reference standards—critical for GLP/GMP-compliant workflows.
• TCF (Temperature Control Flexibility) mode enables fine-tuning of internal vs. external temperature response dynamics, including power output limiting and differential temperature constraints between bath and process sensors.
• Adjustable dual-mode circulation: front-panel lever switch seamlessly toggles between internal recirculation (for bath homogeneity) and external flow (for process coupling), with continuous pump speed modulation from 0–100%.

Sample Compatibility & Compliance

The DD accommodates a broad spectrum of heat transfer media—including water, ethanol, ethylene glycol/water mixtures, and silicone oils—up to 50 cSt viscosity. Its Class III (FL) certification per DIN 12876-1 permits use with flammable liquids at elevated temperatures without additional explosion-proof enclosures. The unit operates safely within ambient conditions of 5–40 °C and maintains stability at ±0.01 °C over time—meeting requirements for ASTM E1137 (Standard Specification for Laboratory Thermometers) and ISO/IEC 17025 calibration traceability frameworks. All electrical and thermal safety circuits comply with IEC 61010-1 and carry CE marking for the European Economic Area.

Software & Data Management

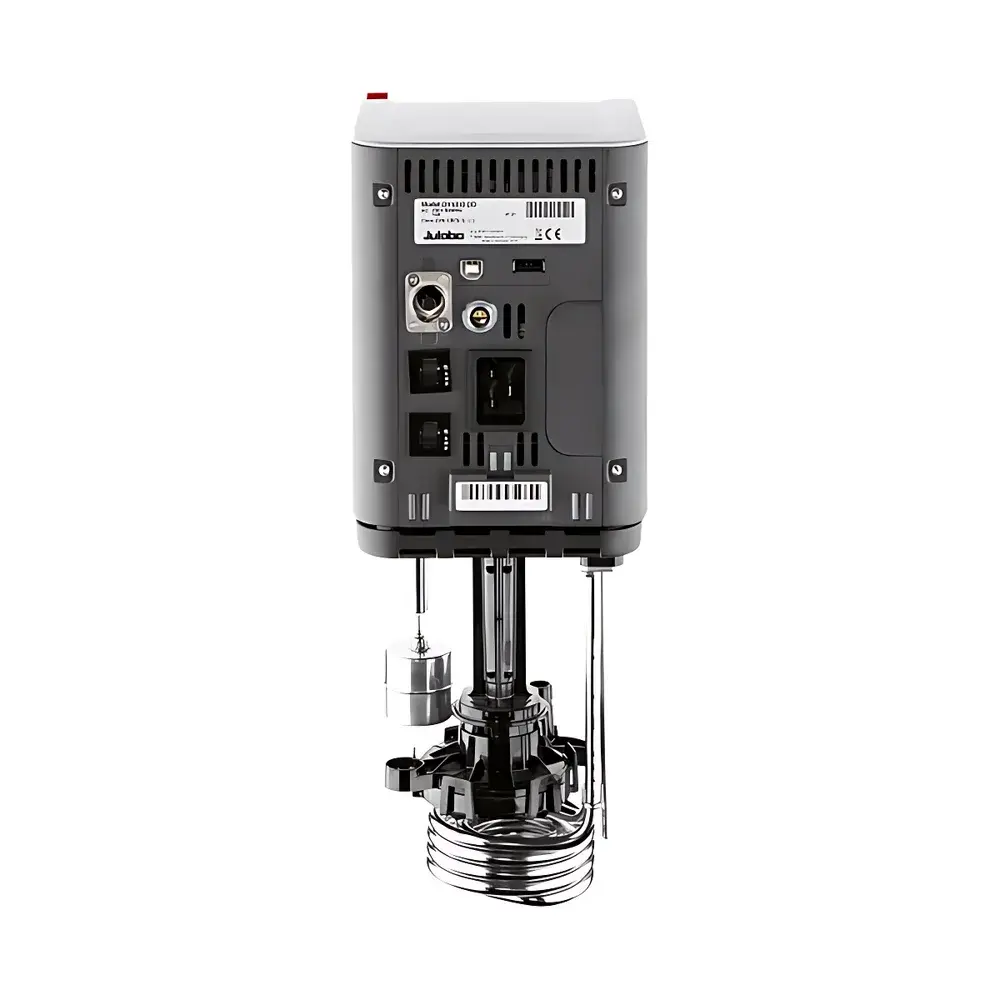

While the DD operates as a standalone instrument, its optional RS232 or analog (0–10 V / 4–20 mA) interfaces enable integration into centralized lab automation platforms. USB ports support firmware updates and configuration backup/restore. When connected to validated data acquisition software (e.g., JULABO’s LabSoft or third-party SCADA systems), the controller provides timestamped temperature logs with audit-trail capability—supporting FDA 21 CFR Part 11 compliance when deployed in regulated pharmaceutical or biotech environments. Internal memory retains last-run programs and calibration history even after power loss.

Applications

• Controlled heating of glass-jacketed reaction vessels in synthetic chemistry and catalysis studies.
• Thermal conditioning of viscometers, rheometers, and DSC sample stages.
• Stabilization of optical components and laser diodes during performance testing.
• Calibration of temperature-sensitive transducers and reference thermometers.
• Accelerated aging tests of polymers and composites under defined thermal stress profiles.
• Support of HPLC column ovens and GC injector blocks where precise, vibration-free heating is essential.

FAQ

Can the DD operate with silicone oil at 180 °C?
Yes—the DD is rated for continuous operation up to +200 °C and certified for flammable liquids per DIN 12876-1 Class III (FL), provided the oil’s flash point exceeds the operating temperature.
Is external temperature control possible without modifying the bath setup?
Yes—via optional external PT100 input, the DD can regulate based on a process sensor while maintaining internal bath monitoring, enabling cascade or master-slave configurations.
Does the device support automated calibration reporting?
ATC3 calibration events are logged internally with date/time stamps; reports can be exported via USB for inclusion in quality documentation packages.
What is the minimum immersion depth required for stable operation?
The standard immersion depth is 16 cm; reduced depth may compromise thermal uniformity and pump priming—consult JULABO Application Engineering before custom mounting.
How does TCF improve temperature control in variable-load applications?
TCF decouples bath and process thermal inertia responses by allowing independent tuning of heating power ramp rates, maximum output limits, and inter-sensor differential thresholds—reducing oscillation during transient conditions.
