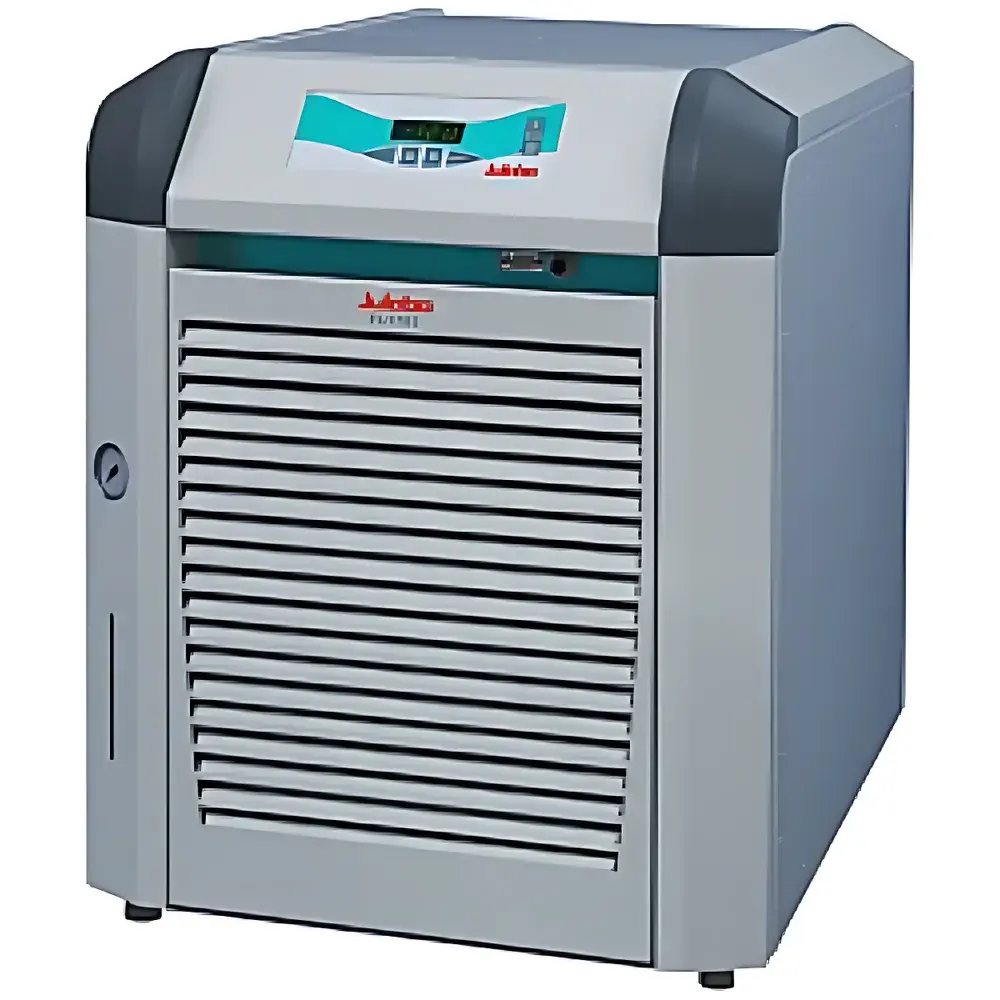

Julabo FLW1703 Circulating Chiller

Overview

The Julabo FLW1703 is an integrated, water-cooled circulating chiller engineered for high-reliability thermal management in demanding laboratory and pilot-scale industrial applications. It operates on the principle of vapor-compression refrigeration using a single-stage hermetic compressor and R404A refrigerant, delivering precise temperature control across a wide operational range of −20 °C to +40 °C. Designed to replace inefficient tap-water cooling systems, the FLW1703 enables sustainable, closed-loop heat dissipation while conserving water resources and eliminating risks associated with unregulated municipal supply fluctuations or scaling. Its robust stainless-steel reservoir, corrosion-resistant fluid pathways, and thermally insulated housing ensure long-term stability under continuous operation—critical for extended-duration experiments involving spectrometers, laser systems, rotary evaporators, NMR pre-cooling jackets, and analytical instrumentation requiring stable thermal sinks.

Key Features

• High-capacity circulation system delivering up to 40 L/min at adjustable pressure (0.5–3.0 bar), optimized for low-backpressure applications and multi-instrument distribution loops
• Integrated LED display with 0.1 °C resolution and real-time monitoring of setpoint, actual bath temperature, pump pressure, and fluid level
• Large reservoir volume (12–17 L) minimizes refilling frequency and enhances thermal inertia for improved temperature homogeneity
• Top-fill design with ergonomic access simplifies routine maintenance and fluid replenishment without disassembly
• Compatibility with multiple heat-transfer media—including deionized water, 30–50% ethylene glycol/water solutions, and JULABO-certified Thermal Bath Fluid—enabling frost protection down to −30 °C and enhanced thermal stability
• Maximum allowable return fluid temperature of 80 °C permits integration with exothermic processes such as reactor jacket cooling or distillation condensers
• Optional RS232 serial interface and Profibus connectivity support integration into centralized lab automation platforms and SCADA environments compliant with ISO/IEC 17025 and GLP data integrity requirements

Sample Compatibility & Compliance

The FLW1703 is validated for use with non-aggressive, non-flammable heat-transfer fluids meeting DIN 51528 and ASTM D1384 specifications. Its wetted materials—including EPDM seals, stainless-steel reservoir, and brass pump head—are selected to resist degradation from aqueous glycol blends and proprietary thermal fluids. The unit conforms to IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity), carries CE marking per EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU, and complies with RoHS 2011/65/EU restrictions on hazardous substances. While not intrinsically rated for hazardous locations, its design supports installation in Class 1, Division 2 environments when deployed with appropriate ventilation and fluid containment protocols.

Software & Data Management

Although the FLW1703 operates autonomously via its front-panel controller, optional digital interfaces enable bidirectional communication for remote parameter adjustment, alarm logging, and time-stamped temperature traceability. When connected to laboratory information management systems (LIMS) or electronic lab notebooks (ELN), the device supports audit-trail generation per FDA 21 CFR Part 11 requirements—provided the host software implements user authentication, electronic signatures, and immutable record retention. Firmware updates are performed via secure RS232 connection; no cloud dependency or proprietary cloud service is required, preserving data sovereignty and network security in regulated environments.

Applications

• Cooling of high-power lasers (e.g., CO₂, diode-pumped solid-state) requiring stable thermal sink performance at ±0.5 °C
• Temperature stabilization of HPLC column ovens, GC injectors, and mass spectrometer ion sources
• Process cooling for small-scale chemical reactors, crystallizers, and vacuum distillation systems
• Thermal conditioning of photovoltaic cell testers, semiconductor probe stations, and material testing rigs
• Supporting calorimetry systems where baseline drift must be minimized through consistent coolant inlet temperature
• Integration into modular cleanroom HVAC auxiliary loops for localized equipment cooling without compromising room-level environmental control

FAQ

What is the maximum allowable inlet temperature for return fluid?
The FLW1703 accepts return fluid temperatures up to 80 °C, enabling safe integration with moderately exothermic equipment such as reflux condensers or jacketed reactors.
Can this chiller operate continuously for 24/7 applications?
Yes—the FLW1703 is rated for uninterrupted operation under ambient conditions between 5 °C and 40 °C, provided proper ventilation, water-cooling circuit maintenance, and periodic fluid quality verification are maintained.
Is R404A refrigerant compliant with current EU F-Gas Regulation (EU) No 517/2014?
R404A is subject to phase-down under the F-Gas Regulation; Julabo provides technical documentation and retrofit guidance for future transition to lower-GWP alternatives such as R450A or R452A upon regulatory mandate or customer request.
Does the unit include dry-run protection for the circulation pump?
Yes—the integrated level sensor disables pump operation if reservoir volume falls below minimum threshold, preventing mechanical damage and cavitation.
What certifications does the FLW1703 hold for use in GMP-regulated laboratories?
The unit meets essential safety and EMC requirements for GMP environments; full qualification (IQ/OQ/PQ) documentation packages—including calibration certificates traceable to NIST standards and FAT/SAT protocols—are available upon order for pharmaceutical and biotech validation workflows.
