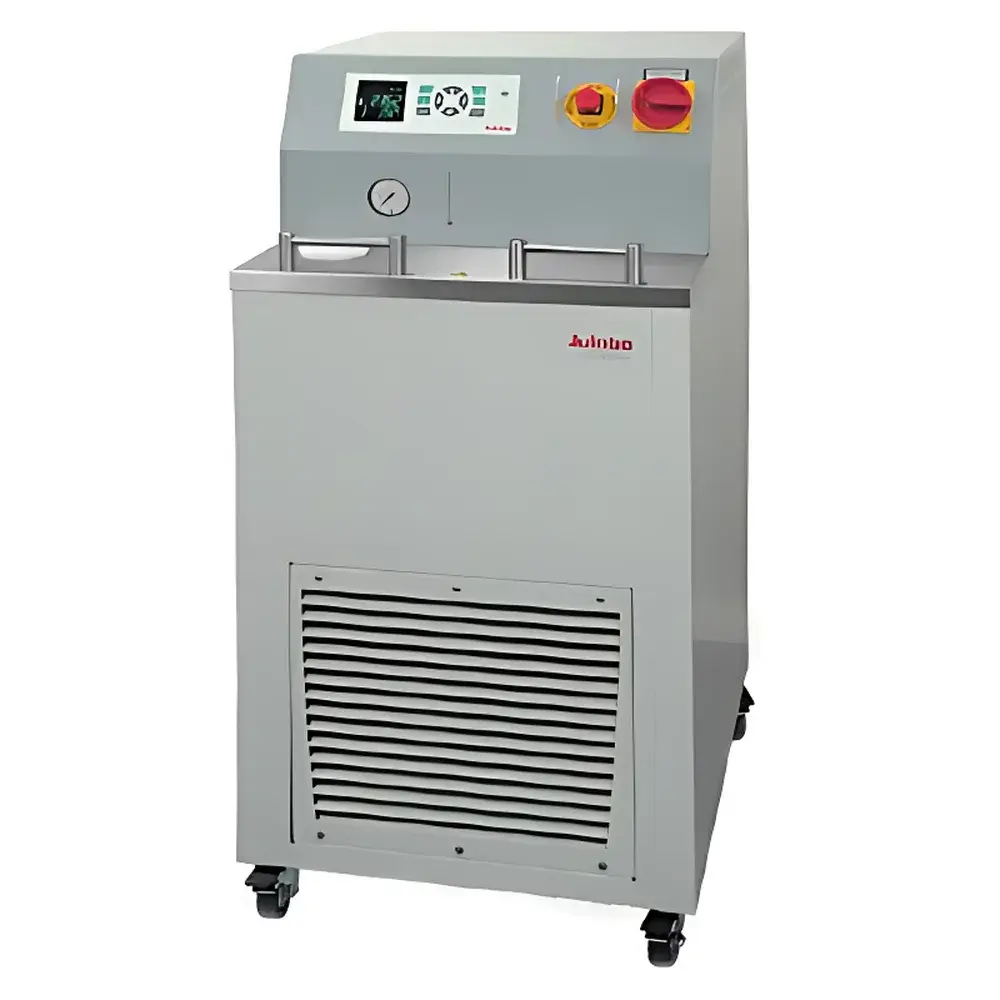

JULABO Semichill SC2500a Industrial Circulating Chiller

Overview

The JULABO Semichill SC2500a is a high-performance, water-cooled industrial circulating chiller engineered for precision thermal management in demanding semiconductor manufacturing, R&D laboratories, and process-critical applications. Unlike conventional tap-water cooling systems, the SC2500a delivers closed-loop temperature control via a refrigerant-based vapor-compression cycle coupled with electric resistance heating—enabling bidirectional thermal regulation across an exceptionally wide operating range of −20 °C to +130 °C. Its modular architecture supports configuration-specific optimization, including selectable pump performance (P3 or P4), heating power options (0–12 kW), and four standard temperature ranges. Designed to DIN 12876-1 Class III (FL) safety requirements, the unit integrates robust mechanical construction, stainless-steel fluid pathways, and corrosion-resistant polymer components for long-term reliability under continuous 24/7 operation. The system operates with low environmental impact—using R-410A refrigerant (GWP-compliant per EU F-Gas Regulation No. 517/2014) and eliminating reliance on municipal water for heat rejection.

Key Features

• Wide operational temperature span: −20 °C to +130 °C with ±0.1 °C stability at setpoint, verified per ISO/IEC 17025-accredited calibration protocols
• High-capacity water-cooled condenser delivering 2500 W refrigeration output at 20 °C ambient, scalable to multi-unit parallel configurations
• Industrial-grade circulation pump (P4 variant): adjustable flow up to 43 L/min and pressure up to 4.3 bar, with real-time bar-graph display on VFD screen
• Modular configuration system: select from ECO or Professional control modes; choose among four temperature ranges and two pump variants (P3/P4)
• Integrated Pt100 sensor input for external process temperature feedback, supporting cascade or master-slave control architectures
• Dual-stage safety architecture: hardware-level emergency stop switch, independent high/low temperature alarms, low-reservoir level detection, and anti-freeze protection logic
• Compliance-ready design: meets IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions); optional RS232 or Profibus interfaces support audit-trail-capable integration into GLP/GMP environments

Sample Compatibility & Compliance

The SC2500a is compatible with a broad spectrum of heat-transfer fluids—including deionized water, water-glycol mixtures (up to 50% v/v), and specialized synthetic coolants—provided they meet viscosity (< 20 mPa·s at 20 °C) and pH (5.5–8.5) specifications. All wetted parts are constructed from AISI 316 stainless steel, EPDM seals, and chemically inert PPSU housing materials, ensuring compatibility with aggressive solvents and high-purity process streams common in semiconductor wafer cleaning, etching, and photolithography tools. The unit conforms to DIN 12876-1 Class III (FL) for laboratory equipment safety, EN 61000-6-2/-6-4 for electromagnetic compatibility, and carries CE marking under the EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. Optional firmware enables 21 CFR Part 11–compliant electronic signatures and audit trails when paired with validated SCADA or LIMS platforms.

Software & Data Management

The SC2500a features a built-in microcontroller with dual-mode operation: ECO mode prioritizes energy efficiency during partial-load conditions, while Professional mode enables full parameter access—including ramp rate definition, hold time programming, and multi-step temperature profiles (1×10 steps). Temperature setpoints, actual values, pump status, and alarm logs are displayed on a high-brightness VFD screen with 0.1 °C resolution. Optional RS232 serial interface supports ASCII command protocol for remote monitoring and control via LabVIEW, MATLAB, or custom Python scripts. Profibus DP-V1 integration permits direct connection to Siemens S7 PLCs and DCS systems, enabling synchronized thermal control within larger automation frameworks. All configuration changes and operational events are timestamped and stored locally for traceability—critical for FDA-regulated validation documentation (IQ/OQ/PQ) and internal quality audits.

Applications

• Semiconductor fabrication: precise cooling of plasma etch chambers, CVD reactors, and wafer bonders requiring sub-0.2 °C thermal drift over 8-hour runs
• High-power laser systems: thermal stabilization of CO₂, fiber, and ultrafast lasers where coolant temperature directly impacts beam coherence and diode lifetime
• Material testing: conditioning of tensile test specimens, rheological samples, and battery cycling cells within controlled thermal envelopes
• Chemical synthesis reactors: exothermic reaction control with dynamic heating/cooling transitions and programmable ramp-hold sequences
• Calibration laboratories: serving as stable thermal sources for thermometer, RTD, and thermocouple calibration benches per ISO/IEC 17025 requirements

FAQ

What is the maximum allowable inlet temperature for the water-cooled condenser?
The SC2500a requires chilled water supply at ≤25 °C with flow ≥1.2 m³/h and pressure ≥2.5 bar to maintain rated refrigeration capacity. Higher inlet temperatures reduce cooling efficiency and may trigger thermal derating.
Can the unit operate unattended for extended periods?
Yes—the SC2500a is certified for continuous duty (IEC 60034-1) and includes redundant safety interlocks, automatic restart after power interruption (configurable), and non-volatile memory retention of all settings.
Is remote monitoring supported out of the box?
RS232 is available as a factory-installed option; Profibus requires additional module ordering. Neither interface includes built-in web server or Ethernet—integration relies on host-side software or PLC-level communication stacks.
How is temperature uniformity maintained across large external circuits?
The P4 pump’s 43 L/min flow rate and 4.3 bar head pressure ensure turbulent flow (Re > 4000) in typical ¾″ NPT loop configurations, minimizing axial thermal gradients. For extended loops (>15 m), optional flow meters and secondary Pt100 feedback are recommended.
Does JULABO provide validation documentation for GxP environments?
Factory-supplied IQ/OQ templates, calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt), and material compliance declarations (RoHS, REACH) are included. Full 21 CFR Part 11 validation support requires engagement with JULABO’s Professional Services team.
