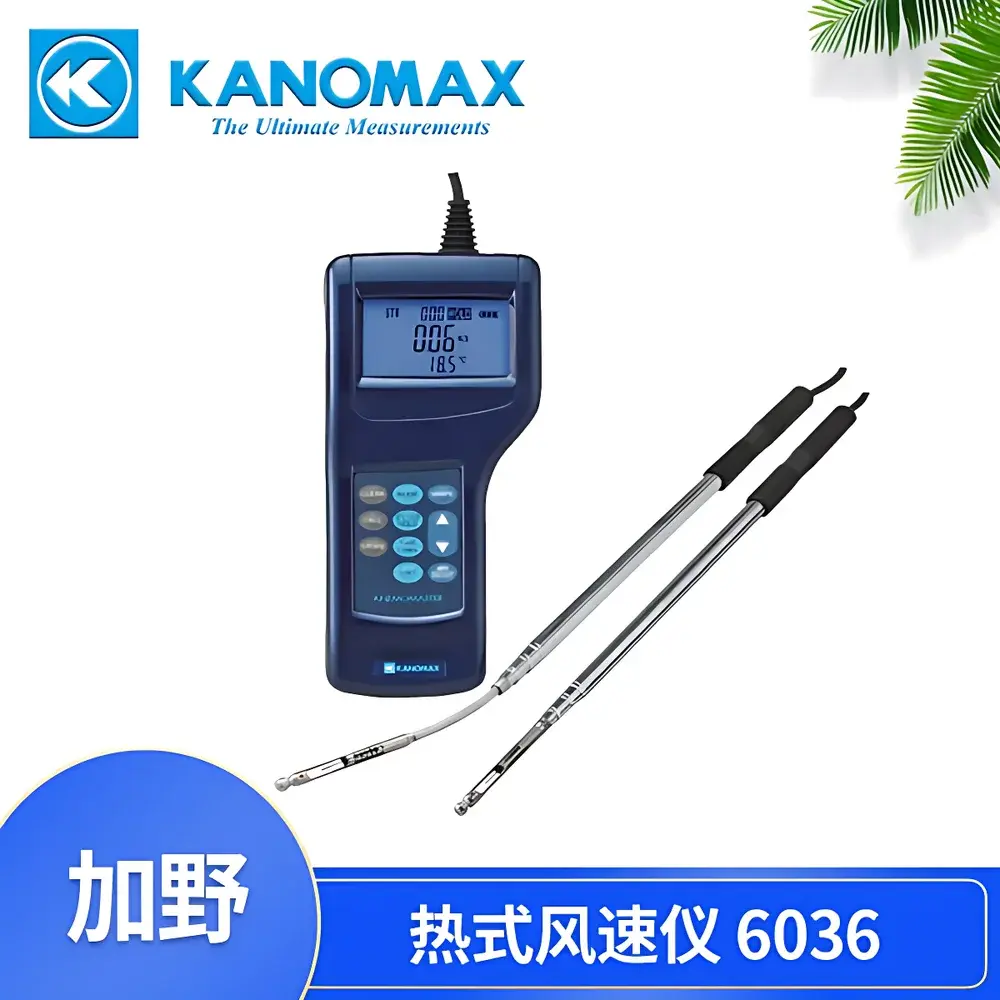

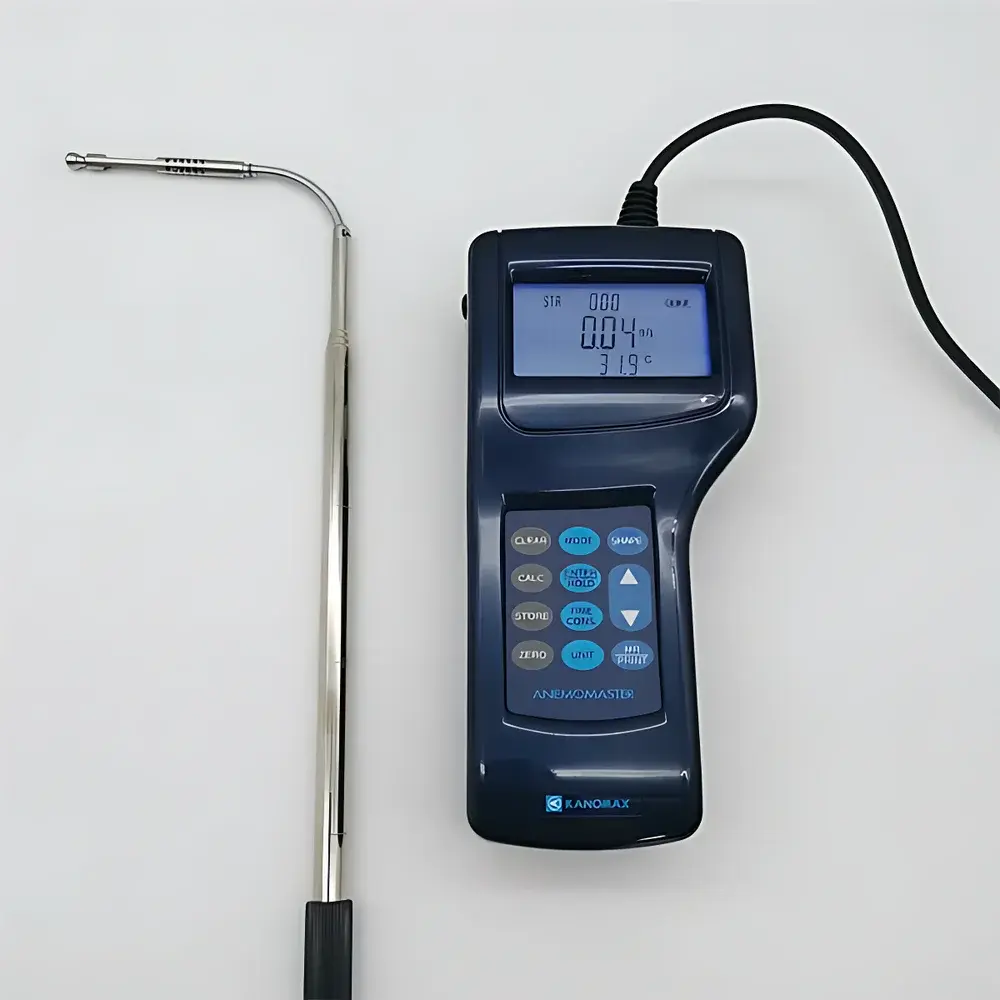

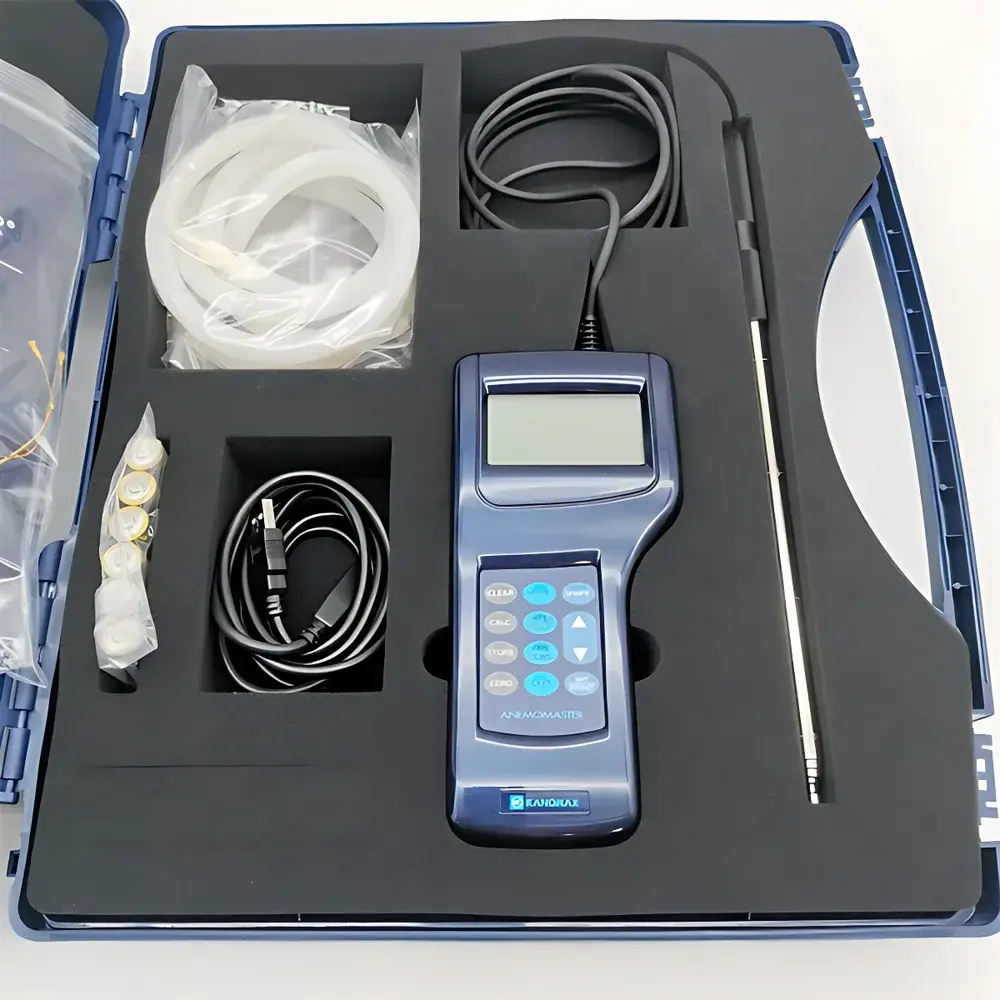

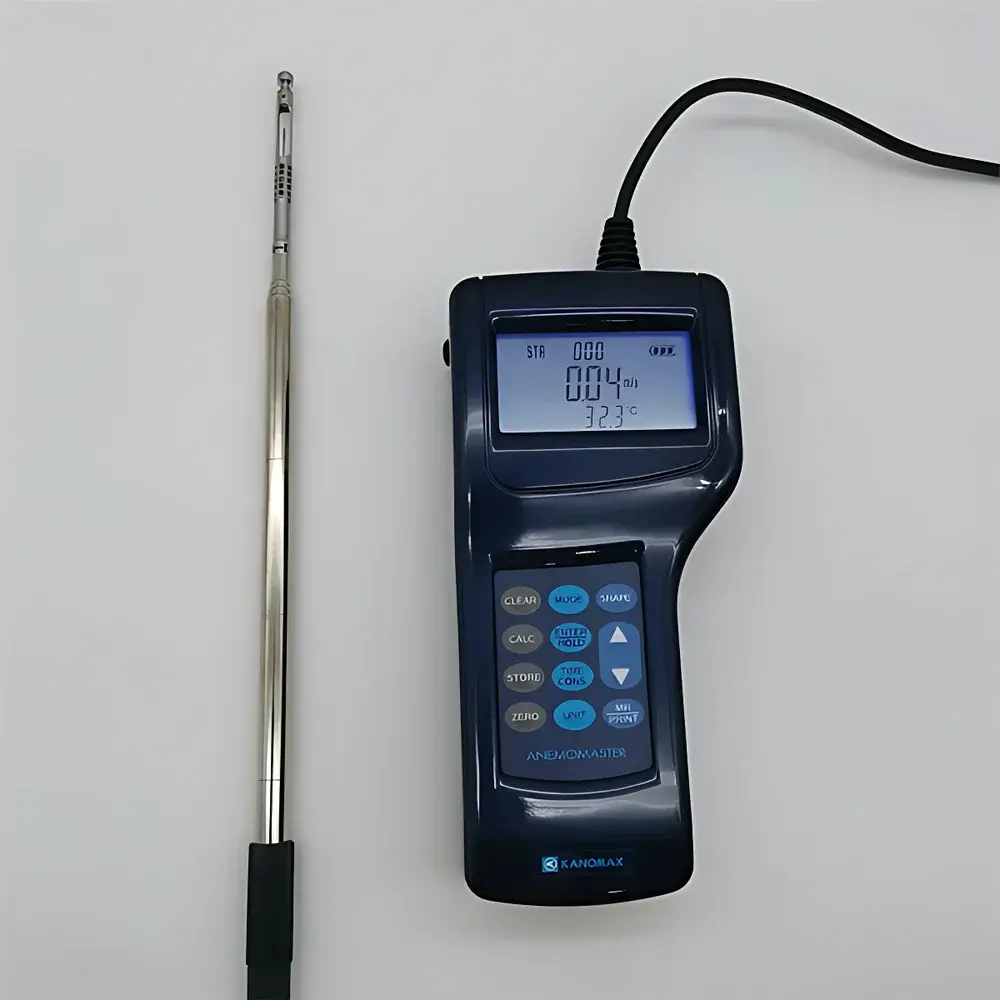

Kanomax 6036 Intelligent Thermal Anemometer & Air Flow Meter
| Brand | Kanomax |
|---|---|
| Origin | Japan |
| Model | 6036 |
| Instrument Type | Thermal Anemometer |
| Measurement Range | 0.01–30.0 m/s |
| Accuracy | ±3% of reading or ±0.03 m/s (whichever is greater) |
| Resolution | ±2% of reading |
| Operating Temperature | −20 to +70 °C |
| Operating Humidity | 2.0–98.0 %RH |
| Data Storage Capacity | 1,500 measurement sets |
| Output Interface | USB for PC connectivity |
| Probe | Flexible, telescoping stainless-steel probe with integrated temperature sensor |
Overview
The Kanomax 6036 Intelligent Thermal Anemometer & Air Flow Meter is a precision-engineered handheld instrument designed for reliable, real-time measurement of air velocity, volumetric flow rate, temperature, and differential pressure in HVAC systems, cleanrooms, ventilation ducts, and industrial process environments. Based on constant-temperature anemometry (CTA), the device employs a thermally sensitive platinum resistance sensor housed in a low-inertia, aerodynamically optimized probe tip. As airflow passes over the heated element, convective heat loss is measured and converted into velocity via calibrated thermal transfer algorithms—ensuring high reproducibility across turbulent and laminar flow regimes. Unlike cup or vane anemometers, the 6036 responds instantaneously to transient flow changes and maintains accuracy at low velocities down to 0.01 m/s—critical for validating laminar airflow hoods (ISO 14644-3), fume hood face velocity (ANSI/AIHA Z9.5), and duct traverse surveys per ASHRAE Standard 111.
Key Features
- Simultaneous real-time measurement of air velocity (0.01–30.0 m/s), temperature (−20 to +70 °C), and relative humidity (2.0–98.0 %RH) with integrated sensors
- Intelligent flow calculation engine: automatically computes volumetric air flow (m³/h or CFM) upon user input of duct cross-section geometry (rectangular, circular, or irregular) and dimensions
- Telescoping and articulating stainless-steel probe (up to 1,000 mm extended length) with 360° bendable tip for access to confined or obstructed duct locations
- Onboard statistical functions: real-time display of average, maximum, minimum, and standard deviation values during continuous sampling
- Internal memory stores up to 1,500 timestamped data records with full parameter logging (velocity, temp, RH, date/time)
- USB interface compliant with CDC/ACM class protocols; compatible with Kanomax’s proprietary data management software for traceable export (CSV, Excel), graphical trend analysis, and audit-ready reporting
- Rugged IP54-rated enclosure with backlit LCD, ergonomic grip, and battery life exceeding 12 hours on two AA alkaline cells
Sample Compatibility & Compliance
The 6036 is validated for use in non-corrosive, non-explosive ambient air and inert gas streams. It complies with IEC 61000-4 electromagnetic compatibility standards and meets CE marking requirements for portable measuring instruments. While not intrinsically safe, its design adheres to ISO/IEC 17025 metrological traceability principles when used with NIST-traceable calibration certificates (available optionally). The instrument supports GLP/GMP-aligned workflows through time-stamped data logging, user ID tagging (via optional password-protected mode), and software-enabled audit trails—facilitating compliance with FDA 21 CFR Part 11 where electronic records are subject to regulatory review.
Software & Data Management
Kanomax Data Manager v3.2 (Windows-compatible) provides full bidirectional communication with the 6036. Users can configure sampling intervals (0.1–60 s), define custom duct profiles, apply correction factors (e.g., for temperature/pressure compensation), and generate compliant reports with embedded metadata (operator ID, calibration due date, location tag). Exported datasets include raw sensor outputs, calculated flow totals, and statistical summaries—structured to align with ISO 5167-2 and ASHRAE Guideline 12 validation templates. All software operations log system events for internal quality audits.
Applications
- HVAC commissioning and TAB (Testing, Adjusting, Balancing) per NEBB and AABC standards
- Cleanroom airflow uniformity mapping and ISO Class verification (ISO 14644-1)
- Fume hood and biosafety cabinet face velocity assessments (ANSI/AIHA Z9.5, NSF/ANSI 49)
- Industrial exhaust stack monitoring and energy efficiency audits
- Pharmaceutical facility environmental monitoring (EU GMP Annex 1, WHO TRS 961)
- Academic and research lab ventilation performance studies
FAQ
What calibration standards does the Kanomax 6036 support?
The instrument is factory-calibrated against NIST-traceable wind tunnel references per ISO/IEC 17025-accredited procedures. Field recalibration is performed using Kanomax’s certified calibration kit (Model CAL-6036), which includes a reference-grade pitot tube and digital manometer.
Can the 6036 measure mass flow in compressed air systems?
No—it calculates volumetric flow only. Mass flow derivation requires additional inputs (gas composition, absolute pressure, and static temperature), which are outside the device’s built-in computation scope.
Is the probe suitable for high-temperature duct applications?
The probe assembly is rated for continuous exposure up to +70 °C ambient. For duct surfaces exceeding this limit, a thermal barrier sleeve or remote mounting bracket is recommended to prevent sensor drift.
Does the device meet FDA 21 CFR Part 11 requirements for electronic records?
While the hardware itself does not enforce Part 11 controls, the Kanomax Data Manager software supports electronic signatures, audit trails, and record retention protocols required for regulated environments—provided users implement appropriate administrative and procedural safeguards.
How is measurement uncertainty quantified for the 6036?
Total expanded uncertainty (k = 2) is ±4.2% of reading at 23 °C and 50 %RH, incorporating contributions from sensor linearity, thermal drift, and analog-to-digital conversion—per Kanomax’s published Type A/B uncertainty budget (Document No. K6036-UNC-2023).
