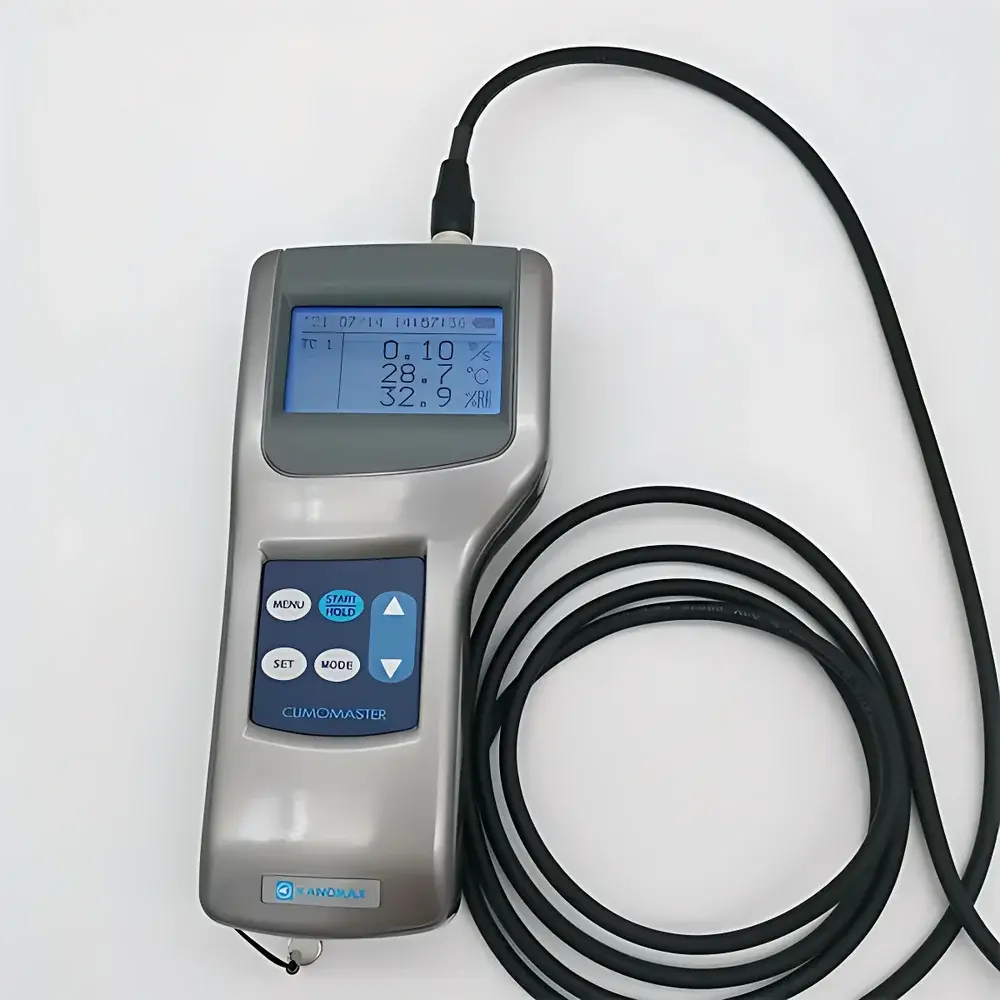

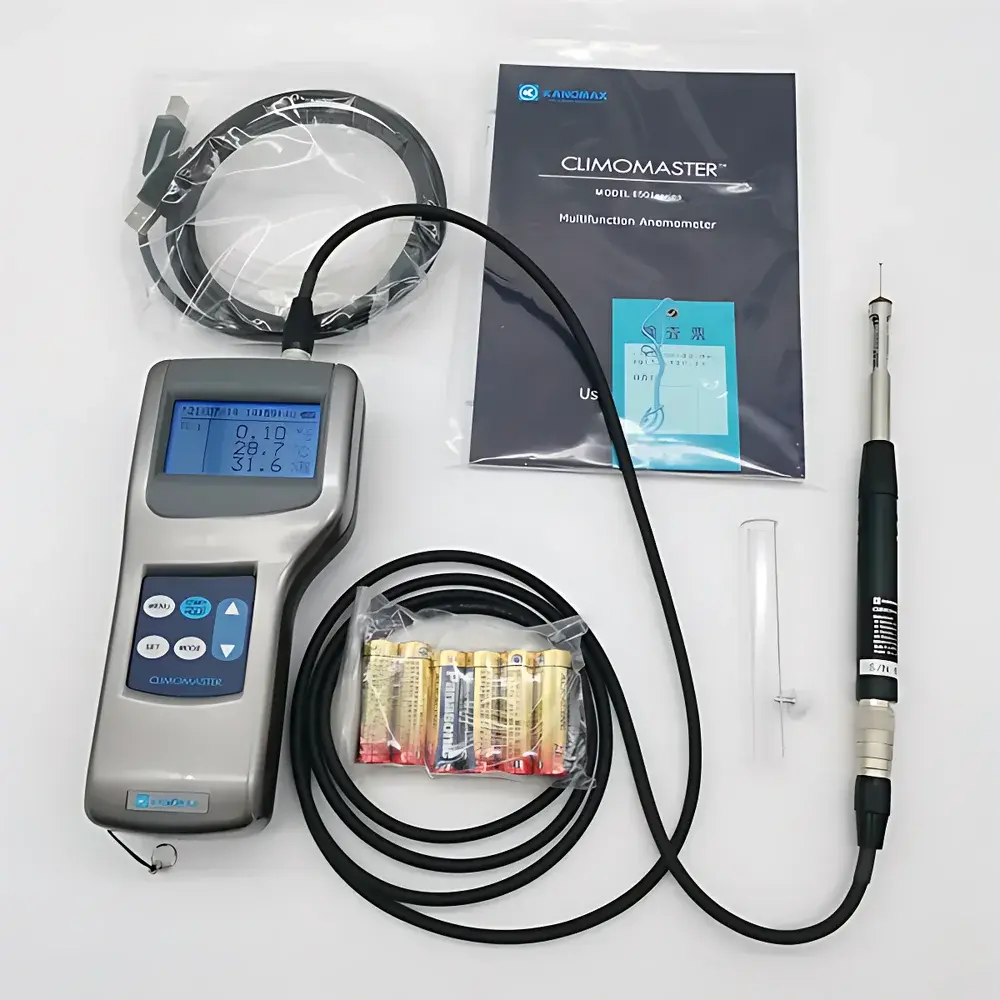

Kanomax 65 Ser Intelligent Environmental Tester for Cleanroom Applications

Overview

The Kanomax 65 Ser Intelligent Environmental Tester is a precision-engineered, multi-parameter monitoring instrument designed specifically for validation, qualification, and routine surveillance of controlled environments—including cleanrooms (ISO 14644-1 Class 1–8), pharmaceutical manufacturing suites, microelectronics fabrication areas, and HVAC commissioning sites. Built upon thermal anemometry principles, the system delivers traceable, real-time measurements of air velocity, volumetric airflow (calculated from user-defined duct geometry), ambient temperature, relative humidity, and differential pressure—all within a single handheld platform. Its architecture conforms to fundamental metrological requirements for environmental monitoring in regulated industries, supporting compliance-driven workflows where data integrity, repeatability, and audit readiness are non-negotiable.

Key Features

• Simultaneous acquisition of five critical environmental parameters: air velocity, calculated airflow (m³/h or CFM), temperature, relative humidity, and differential pressure.
• Probe-agnostic design supporting eight certified interchangeable thermal anemometer probes—enabling optimized measurement across laminar flow hoods, supply/exhaust grilles, ISO-classified ducts, and low-velocity recirculation zones.
• On-device computational engine allows direct input of duct cross-section geometry (rectangular, circular, or irregular) with automatic volumetric flow derivation using ISO 14644-3 Annex B-compliant algorithms.
• Statistical data processing onboard: real-time calculation of mean, maximum, and minimum values over user-defined sampling intervals—essential for ISO 14644-1 occupancy-state testing and EU GMP Annex 1 airflow mapping.
• Robust data management: internal memory stores up to 20,000 timestamped records with full parameter sets; USB interface enables secure export to CSV or proprietary Kanomax software for further analysis and report generation.
• Compliance-ready analog output (0–1 V) for integration into building management systems (BMS) or continuous monitoring platforms meeting FDA 21 CFR Part 11 and EU Annex 11 expectations for electronic record integrity.

Sample Compatibility & Compliance

The 65 Ser is validated for use with all Kanomax-certified thermal probes, including stainless-steel sheathed hot-wire sensors (e.g., 6501, 6502), low-turbulence vane probes (6511), and high-accuracy duct traverse probes (6520 series). Its measurement uncertainty budget aligns with ISO/IEC 17025 calibration traceability chains via NMI-accredited laboratories. The instrument meets IEC 61000-4 electromagnetic compatibility standards and operates reliably under ISO 14644-1 specified environmental conditions (−20 to +70 °C, 2–98 % RH). It supports GLP/GMP-aligned workflows through configurable data logging intervals, operator ID tagging (via optional software), and tamper-evident file structures.

Software & Data Management

Kanomax’s proprietary KAN-LOG software (Windows-based) provides full configuration, firmware update, and post-processing capabilities. Exported datasets include metadata such as probe serial number, calibration expiry date, operator ID, location tag, and timestamp—facilitating ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Audit trails, electronic signatures, and password-protected user roles are available when integrated with enterprise-level validation packages. Raw data exports comply with 21 CFR Part 11 requirements for electronic records and signatures when deployed with appropriate IT governance controls.

Applications

• Cleanroom certification per ISO 14644-1, ISO 14644-3, and EU GMP Annex 1 (airflow uniformity, velocity profiling, recovery testing).
• HVAC system balancing and commissioning in pharmaceutical, biotech, and medical device facilities.
• Environmental qualification of isolators, RABS, and gloveboxes per USP and ISO 14644-7.
• Validation of laminar airflow workbenches (LFWS) and biosafety cabinets (NSF/ANSI 49).
• Periodic monitoring of temperature and humidity excursions in storage and manufacturing spaces per ICH Q5C and WHO TRS 992 Annex 9.

FAQ

Is the 65 Ser suitable for ISO Class 5 cleanroom airflow mapping?
Yes—when used with a calibrated hot-wire probe (e.g., 6502) and configured for 0.1 m/s resolution, it meets the velocity measurement requirements of ISO 14644-3 Annex B for unidirectional airflow characterization.
Can measurement data be exported in a 21 CFR Part 11–compliant format?
Raw CSV exports contain full metadata; full Part 11 compliance requires deployment with Kanomax’s validated KAN-LOG software suite and documented site-specific IT controls.
What is the recalibration interval recommendation?
Kanomax recommends annual calibration against NIST-traceable standards, with interim verification using check standards per ISO/IEC 17025 Clause 7.7.
Does the unit support real-time graphing during measurement?
No—real-time visualization is limited to numeric display on the LCD; trend analysis and graphical reporting require post-export processing in KAN-LOG or third-party tools.
Are probe calibrations individually traceable?
Yes—each probe carries a unique serial number and certificate of calibration with uncertainty statements referenced to national metrology institutes.
