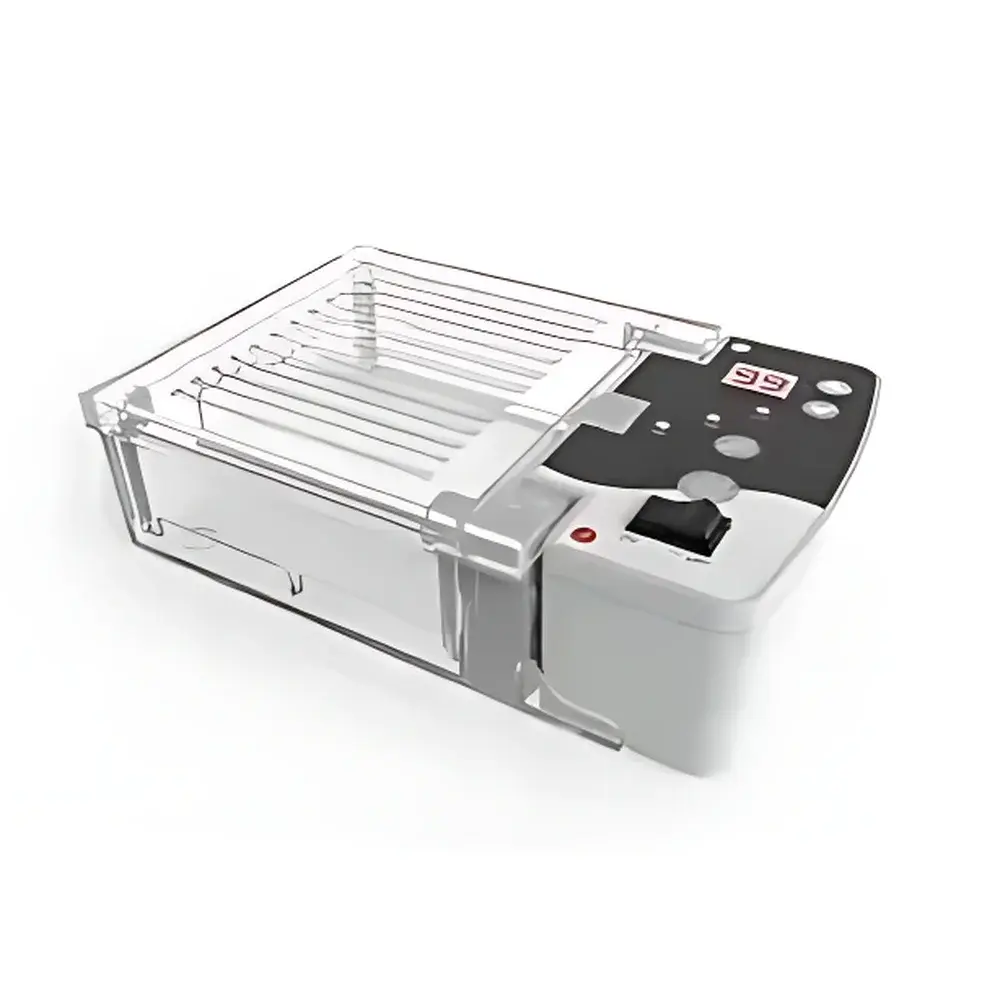

Keebio MiniES Horizontal Mini Electrophoresis System

Overview

The Keebio MiniES Horizontal Mini Electrophoresis System is a compact, benchtop-capable submarine electrophoresis apparatus engineered for precise nucleic acid separation under standardized agarose or polyacrylamide gel conditions. Based on the fundamental principle of electrophoretic mobility—where charged biomolecules migrate through a porous matrix under an applied direct current (DC) electric field—the MiniES delivers consistent, reproducible band resolution for DNA and RNA fragments ranging from ~50 bp to >20 kbp. Its horizontal configuration enables straightforward gel casting, loading, and post-run visualization, making it especially suited for routine molecular biology workflows in teaching laboratories, clinical diagnostics support units, food safety testing labs, and early-stage biotech R&D environments. The system operates without external power adapters due to its integrated universal AC input stage, and all high-voltage circuitry is fully isolated within the housing per IEC 61010-1 safety requirements.

Key Features

• Three selectable fixed DC output voltages (35 V, 50 V, or 100 V) optimized for varying gel concentrations and separation resolutions—lower voltages for high-percentage gels requiring fine resolution, higher voltages for rapid screening of low-percentage gels.
• Lid-actuated interlock mechanism ensures immediate power cutoff upon lid opening, complying with Class I electrical safety standards for operator protection during gel handling or buffer replenishment.
• Integrated power supply and electrophoresis chamber design eliminates cable clutter and reduces footprint—ideal for space-constrained lab benches or mobile teaching carts.
• Timer-controlled operation (1–99 minutes) with audible end-of-run alert; no software dependency required for basic function execution.
• Two standard gel tray formats included: 120 × 60 mm and dual 60 × 60 mm trays—compatible with Keebio HE120 transilluminators for seamless post-electrophoresis imaging.
• Chemically resistant, autoclavable-grade alloy polymer housing withstands repeated exposure to TAE/TBE buffers, ethidium bromide solutions, and common decontamination agents.

Sample Compatibility & Compliance

The MiniES supports standard agarose (0.7–3.0%) and native or denaturing polyacrylamide (3–20%) gels. Sample wells accommodate up to 22 lanes using the 3 mm comb or 12 lanes with the 5.6 mm comb, enabling parallel analysis of PCR products, restriction digests, plasmid preps, or RT-PCR amplicons. All components meet RoHS Directive 2011/65/EU for hazardous substance restrictions. While not certified for GLP/GMP production environments, the system’s stable voltage regulation, thermal management (<10 °C rise during 60-min run at 100 V), and traceable timer functionality support documentation-compliant workflows aligned with ISO/IEC 17025 clause 7.2.2 (method validation) and USP <1058> guidance for analytical instrument qualification in non-regulated research settings.

Software & Data Management

The MiniES operates as a standalone hardware platform with no embedded firmware or proprietary software interface. All operational parameters—including voltage selection and timer activation—are controlled via tactile front-panel switches and LED indicators. This architecture ensures long-term reliability, eliminates driver compatibility issues across operating systems, and avoids cybersecurity vulnerabilities associated with networked instruments. For laboratories implementing electronic lab notebooks (ELNs) or LIMS integration, experimental metadata (voltage, duration, gel type, sample IDs) can be manually logged or captured via barcode-scanned protocol templates. Audit trails are maintained through standard lab notebook entries, satisfying baseline ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) where electronic records are not mandated.

Applications

• Routine DNA fragment sizing in undergraduate and graduate molecular biology courses.
• Verification of CRISPR-Cas9 editing efficiency via T7E1 or Surveyor nuclease assays.
• Quality control of extracted genomic DNA or RNA prior to NGS library preparation.
• Food authenticity testing—e.g., detection of GMO-derived sequences in processed commodities.
• Pathogen identification in clinical microbiology labs using multiplex PCR followed by gel-based amplicon profiling.
• Teaching electrophoretic theory concepts including charge-to-mass ratio effects, sieving behavior, and Joule heating limitations.

FAQ

Is the MiniES compatible with ethidium bromide and SYBR Safe staining protocols?
Yes—the chamber material is chemically inert to standard nucleic acid dyes and common destaining solutions. Always follow institutional biosafety guidelines for UV exposure and dye disposal.
Can I use this unit for SDS-PAGE or protein electrophoresis?
No. The MiniES is designed exclusively for horizontal nucleic acid electrophoresis. Protein separation requires vertical tank configurations, higher voltage tolerance, and specialized buffer systems not supported by this platform.
What is the maximum recommended run time at 100 V?
Continuous operation up to 99 minutes is validated under ambient lab conditions (20–25 °C). Prolonged runs beyond 60 minutes at 100 V require active buffer recirculation or chilled buffer baths to mitigate thermal dispersion effects.
Are replacement combs and gel trays available separately?
Yes—Keebio supplies OEM-compatible accessories including 12-well, 18-well, and 22-well combs (1 mm thickness), as well as extended-format trays (up to 126 × 126 mm) for larger-scale preparative applications.
Does the system include CE or FDA registration documentation?
The MiniES carries CE marking per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). It is classified as a general-purpose laboratory instrument and does not require FDA 510(k) clearance for research use only (RUO) applications.
