Kestrel Replacement Impeller for Handheld Anemometers

Overview

The Kestrel Replacement Impeller (Model 0801) is a precision-engineered OEM-grade vane assembly designed exclusively for NK’s Kestrel line of handheld environmental meters. This impeller operates on the principle of rotational anemometry, where wind-induced rotation of the calibrated vane is converted into a digital wind speed reading via Hall-effect sensing and embedded microprocessor algorithms. The impeller incorporates a permanent rare-earth magnet integrated into the hub, enabling contactless angular velocity detection — eliminating mechanical wear and ensuring long-term repeatability. It is factory-calibrated against NIST-traceable standards and certified to maintain ±2% accuracy across its full 0–60 m/s range under specified environmental conditions. Replacement is recommended after cumulative operational exposure exceeding 400 hours or following sustained exposure to wind speeds above 30 m/s, as aerodynamic fatigue and bearing micro-wear may gradually degrade measurement fidelity.

Key Features

• OEM-specification vane geometry optimized for laminar flow response and low-turbulence start-up threshold (≤0.3 m/s)
• Integrated neodymium magnet enables high-resolution rotational sampling without physical contact or encoder slippage
• Stainless steel shaft and glass-filled nylon vanes engineered for corrosion resistance and dimensional stability across −55°C to +70°C
• IP67-rated sealing compatibility when installed in original Kestrel housings (per IEC 60529)
• Zero-maintenance design: no lubrication, no recalibration required post-installation — retains factory calibration traceability
• Tool-free replacement: secured via radial interference fit; removal and installation require only manual thumb pressure applied evenly at vane periphery

Sample Compatibility & Compliance

This impeller is mechanically and electrically compatible only with Kestrel Series handheld anemometers utilizing the standard 3-vane impeller interface (including Kestrel 4000, 4500, 5000, 5500, and DROP D2/D3 models). It is not interchangeable with propeller-type or hot-wire anemometers. All units comply with RoHS 2011/65/EU and REACH (EC 1907/2006) material restrictions. While the impeller itself carries no standalone regulatory certification, its use preserves the host instrument’s compliance with OSHA 1910.95 (noise and airflow monitoring), ASTM D5485-20 (standard practice for measuring air velocity in ducts), and ISO 7726:2001 (ergonomic assessment of thermal environments) when deployed within validated system configurations.

Software & Data Management

No firmware or software update is required upon impeller replacement. The Kestrel device automatically recognizes the new impeller through its native sensor handshake protocol during power-on self-test (POST). All logged wind speed data retain full timestamping, unit consistency (m/s, mph, knots, ft/min), and metadata integrity within the Kestrel LiNK mobile app and Kestrel Desktop Software. Audit trails—including impeller swap events—are recorded in the device’s internal event log and exported alongside measurement datasets, supporting GLP-compliant documentation workflows. Data export formats include CSV, PDF report, and direct Bluetooth sync to cloud repositories compliant with FDA 21 CFR Part 11 requirements when used in regulated environmental monitoring applications.

Applications

• Field validation of HVAC system airflow performance in commercial and industrial buildings (per ASHRAE Standard 111)
• Outdoor occupational safety assessments for wind exposure limits in construction, wind energy, and maritime operations
• Wildfire behavior modeling support — real-time wind vector capture in variable terrain and thermal updraft conditions
• Calibration verification of fixed-mount weather stations using portable Kestrel reference units
• Academic atmospheric boundary layer research requiring portable, high-temporal-resolution wind profiling
• Environmental impact assessments for infrastructure projects requiring ISO 14001-aligned meteorological baseline data collection

FAQ

Why does the impeller appear unbalanced when slowing down?
This visual oscillation is caused by magnetic damping interaction between the internal neodymium magnet and Earth’s geomagnetic field. It is a normal artifact of the sensor physics and does not indicate mechanical imbalance or affect measurement accuracy.
Does impeller replacement require recalibration of the Kestrel unit?
No. Each impeller is individually calibrated at the factory and maintains traceability to NIST standards. Installation restores full specification performance without user intervention.
What is the correct orientation during installation?

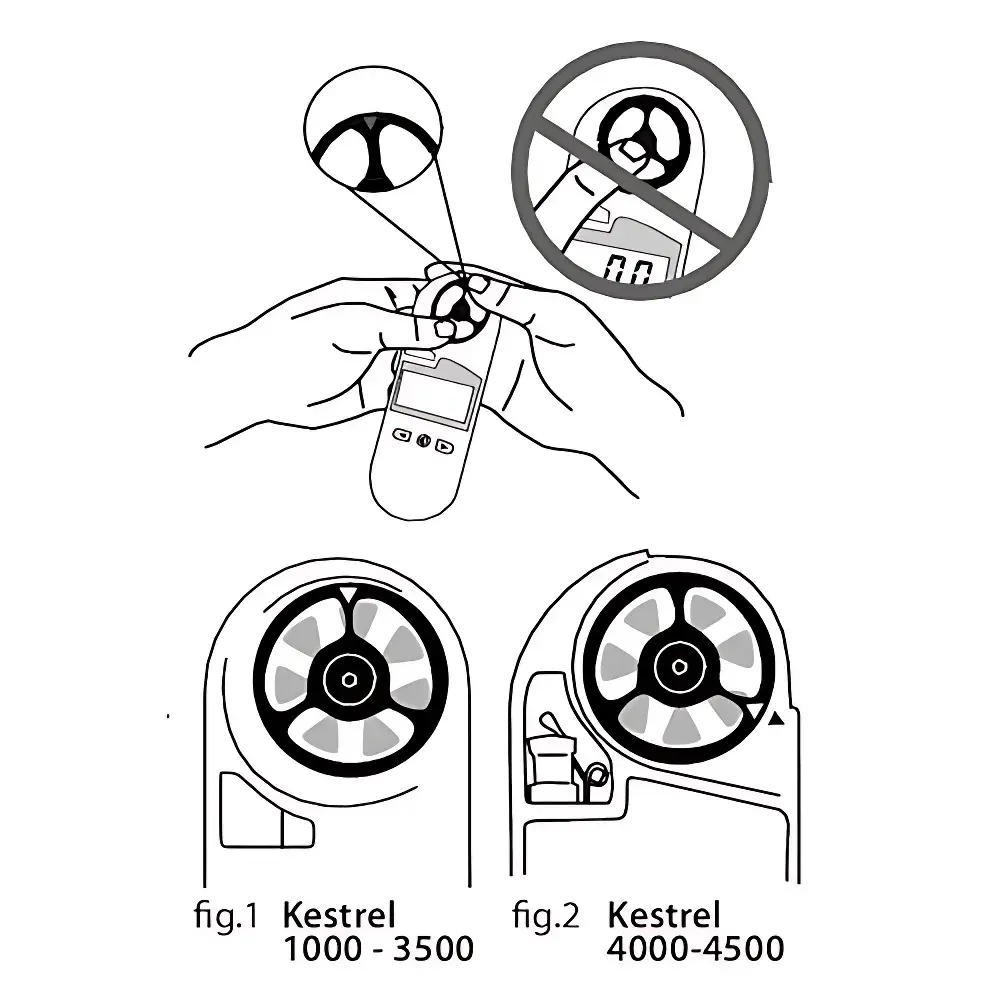

The impeller must be inserted with the alignment notch (marked by an arrow) facing toward the display screen and oriented upward relative to the device’s top edge. Apply pressure only to the outer vane edges — never press on the central hub.
Can this impeller be used in rain or high-humidity environments?
Yes. When properly seated in a fully sealed Kestrel housing, the impeller supports continuous operation at 0–100% RH, including condensing conditions, per IP67 ingress protection specifications.
How often should the impeller be replaced under typical field use?
NK recommends replacement every 400 operational hours or after exposure to sustained winds >30 m/s. For critical applications, users should monitor drift against a reference anemometer and replace proactively if deviation exceeds ±2.5% over three consecutive validations.
