KJ GROUP GSL-1000X-S Miniature Tube Furnace

Overview

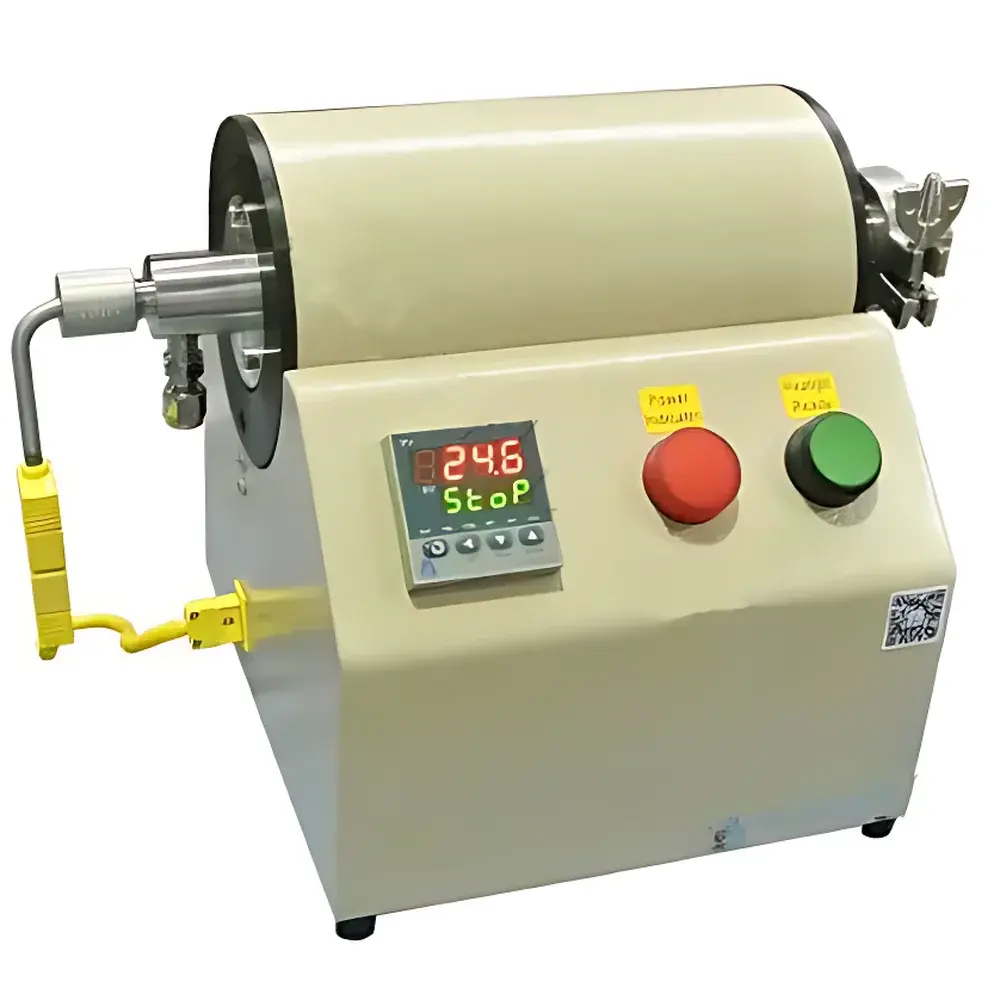

The KJ GROUP GSL-1000X-S Miniature Tube Furnace is a compact, precision-engineered thermal processing system designed for controlled high-temperature experimentation in constrained laboratory environments. Based on resistive heating principles using molybdenum-doped Fe-Cr-Al alloy elements and calibrated K-type thermocouple feedback, the furnace delivers stable, repeatable thermal profiles up to 1000 °C for short-duration cycles and sustained operation at 900 °C. Its 20 mm-diameter quartz tube—chemically inert, UV-transparent, and vacuum-compatible—enables diverse atmospheres (inert, reducing, oxidizing, or vacuum) for synthesis, annealing, and decomposition studies. The modular, split-body architecture separates the heating chamber from the controller, facilitating safe integration into gloveboxes via standard transfer ports and enabling rapid furnace replacement without system recalibration.

Key Features

• Compact form factor (20 mm tube ID) optimized for microscale sample handling and limited-space applications including glovebox-integrated workflows.
• 30-segment programmable temperature controller with auto-tuning PID algorithm, supporting complex ramp-soak-cool sequences with ±1 °C thermal stability in the 20 mm uniform zone (measured with end plugs installed).
• Robust mechanical design: front KF25 quick-release stainless steel flange and rear bolted seal with G1/8 gas inlet support leak-tight connections under vacuum (<10⁻³ mbar with optional pump) or controlled gas flow (0–500 sccm typical).
• UL/MET/CSA/CE-certified electrical components (>24 V), fully compliant with IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity); CE marking confirms conformity with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU.
• Thermally optimized insulation stack: alumina fiber end plugs minimize axial radiation loss, extending effective uniformity and improving energy efficiency during low-power holds.

Sample Compatibility & Compliance

The GSL-1000X-S accommodates samples ≤17 mm in diameter and ≤150 mm in length within its quartz tube. It supports powder, pellet, thin-film, and fiber specimens across material classes including oxides, nitrides, chalcogenides, and air-sensitive precursors (e.g., Li-metal anodes, Na₃V₂(PO₄)₃). Vacuum compatibility (with KF25 interface and optional two-stage rotary vane pump) enables oxygen-free processing per ASTM E595 outgassing requirements. For regulated QC/QA labs, the furnace’s deterministic thermal profile repeatability and alarm-traceable events (over-temp, TC break) align with GLP documentation practices; though not 21 CFR Part 11–validated out-of-box, its controller log export (via RS485 or analog output) permits integration into validated data acquisition systems.

Software & Data Management

The integrated temperature controller provides local LCD interface with real-time setpoint/actual display, segment editing, and event logging (alarm timestamps, program start/stop). Data export is supported via RS485 Modbus RTU protocol for integration with LabVIEW, MATLAB, or SCADA platforms. Optional PC software (KJ-TCM v3.2) enables remote programming, live graphing, and CSV-formatted thermal history archiving—including ramp rate verification and dwell deviation analysis. Audit trails are manually generated; for GMP environments, users implement supplemental electronic record controls per Annex 11 guidelines.

Applications

• Low-volume solid-state synthesis (e.g., LiCoO₂ cathode precursor calcination, MoS₂ CVD growth).
• Inert-atmosphere annealing of semiconductor nanowires and perovskite thin films.
• Thermogravimetric pre-treatment prior to XRD or XPS analysis.
• Controlled pyrolysis of polymer-derived ceramics in nitrogen or argon.
• Gas-phase reaction screening (e.g., CO₂ hydrogenation over Ni/CeO₂ catalysts) using integrated gas inlet and optional mass flow controller.
• Glovebox-based synthesis of moisture- or oxygen-sensitive battery materials (e.g., sulfide electrolytes) without atmospheric exposure.

FAQ

What is the maximum recommended vacuum level achievable with the GSL-1000X-S?
With a certified KF25-compatible vacuum pump and proper O-ring maintenance, the system achieves ≤5×10⁻⁴ mbar under static conditions (per ISO 2859-1 sampling plan verification).
Can the furnace be operated vertically inside a glovebox?
Yes—the base-mount design and balanced center of gravity allow secure vertical orientation; mounting brackets and transition port adapters are available as accessories.
Is the quartz tube replaceable, and what is its expected service life?
Quartz tubes are consumable items; typical lifetime exceeds 200 thermal cycles (25 °C → 900 °C → 25 °C) when cooled passively and protected from thermal shock and mechanical abrasion.
Does the controller support external trigger inputs for synchronized experiments?
Yes—TTL-level digital input (opto-isolated) allows external start/stop triggering from spectrometers, gas analyzers, or data loggers.
What documentation is provided for regulatory compliance audits?
Factory calibration certificate (traceable to NIST standards), CE Declaration of Conformity, electrical safety test report, and RoHS compliance statement are included with shipment.
