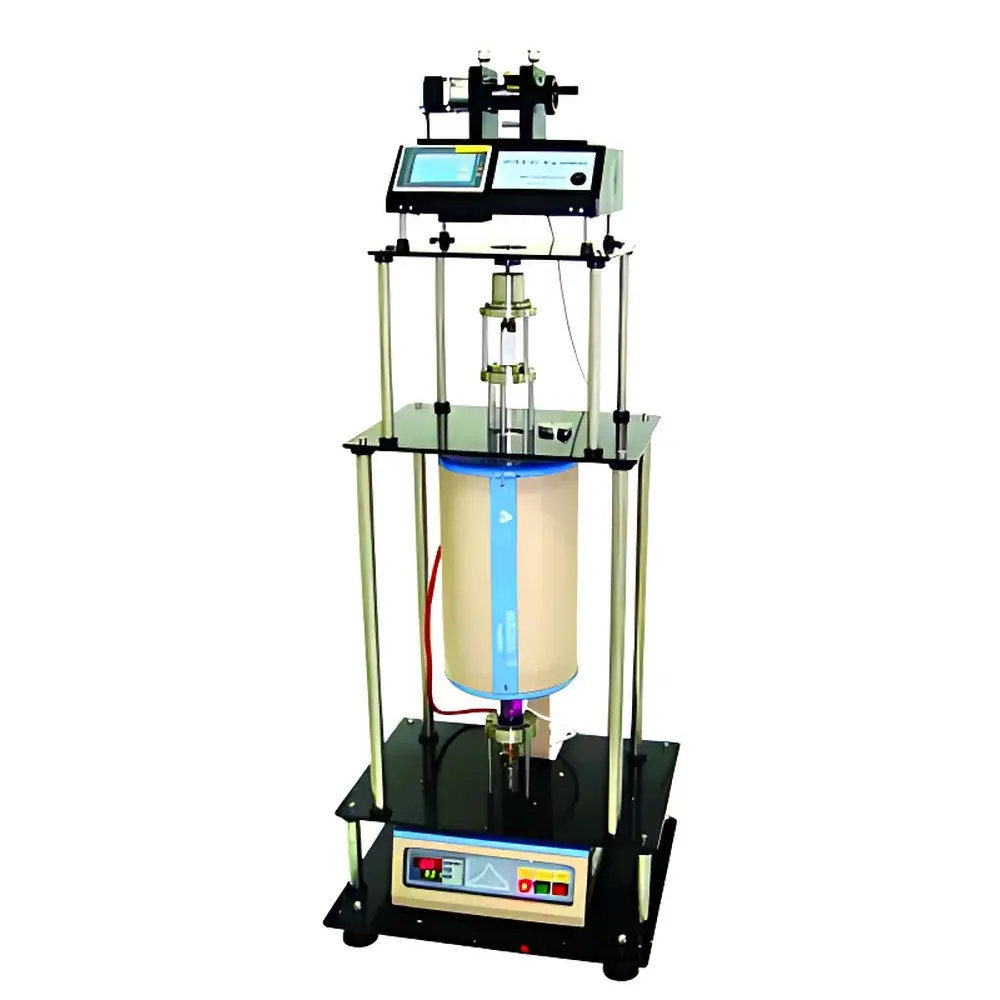

KJ GROUP PTL-HT High-Temperature Dip-Coating Machine

Overview

The KJ GROUP PTL-HT High-Temperature Dip-Coating Machine is an engineered solution for controlled, thermally assisted thin-film fabrication via vertical dip-coating under elevated temperature conditions. Unlike conventional room-temperature or low-temperature (<200 °C) dip coaters, the PTL-HT integrates a high-precision resistive tube furnace capable of stable operation up to 1000 °C—enabling in-situ thermal processing during film deposition. The process follows the classical sol-gel dip-coating sequence: substrate immersion into precursor solution, controlled withdrawal at programmable velocity, and immediate thermal treatment within the heated zone. This synchronized immersion–withdrawal–annealing workflow minimizes solvent evaporation gradients and promotes uniform nucleation, crystallization, and densification—critical for functional oxide films such as LiCoO₂, YBCO, TiO₂, BaTiO₃, and other ceramic, perovskite, or battery-grade thin-film systems. The system’s modular architecture supports both ambient-air and controlled-atmosphere operation (N₂, Ar, O₂), making it suitable for redox-sensitive material synthesis and oxidation-state-controlled growth.

Key Features

• Three independently controlled heating zones for precise axial thermal profiling across the furnace length—enabling gradient annealing or multi-stage thermal treatment during withdrawal.
• High-resolution stepper motor drive system delivering repeatable pulling speeds from 1 to 200 mm/min with ≤0.5% speed stability over extended cycles.
• Industrial-grade 7-inch color touchscreen HMI with intuitive parameter entry, real-time status feedback, and embedded recipe storage (≥100 user-defined protocols).
• CE-certified electrical and thermal safety architecture, including overtemperature cutoff, ground-fault protection, and interlocked furnace access doors.
• Standard dip rods rated for continuous use up to 800 °C; optional molybdenum-, tungsten-, or graphite-based rods available for sustained operation between 800–1000 °C (custom quotation required).
• Modular sample holder design accommodating substrates up to 150 mm in heated length and ≤1 kg total mass; compatible with standard quartz, alumina, and silicon wafer carriers.

Sample Compatibility & Compliance

The PTL-HT accommodates rigid planar substrates—including single-crystal wafers, sintered ceramics, metal foils, and conductive glass—and supports both aqueous and organic precursor solutions (e.g., metal alkoxides, nitrates, acetates). Its inert-gas compatibility (via optional gas inlet ports and flow meter integration) satisfies ASTM C1161 and ISO 14704 requirements for controlled-atmosphere ceramic processing. The system operates within GLP-aligned workflows: all temperature setpoints, pulling profiles, and dwell times are digitally logged with timestamped records exportable via USB. While not FDA 21 CFR Part 11–compliant out-of-the-box, audit-trail functionality can be extended via third-party LIMS integration for regulated R&D environments.

Software & Data Management

The onboard firmware stores full process metadata—including furnace zone temperatures, actual vs. target pull speed, immersion duration, and thermal ramp rates—for each run. Data export is supported in CSV format for post-processing in MATLAB, Python (Pandas), or OriginLab. No proprietary software installation is required; configuration and monitoring occur entirely through the embedded HMI. Optional RS485/Modbus RTU interface enables integration into centralized lab automation platforms (e.g., LabVIEW, Ignition SCADA) for batch traceability and remote supervision.

Applications

• Growth of high-κ dielectric films (e.g., HfO₂, Al₂O₃) for microelectronics gate stacks.
• Synthesis of cathode and solid-electrolyte thin films for all-solid-state battery research (e.g., Li₇La₃Zr₂O₁₂, LiCoO₂).
• Preparation of transparent conducting oxides (TCOs) such as FTO and ITO on heat-resistant substrates.
• Development of superconducting YBCO films via metal-organic decomposition (MOD) routes.
• Thermal stabilization studies of sol-gel-derived mesoporous silica and titania coatings under controlled oxidizing/reducing atmospheres.

FAQ

What atmosphere options does the PTL-HT support?
The system is configured for ambient air operation by default. Optional gas inlet fittings allow connection to N₂, Ar, or O₂ supply lines with mass flow controllers for reproducible inert or oxidizing environments.
Can the furnace maintain temperature uniformity across its 150 mm hot zone?
Yes—the three-zone heating control and optimized insulation yield ±3 °C axial uniformity over 150 mm at 800 °C, verified per ASTM E220 calibration procedures.
Is the 1000 °C furnace rating usable with standard dip rods?
No. Standard rods are rated to 800 °C. Operation above this temperature requires custom high-melting-point rods (e.g., Mo, W, or doped graphite), which must be specified at time of order.
Does the system include vacuum capability?
Vacuum operation is not supported. The furnace is designed for atmospheric-pressure inert or reactive gas environments only.
What maintenance is required for long-term thermal accuracy?
Annual verification of thermocouple calibration against NIST-traceable reference standards is recommended; furnace insulation integrity should be visually inspected every 500 operating hours.
