KNF SH840 Multi-Channel Vacuum System

Overview

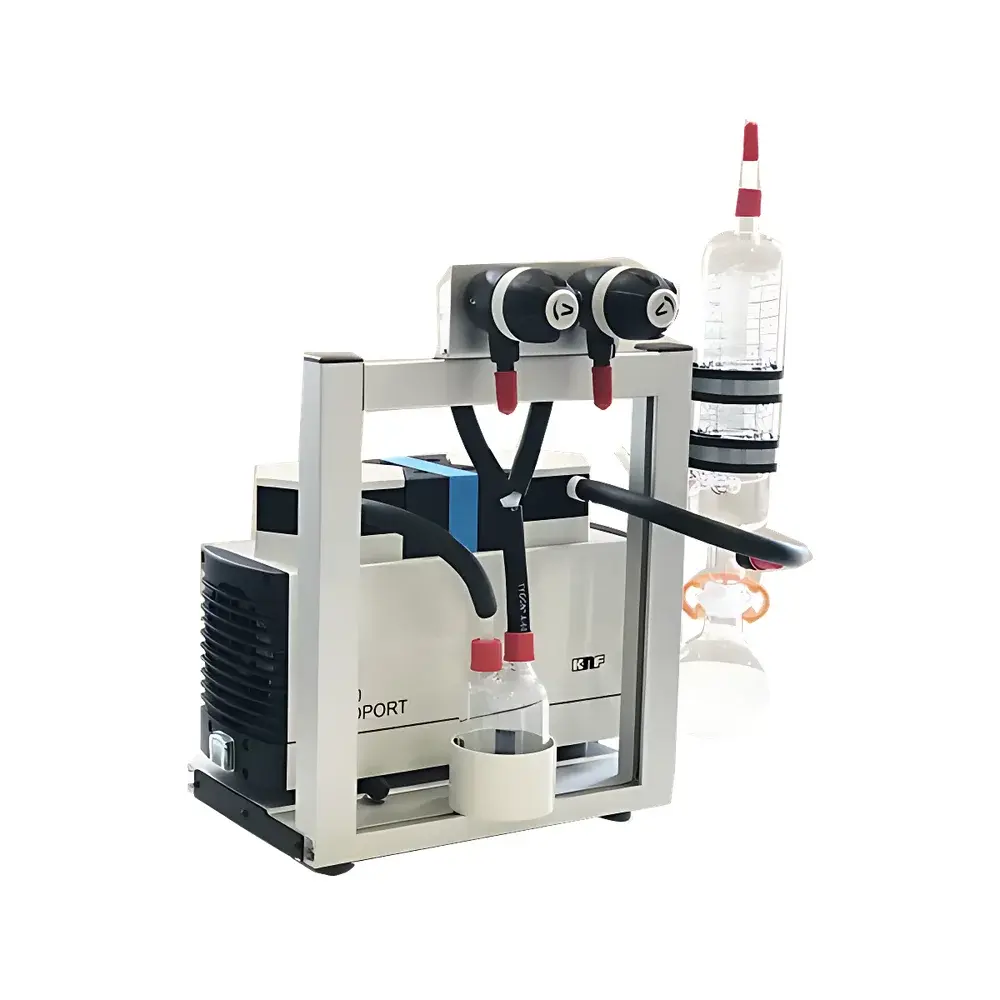

The KNF SH840 Multi-Channel Vacuum System is an engineered vacuum distribution platform designed for laboratories requiring reliable, chemically resistant, and scalable vacuum supply across multiple instruments or workstations. Built upon the proven architecture of KNF’s SH-series modular vacuum systems, the SH840 integrates a high-performance oil-free diaphragm pump—specifically the N 840.3FT.18—with a stainless-steel mounting tray, a PTFE-lined separation bottle, a glass condenser, and a multi-port vacuum manifold with integrated solenoid valves. Its core operating principle relies on positive displacement via PTFE-coated elastomeric diaphragms, enabling continuous operation under aggressive chemical environments without lubricant contamination or degradation. With an ultimate vacuum level of 8 mbar (abs.) and a nominal pumping speed of 34 L/min at atmospheric inlet pressure, the system delivers stable vacuum across parallel channels—supporting simultaneous use by two to four independent users or analytical devices such as rotary evaporators, vacuum ovens, filtration manifolds, or vacuum-assisted sample preparation stations.

Key Features

• Chemical resistance throughout wetted path: pump head, diaphragm, and valve components are constructed from or coated with PTFE (polytetrafluoroethylene) or FFPM (perfluoroelastomer), ensuring compatibility with strong acids (e.g., HCl, HNO₃), bases (e.g., NaOH), organic solvents, and halogenated vapors.
• Modular multi-channel architecture: configurable for 2–4 independent vacuum outlets via standardized quick-connect ports (ID 10 mm), each equipped with individual solenoid control for automated on/off sequencing and pressure regulation.
• Oil-free, maintenance-free operation: eliminates risk of oil backstreaming, reduces laboratory contamination concerns, and supports ISO Class 5 cleanroom-compatible workflows where hydrocarbon-free vacuum is mandated.
• Low acoustic emission (<52 dB(A)) and minimal mechanical vibration: engineered for integration into sensitive instrumentation environments—including mass spectrometry sample introduction lines or optical benches—without inducing signal noise or mechanical coupling.
• Robust industrial-grade construction: housing and structural components comply with IP20 ingress protection; electrical design conforms to IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) standards.

Sample Compatibility & Compliance

The SH840 system is validated for use with corrosive, condensable, and particulate-laden process streams typical in synthetic chemistry, pharmaceutical development, and environmental sample processing. Its PTFE/FFPM fluid path meets material compatibility requirements per ASTM D471 (rubber property testing) and DIN 53521 (chemical resistance classification). The system supports GLP-compliant documentation workflows when paired with KNF’s optional analog/digital I/O interface modules, enabling integration into LIMS-controlled environments. While not inherently 21 CFR Part 11 compliant as a standalone unit, its operational parameters—including runtime logging, valve actuation timestamps, and vacuum setpoint tracking—can be captured and archived via external SCADA or LabVIEW-based data acquisition systems meeting audit-trail and electronic signature requirements.

Software & Data Management

The SH840 operates as a hardware-integrated vacuum distribution node rather than a digitally controlled instrument. It does not include embedded firmware or proprietary software. However, it is fully compatible with third-party automation platforms via 0–10 V analog input (for vacuum setpoint modulation) and discrete 24 VDC dry-contact outputs (for status reporting and interlock signaling). Optional KNF digital interface modules (e.g., KNF ControlBox C1) enable RS485 Modbus RTU communication, permitting remote monitoring of pump temperature, motor current draw, and valve state within enterprise-wide process control networks. All configuration and calibration data remain accessible through KNF’s publicly available technical documentation portal—no vendor-locked licensing or subscription models apply.

Applications

• Parallel rotary evaporation of acid-sensitive compounds in medicinal chemistry synthesis.
• Distributed vacuum supply for multi-station Büchner filtration in quality control laboratories handling API intermediates.
• Integrated vacuum source for glovebox antechambers requiring inert, oil-free evacuation prior to atmospheric transfer.
• Vacuum-assisted degassing of polymer precursor mixtures prior to casting or extrusion.
• Centralized vacuum infrastructure in teaching labs where student groups share access to vacuum-dependent apparatus without cross-contamination risk.

FAQ

Can the SH840 be used with aggressive halogenated solvents such as chloroform or carbon tetrachloride?

Yes—the PTFE-coated diaphragm and FFPM valve materials provide exceptional resistance to halogenated organics, consistent with KNF’s published chemical compatibility charts for the N840 series.
Is external cooling required for continuous operation at maximum duty cycle?

No—thermal management is passive and integrated; the N 840.3FT.18 pump is rated for S1 (continuous) duty under ambient temperatures ≤40 °C and relative humidity ≤80 % non-condensing.
Does the system support vacuum level feedback control?

Not natively—but vacuum transducers (e.g., capacitance manometers) can be installed downstream of any outlet port, with output signals routed to external PID controllers or PLCs for closed-loop regulation.
What is the expected service life of the diaphragm under typical lab usage?

Based on accelerated lifetime testing per ISO 8573-1, KNF specifies ≥15,000 hours of operation before routine diaphragm replacement—equivalent to ~8 years at 5 h/day, 5 days/week usage.
Can additional separation bottles or condensers be added to the manifold?

Yes—the SH840 tray includes standardized M6 threaded mounting points and dual-rail alignment guides, supporting field-installation of up to two auxiliary cold traps or secondary scrubbers without modification to the base assembly.
