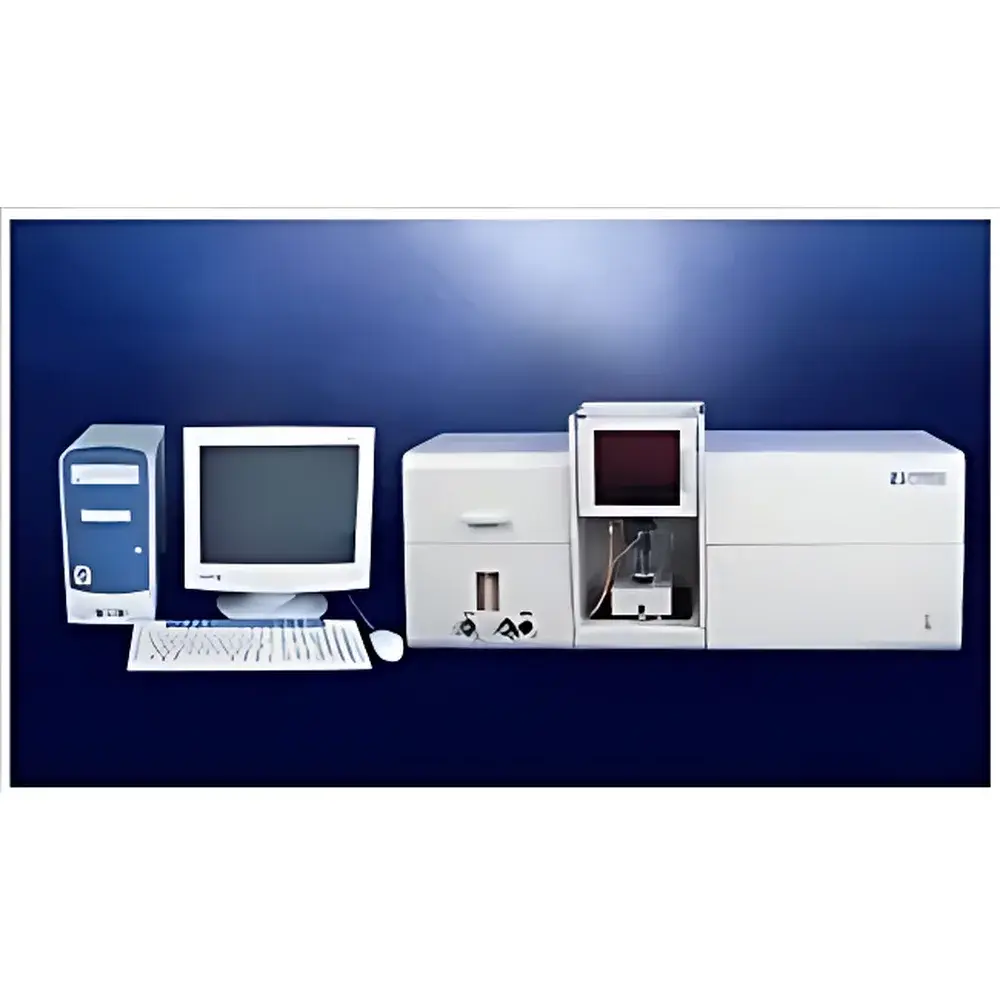

Kyocera AA2610 Atomic Absorption Spectrophotometer

Overview

The Kyocera AA2610 Atomic Absorption Spectrophotometer is a benchtop flame and hydride-generation atomic absorption system engineered for quantitative trace metal analysis in environmental, clinical, food safety, and industrial quality control laboratories. It operates on the principle of atomic absorption spectroscopy (AAS), where ground-state free atoms in a flame or graphite furnace absorb light at element-specific wavelengths. The AA2610 employs a double-beam optical path with a high-stability hollow cathode lamp (HCL) source and a photomultiplier tube (PMT) detector to deliver precise, interference-resistant measurements. Designed to meet the technical requirements of GB/T 6780–1993 — the Chinese national standard for atomic absorption spectrophotometers — the instrument supports routine compliance testing under ISO/IEC 17025-accredited workflows and aligns with fundamental performance expectations for AAS instrumentation used in GLP-regulated environments.

Key Features

• Optical system: Aberration-corrected Czerny-Turner monochromator with selectable spectral bandwidths (0.2, 0.4, 1.0, and 2.0 nm) for optimized resolution/sensitivity trade-offs
• Wavelength range: 190–900 nm with ±0.25 nm accuracy and ≤0.15 nm repeatability
• Flame atomization: 100 mm titanium burner head with air-cooled, premix design; fully adjustable height and lateral position for rapid optimization
• Detection capability: Characteristic concentration for Cu ≤ 0.025 µg/mL/1%; detection limit for Cu ≤ 0.006 µg/mL (3σ)
• Atomization versatility: Supports air-acetylene flame mode, hydride generation AAS (with optional HG-1 accessory), and oxygen-enriched acetylene flame for refractory elements
• Safety architecture: Integrated acetylene leak detection, automatic gas shutoff, flame failure monitoring, and interlocked ignition sequence
• Baseline stability: ≤0.004 A drift over 30 minutes, enabling extended calibration intervals and robust multi-sample runs

Sample Compatibility & Compliance

The AA2610 accommodates aqueous liquid samples across a broad concentration range (sub-ppb to ppm levels) following standard digestion protocols (e.g., EPA Method 200.7, ISO 11885). It is validated for direct analysis of metals including Cu, Fe, Ca, Pb, Hg, Cr, Cd, and Au in drinking water, soil extracts, biological fluids, and pharmaceutical excipients. While not FDA 21 CFR Part 11–certified out-of-the-box, its data acquisition software supports audit-trail–capable operation when deployed on Windows XP systems configured per laboratory SOPs. The instrument satisfies essential performance criteria outlined in GB/T 6780–1993 and provides baseline compatibility with ASTM D1688 (copper in water), ISO 8288 (nickel/cobalt in ores), and USP heavy metals testing when operated with appropriate calibration standards and matrix-matched controls.

Software & Data Management

The AA2610 ships with native Windows-compatible control software (compatible with Windows 98, 2000, and XP) that enables full instrument parameterization, method storage, and automated data reduction. Functions include: multi-point calibration curve fitting (linear and 2nd/3rd-order polynomial), standard addition quantitation, replicate measurement handling (1–20 injections), statistical reporting (mean, SD, RSD ≤1%), and customizable report generation (parameter logs, graphical absorbance plots, tabular results, summary PDF exports). Raw absorbance/time and absorbance/wavelength data are exportable in ASCII format for external validation using third-party statistical tools (e.g., JMP, Minitab). No cloud connectivity or remote diagnostics are supported; all data reside locally on the included Lenovo PC.

Applications

• Environmental monitoring: Quantification of regulated metals (Pb, Cd, As, Hg) in wastewater, surface water, and leachates per China’s HJ 694–2014 and EU WFD requirements
• Food and feed testing: Screening for toxic elements in cereals, dairy products, and infant formula per GB 5009.12–2017
• Clinical chemistry: Trace element profiling (Zn, Cu, Fe) in serum and whole blood using acid-dilution protocols
• Industrial QC: Incoming raw material verification (e.g., catalysts, pigments, battery-grade Li compounds) and plating bath monitoring
• Academic research: Teaching labs requiring robust, serviceable AAS platforms for method development and comparative studies

FAQ

Is the AA2610 compliant with ISO/IEC 17025 requirements for accredited testing?
Yes — when operated within documented procedures, calibrated with NIST-traceable standards, and maintained per manufacturer guidelines, the AA2610 meets the metrological and performance criteria required for inclusion in ISO/IEC 17025 scope assessments.
What consumables and gases are required for routine operation?
Air (oil-free, ≥6 bar), acetylene (≥99.6% purity), and argon (for hydride mode, if equipped). Standard hollow cathode lamps (included: 3 units) must be replaced every 500–1,000 h depending on usage intensity.
Can the instrument be upgraded to graphite furnace AAS?
No — the AA2610 is a dedicated flame/hydride system. Graphite furnace capability requires a separate platform (e.g., Kyocera GF-2610); no retrofit kits are available.
What warranty and technical support are provided?
A 6-month limited warranty covers parts and labor for defects in materials or workmanship. On-site service is available in Tier-1 Chinese cities; remote diagnostics and application support are offered via email and scheduled video consultation.
Is the included computer and printer compatible with modern lab networks?
The bundled Lenovo PC (Windows XP) and Canon printer support local USB/LAN printing and file sharing but lack native TLS 1.2+ or Active Directory integration. Migration to newer OS environments requires third-party driver validation and is not covered under warranty.
