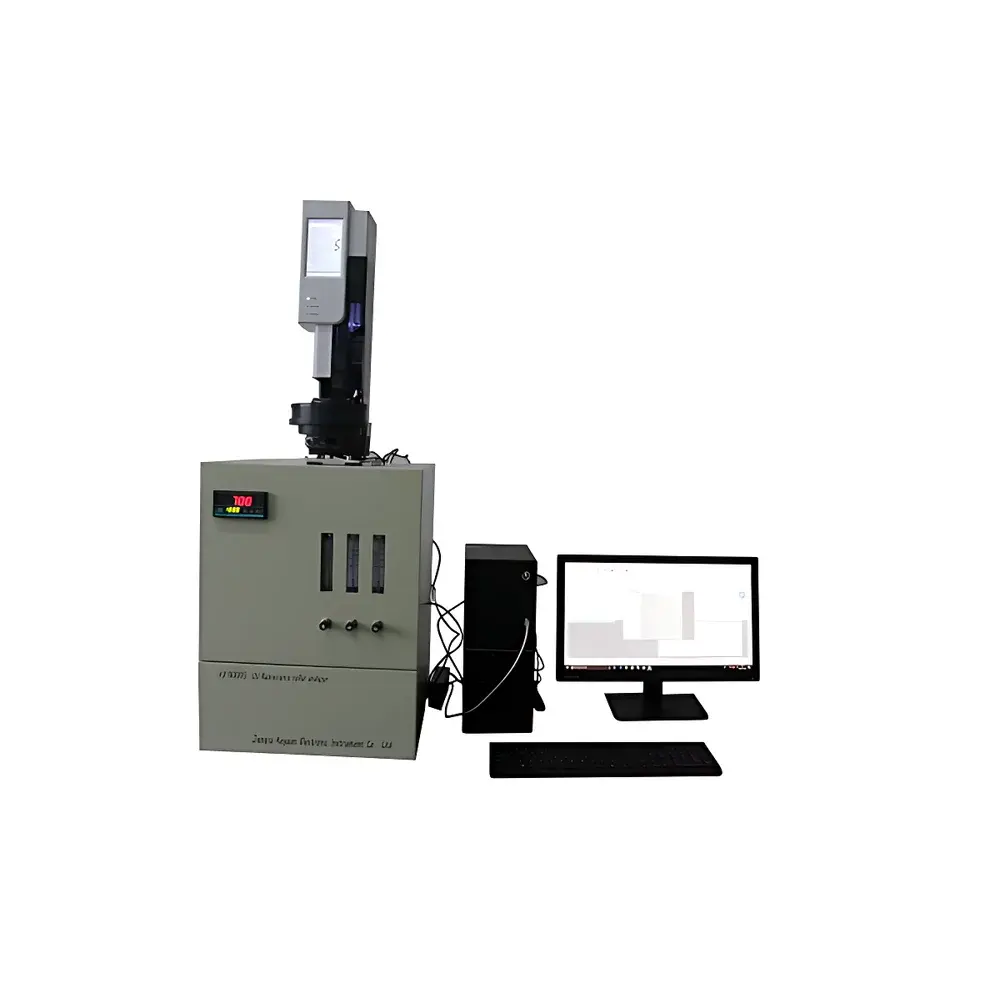

Kyoyuan KY-9000S Automated Sulfur Analyzer

Overview

The Kyoyuan KY-9000S Automated Sulfur Analyzer is a benchtop ultraviolet fluorescence (UVF) instrument engineered for precise, trace-level total sulfur quantification in liquid hydrocarbon matrices. It operates on the fundamental principle of high-temperature oxidative combustion followed by selective detection of excited SO₂* species via UV fluorescence emission at 394 nm. This method delivers inherent selectivity for sulfur without interference from nitrogen, carbon, or halogen compounds—critical for complex petrochemical and refinery streams. Designed for routine QC/QA laboratories in petroleum refining, lubricant manufacturing, biofuel certification, and environmental compliance testing, the KY-9000S meets stringent regulatory requirements across global fuel specifications including Euro V/VI, Tier 3 gasoline, and IMO 2020 marine bunker limits. Its architecture integrates a quartz combustion tube, dual-gas flow control (O₂ for oxidation, Ar as carrier and purge), thermally stabilized reaction chamber, and low-noise photomultiplier tube (PMT) with adjustable high-voltage bias—enabling stable baseline response and minimal drift over extended run sequences.

Key Features

• 16-position programmable autosampler with independent solvent and waste reservoirs (2 solvent bottles, 1 waste bottle) for unattended overnight operation and method-driven sequence execution.
• High-resolution micro-syringe injection system supporting precise delivery from 0.1 µL to 250 µL—optimized for both ultra-trace (<1 mg/L) and high-concentration (up to 20,000 mg/L) samples without manual dilution.
• Combustion furnace with PID-controlled heating up to 1100 °C and thermal stability of ±2 °C, ensuring complete oxidation of refractory sulfur species (e.g., thiophenes, benzothiophenes) and minimizing carbon deposit formation.
• 24-bit analog-to-digital conversion with sub-microvolt signal resolution (<1 µV minimum detectable signal), enabling robust signal-to-noise performance even at sub-ppb equivalent levels in gasoline or jet fuel.
• Field-configurable PMT voltage and multi-point calibration support (1–8 points), allowing linear and quadratic curve fitting per ASTM D5453 Annex A1—essential for maintaining accuracy across wide dynamic ranges.
• Fully USB-native communication interface compatible with modern laboratory IT infrastructure; no proprietary dongles or legacy serial adapters required.

Sample Compatibility & Compliance

The KY-9000S accepts a broad spectrum of liquid fuels and solvents—including gasoline, diesel, kerosene, biodiesel (FAME), ethanol blends (E10/E85), naphtha, crude assay fractions, lubricating oils, and LNG condensates—as defined in SH/T 0689 and ASTM D5453. It is validated for use with light hydrocarbons (C₁–C₅), liquefied petroleum gas (LPG), dimethyl ether (DME), and aromatic streams per ASTM D6667 and D7183. All hardware and firmware comply with electromagnetic compatibility (EMC) standards IEC 61326-1 and safety standard IEC 61010-1. The system supports audit-ready operation under GLP and GMP environments through configurable user access levels, electronic signature support, and full audit trail logging—including method parameters, calibration history, raw signal files, and operator metadata—aligned with FDA 21 CFR Part 11 data integrity principles.

Software & Data Management

KY-9000S Control Suite is a cross-platform application built on Qt framework, certified for native operation on Windows 10/11, macOS 12+, and Ubuntu LTS distributions. It provides real-time chromatogram visualization, automatic peak integration using derivative-based retention time locking, and customizable report templates exportable in PDF, CSV, XML, and ASTM E1394-compliant ASCII formats. LIMS integration is achieved via HL7 v2.x or direct ODBC/JDBC connectivity, enabling bidirectional sample ID exchange and result auto-posting. Raw spectral and time-resolved fluorescence data are stored in open HDF5 format—ensuring long-term readability and third-party analysis compatibility (e.g., Python/Pandas, MATLAB). All software updates are delivered via signed HTTPS packages with SHA-256 verification.

Applications

• Refinery process stream monitoring: sulfur breakthrough detection in hydrotreater effluents and FCC feedstocks.
• Fuel certification: batch release testing for ULSD, marine gasoil, and aviation turbine fuel per ASTM D975 and DEF STAN 91-91.
• Environmental compliance: wastewater extract analysis, soil leachate screening, and emissions control fluid verification.
• R&D support: catalyst poisoning studies, additive interaction profiling, and alternative fuel formulation development (e.g., green hydrogen-derived ammonia co-fueling).
• Contract laboratory accreditation: fully documented IQ/OQ/PQ protocols available for ISO/IEC 17025 implementation.

FAQ

What combustion gases are required, and why is gas purity critical?
High-purity oxygen (≥99.99%) ensures complete sulfur oxidation to SO₂ without side reactions; argon (≥99.99%) serves as inert carrier and purge gas to prevent quenching of excited SO₂* states—impurities like moisture or hydrocarbons directly suppress fluorescence yield and elevate baseline noise.
Can the KY-9000S analyze solid or viscous samples?
No—it is strictly configured for homogeneous liquid-phase analysis. Solid or high-viscosity samples (e.g., heavy fuel oil >200 cSt) require prior dissolution in approved solvents (e.g., xylene, chloroform) per SH/T 0689 Section 7.3.
How is calibration traceability maintained?
Certified reference materials (CRMs) traceable to NIST SRM 2723c (gasoline matrix) or AccuStandard T-100 series are recommended; calibration curves must be verified daily using mid-range check standards per ASTM D5453 Section 10.4.
Is remote diagnostic support available?
Yes—optional secure SSH tunneling and TeamViewer QuickSupport modules enable encrypted remote access for firmware diagnostics, parameter validation, and log file retrieval without compromising network segmentation policies.
Does the system support multi-element analysis?
No—the KY-9000S is dedicated exclusively to total sulfur measurement via UV fluorescence. For simultaneous sulfur and nitrogen detection, Kyoyuan’s KY-9000SN variant employs dual-channel PMT detection and shared combustion hardware.
