Q-Lab Q-SUN Xe-1 / Xe-2 / Xe-3 Xenon Arc Weathering Test Chambers

Overview

The Q-Lab Q-SUN series of xenon arc weathering test chambers are engineered for precision simulation of solar radiation exposure under controlled environmental conditions. Utilizing air-cooled 1800 W xenon arc lamps filtered to replicate natural daylight (ISO 4892-2 CIE Standard Illuminant D65), window-filtered sunlight (ISO 4892-2 Filter B), or extended ultraviolet spectra (ISO 4892-2 Filter A), these instruments deliver spectrally accurate irradiance across UV (295–400 nm), visible (400–800 nm), and near-infrared (800–2500 nm) ranges. The optical architecture ensures high reproducibility in photodegradation kinetics—critical for evaluating polymer photooxidation, pigment fading, coating chalking, and textile colorfastness. Unlike UV fluorescent or metal halide systems, xenon arc technology provides full-spectrum fidelity essential for correlating accelerated test data with real-world outdoor performance, particularly where visible-light-driven reactions or thermal synergies dominate degradation pathways.

Key Features

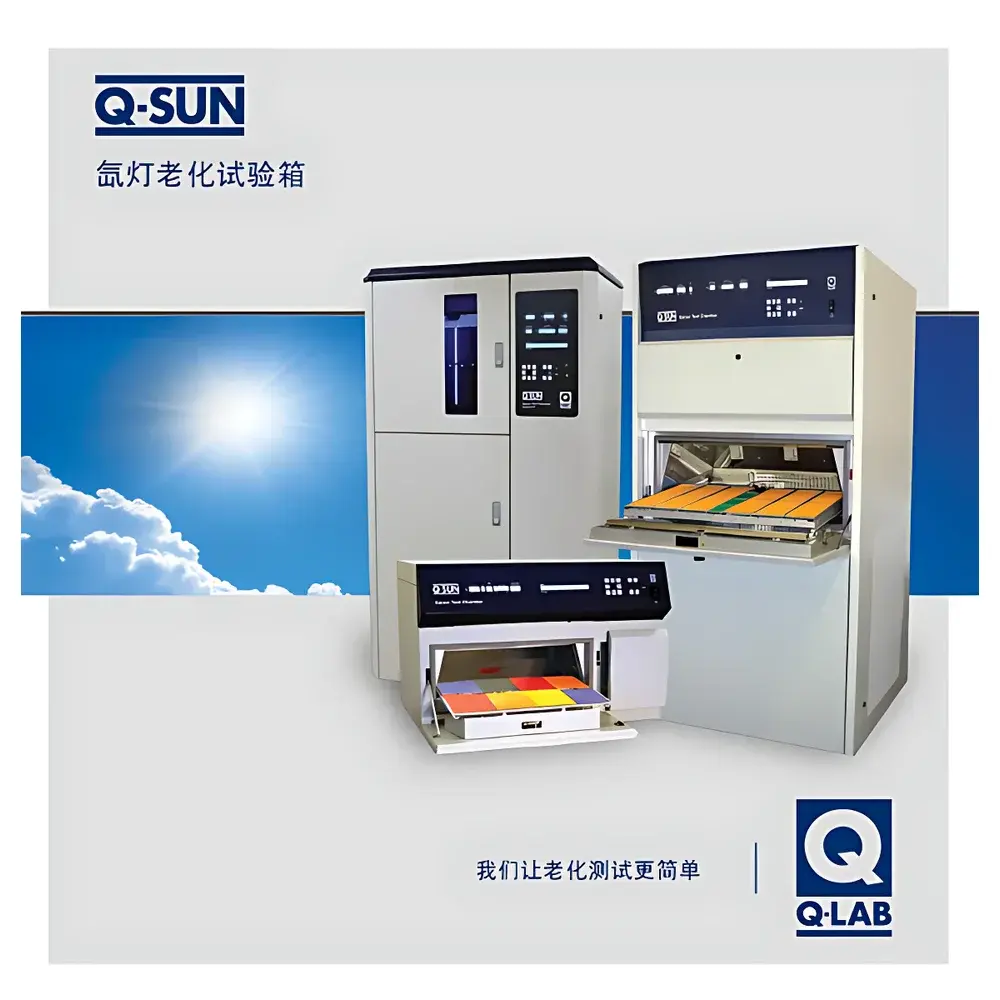

• Three platform configurations: Xe-1 (compact single-lamp desktop unit), Xe-2 (rotating drum design optimized for standardized flat specimens per ISO 105-B02 and AATCC TM16), and Xe-3 (high-capacity triple-lamp flat-bed chamber supporting large 3D components up to 451 mm × 718 mm)
• Air-cooled xenon lamps with typical service life of 1500 hours—eliminating complex water cooling infrastructure while maintaining stable spectral output and reducing operational overhead
• Interchangeable optical filters enabling compliance with multiple international exposure protocols: Daylight-Q (ASTM G155 Cycle 1), Window Glass-Q (SAE J2527), and Extended UV-Q (ISO 4892-2 Cycle A)
• Integrated relative humidity control (standard on Xe-2/Xe-3; optional on Xe-1) with closed-loop feedback using capacitive sensors calibrated traceably to NIST standards
• Programmable deionized water spray system operable during irradiation or dark periods—simulating dew, rain, and thermal shock effects per ASTM D4329 and ISO 4892-2 Annex D
• Touchscreen controller with audit-trail-enabled firmware compliant with FDA 21 CFR Part 11 requirements for GLP/GMP-regulated laboratories

Sample Compatibility & Compliance

The Q-SUN platforms accommodate diverse specimen geometries without compromising irradiance uniformity. The Xe-1’s slide-out flat sample tray (251 mm × 457 mm) supports rigid panels, films, and small molded parts. The Xe-2’s rotating drum holds thirty-one 46 mm × 122 mm specimens—meeting dimensional requirements of ISO 105-B02 for textile colorfastness testing and AATCC TM16 for apparel evaluation. The Xe-3’s oversized flat bed (451 mm × 718 mm) enables testing of automotive trim, architectural cladding, and composite structural elements. All models comply with calibration traceability requirements per ISO/IEC 17025 and maintain spectral irradiance uniformity within ±15% across the exposure plane per ASTM G155 Annex A3. Filter aging is monitored via integrated radiometric sensors; Q-Lab’s long-life quartz filters retain spectral integrity for ≥5 years under continuous operation, as documented in Technical Report LX-5060.

Software & Data Management

Q-SUN controllers run proprietary Q-Lab WinTrek™ software, supporting method-driven test sequencing, real-time irradiance logging (W/m² @ 340 nm), temperature/humidity trending, and automated pass/fail reporting against user-defined thresholds. Data export complies with ASTM E2912 for electronic record retention. Audit trails capture operator ID, parameter changes, calibration events, and alarm history—with timestamped digital signatures meeting GLP documentation standards. Remote monitoring via Ethernet/IP allows integration into centralized LIMS environments. Firmware updates preserve backward compatibility with legacy test methods and maintain alignment with evolving ISO/ASTM revisions.

Applications

These chambers serve critical roles in R&D and quality assurance across regulated and industrial sectors. In automotive OEM supply chains, they validate paint clearcoat durability per SAE J2527 and interior material fade resistance per ISO 105-B02. Coatings manufacturers use them for ISO 4892-2-compliant qualification of acrylics, polyurethanes, and fluoropolymers. Plastics compounders assess UV stabilizer efficacy in polyolefins and engineering resins under ASTM D4329 cycling. Textile labs rely on Xe-2 for AATCC TM16 and ISO 105-B02 colorfastness certification. Photovoltaic encapsulant developers apply extended UV filtering to accelerate EVA yellowing studies. Regulatory submissions to FDA, EPA, and EU REACH often reference Q-SUN-generated data due to its metrological rigor and interlaboratory reproducibility.

FAQ

What standards does the Q-SUN series support?
ASTM G155, ISO 4892-2, SAE J2527, AATCC TM16, ISO 105-B02, GB/T 16422.2, and IEC 61215 (for PV module materials).
How is irradiance calibrated and maintained?
Calibration uses NIST-traceable broadband and narrowband radiometers; automatic recalibration occurs at user-defined intervals or after lamp replacement.
Can humidity and water spray be operated independently of light cycles?
Yes—both functions are fully programmable and decoupled from irradiation timing, enabling custom profiles such as “dark soak + humidity ramp” or “UV + intermittent spray.”
What maintenance is required for the xenon lamps?
Lamps require replacement every ~1500 hours; the air-cooled design permits tool-free access and <5-minute swap without system cooldown.
Is remote diagnostics available?
Standard Ethernet connectivity supports secure remote firmware updates, log retrieval, and real-time sensor diagnostics via Q-Lab’s cloud-based Sentinel platform.
