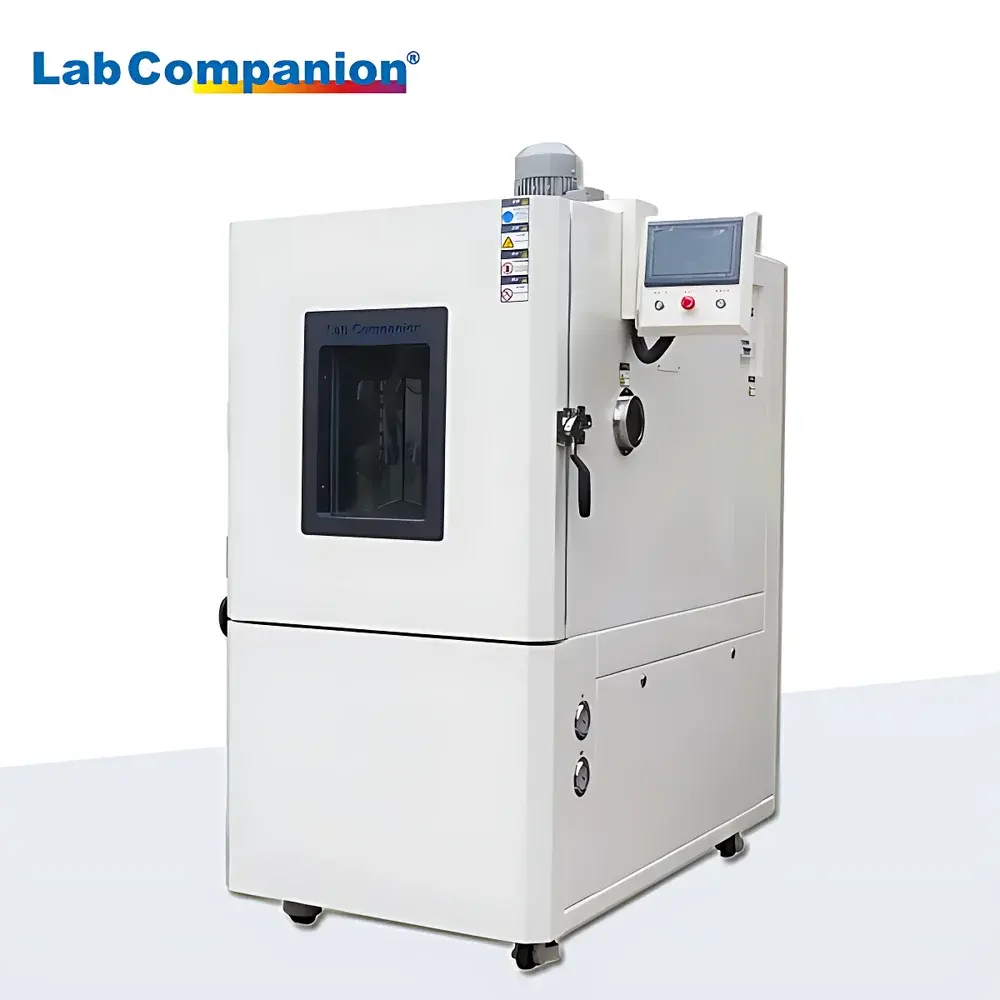

LabCompanion TC-180 Rapid Temperature Transition Chamber

Overview

The LabCompanion TC-180 Rapid Temperature Transition Chamber is an engineered environmental test system designed for accelerated thermal stress evaluation of electronic components, automotive modules, aerospace materials, and polymer-based assemblies. It operates on a dual-compartment forced-air convection architecture—featuring independent hot and cold zones with rapid pneumatic transfer mechanisms—to achieve precise, repeatable, and programmable temperature transitions without relying on single-chamber ramping alone. This design enables true thermal shock testing per IEC 60068-2-14, MIL-STD-810H Method 503.7, and JEDEC JESD22-A104E, supporting both step-and-soak and gradient-based thermal cycling protocols. The chamber maintains operational stability across its full range of −70 °C to +150 °C under no-load conditions, with temperature deviation controlled within ±2.0 °C against setpoint—verified per GB/T 5170.2–2008 (equivalent to ISO/IEC 17025 traceable calibration practices).

Key Features

• Dual-zone thermal architecture with independent heating (electric resistive) and cooling (cascade refrigeration + optional liquid nitrogen assist) systems for maximum ramp rate flexibility
• Selectable linear or non-linear temperature transition profiles, programmable from 5 °C/min up to 25 °C/min; optional LN₂ integration extends cooling rates to 30 °C/min
• High-stability forced-air circulation ensuring uniform temperature distribution (±0.5 °C fluctuation) across the 600 × 600 × 500 mm working volume
• Integrated safety interlocks including over-temperature cutoff, refrigerant pressure monitoring, door-open detection, and emergency stop circuitry compliant with IEC 61000-6-2/6-4 EMC standards
• Touchscreen HMI with real-time graphing, multi-segment profile editing, and USB data export—supports up to 100 user-defined test programs with timestamped execution logs

Sample Compatibility & Compliance

The TC-180 accommodates standard test specimens up to 25 kg and fits common PCB trays, wafer carriers, and automotive ECU housings. Its internal stainless-steel chamber and corrosion-resistant insulation meet RoHS and REACH material directives. All thermal performance specifications—including temperature deviation, uniformity, and recovery time—are validated in accordance with GB/T 5170.2–2008, which aligns methodologically with ASTM E145 and ISO 16750-4 for automotive electronics qualification. The system supports GLP-compliant operation when paired with optional audit-trail-enabled firmware (21 CFR Part 11 ready via external validation package). It is routinely deployed in laboratories conducting AEC-Q200 stress screening, IPC-9701 reliability assessments, and NASA GEVS thermal cycling verification.

Software & Data Management

LabCompanion’s proprietary ChamberControl™ software provides remote monitoring and control via Ethernet or RS-485 interfaces. It supports CSV-formatted raw data logging at 1-second intervals, configurable alarm thresholds, and automated report generation (PDF/Excel) with embedded calibration certificate references. For regulated environments, optional 21 CFR Part 11 add-ons enable electronic signatures, role-based access control, and immutable audit trails—fully compatible with LIMS integration through OPC UA or Modbus TCP protocols. Data integrity is preserved via cyclic redundancy checksums and on-device SD card backup (optional).

Applications

• Thermal shock testing of solder joints, MEMS devices, and BGA packages per JEDEC JESD22-A106B
• Pre-conditioning of lithium-ion battery cells prior to electrical performance characterization
• Validation of adhesive bond strength retention across extreme thermal gradients
• Qualification of avionics enclosures under DO-160 Section 4 (Temperature Variation) requirements
• Accelerated aging studies for medical device housing polymers per ISO 10993-12

FAQ

Does the TC-180 support humidity control?
No—the TC-180 is a dry thermal transition chamber. For combined temperature/humidity profiling, consider the LabCompanion TH-series models.
What is the standard calibration interval recommended for this chamber?
Annual calibration against NIST-traceable reference sensors is recommended; LabCompanion provides certified calibration services with ISO/IEC 17025 accreditation.
Can the TC-180 be integrated into an automated test cell?
Yes—it features digital I/O ports, Modbus RTU support, and Ethernet-based SCPI command sets for seamless integration with PLCs and test management platforms like TestStand or Python-based automation frameworks.
Is liquid nitrogen consumption monitored or regulated by the system?
When equipped with the LN₂ option, the chamber includes mass flow sensing, automatic shutoff at low-pressure thresholds, and configurable usage alerts—but does not include LN₂ level telemetry without external tank instrumentation.
How is thermal uniformity verified inside the working volume?
Uniformity is measured using a 9-point sensor array per GB/T 5170.2–2008 Annex B; results are documented in the factory acceptance test (FAT) report shipped with each unit.
