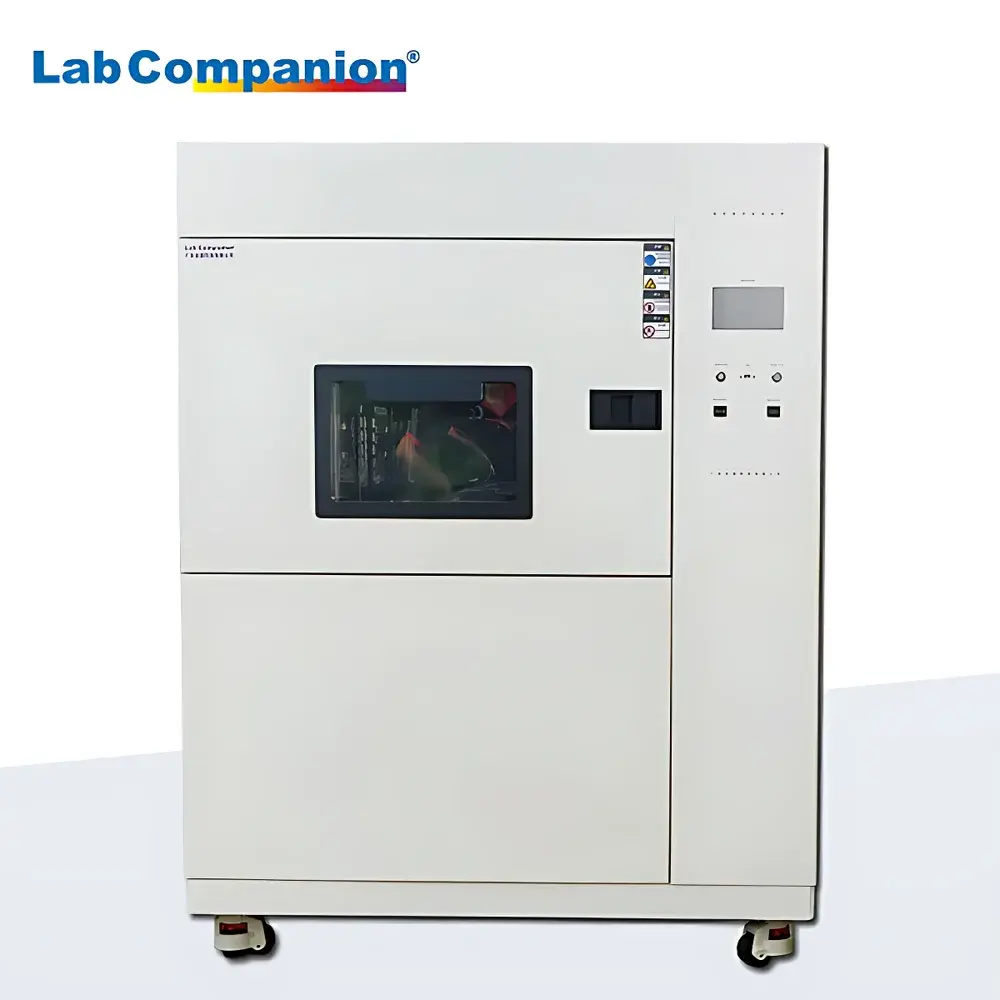

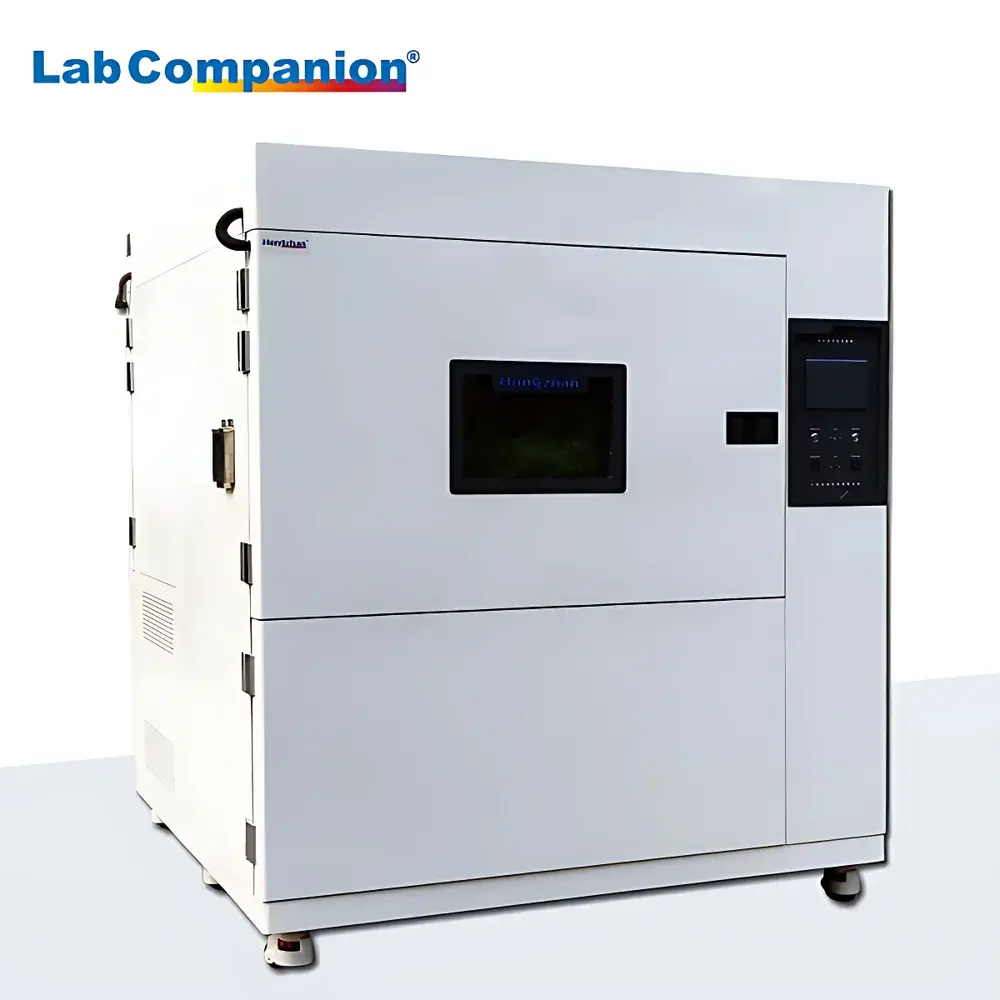

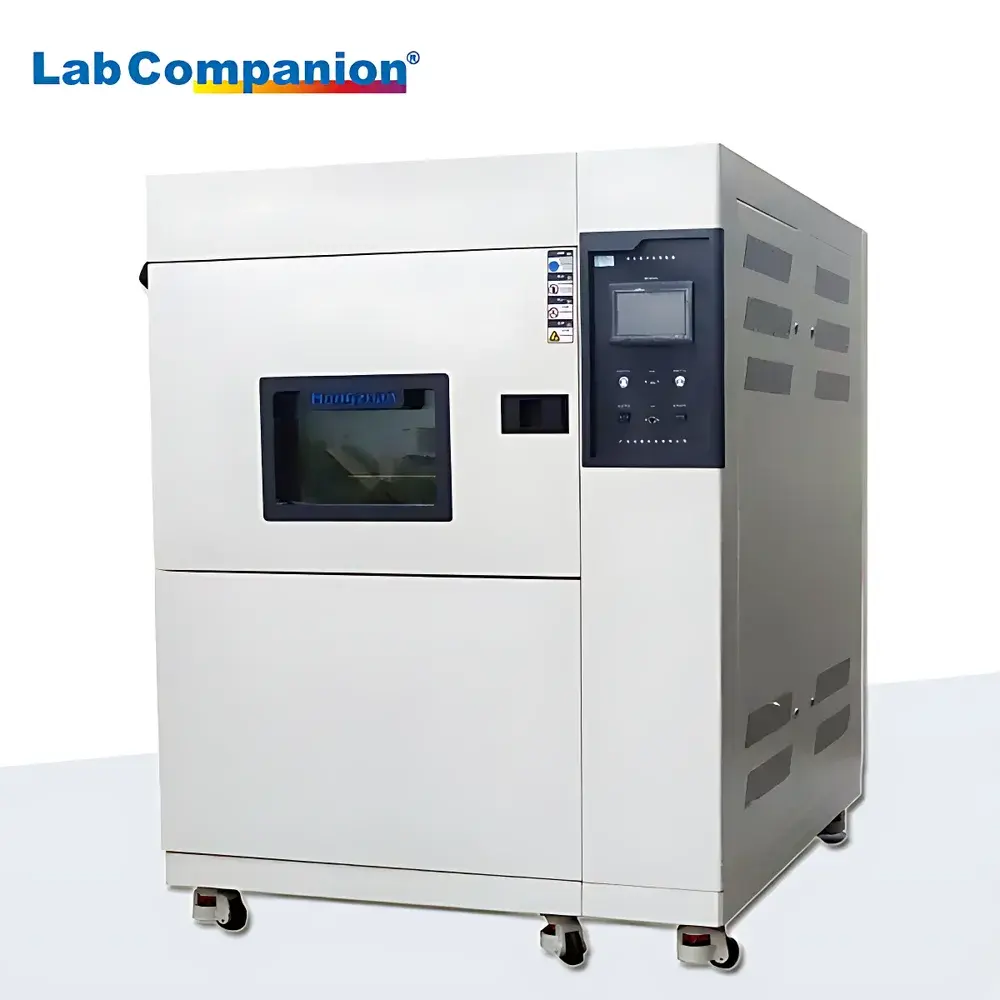

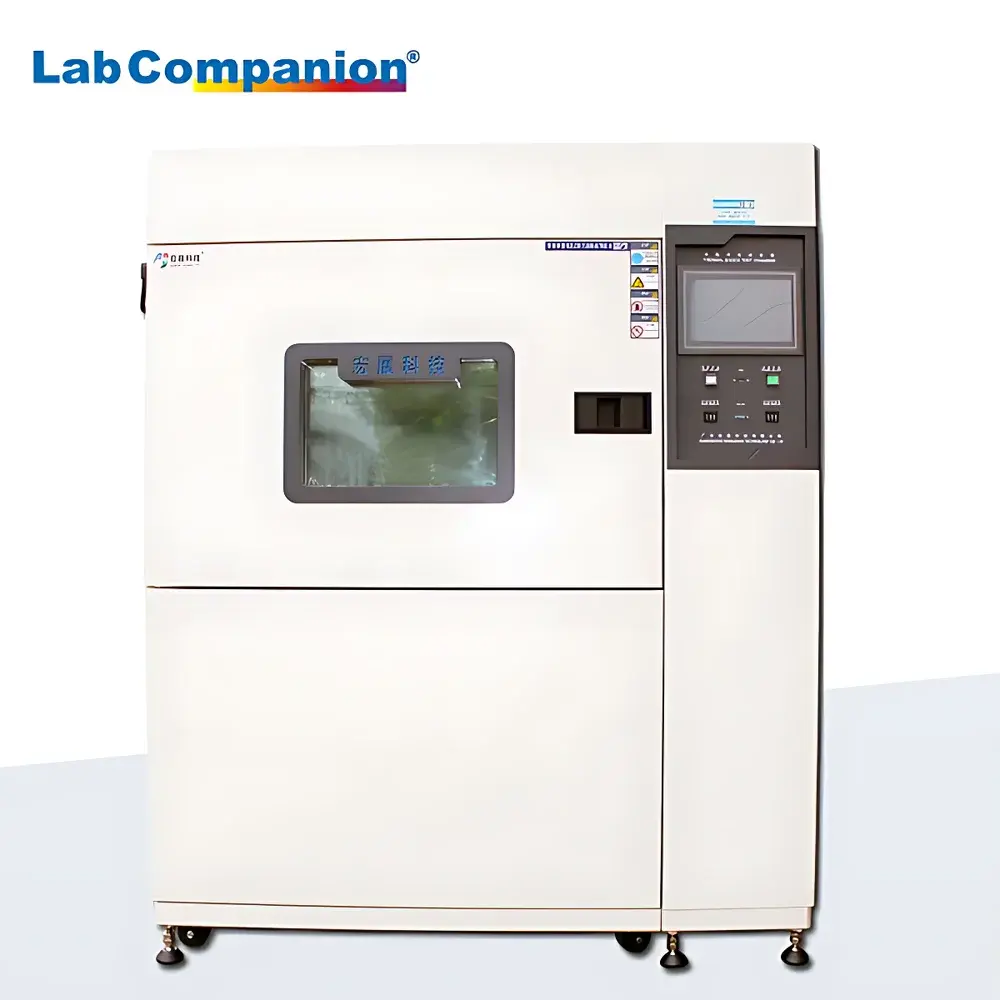

LabCompanion TSS-150W Thermal Shock Test Chamber

Overview

The LabCompanion TSS-150W Thermal Shock Test Chamber is an engineered environmental stress screening (ESS) system designed for rapid, repeatable, and high-fidelity evaluation of material and component reliability under extreme temperature transitions. Based on the two-chamber (hot/cold) pneumatic door-switching architecture, it subjects test specimens to abrupt thermal excursions—without intermediate dwell or ramped transitions—thereby simulating real-world field stresses such as solder joint fatigue, delamination in multilayer PCBs, seal integrity failure in hermetic packages, and coefficient-of-thermal-expansion (CTE) mismatch-induced cracking. Unlike conventional temperature cycling chambers, the TSS-150W eliminates thermal mass interference by maintaining independent hot and cold zones at stable setpoints (+60 °C to +200 °C and −78 °C to 0 °C respectively), enabling shock transitions with ≤5-minute temperature recovery time (measured per IEC 60068-2-14 and MIL-STD-202G Method 107). Its robust stainless-steel chamber construction, nitrogen-compatible insulation, and closed-loop PID-controlled refrigeration system ensure long-term stability and repeatability required for qualification testing in automotive electronics (AEC-Q200), aerospace avionics, and semiconductor packaging validation.

Key Features

• Two-zone independent thermal reservoirs: High-temperature chamber (up to +200 °C) and ultra-low-temperature chamber (down to −78 °C using cascade refrigeration)
• Pneumatically actuated insulated transfer door ensuring <3-second specimen transfer time and minimal thermal cross-contamination
• Temperature stability maintained within ±2 °C across full operating range, verified per ISO/IEC 17025-accredited calibration protocols
• Controlled thermal transition profiles: programmable dwell times (0–9999 min), cycle counts (1–9999), and shock direction (hot→cold or cold→hot)
• Integrated safety interlocks including over-temperature cut-off, refrigerant pressure monitoring, and door-position verification sensors
• Front-access specimen loading platform with 30 kg static load capacity and standardized mounting rails compatible with JEDEC trays and MIL-STD-883 compliant fixtures

Sample Compatibility & Compliance

The TSS-150W accommodates specimens up to 7.5 kg (standard configuration) with internal chamber dimensions of W600 × H500 × D500 mm—optimized for IC packages (QFP, BGA, CSP), automotive ECUs, MEMS sensors, optical modules, and polymer-based enclosures. Chamber uniformity meets IEC 60068-3-5 requirements for spatial deviation (<±2 °C at 16 reference points). The system supports compliance-driven test execution per ASTM D5229/D5229M (low-temperature impact resistance), IPC-9701A (temperature cycling acceptance criteria), and JESD22-A104F (thermal shock test method). Optional validation kits enable IQ/OQ documentation aligned with FDA 21 CFR Part 11 and GLP/GMP audit trails when paired with LabCompanion’s validated software suite.

Software & Data Management

Equipped with LabCompanion’s TC-Link™ Control Suite v4.2, the TSS-150W provides real-time multi-channel temperature logging (16 analog inputs), event-triggered data capture, and configurable alarm escalation (email/SNMP). All test sequences—including profile definition, cycle progress, and deviation alerts—are timestamped with microsecond precision and stored in encrypted SQLite databases compliant with 21 CFR Part 11 electronic record requirements. Audit logs track user actions, parameter changes, and calibration events with immutable hash signatures. Export formats include CSV, PDF test reports (with embedded chamber thermocouple traces), and XML for LIMS integration. Remote access via HTTPS-enabled web interface supports secure off-site monitoring without VPN dependency.

Applications

• Qualification of lead-free solder joints per JEDEC J-STD-020 and IPC-J-STD-006
• Reliability screening of power modules (SiC/GaN) under repeated thermal shock per AEC-Q101
• Evaluation of adhesive bond strength degradation in optoelectronic housings
• Validation of conformal coating performance on printed circuit assemblies
• Accelerated life testing of battery management systems (BMS) in EV traction inverters
• Material science research on phase-transition behavior in shape-memory alloys and piezoelectric ceramics

FAQ

What is the difference between thermal shock and temperature cycling?
Thermal shock involves instantaneous transfer between extreme temperature extremes with minimal dwell, inducing high transient stress gradients; temperature cycling uses controlled ramp rates and extended dwells to assess cumulative fatigue effects.
Does the TSS-150W support three-chamber configurations?
No—the TSS series utilizes a dedicated two-chamber design optimized for shock speed and thermal isolation. For three-zone applications (e.g., ambient soak), LabCompanion offers the TSU-series with integrated intermediate chamber.
Can the system operate continuously for extended qualification runs?
Yes—designed for 24/7 operation with dual-stage cascade refrigeration, redundant heater circuits, and predictive maintenance alerts based on compressor runtime and refrigerant saturation diagnostics.
Is nitrogen purging available as an option?
Optional N₂ purge kit (model NP-KIT-TSS) is available to suppress oxidation during high-temperature exposure, particularly for copper-metallized substrates and bare-die testing.
How is traceability ensured for regulatory submissions?
Each unit ships with factory calibration certificates traceable to NIM (China National Institute of Metrology), and optional UKAS-accredited calibration services are available upon request.
