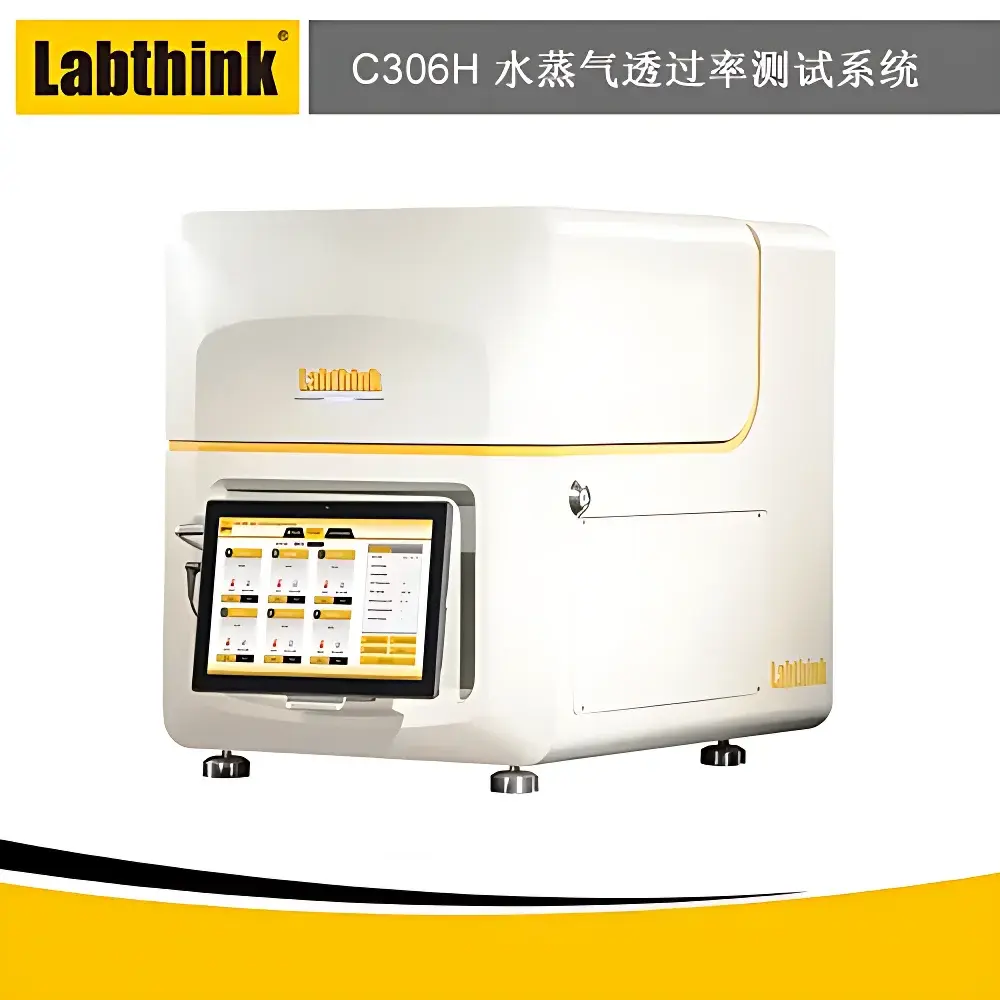

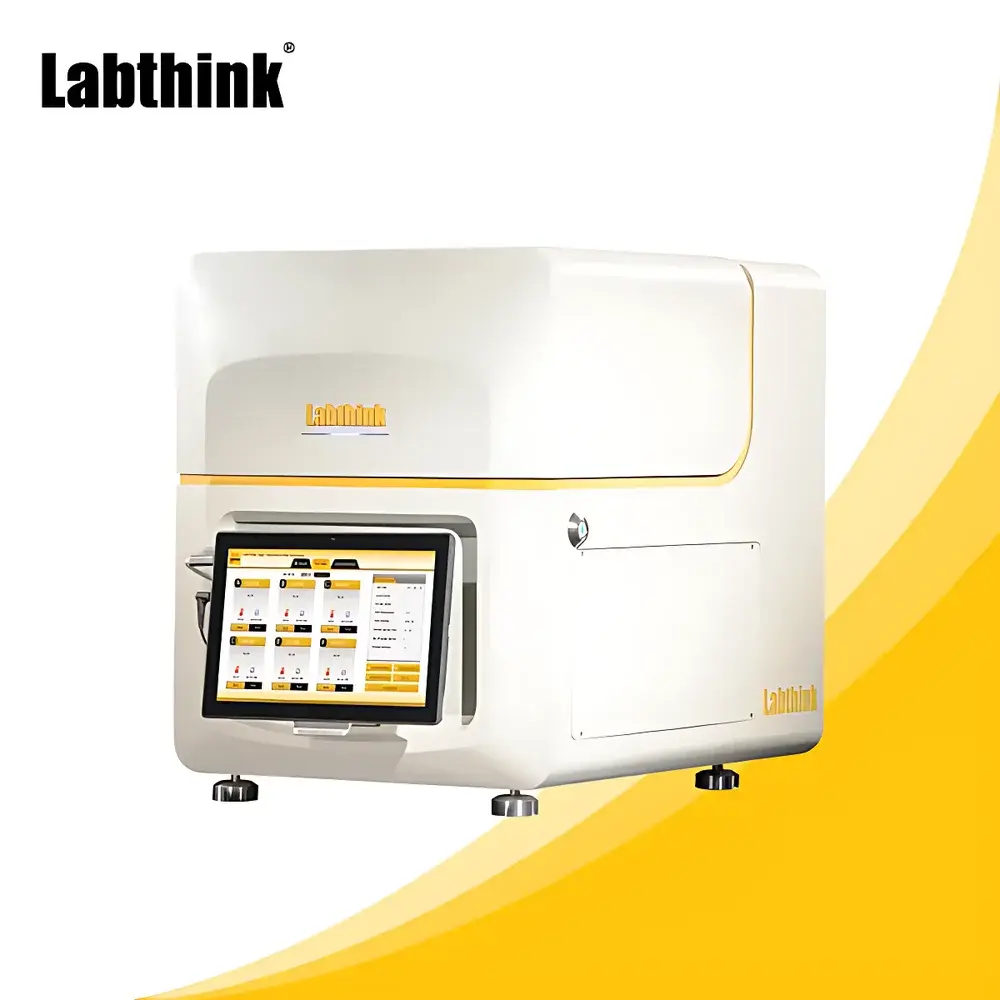

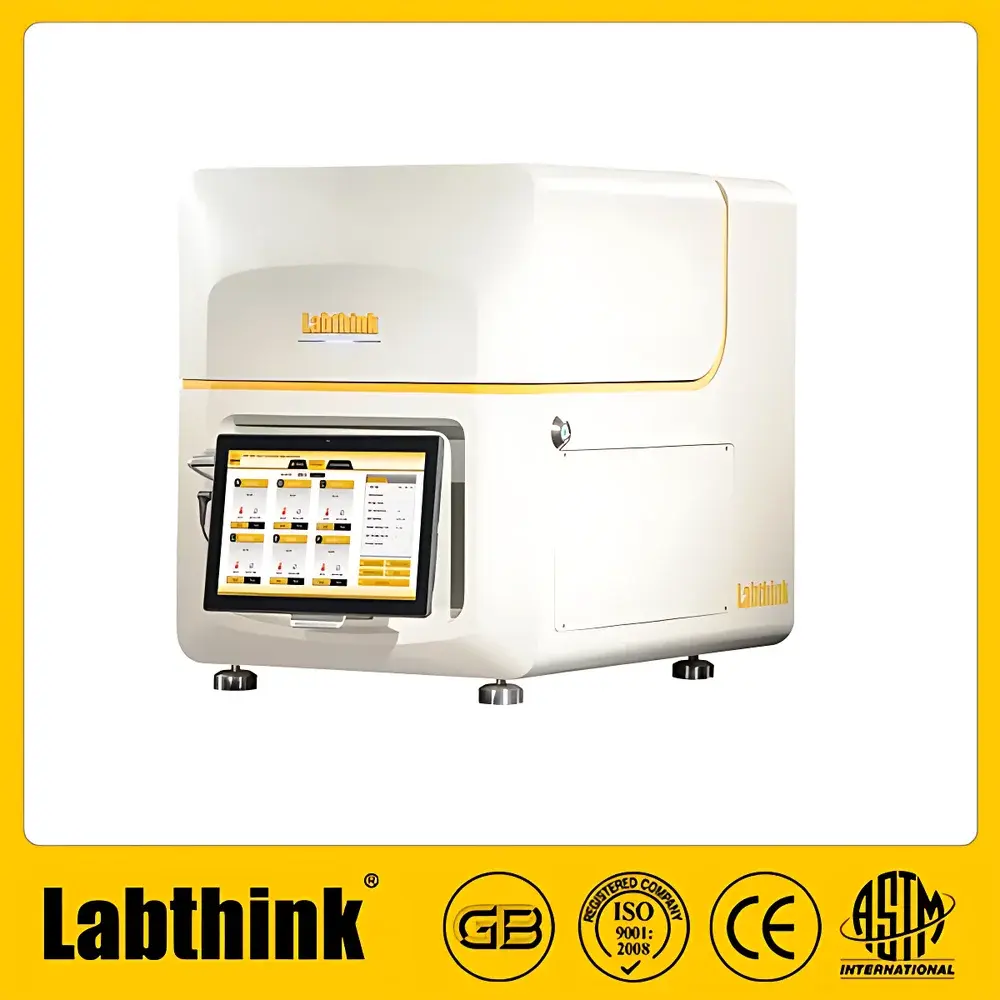

Labthink C306H Water Vapor Transmission Rate (WVTR) Tester for Medical Adhesive Films and Scar Management Patches

Overview

The Labthink C306H Water Vapor Transmission Rate (WVTR) Tester is an ISO- and ASTM-compliant gravimetric-equivalent instrumentation platform engineered for high-precision, high-throughput measurement of water vapor permeation through polymeric films and flexible barrier materials. Unlike traditional cup-based or electrolytic sensor methods, the C306H employs a dynamic, dual-gas-stream configuration based on infrared moisture detection — directly aligned with the fundamental principles of Fickian diffusion across thin-film barriers. In this system, conditioned nitrogen flows across one side of the specimen at controlled relative humidity (RH), while dry carrier gas sweeps the opposite side. Water vapor diffusing through the sample is quantitatively captured and measured in real time by a proprietary non-consumable infrared (IR) hygrometer, enabling trace-level detection down to 0.02 g/(m²·day). This principle ensures metrological traceability, long-term sensor stability, and immunity to drift — critical attributes for regulatory submissions and quality control in medical device manufacturing, particularly for silicone gel scar management patches, transdermal drug delivery systems, and sterile barrier packaging.

Key Features

• Six independent, parallel test chambers — each with standardized 50 cm² exposure area — enabling simultaneous evaluation of up to six specimens under identical environmental conditions, tripling throughput versus conventional single- or dual-cell instruments.
• Proprietary non-depleting infrared moisture sensor with 0.0001 g/(m²·day) resolution and ≥10-year operational lifespan; no periodic recalibration or consumable replacement required.
• “Rainbow Bridge” test chamber architecture featuring 360° circumferential airflow and active thermal shrouding, delivering ±0.15 °C temperature uniformity across all six cells — essential for minimizing edge effects and ensuring inter-chamber reproducibility.
• Integrated high-accuracy RH sensor within each test cavity, continuously logging local humidity gradients to support diffusion profile analysis and transient-state validation per ISO 15106-2 Annex B.
• Automated specimen clamping mechanism with consistent torque application (±2% force repeatability), eliminating operator-induced seal variability and reducing leak-related outliers.
• Embedded industrial-grade Windows-based computing module with 12-inch capacitive touchscreen interface; fully isolated from external networks to prevent malware intrusion, ensuring data integrity and compliance with FDA 21 CFR Part 11 electronic record requirements when optionally configured with DataShield™ audit trail and e-signature modules.

Sample Compatibility & Compliance

The C306H accommodates rigid and flexible planar specimens up to 3 mm thick and 11.2 cm × 11.2 cm in dimension. It is validated for use with silicone elastomer scar patches, pressure-sensitive acrylic adhesives, polyurethane films, PVDC-coated substrates, aluminum-laminated foils, and multilayer pharmaceutical blister materials. Regulatory alignment includes full conformance with ASTM F1249 (Standard Test Method for Water Vapor Transmission Rate Through Plastic Film and Sheeting Using a Modulated Infrared Sensor), ISO 15106-2 (Plastics — Film and sheeting — Determination of water vapour transmission rate — Part 2: Infrared detection method), GB/T 26253 (Chinese national standard for WVTR of plastic films), JIS K7129 (Japanese Industrial Standard), and YBB00092003-2015 (Chinese Pharmacopoeia packaging material specification). All firmware and software logic are designed to support GLP/GMP audit readiness, including full metadata capture (operator ID, calibration logs, environmental setpoints, raw sensor outputs) and immutable timestamped result archives.

Software & Data Management

The embedded control software provides both manual and fully automated workflows. Users define test parameters — temperature, RH setpoint, duration, and gas flow rates — then initiate “one-touch” execution. Real-time graphs display cumulative transmission curves, derivative flux rates, and chamber-specific humidity/temperature deviations. Raw IR absorption signals are logged at 10 Hz and mathematically integrated using first-principles mass balance equations to compute final WVTR values in g/(m²·day), with uncertainty propagation per GUM (JCGM 100:2018). Optional CFR 21 Part 11 compliance packages include role-based access control, electronic signatures, audit trail review tools, and encrypted database export (CSV, PDF, XML) compatible with LIMS integration. DataShield™ adds tamper-evident hashing and blockchain-style ledger logging for forensic traceability.

Applications

This instrument serves as a primary metrology tool across regulated industries where moisture barrier performance dictates product safety and efficacy. In medical device development, it characterizes silicone gel scar patches for post-surgical wound management — verifying that WVTR remains within the therapeutic window (typically 500–2000 g/(m²·day) for optimal moist wound healing without maceration). For pharmaceutical packaging, it validates cold-form foil blisters and child-resistant pouches against USP moisture ingress limits. In food packaging R&D, it quantifies shelf-life impact of ethylene barrier degradation in modified atmosphere packaging. Additional use cases span photovoltaic encapsulant films (EVA, POE), battery separator membranes, and wearable electronics moisture barriers — wherever precise, repeatable, and auditable WVTR data under controlled climatic conditions is mandatory.

FAQ

What standards does the C306H comply with?
ASTM F1249, ISO 15106-2, GB/T 26253, JIS K7129, and YBB00092003-2015.
Is nitrogen gas supplied with the instrument?
No — users must provide externally sourced 99.999% pure nitrogen at ≥280 kPa inlet pressure via 1/8″ stainless steel tubing.
Can the system validate transient-state diffusion behavior?
Yes — continuous high-frequency IR signal acquisition enables construction of time-lag curves and calculation of diffusion coefficients per ISO 15106-2 Annex B.
What is the minimum detectable WVTR value?
0.02 g/(m²·day) at 50 cm² test area, verified using certified low-permeability reference films traceable to NIST SRM 1477.
Does the system support 21 CFR Part 11 compliance out of the box?
No — CFR Part 11 functionality requires optional DataShield™ software licensing and hardware-locked cryptographic modules.
How is temperature uniformity maintained across all six chambers?
Via a thermally balanced “Rainbow Bridge” manifold with distributed heating elements, PID-controlled air recirculation, and real-time feedback from six independent PT100 sensors.
