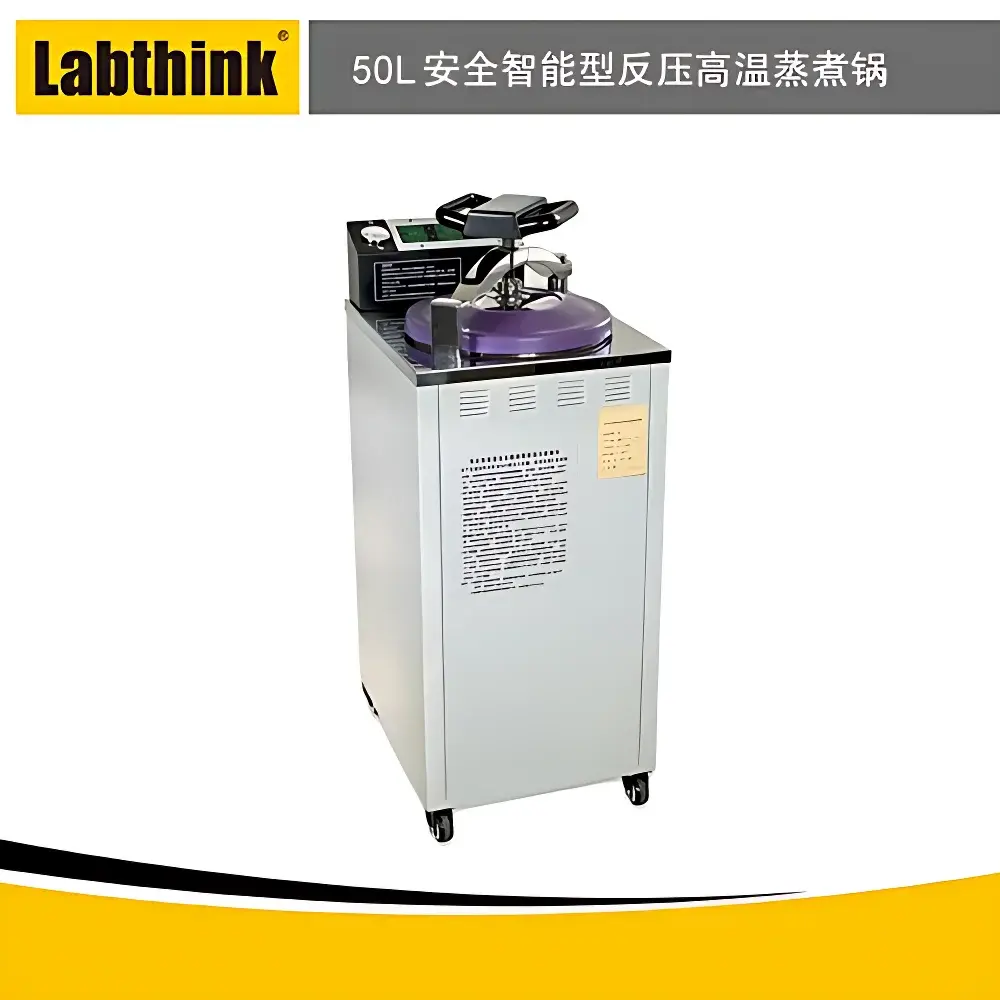

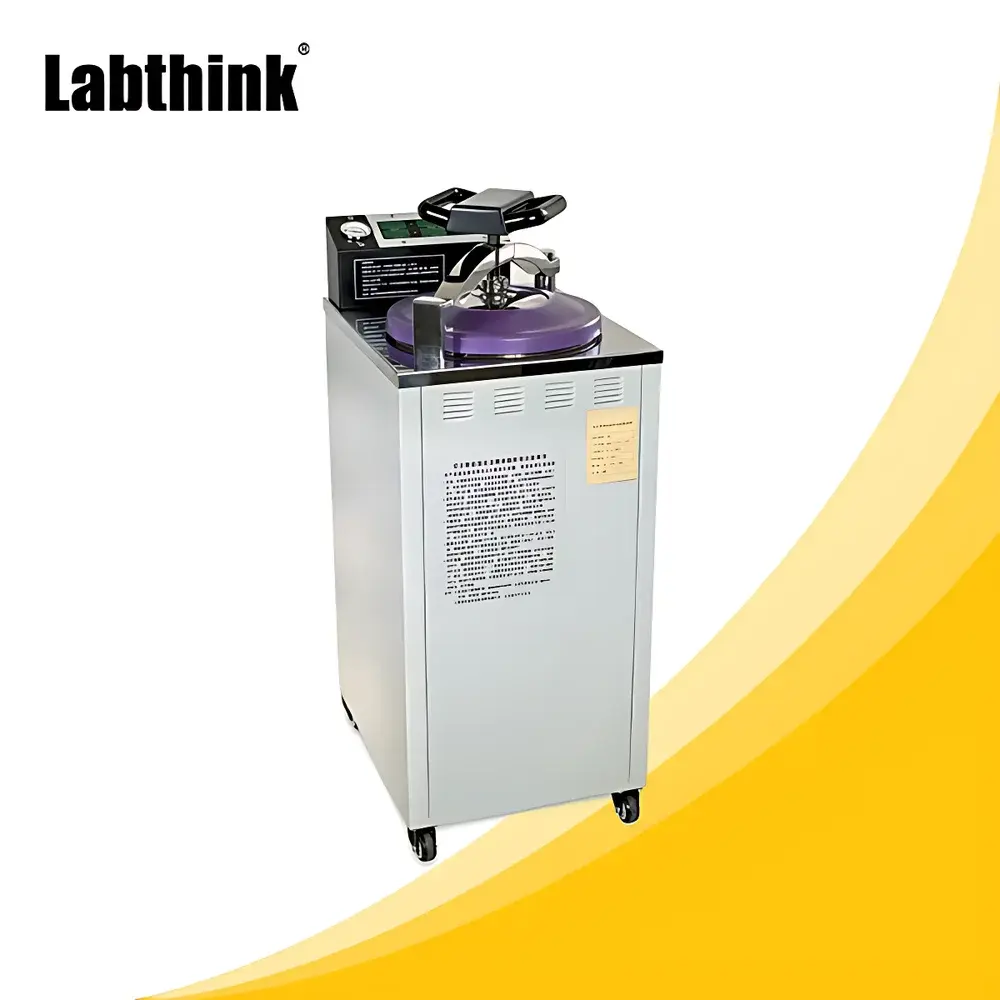

Labthink RCP-50 Intelligent Retort Sterilizer with Back-Pressure Control
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | RCP-50 |
| Capacity | 50 L |
| Operating Temperature Range | ≥10 °C to 135 °C |
| Maximum Working Pressure | 0–0.22 MPa |
| Timer Range | 0–999 min |
| Power Supply | AC 220 V, 50 Hz |
| Rated Power | 2 kW |
| Cooling Method | Forced-air cooling with back-pressure compensation |
| Safety Features | Over-temperature, over-pressure, low-water-level, and leakage protection |
| Compliance Documentation | Full set of calibration certificates, verification reports, and metrological traceability records per Chinese National Verification Regulation JJG 974–2021 |
Overview
The Labthink RCP-50 Intelligent Retort Sterilizer with Back-Pressure Control is a precision-engineered physical property testing instrument designed for accelerated thermal stability evaluation of flexible packaging materials—particularly laminated food pouches, retortable pouches, adhesive layers, and printed inks—under controlled high-temperature, high-humidity, and pressurized conditions. It operates on the principle of saturated steam sterilization under regulated back-pressure, enabling accurate simulation of industrial retort processing environments (e.g., 121 °C/15 psi or 135 °C/2.2 bar). Unlike conventional autoclaves, the RCP-50 maintains dynamic pressure equilibrium during both heating and cooling phases via programmable nitrogen or compressed air injection, thereby eliminating sample deformation, delamination, or pouch burst caused by internal vapor expansion—a critical requirement for ASTM F2054, ISO 11607-2, and GB/T 10004–2008 compliance testing.
Key Features
- Microprocessor-based PID temperature and pressure control system with real-time digital display and ±0.5 °C / ±0.01 MPa repeatability across full operating range
- Automated safety interlock sequence: self-diagnostic water level detection, dual redundant pressure transducers, thermal cut-off at 140 °C, and ground-fault circuit interruption (GFCI)
- Integrated forced-air cooling module with pressure-compensated gas injection—reducing cooldown time by up to 40% versus water-jacket systems while preventing vacuum-induced collapse
- Pre-programmed test protocols compliant with national verification regulation JJG 974–2021, including mandatory documentation templates for metrological traceability and audit readiness
- Stainless steel 316L chamber (50 L usable volume), fully insulated jacket, and leak-tested sealing mechanism rated for 100,000+ operational cycles
- Front-panel interface with password-protected parameter locking, event logging (timestamped start/end, max temp/pressure, fault codes), and USB export capability
Sample Compatibility & Compliance
The RCP-50 accommodates standard flat pouches (up to 300 × 400 mm), roll stock specimens, and multi-layer composite structures—including PET/AL/PE, CPP/AL/PE, and metallized OPP laminates. Its design supports direct integration into GLP- and GMP-aligned quality systems: all firmware operations comply with FDA 21 CFR Part 11 requirements for electronic records and signatures (audit trail enabled); test reports include unique ID stamps, operator credentials, environmental calibration data, and uncertainty budgets per ISO/IEC 17025:2017 Annex A.2. The instrument meets essential safety standards IEC 61010-1 (electrical safety) and EN 13445-1 (unfired pressure vessels), and its validation package satisfies third-party accreditation needs for CNAS, ILAC-MRA, and EU Notified Body assessments.
Software & Data Management
While the RCP-50 operates as a standalone benchtop unit with embedded firmware, optional Labthink Link™ PC software (v3.2+) enables remote monitoring, batch report generation (PDF/CSV), and trend analysis across multiple instruments. All raw data—including temperature ramp profiles, pressure hold stability curves, and cooldown gradients—are timestamped and stored locally with SHA-256 hash integrity verification. Exported files embed metadata required for regulatory submissions: instrument ID, calibration due date, operator ID, environmental ambient log, and deviation flags (e.g., “temp overshoot >1.0 °C” or “pressure fluctuation >0.005 MPa”). Audit trails are immutable and retain full history for ≥10 years without manual archiving.
Applications
- Evaluation of seal integrity retention after retort exposure per ASTM F1140/F1886
- Accelerated aging studies for shelf-life prediction of ready-to-eat (RTE) meal pouches
- Adhesive bond strength degradation analysis under thermal-hygrometric stress
- Print rub resistance and ink migration screening post-sterilization
- Validation of barrier layer performance (O₂/ WVTR) following thermal challenge
- Supporting ISO 11607-2 packaging validation dossiers for medical device sterile barrier systems
FAQ
What standards does the RCP-50 support for packaging validation?
It is configured to execute test sequences aligned with ASTM F2054 (retort pouch burst testing), ISO 11607-2 (sterile barrier system validation), GB/T 10004–2008 (composite plastic films), and Chinese Pharmacopoeia Appendix XIX D (sterilization process verification).
Is the instrument suitable for pharmaceutical primary packaging?
Yes—when operated within validated parameters and integrated with documented IQ/OQ/PQ protocols, it supports USP , , and EU Annex 1 requirements for terminally sterilized flexible containers.
How is metrological traceability ensured?
Each unit ships with NIST-traceable calibration certificates for temperature (PT100 sensor), pressure (piezoresistive transducer), and timer (quartz oscillator), all verified against national standards by CNAS-accredited labs per JJG 974–2021.
Can the cooling rate be customized?
Yes—the forced-air system allows user-defined ramp-down profiles (linear or stepwise), with back-pressure modulation active throughout to maintain constant internal-to-external differential pressure.
